565BAA004660ABG datasheet, PDF

Datasheet> All Categories > Passive components> Frequency controller and a timer> oscillator> VCXO oscillator> 565BAA004660ABG

Preview

565BAA004660ABG: DescriptionVCXO oscillatorDifferential/single-ended single VCXO; 0.2-3000 MHz; CategoryPassive components Frequency controller and a timer oscillator VCXO oscillator; File Size970KB，19 Pages; ManufacturerSilicon Labs; Websitehttps://www.silabs.com; Environmental Compliance

Download Datasheet Parametric Compare View All

565BAA004660ABG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	565BAA004660ABG	-	-	View	Buy Now

565BAA004660ABG Overview

VCXO oscillatorDifferential/single-ended single VCXO; 0.2-3000 MHz

565BAA004660ABG Parametric

Parameter Name	Attribute value
Maker	Silicon Labs
Product Category	VCXO Oscillator
Shipping restrictions	Mouser does not currently sell this product.
frequency	0.2 MHz to 3000 MHz
frequency stability	20 PPM
load capacitance	5 pF
Working power voltage	1.8 V, 2.5 V, 3.3 V
Supply voltage - min.	1.71 V
Supply voltage - max.	3.465 V
Output format	LVDS
Termination type	SMD/SMT
Package/box	5 mm x 7 mm
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
length	7 mm
high	1.28 mm
width	5 mm
series	Si565
Current rating	100 mA
Duty Cycle - Max	55 %
Installation style	SMD/SMT
Factory packaging quantity	50

Preview

Download Datasheet

View All

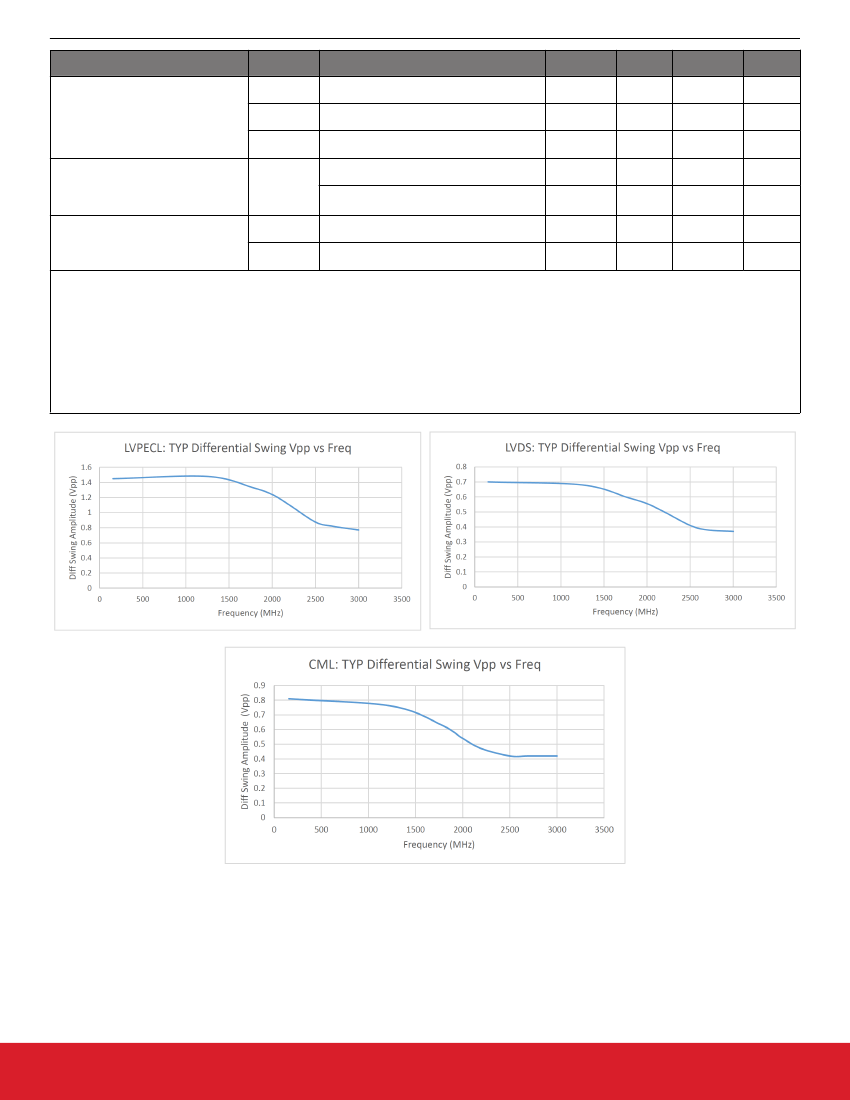

Ultra Series

™

Crystal Oscillator (VCXO)

Si565 Data Sheet

Ultra Low Jitter Any-Frequency VCXO (100 fs), 0.2 to 3000

MHz

The Si565 Ultra Series

™

voltage-controlled crystal oscillator utilizes Silicon Labo-

ratories’ advanced 4

generation DSPLL

technology to provide an ultra-low jit-

ter, low phase noise clock at any output frequency. The device is factory-pro-

grammed to any frequency from 0.2 to 3000 MHz with <1 ppb resolution and

maintains exceptionally low jitter for both integer and fractional frequencies

across its operating range. On-chip power supply filtering provides industry-lead-

ing power supply noise rejection, simplifying the task of generating low jitter

clocks in noisy systems that use switched-mode power supplies. Offered in in-

dustry-standard 3.2x5 mm and 5x7 mm footprints, the Si565 has a dramatically

simplified supply chain that enables Silicon Labs to ship custom frequency sam-

ples 1-2 weeks after receipt of order. Unlike a traditional XO, where a different

crystal is required for each output frequency, the Si565 uses one simple crystal

and a DSPLL IC-based approach to provide the desired output frequency. The

Si565 is factory-configurable for a wide variety of user specifications, including

frequency, output format, and OE pin location/polarity. Specific configurations are

factory-programmed at time of shipment, eliminating the long lead times associ-

ated with custom oscillators.

Pin Assignments

VDD

KEY FEATURES

• Available with any frequency from 200 kHz to

3000 MHz

• Ultra low jitter: 100 fs RMS typical

(12 kHz – 20 MHz)

• Excellent PSRR and supply noise immunity:

–80 dBc Typ

• 3.3 V, 2.5 V and 1.8 V V

supply operation

from the same part number

• LVPECL, LVDS, CML, HCSL, CMOS, and Dual

CMOS output options

• 3.2x5, 5x7 mm package footprints

• Samples available with 1-2 week lead times

APPLICATIONS

• 100G/200G/400G OTN, coherent optics

• 10G/25G/40G/100G Ethernet

• 56G/112G PAM4 clocking

• 3G-SDI/12G-SDI/24G-SDI broadcast video

• Servers, switches, storage, NICs, search

acceleration

• Test and measurement

• FPGA/ASIC clocking

GND

CLK–

CLK+

(Top View)

Pin #

VC = Voltage Control Pin

Descriptions

OSC

Fixed

Frequency

Crystal

Frequency

Flexible

DSPLL

DCO

Low

Noise

Driver

OE = Output enable

GND = Ground

CLK+ = Clock output

CLK- = Complementary clock output. Not used for CMOS.

VDD = Power supply

ADC

Control

Digital

Phase

Detector

Phase Error

Cancellation

Phase Error

Fractional

Divider

Digital

Loop

Filter

Flexible

Formats,

1.8V – 3.3V

Operation

NVM

Power Supply Regulation

Output Enable

(Pin Control)

Built-in Power Supply

Noise Rejection

silabs.com

| Building a more connected world.

Rev. 1.0
