Large Current 3 Terminals Low ESL Chip Multilayer Ceramic Capacitors (EMIFIL) for General Purpose
NFM15PC146R0G3_ (0402, 14uF, DC4V)
_: packaging code
1.Scope
Reference Sheet
This product specification is applied to Large Current 3 Terminals Low ESL Chip Multilayer Ceramic Capacitorss (EMIFIL) used for General Electronic equipment.
2.MURATA Part NO. System
(Ex.)
NFM
15
(1)L/W
Dimensions
PC
(2)Features
146
(3)Nominal
Capacitance
R
0G
3
(6)Electrode
D
(7)Packaging Code
(4)Characteristics
(5)DC Rated Voltage
3. Type & Dimensions
a)Equivalent Circuit
(1)-1 L
i
1.0±0.15
0.35±0.1
(1)-2 W
j
0.5±0.15
0.15±0.1
T
0.5±0.15
e
0.2±0.1
(Unit:mm)
g
0.1 min.
4.Rated value
(3) Nominal Capacitance
Capacitance Tolerance
(5)
DC Rated
Voltage
Rated
Current
(mA)
DC
Resistance
Insulation
Resistance
Specifications and Test Methods
(Operating /Storage Temp. Range)
14 uF
±20 %
DC 4 V
2A(DC)
30mΩmax. 50Ω・Fmin.
-55 to 85 °C / -55 to 85 °C

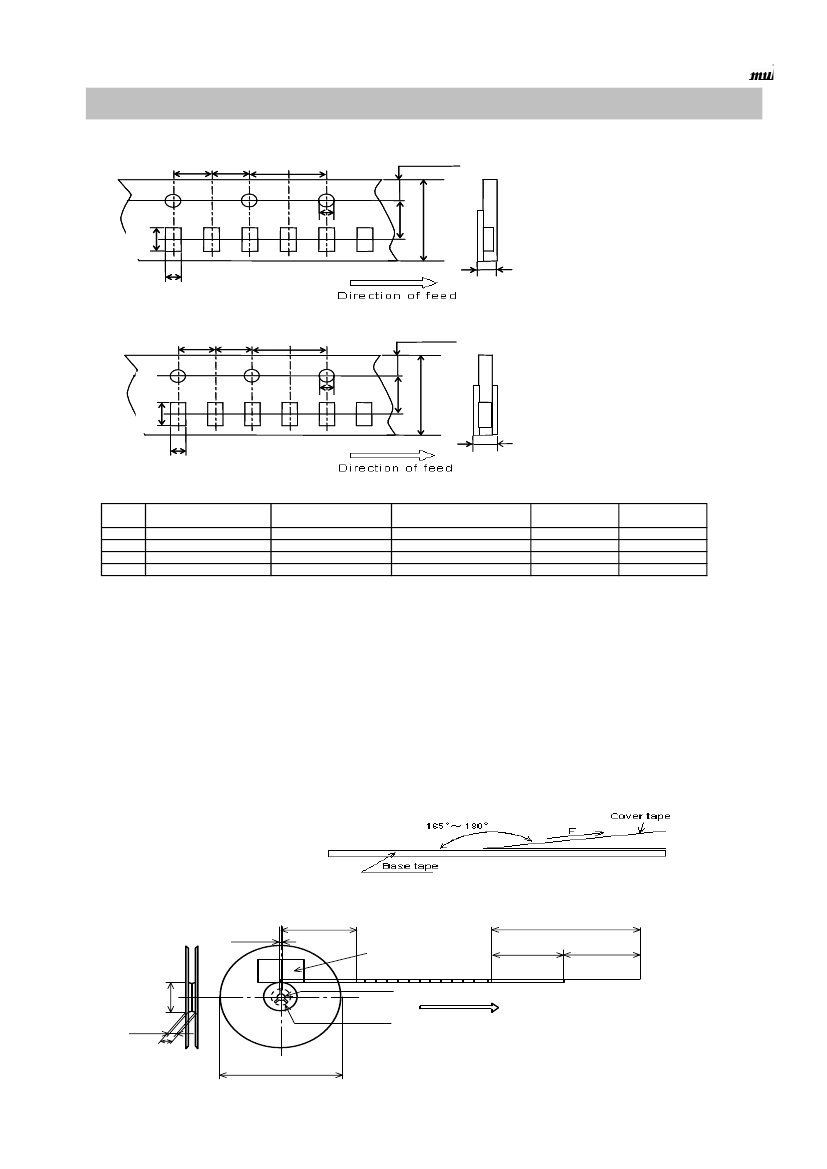

5.Package
mark
D
(7) Packaging
f180mm
Reel
PAPER W8P2
Packaging Unit
10000 pcs./Reel
Product specifications in this catalog are as of Sep.14,2018,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
NFM15PC146R0G3-01
1
Only for mobile devices
■SPECIFICATIONS
AND TEST METHODS
Electrical Performance
Item
No
1 Capacitance
(Cap.)
Specification
Shown in Rated value.
Test Method
Frequency : 120±24Hz
Voltage : 0.5V±0.1V(rms)
2 Insulation
Resistance(I.R.)
3 DC Resistance
4 Withstanding Voltage
Products shall not be damaged.
Voltage : Rated Voltage
Time : 2 minutes max.
Measured with 100mA max.
Test Voltage : Rated Voltage x 250%
Time : 1 to 5 s
Charge Current : 50 mA max.
Includes self-heating
5 Operating Temperature Shown in Rated value.
6 Storage Temperature
Standard Testing Condition
< Unless otherwise specified >
Temperature : Ordinary Temp. / 15 °C to 35 °C
Humidity: Ordinary Humidity / 25 %(RH) to 85 %(RH)
< In case of doubt >
Temperature: 20 °C ± 2 °C
Humidity: 60 %(RH) to 70 %(RH)
Atmospheric pressure: 86 kPa to 106 kPa
JEMCPS-06858
2
■SPECIFICATIONS
AND TEST METHODS
Mechanical Performance
Item
No
1 Appearance and
Dimensions
2 Solderability
Specification
Appearance:No defects or abnormalities.
Dimensions:Within the specified dimensions.
Electrodes shall be at least 90% covered with
new solder coating.
Test Method
Appearance:Visual inspection.
Using Measuring instrument of dimension.
Flux : Ethanol solution of rosin, 25(mass)%
Pre-heat : 150±10°C, 60 to 90s
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature : 240 ± 3°C
Immersion Time : 3±1 s
Immersion and emersion rates : 25mm / s
Flux : Ethanol solution of rosin, 25(mass)%
Pre-heat : 150±10°C, 60 to 90s
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature : 270 ± 5°C
Immersion Time : 10 ± 1 s
Immersion and emersion rates : 25mm / s
Initial values :
measured after heat treatment (150+0 / -10 °C,1hour) and
exposure in the room condition for 48±4 hours.
Then measured after exposure in the room condition for 48±
4 hours.
It shall be soldered on the glass-epoxy substrate
(100×40×0.8mm).
Deflection : 1.0 mm
Keeping Time : 5 s
Pressure jig
F
Deflection
45
45
R340
3 Resistance to
soldering heat
Meet Table 1.
Table 1
Appearance
Cap. Change
I.R.
DC
Resistance
No damaged
Within ±7.5%
Meet the initial rated
value.
0.05 max.
4 Bending Strength
Meet Table 2.
Table 2
Appearance
Cap. Change
DC
Resistance
No damaged
Within ±7.5%
0.05max.
Product
(in mm)
5 Bonding Strength
The electrodes shall be no failure after tested.
It shall be soldered on the glass-epoxy substrate.
Applying Force (F) : 5 N
Applying Time : 10s
R0.5
0.6
0.25
6 Vibration
Meet Table 3.
Table 3
Appearance
Capacitance
DC
Resistance
No damaged
Meet the initial rated
value.
0.05max.
1.6
(in mm)
It shall be soldered on the glass-epoxy substrate.
Oscillation Frequency : 10 to 2000 to 10Hz for 20 minute.
Total amplitude 3.0 mm or Acceleration amplitude 196m/s2
