3401-002 D*MA Connectors
Features/Benefits
•
D*Sub Connector type
•
Removable Contacts technology
•
Standard and High Density available
•
From 9 to 104 ways
•
ESCC Specification. Reference 3401002
Connectors with crimp, snap-in, removable contacts .
Connectors normally supplied without contacts (suffix F0 in the description, not marked on the connector). The contacts should be
ordered separately.
When supplied with contacts (no suffix F0), the connectors are equipped with contacts:
Size 20/20 for D*MA Connectors standard density
Size 22/22 for D*MA Connectors high density
Packaging unit: 1 piece (plastic bag) for connectors, 250 pieces for contacts.
Dust cap and insertion/extraction tool supplied with each connector, only for quality level ESA/ESCC
Typical Applications
•
Satellite Structure
Space Harnesses
•
Payloads Harnesses
•
Test Harnesses
•
Launchers Harnesses
PARTICULARITIES:
• Shells copper alloy for size E, A, B, C, D
• Shells Aluminium alloy for size F (104 ways)
• Fixing option E (captive nut)
• Fixing option Y (dual float mount)

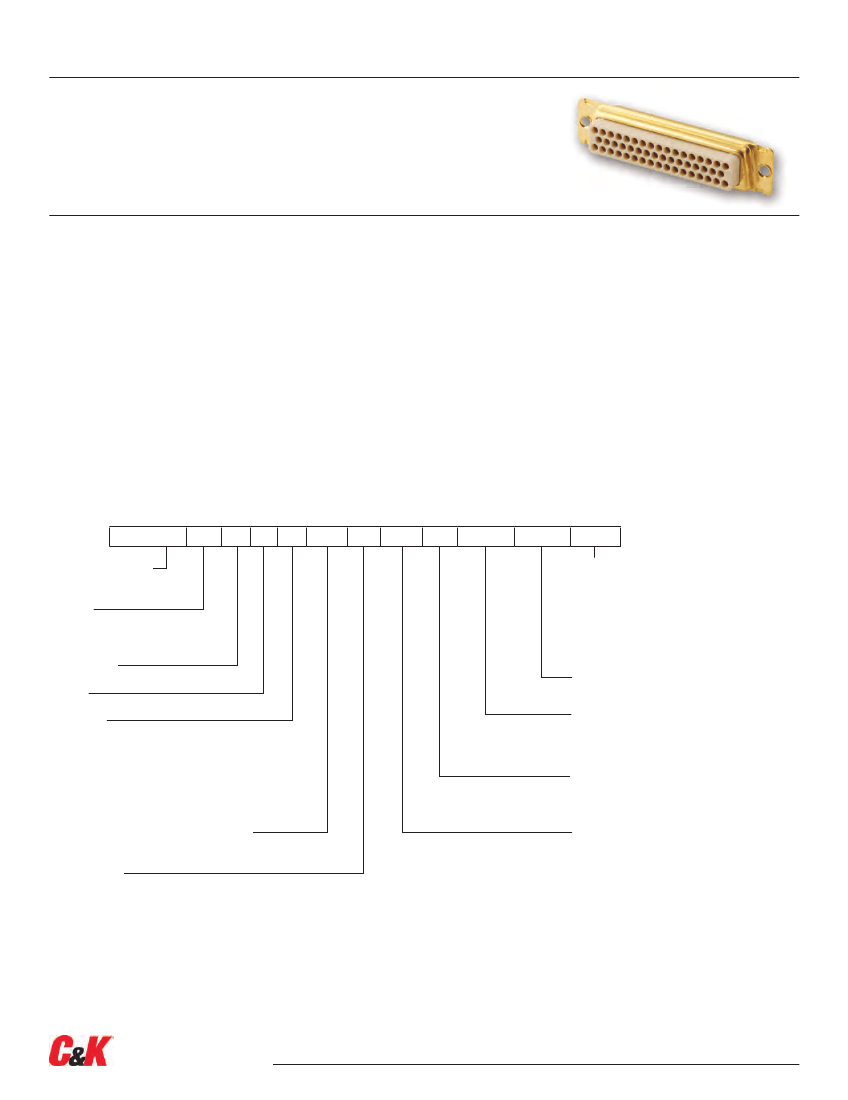

How to order – ESA/ESCC Quality Level
3401002
Detail specification
number
Variant
01: Standard density
02: High density
Testing level
Series
Shell size
E
A
B
C
D
F
Insert type:
MA for two-piece insert with
metal retention clips for crimp contacts
Fixing option
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
01
B
D
B
MA
Y
25
P
NMB
XXX
FO
Contact information
F0: without contacts (marked on the
documentation / not marked on the
connector)
Nothing: with contacts (size 20/20 for
Standard Density / size 22/22 for High
Density)
Shell Finish for F size only:
A174 ( 25.4 µm
Ni), FR172: (0.7µm gold over 25.4µm Ni)
Magnetism level for F size only:
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
Number of contacts for variant 01:
E: 9
A: 15
B: 25
C: 37
D: 50
Number of contacts for variant 02:
E: 15
A: 26
B: 44
C: 62
D: 78
F: 104
Dimensions are shown in mm (inch)
Dimensions subject to change
A6-1
www.ck-components.com
Rev. 23APR13
3401-002 D*MA Connectors
D
Series
Shell size
E
A
B
C
D
F
Insert type:
MA for two-piece
insert with metal retention clips
for crimp contacts
According to MIL-DTL-24308
Specification
Fixing option
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
B
MA
M
Y
25
P
NMB
-XXX
FR023
FO
Contact information
F0: without contacts (marked on the
documentation / not marked on the
connector)
Nothing: with contacts (size 20/20 for
Standard Density / size 22/22 for High
Density)
Suffix for MIL Class Level (Connector
Specification FR023)
Shell Finish for F size only:
A174 ( 25.4 µm
Ni), FR172: 0.7µm gold over 25.4µm Ni
Magnetism level
NMB: 200 Gamma
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
Number of contacts for variant 01:
E: 9
A: 15
B: 25
C: 37
D: 50
Number of contacts for High Density
versions (contacts size 22):
E: 15
A: 26
B: 44
C: 62
D: 78
F: 104
Dimensions are shown in mm (inch)
Dimensions subject to change
A6-2
www.ck-components.com
Rev. 23APR13
3401-002 D*MA Connectors
How to order – FR022 Quality Level
D
Series
Shell size
E
A
B
C
D
F
Insert type:
MA for two-piece
insert with metal retention clips
for crimp contacts
Fixing option
Nothing: Standard through hole
E: Captive nut ( not applicable for size F)
Y: Dual float mount
B
MA
Y
25
P
NMB
-XXX
FR022
FO
Contact information
F0: without contacts (marked on the
documentation / not marked on the
connector)
Nothing: with contacts (size 20/20 for
Standard Density / size 22/22 for High
Density)
Suffix for Commercial Space Grade
Quality Level (Connector Specification
FR022)
Shell Finish for F size only:
A174 ( 25.4 µm
Ni), FR172: 0.7µm gold over 25.4µm Ni
Magnetism level
NMB: 200 Gamma
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
Number of contacts for variant 01:
E: 9
A: 15
B: 25
C: 37
D: 50
Number of contacts for High Density
versions (contacts size 22):
E: 15
A: 26
B: 44
C: 62
D: 78
F: 104
Dimensions are shown in mm (inch)
Dimensions subject to change
A6-3
www.ck-components.com
Rev. 23APR13
3401-002 D*MA Connectors

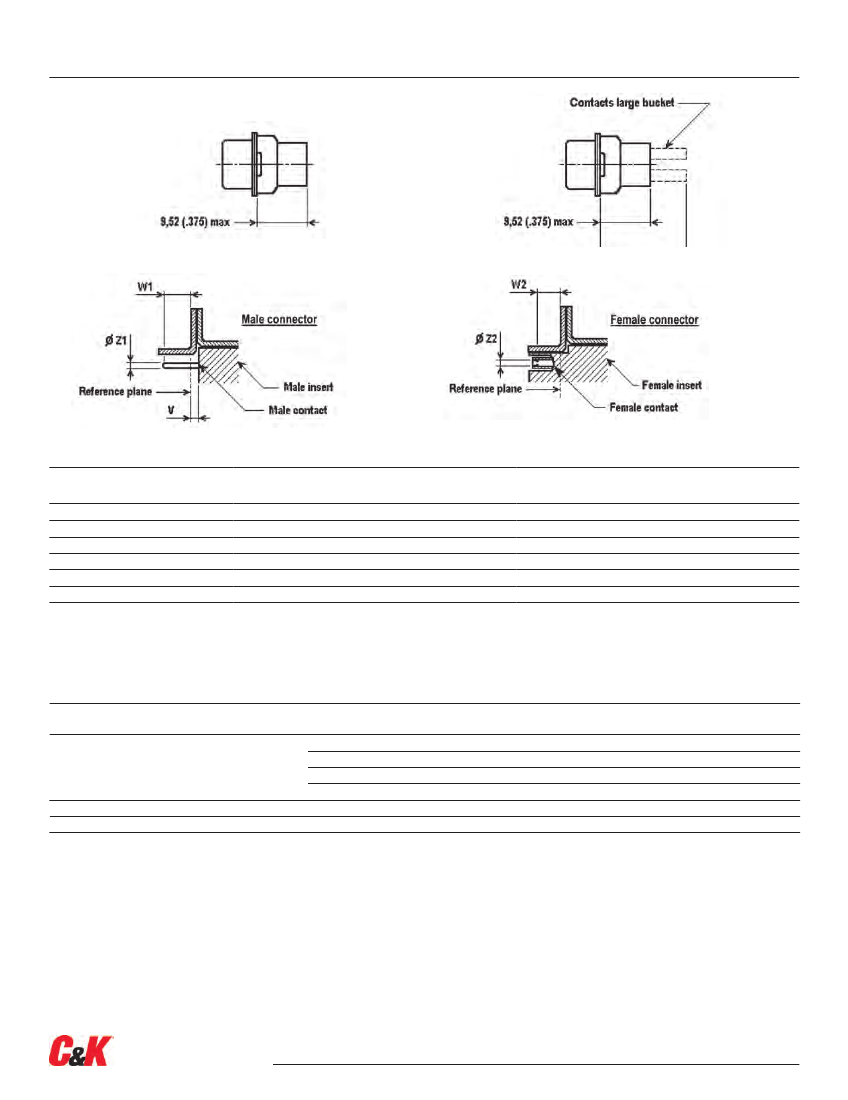

Specific Dimensions
Connectors equipped
with contacts size
20/20 – 20/26 – 22/22
Connectors equipped
with contacts size
20/18
D*MA connectors with contacts
Shell Size
E
A
B
C
D
F
V
max
0,40 (.016)
0,40 (.016)
0,60 (.024)
0,60 (.024)
0,60 (.024)
0,60 (.024)
W1
min (Full pin diameter)
S.D.
(# 20)
4,36 (.172)
4,36 (.172)
4,26 (.168)
4,26 (.168)
4,26 (.168)
N.A.
H.D.
(# 22)
4,43 (.174)
4,43 (.174)
4,33 (.170)
4,33 (.170)
4,33 (.170)
4,33 (.170)
W1
max (Full pin diameter)
5,48 (.216)
5,48 (.216)
5,38 (.212)
5,38 (.212)
5,38 (.212)
N.A.
S.D.
(# 20)
5,45 (.215)
5,45 (.215)
5,45 (.215)
5,45 (.215)
5,45 (.215)
5,45 (.215)
H.D.
(# 22)
W2
min (Square ended pin)
3,77 (.148)
3,77 (.148)
3,77 (.148)
3,77 (.148)
3,77 (.148)
N.A.
S.D.
(# 20)
H.D.
(# 22)
3,63 (.143)
3,63 (.143)
3,63 (.143)
3,63 (.143)
3,63 (.143)
3,63 (.143)
Z1: 0,99 (.039) / 1,04 (.041) S.D.* (# 20), or 0,75 (.0295) / 0,77 (.0305) H.D.* (# 22)
Z2: to accommodate a 1,02 (.040) diameter pin S.D.* (# 20), or a 0,76 (.030) diameter pin H.D.* (# 22)
* SD: Standard density
HD: High density
Weights
Max Weight (grams) without contacts and
without accessories**
Shell Size
E
A
B
C
D
F
Standard Density
6.0
8.3
13.6
18.9
22.3
N.A.
High Density
6.0
8.0
12.0
17.0
20.0
25
** For contacts weight, refer to next page
For dual float mount (Y), weight if applicaple, added 0,60 grams
For captive nut (E), weight if applicable, added 0,65 grams
Dimensions are shown in mm (inch)
Dimensions subject to change
A6-4
www.ck-components.com
Rev. 23APR13
3401-002 D*MA Connectors
Cross References
Type
•
Without contacts
Description ESA/ESCC
340100201B DEMA9PNMBF0
340100201B DEMA9SNMBF0
Part Number
C115370-5010
C115370-5011
Description FR022
DEMA9PNMB-FR022-F0
DEMA9SNMB-FR022-F0
Part Number
C115370-3210
C115370-3211
340100201B DAMA15PNMBF0
340100201B DAMA15SNMBF0
340100201B DBMA25PNMBF0
340100201B DBMA25SNMBF0
340100201B DCMA37PNMBF0
340100201B DCMA37SNMBF0
340100201B DDMA50PNMBF0
340100201B DDMA50SNMBF0
340100202B DEMA15PNMBF0
340100202B DEMA15SNMBF0
340100202B DAMA26PNMBF0
340100202B DAMA26SNMBF0
340100202B DBMA44PNMBF0
340100202B DBMA44SNMBF0
340100202B DCMA62PNMBF0
340100202B DCMA62SNMBF0
340100202B DDMA78PNMBF0
340100202B DDMA78SNMBF0
340100202B DFMA104PNMB-A174-F0
340100202B DFMA104SNMB-A174-F0
340100202B DFMA104PNMB-FR172-F0
340100202B DFMA104SNMB-FR172-F0
*FR023 under request only
C115370-5012
C115370-5013
C115370-5014
C115370-5015
C115370-5016
C115370-5017
C115370-5018
C115370-5019
C115368-5030
C115368-5031
C115368-5032
C115368-5033
C115368-5034
C115368-5035
C115368-5036
C115368-5037
C115368-5038
DAMA15PNMB-FR022-F0
DAMA15SNMB-FR022-F0
DBMA25PNMB-FR022-F0
C115368-5039
C115368-5092
C115368-5093
C115368-5082
C115368-5083
DBMA25SNMB-FR022-F0
DCMA37PNMB-FR022-F0
DCMA37SNMB-FR022-F0
DDMA50PNMB-FR022-F0
DDMA50SNMB-FR022-F0
DEMA15PNMB-FR022-F0
DEMA15SNMB-FR022-F0
DAMA26PNMB-FR022-F0
DAMA26SNMB-FR022-F0
DBMA44PNMB-FR022-F0
DBMA44SNMB-FR022-F0
DCMA62PNMB-FR022-F0
DCMA62SNMB-FR022-F0
DDMA78PNMB-FR022-F0
DDMA78SNMB-FR022-F0
DFMA104PNMB-A174-FR022-F0
DFMA104SNMB-A174-FR022-F0
DFMA104PMB-FR172-FR022-F0
DFMA104SMB-FR172-FR022-F0
C115370-3215
C115370-3216
C115370-3217
C115370-3218
C115370-3219
C115368-3200
C115368-3201
C115368-3202
C115368-3203
C115368-3204
C115368-3205
C115368-3206
C115368-3207
C115368-3218
C115368-3219
C115368-3292
C115368-3293
C115368-3282
C115368-3283
C115370-3212
C115370-3213
C115370-3214
Description ESA/ESCC
340100201B DEMAY9PNMBF0
340100201B DEMAY9SNMBF0
340100201B DAMAY15PNMBF0
340100201B DAMAY15SNMBF0
340100201B DBMAY25PNMBF0
Part Number
C115370-5030
C115370-5031
C115370-5032
C115370-5033
C115370-5034
C115370-5035
C115370-5036
C115370-5037
C115370-5038
C115370-5039
C115368-5040
C115368-5041
C115368-5042
C115368-5043
C115368-5044
C115368-5045
C115368-5046
C115368-5047
C115368-5048
C115368-5049
Description FR022
DEMAY9PNMB-FR022-F0
DEMAY9SNMB-FR022-F0
340100201B DBMAY25SNMBF0
340100201B DCMAY37PNMBF0
340100201B DCMAY37SNMBF0
340100201B DDMAY50PNMBF0
340100201B DDMAY50SNMBF0
340100202B DEMAY15PNMBF0
340100202B DEMAY15SNMBF0
340100202B DAMAY26PNMBF0
340100202B DAMAY26SNMBF0
DAMAY15PNMB-FR022-F0
DAMAY15SNMB-FR022-F0
DBMAY25PNMB-FR022-F0
Part Number
C115370-3230
C115370-3231
C115370-3232
C115370-3233
C115370-3234
C115370-3235
C115370-3236
C115370-3237
C115370-3238
C115370-3239
C115368-3230
C115368-3231
C115368-3232
C115368-3233
C115368-3234
C115368-3235
C115368-3236
C115368-3237
C115368-3238
C115368-3239
C115368-3296
C115368-3297
C115368-3286
C115368-3287
DBMAY25SNMB-FR022-F0
DCMAY37PNMB-FR022-F0
DCMAY37SNMB-FR022-F0
DDMAY50PNMB-FR022-F0
DDMAY50SNMB-FR022-F0
DEMAY15PNMB-FR022-F0
DEMAY15SNMB-FR022-F0
DAMAY26PNMB-FR022-F0
DAMAY26SNMB-FR022-F0
340100202B DBMAY44PNMBF0
340100202B DBMAY44SNMBF0
340100202B DCMAY62PNMBF0
340100202B DCMAY62SNMBF0
340100202B DDMAY78PNMBF0
340100202B DDMAY78SNMBF0
DBMAY44PNMB-FR022-F0
DBMAY44SNMB-FR022-F0
DCMAY62PNMB-FR022-F0
DCMAY62SNMB-FR022-F0
DDMAY78PNMB-FR022-F0
DDMAY78SNMB-FR022-F0
340100202B DFMAY104PNMB-A174-F0
340100202B DFMAY104SNMB-A174-F0
340100202B DFMAY104PNMB-FR172-F0
340100202B DFMAY104SNMB-FR172-F0
*FR023 under request only
C115368-5096
C115368-5097
C115368-5086
C115368-5087
DFMAY104PNMB-A174-FR022-F0
DFMAY104SNMB-A174-FR022-F0
DFMAY104PMB-FR172-FR022-F0
DFMAY104SMB-FR172-FR022-F0
Dimensions are shown in mm (inch)
Dimensions subject to change
A6-5
www.ck-components.com
Rev. 23APR13
