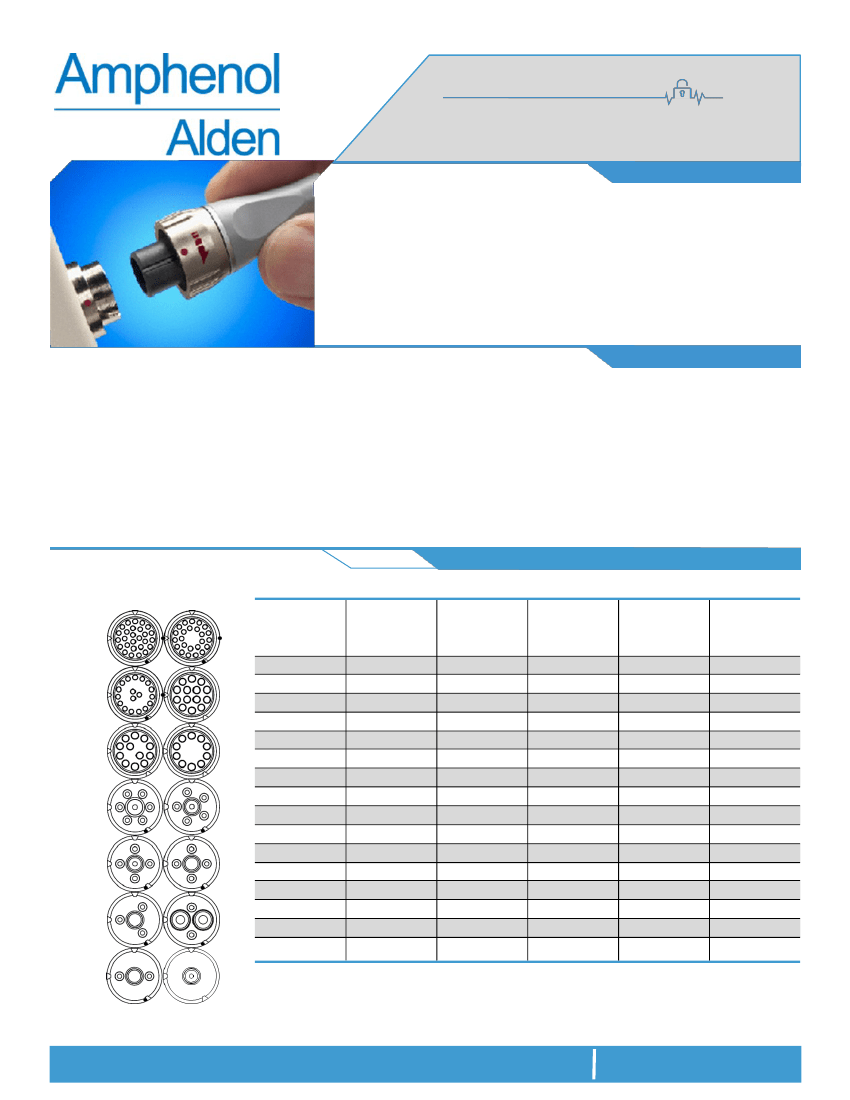

Compact and configurable, the PL-700SM-B Series connector is Amphenol Alden’s
most versatile offering in a sub .700” diameter package. PL-700SM-B Series
connectors attach to a cable with a Press & Seal
TM
backshell that provides the
refined look and performance of an overmolded product.
Electrical (see below)
Mating Life: 5,000 cycles min.
Contact Resistance: < 10 milliohms*
Material
Connector Housing: Nickel Plated Brass
Flex Reliefs: Thermoplastic Rubber
Contacts: Brass / BeCu,
Gold Plate per MIL-G-45204
Reusable Socket = 30-45µ” Gold over 50-
200µ” Nickel strike
Disposable Pin = 10-30µ” Gold over 50-200µ”
Nickel strike
Packaging (intuitive, compact, configurable)
Pulse-Lok®
auto-latch / mating confirmation
Miniature .700” diameter circular shell
Up to 27 contact positions
14 standard color combinations
Multiple and proprietary keying options
Available as an overmolded cable assembly
Custom configurations available
Performance (for harsh environments)
Water proof (IP-67 rated)
Sterilizable
Chemical resistant housing
Up to 5,000 mating cycles (with std.Contacts)
Rugged Metal Shell
SPECIFICATIONS
Mechanical
Mating Cycles: 5K cycles max
Retention Force:
Mated Connectors: 25 lbs. Minimum
Cable to Connector: 35 lbs. Typical
Backshell to Connector: 45 lbs. Minimum
Housing Styles (Page 2)
Plug: In-Line
Receptacles: Front & Rear Panel-Mount
Receptacles: In-Line
Environmental
Operating Temp:
-20C
to +125C**
Moisture Resistance: to IP-67 (encapsulated)
Sterilizable: gamma, EtO & Autoclave
Chem. Resistance: common OR cleaning solvents
* post conditioning
**Dependent on overmold material
TABLE A:
Up to 27 Contact
Positions
Number of
Poles
27
24
18
14
12
10
7
6
5
4
2+2
3
2
2
1
1
STANDARD CONTACT CONFIGURATIONS & SPECFICATIONS
Contact Size
Pin
φ
(mm)
0.5
0.5
0.5
0.7
0.7
0.7
0.7
0.7
0.7
0.7
2(1.5)-2(0.7)
0.7
0.7
1.5
0.7
2.3
Max Wire
Gauge
26
26
26
22
22
22
22
22
22
22
2(16)-2(22)
22
22
16
22
12
Operating
Operating
Current Max
Voltage Max
(A)
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
300 V RMS
0.5
0.5
0.9
0.9
1.2
2.0
2.1
2.1
2.4
2.4
7.0/3.0
3.0
3.0
13.0
3.0
15.0
Contact
Resistance
(ohms)
<14m
<14m
<14m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<6m
<2m
<6m
<2m
Custom contact inserts are available. Consult factory.
Standard Hybrid Circuit Arrangements
Coaxial & Custom Circuits Available
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
1
PL-700SM-B SERIES
Metal
Shell Auto-Coupling
Connectors
27 pole
capacity circular shell connectors

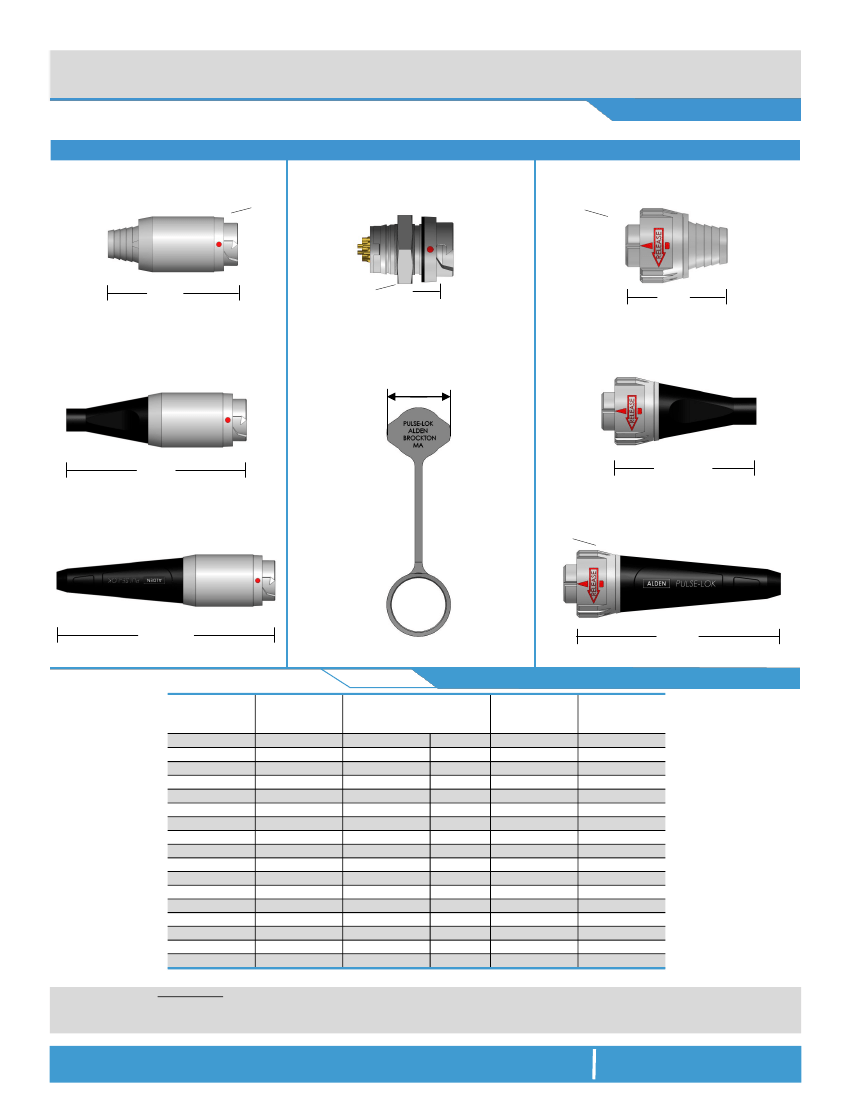

STANDARD HOUSING OPTIONS
In-Line Receptacles
In-Line Receptacle Kit
.720φ
Panel-Mount Receptacles
Front Panel-Mount
Receptacle Assembly
.70φ
Mounted
Height = 0.320
In-Line Plugs
In-Line Plug Assembly
1.54
Select this component from Table B
.720φ
.90
.88
Select this component from Table B
Panel thickness range to 0.187
Select this component from Table B
In-Line Receptacle Kit
(w/ optional Press & Seal
TM
Backshell)
Front Panel-Mount Receptacle
Dust Cover
.70
Dust cover is optional.
P/N
103677
In-Line Plug Kit
(for overmolding)
2.20
Select Press & Seal
TH
Backshell from Table C
1.60
Select this component from Table B
In-Line Receptacle Kit
(w/ overmolded strain relief)
.70φ
In-Line Plug Assembly
(w/ overmolded strain relief)
2.80
2.25
TABLE B:
Number of
Poles
27
24
18
14
12
10
7
6
5
4
2(16)+2(22)
3
2 (22)
2 (16)
1 (22)
1 (12)
STANDARD PART NUMBERS
In-Line Plug
Solder Cup
355062
355131
355125
355048
355119
355113
355028*
355072*
355071*
355095*
355020*
355089*
355080*
355077*
355101*
355006*
In-Line
Receptacle
Solder Cup
357062
357131
357125
357048
357119
357113
357104*
357107*
357101*
357095*
357020*
357059*
357080*
357083*
357071*
357006*
Front Panel-Mount
Receptacle
Solder Cup
356062
356131
356125
356048
356119
356113
356028*
356107*
356071*
356095*
356020*
356089*
356080*
356077*
356101*
356006*
In-Line Plug
(Release Tabs)
PCB
356149
356209
356203
356143
356197
356191
356137*
356185*
356179*
356173*
-
356167*
356161*
-
356155*
-
Solder Cup
353062
353131
353125
353048
353119
353113
353028*
353072*
353071*
353095*
353020*
353089*
353080*
353077*
353101*
353006*
Note: Part numbers cover black housings in Key 1 configuration. For other color and housing options utilize the Amphenol Alden connector configurator located at
www.amphenolalden.com/configurator
Options Include:
Indicator Color Options
Red (Std.), White, Black
Mating Key Options
2 Standard Keys, Proprietary Keys Available
Panel-Mount Thickness Options Up to .125 Standard
*Press & Seal
TM
contacts, crimp or solder
termination
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
2
PL-700SM-B SERIES

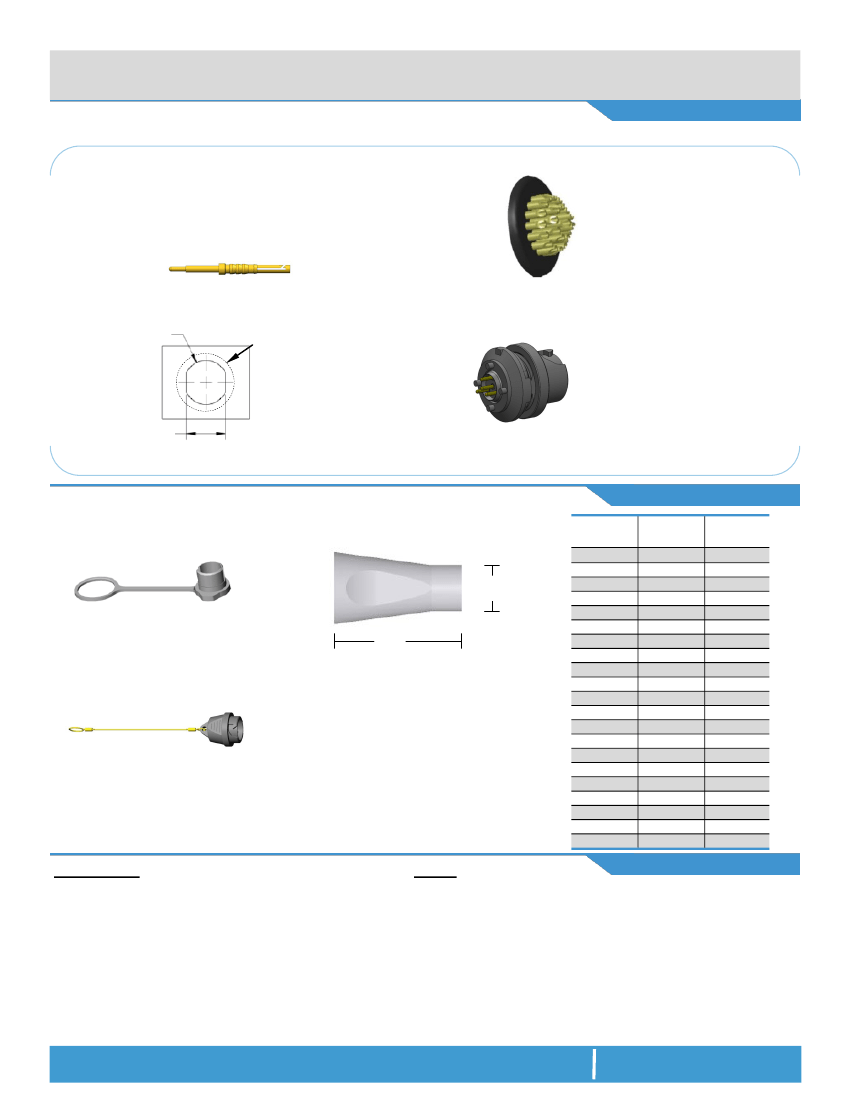

Contact Termination
Metal
Shell Auto-Coupling
Connectors
27 pole
capacity circular shell connectors
CONNECTOR
TERMINATION OPTIONS
CONNECTOR
TERMINATION OPTIONS
Press & Seal
TM
Features & Benefits
Contacts provide IP-67 watertight seal when
Easy crimp & poke installation
Excellent contact retention
Contacts may be crimped or soldered
Press & Seal
TM
Contact System
Available on 1 to 7-Pole Configurations
Accepts multiple wire gauges 12, 16, 22 AWG
Panel-Mount, Cut-Out Template
.625φ
.70
φ
mounting
Flange Footprint
(.75φ for RPM
spanner nut)
inserted into insulator
Solder Cup (Available for All)
Features & Benefits
Tiered solder cups
provide easy access to
center positions. Canted
cups facilitate quick and
easy wire positioning.
Standard on 10-27 pole
configurations
PCB (Panel-Mount Receptacles only)
Features & Benefits
Available in most pole counts
PCB stand-offs ensure proper
Convenient packaging high
positioning
temperature contect cures may
be soldered to PCB and snapped
into panel-mounted receptacle
housing later
from 1 to 27 Poles
.560
Applies to both Front & Rear
Panel-Mount Receptacles
Request Sales Drawing for PCB
mounting template
Front Panel-Mount Receptacle
Plug Backshell
ACCESSORIES
Dimension
A
(Inches)
A
Part #
(Black)
300350
300352
300354
300356
300358
300360
300362
300364
300366
300368
300370
300372
300374
300376
300378
300380
300382
300384
300386
300388
Part #
(Gray)
300351
300353
300355
300357
300359
300361
300363
300365
300367
300369
300371
300373
300375
300377
300379
300381
300383
300385
300387
300389
P/N
300390
1.10
Plug Soaking Cap
The PL-700 plug housing is designed to accept
Amphenol Alden’s one piece, Press & Seal PVC
Backshell. This unique backshell simply snaps into
place providing an IP-67 rated seal to the plug
housing and cable exit without hardware resulting in a
clean overmolded look. For optimum sealing we
suggest selecting a wire exit i.d. that is at least .005”
smaller than your nominal cable diameter
.
P/N
300391
Note: accessories sold separately
0.053
0.064
0.075
0.086
0.096
0.104
0.120
0.129
0.142
0.153
0.162
0.170
0.186
0.204
0.215
0.225
0.235
0.249
0.264
0.300
Receptacles:
AI-PL700SMB-IR01 (1Pole, 12AWG)
AI-PL700SMB-IR02 (2+2Pole, 16/22AWG)
AI-PL700SMB-IR03 (1-7Pole, 22AWG)
AI-PL700SMB-IR04 (10-14Pole, 22AWG)
AI-PL700SMB-IR05 (18-27Pole, 26AWG)
AI-PL700SMB-PMR01 (1Pole, 12AWG)
AI-PL700SMB-PMR02 (2+2Pole, 16/22AWG)
AI-PL700SMB-PMR03 (1-7Pole, 22AWG)
AI-PL700SMB-PMR04 (10-14Pole, 22AWG)
AI-PL700SMB-PMR05 (18-27Pole, 26AWG)
Plugs:
ASSEMBLY INSTRUCTIONS
AI-PL700SMB-P01 (1Pole, 12AWG)
AI-PL700SMB-P02 (2+2Pole, 16/22AWG)
AI-PL700SMB-P03 (1-7Pole, 22AWG)
AI-PL700SMB-P04 (10-14Pole, 22AWG)
AI-PL700SMB-P05 (18-27Pole, 26AWG)
For additional information about this, or any other Amphenol Alden product, please contact
an Amphenol Alden specialist today.
Phone: 508-427-7000
Fax: 508-583-0164
www.amphenolalden.com
3
