3401-001 D*M Standard Density
Features/Benefits
•
D*Sub Connector Type
•
Contacts installed in factory
•
Multiple contacts configuration:
Solder Cup, 90° bent, Straight PC, Wire-wrap
•
From 9 to 50 ways
Connectors with solder type or wire-wrap type termination contacts size 20 inserted into one-piece insulators.
Termination types available:
- Solder Bucket terminations
- Straight PCB solder terminations
- 90° bent PCB solder terminations
- Wire-wrap terminations
Combination arrangements available for size 8 snap-in coaxial, power, or high voltage contacts
Connectors supplied without coaxial power or high voltage contacts. Power and coaxial contacts have to be ordered
separately but signal contacts are installed in factory.
Signal contact are solder bucket type. Other type could be asked under request.
Packaging unit: 1 piece (plastic bag)
Dust cap supplied with each connector, only for quality level ESA/ESCC
Typical Applications
•
Payloads PCB
•
Launchers
•
PCB Test

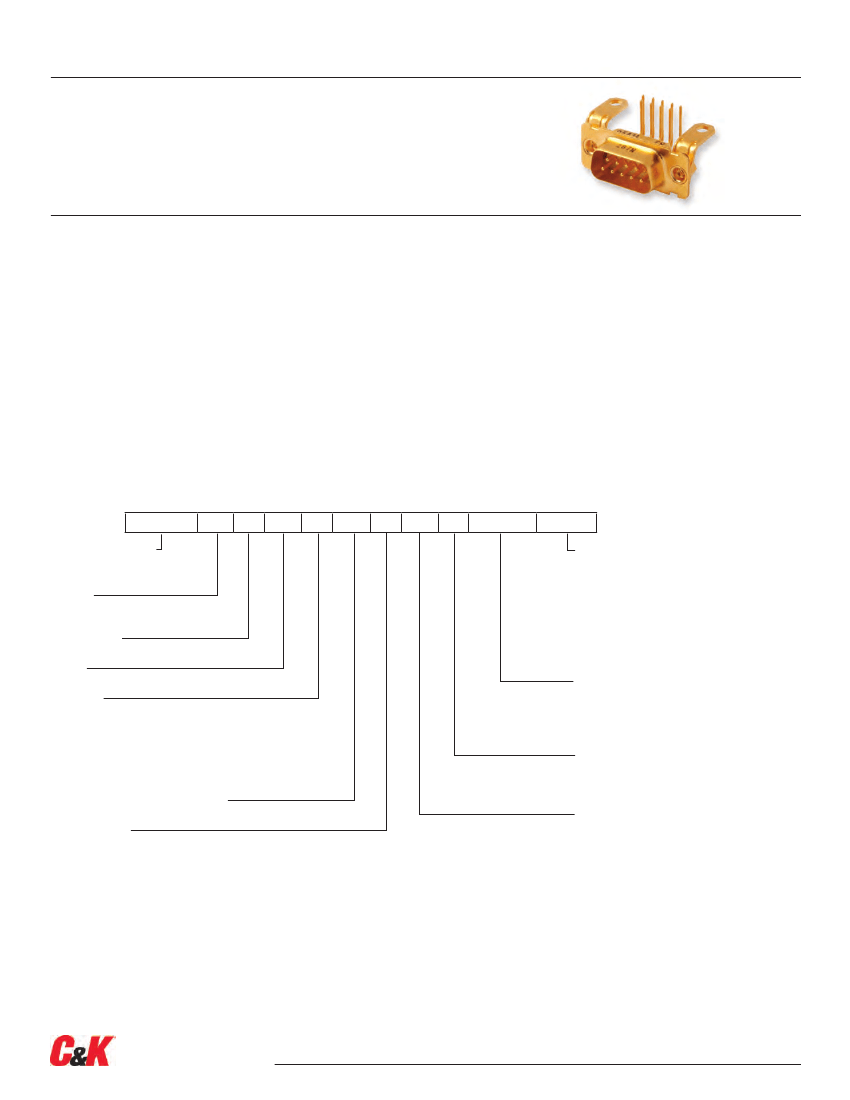

How to order – ESA/ESCC Quality Level
3401001
Detail specification
number
Variant
01: Standard density
Testing level
Series
Shell size
E
A
B
C
D
Insert type:
M for one-piece insert
Fixing option:
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
Fixing option E or Y not compatible with connectors equipped with bracket.
01
B
D
B
M
Y
25
P
NMB
OL3
Termination modifier
Solder buckets: Nothing
Straight PCB: OL3, Z
90° bent PCB without brackets 1A0N, 1B0N,
2A0N, 2B0N, P
90° bent PCB with brackets 1A7N, 1B7N,
1A9N, 1B9N, 2A7N, 2A9N, 2B7N, 2B9N,
L7, L9
Wire-wrap:
F179A
Magnetism level
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
Number of contacts for variant 01:
E: 9
A: 15
B: 25
C: 37
D: 50
Number of contacts for combination
arrangements:
E: 5W1
A: 3W3, 3WK3, 7W2, 11W1
B: 5W5, 9W4, 13W3, 21W1
C: 8W8, 13W6, 17W5, 21WA4, 25W3, 27W2
D: 24W7, 36W4, 43W2, 47W1
Dimensions are shown in mm (inch)
Dimensions subject to change
A2-1
www.ck-components.com
Rev. 23APR13
3401-001 D*M Standard Density
How to order – FR023 Quality Level
D
Series
Shell size
E
A
B
C
D
Insert type:
M for one-piece insert
According to MIL-DTL-24308 Specification
Fixing option:
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
Fixing option E or Y not compatible with connectors
equipped with bracket.
B
M
M
Y
25
P
NMB M
FR023
Suffix for MIL Class M Quality Level (Connector
Specification FR023)
Termination modifier
Solder buckets: Nothing
Straight PCB: OL3, M, Z
90° bent PCB without brackets 1A0N, 1B0N,
2A0N, 2B0N, P
90° bent PCB with brackets 1A7N, 1B7N, 1A9N,
1B9N, 2A7N, 2A9N, 2B7N, 2B9N, D, L, L7, L9
Wire-wrap:
F179A
Magnetism level
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
Number of contacts for variant 01:
E: 9
A: 15
B: 25
C: 37
D: 50
Number of contacts for combination
arrangements:
E: 5W1
A: 3W3, 3WK3, 7W2, 11W1
B: 5W5, 9W4, 13W3, 21W1
C: 8W8, 13W6, 17W5, 21WA4, 25W3, 27W2
D: 24W7, 36W4, 43W2, 47W1
Dimensions are shown in mm (inch)
Dimensions subject to change
A2-2
www.ck-components.com
Rev. 23APR13
3401-001 D*M Standard Density
How to order – FR022 Quality Level
D
Series
Shell size
E
A
B
C
D
Insert type:
M for one-piece insert
Fixing option:
Nothing: Standard through hole
E: Captive nut
Y: Dual float mount
Fixing option E or Y not compatible with connectors
equipped with bracket
B
M
Y
25
P
NMB
M
FR022
Suffix for MIL Class M Quality Level (Connector
Specification FR022)
Termination modifier
Solder buckets: Nothing
Straight PCB: OL3, M, Z
90° bent PCB without brackets 1A0N, 1B0N,
2A0N, 2B0N, P
90° bent PCB with brackets 1A7N, 1B7N, 1A9N,
1B9N, 2A7N, 2A9N, 2B7N, 2B9N, D, L, L7, L9
Wire-wrap:
F179A
Magnetism level
NMB: 200 Gamma
NMC: 20 Gamma (on special request)
Type of contact
P: Pin (Male)
S: Socket (Female)
Contact arrangement (number of contacts)
Number of contacts for variant 01:
E: 9
A: 15
B: 25
C: 37
D: 50
Number of contacts for combination
arrangements:
E: 5W1
A: 3W3, 3WK3, 7W2, 11W1
B: 5W5, 9W4, 13W3, 21W1
C: 8W8, 13W6, 17W5, 21WA4, 25W3, 27W2
D: 24W7, 36W4, 43W2, 47W1
Dimensions are shown in mm (inch)
Dimensions subject to change
A2-3
www.ck-components.com
Rev. 23APR13
3401-001 D*M Standard Density

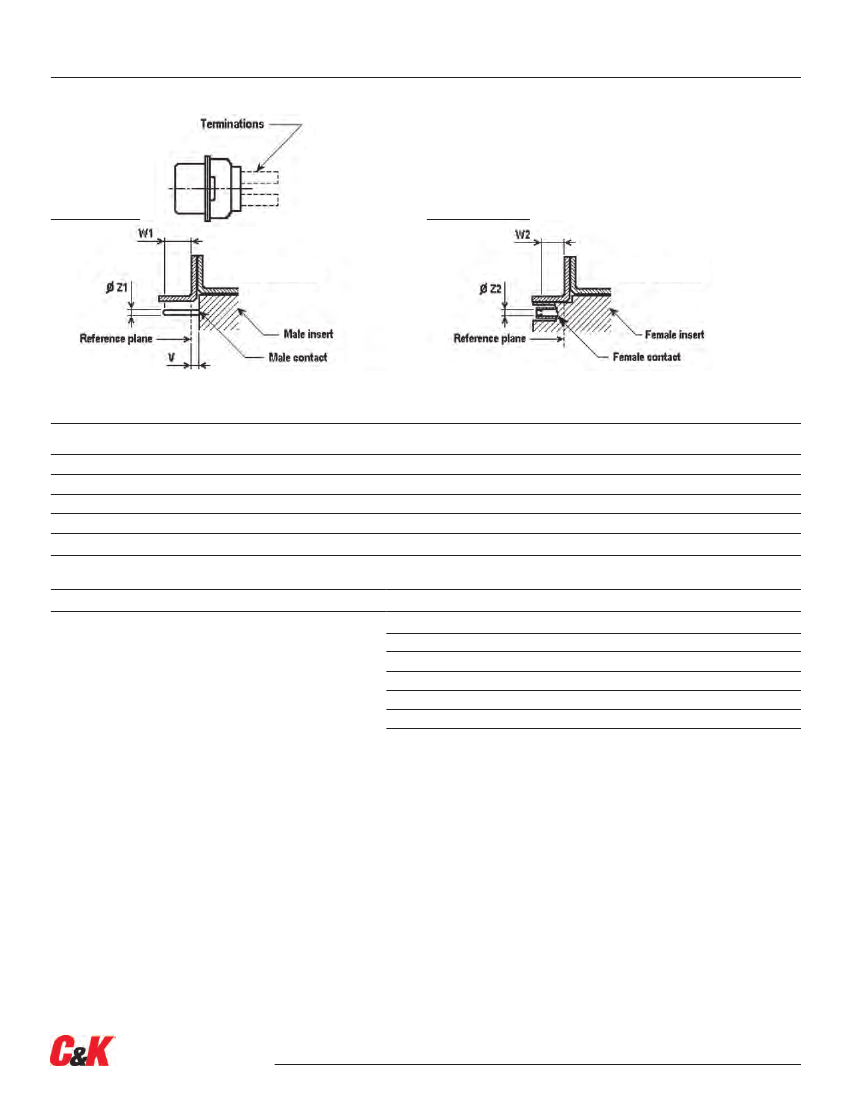

Specific Dimensions
Termination Types
Solder Bucket
Straight PCB Solder
90° Bent PCB Solder / Without Bracket / European Footprint
90° Bent PCB Solder / With Brackets / European Footprint
90° Bent PCB Solder / Without Brackets / U.S. Footprint
90° Bent PCB Solder / With Brackets / U.S. Footprint
Wire-Wrap
Female Connector
Male Connector
Ø Z2
: to accommodate a 0,99 (.039) / 1,04 (.041) diameter pin
Shell Size V
max
E
A
B
C
D
0,40 (.016)
0,40 (.016)
0,60 (.024)
0,60 (.024)
0,60 (.024)
W1
min
(Full pin diameter)
W1
max
(Full pin length)
ØZ1
min
0,99 (.039)
0,99 (.039)
0,99 (.039)
0,99 (.039)
0,99 (.039)
ØZ1
max
1,04 (.041)
1,04 (.041)
1,04 (.041)
1,04 (.041)
1,04 (.041)
W2
min
(Square ended pin)
4,47 (.176)
4,47 (.176)
4,47 (.176)
4,47 (.176)
4,47 (.176)
5,33 (.210)
5,33 (.210)
5,33 (.210)
5,33 (.210)
5,33 (.210)
4,36 (.172)
4,36 (.172)
4,36 (.172)
4,36 (.172
4,36 (.172)
Weights
Max Weight (grams) without contacts or accessories
Shell Size
Male
E
For the total connector weight, add the weight
of the contacts and of the eventual accessories.*
A
B
C
D
4,5
5,5
9,0
12,5
13,5
Weight (Grams)
Female
5,0
7,0
10,0
13,5
15,0
*
For the weight of the contacts, refer to the tables on the following pages.
For dual-float amount (Y) weight (if applicable), added 0,60 grams.
For captive-nut, (E) weight (if applicable), added 0,65 grams.
Dimensions are shown in mm (inch)
Dimensions subject to change
A2-4
www.ck-components.com
Rev. 23APR13
3401-001 D*M Standard Density

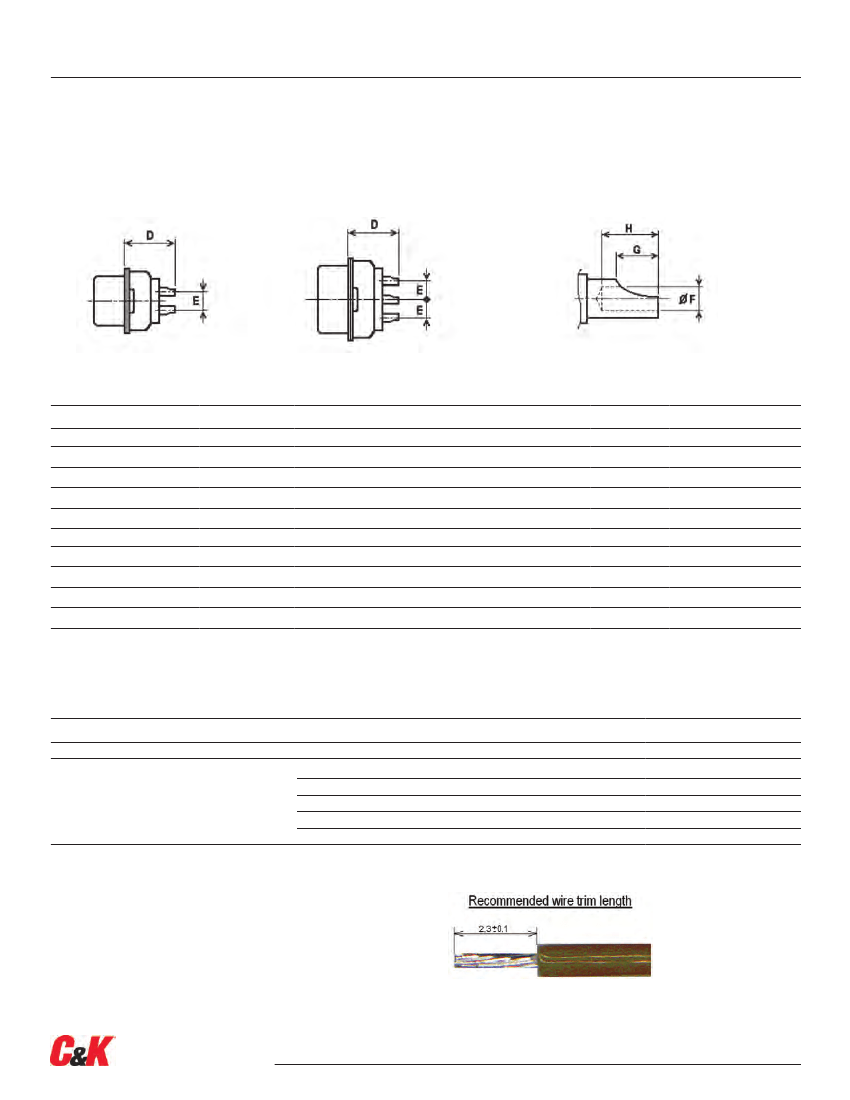

Solder Bucket Terminations:
Specific Dimensions
Sizes E, A, B, C
Size D
Termination
Contacts
Male
Shell Size
E
A
B
C
D
D
±
0,60 (.024)
9,60 (.378)
9,60 (.378)
9,80 (.386)
9,80 (.386)
9,80 (.386)
9,60 (.378)
9,60 (.378)
9,60 (.378)
9,60 (.378)
9,60 (.378)
E
Typical
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
2,84 (.112)
ØF
+ 0,05 (.002) / 0
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
1,10 (.043)
G
±
0,55 (.022)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
1,95 (.077)
H
min
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
2,40 (.094)
Pitch
between contacts
2,74 (.108
)
2,76 (.109)
2,76 (.109)
2,76 (.109)
2,74 (.108
)
2,76 (.109)
2,76 (.109)
2,76 (.109)
2,74 (.108
)
2,74 (.108
)
Female
E
A
B
C
D
Termination Modifier: Nothing
Weights
Shell Size
Max Weight (grams) of all contacts per size
Max Weight (grams) per contact
E
B
C
D
A
Male Contact
0,19
1,71
4,75
7,03
9,50
2,85
Female Contact
0,22
1,98
5,50
8,14
11,00
3,30
Recommended instruction for wire stripping:
Cut wires to length and strip insulation per illustration.
Check for broken or frayed wires.
Accepted wire sizes: insulated AWG20, AWG22, AWG24
Dimensions are shown in mm (inch)
Dimensions subject to change
A2-5
www.ck-components.com
Rev. 23APR13
