100061-0079 Overview

Flat cable SOLD PER FOOT

100061-0079 Parametric

Parameter Name	Attribute value
Maker	Temp-Flex （Molex）
Product Category	flat cable
Shipping restrictions	Mouser does not currently sell this product.
product	Ribbon Cable
Number of conductors	4 Conductor
conductor spacing	0.15 mm
conductor material	Silver Plated Copper
Shell material	Perfluoroalkoxy (PFA)
Encapsulation	Spool
series	100061
Factory packaging quantity	5000

Preview

Download Datasheet

View All

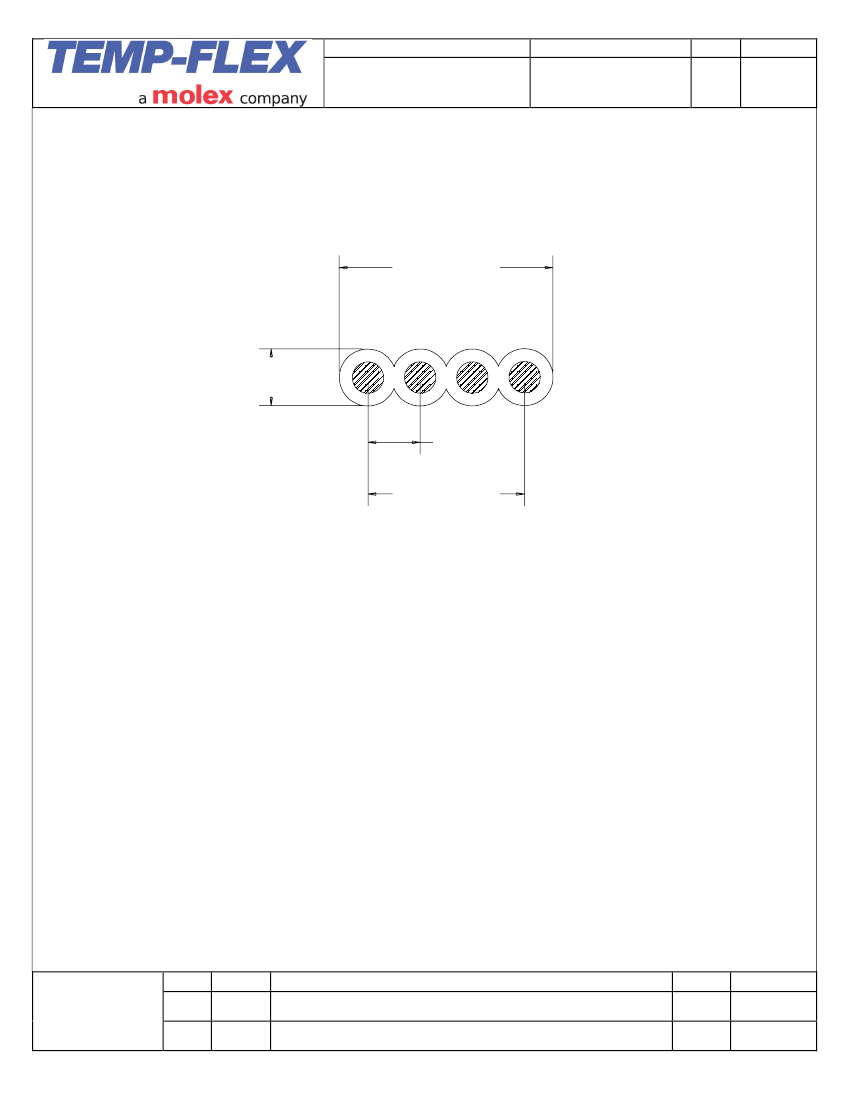

TITLE

40 AWG, 4 Conductor,

0.0059" Pitch Flat Cable

PART No.

1000610079

REV

2

PAGE

1 of 1

0.6+/-0.1mm

(0.0236+/-0.004")

0.16+/-0.013mm

(0.0062+/-0.0005")

0.15mm

(0.0059")

0.45+/-0.08mm

(0.0177+/-0.003")

NOTES

Conductor: 40 AWG, Silver Plated Copper

Insulation: PFA, 0.04mm (0.00155") Nominal Wall Thickness

Color: Natural with Green Edge

Differential Impedance: 110+/-10 Ohms Ref.

This document is the

property of TEMP-FLEX.

It may not be disclosed,

reproduced, or otherwise

used without permission.

Rev

1

2

DCR

2755

4699

Description

Initial Release.

Update to New SAP P/N.

App’d

KP

Date

10/19/11

9/25/15

Address: 26 Milford Road, South Grafton, MA 01560 Phone: (508)-839-5987 Fax: (508)-839-4128
