Part
1 – Center Conductor
Description
Silver Plated Copper- Solid
Diameter
0.011" +/- 0.001
2 – Dielectric
3 – Outer Conductor
Microporous PTFE Tape
Silver Plated Copper Flat Braid
0.033" (nominal)
0.039" (nominal)
4 – Shield
5 – Jacket
Silver Plated Copper Round Braid
Extruded FEP
0.049" (nominal)
0.060+/-.003"
VSWR
1.20 : 1
Freq(Ghz)
Attenuation(dB/Ft)
1
0.384
3
0.670
6
0.956
9
1.180
12
1.370
18
1.693
Impedance
50 +/- 2 ohms
Maximum Attenuation Values
1.80
1.50
Velocity of Propagation
75% Nominal
1.20
(dB/Ft)
Delay
1.25 ns/ft
0.90
1.2
0.60
0.30
Capacitance
32pF
0.00
Maximum Frequency
18Ghz
0
3
6

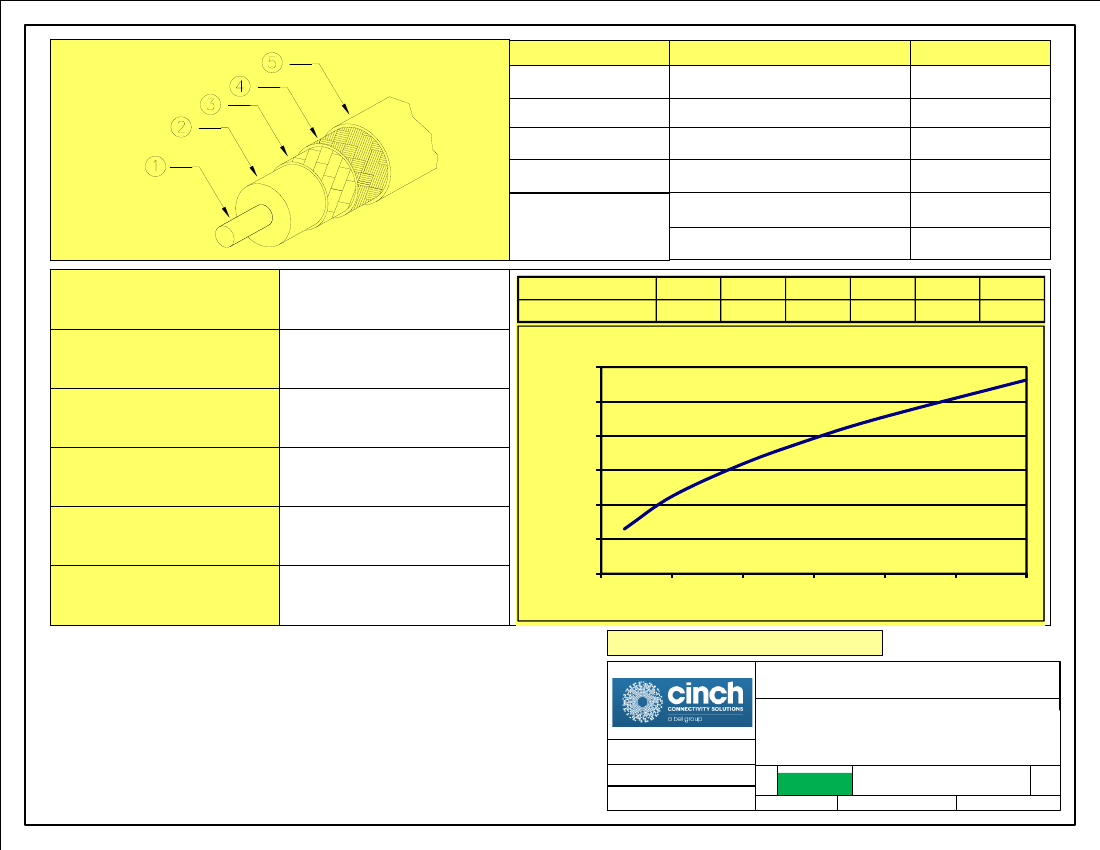

CABLE OVERVIEW
9
GHz
12
15
18
PRODUCT LINE
SEMFLEX
DESCRIPTION
FSW060-EF Cable, 25ft length
DATE
8/24/18
DRAWN BY
REVISED
Form#
1327 Rev: 1
S IZE
RoHS
DOCUME NT
RE V
A
COMPLIANT
FSW060-EF-L25
SHEET
NA
