IXR5S14M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> Push button switch> IXR5S14M

IXR5S14M: DescriptionPush button switch 2A 28VDC Gray Btn Sldr NC/NO IP67; CategoryMechanical and electronic products switch Push button switch; File Size1MB，6 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

IXR5S14M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IXR5S14M	-	-	View	Buy Now

IXR5S14M Overview

Push button switch 2A 28VDC Gray Btn Sldr NC/NO IP67

IXR5S14M Parametric

Parameter Name	Attribute value
Maker	APEM
Product Category	power switch button
product	Industrial Switches
illumination	Non-Illuminated
Lamp type	-
Contact form	DPDT
Current rating	2 A
Voltage ratingDC	28 VDC
Installation style	Panel
Installation type	Bushing
Termination type	Solder Lug
Contact plating	Silver
Actuator	Round
IP rating	IP69X
series	IX
diameter	15.5 mm
Shell material	Thermoplastic (TP)
length	15.4 mm
Flammability rating	UL 94 V-0
cover color	Grey
life	1000000 Cycles
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 40 C

Preview

Download Datasheet

View All

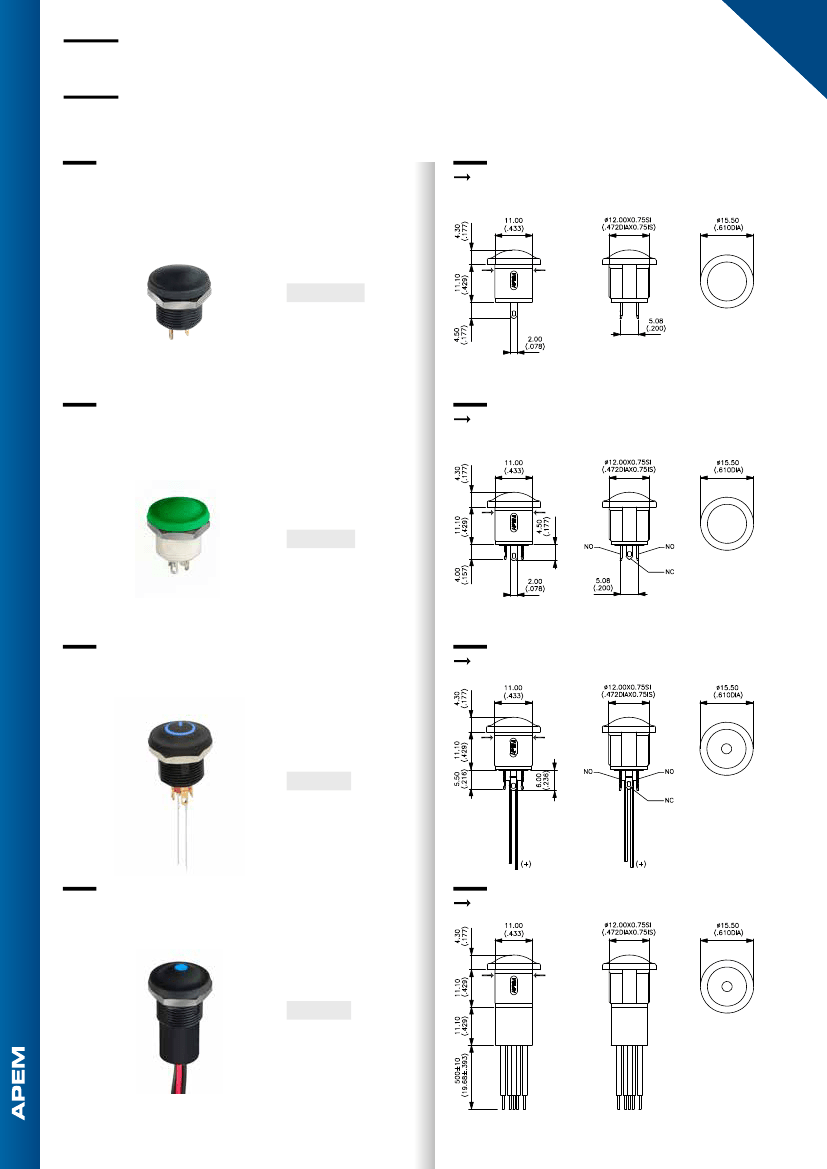

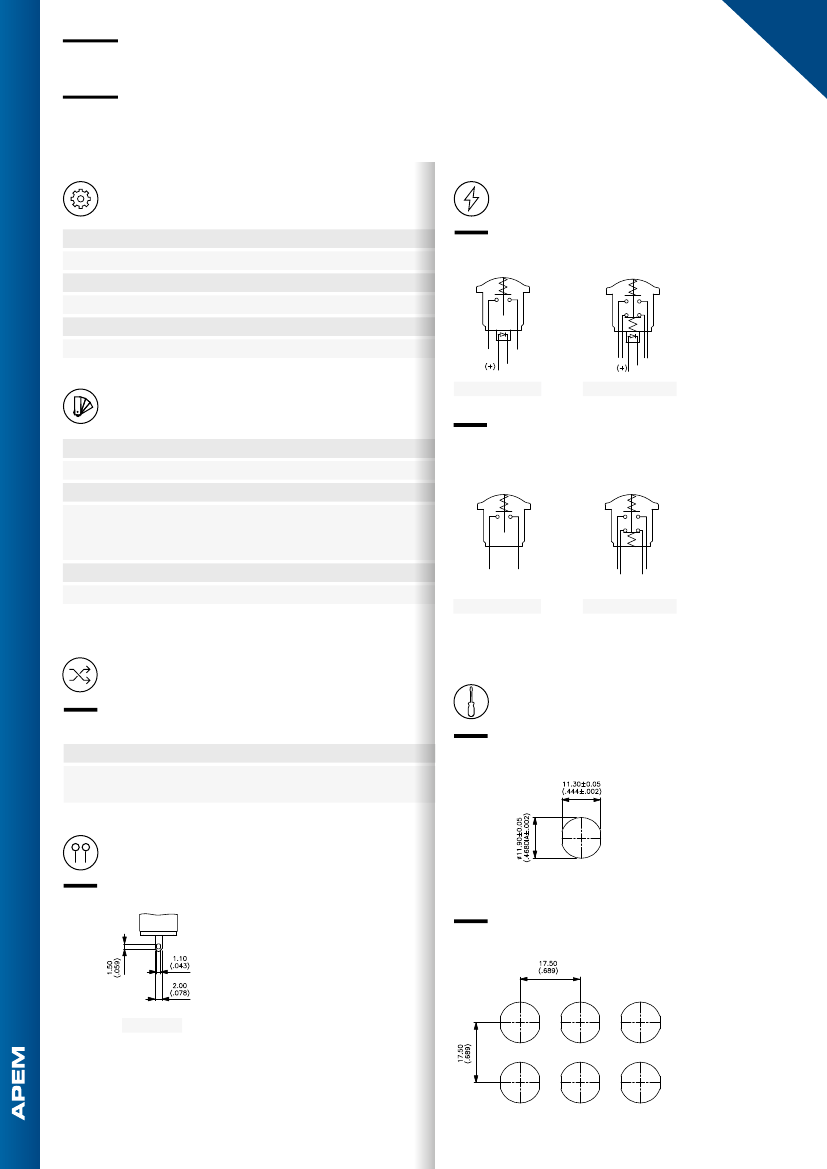

-I

X-

IX series

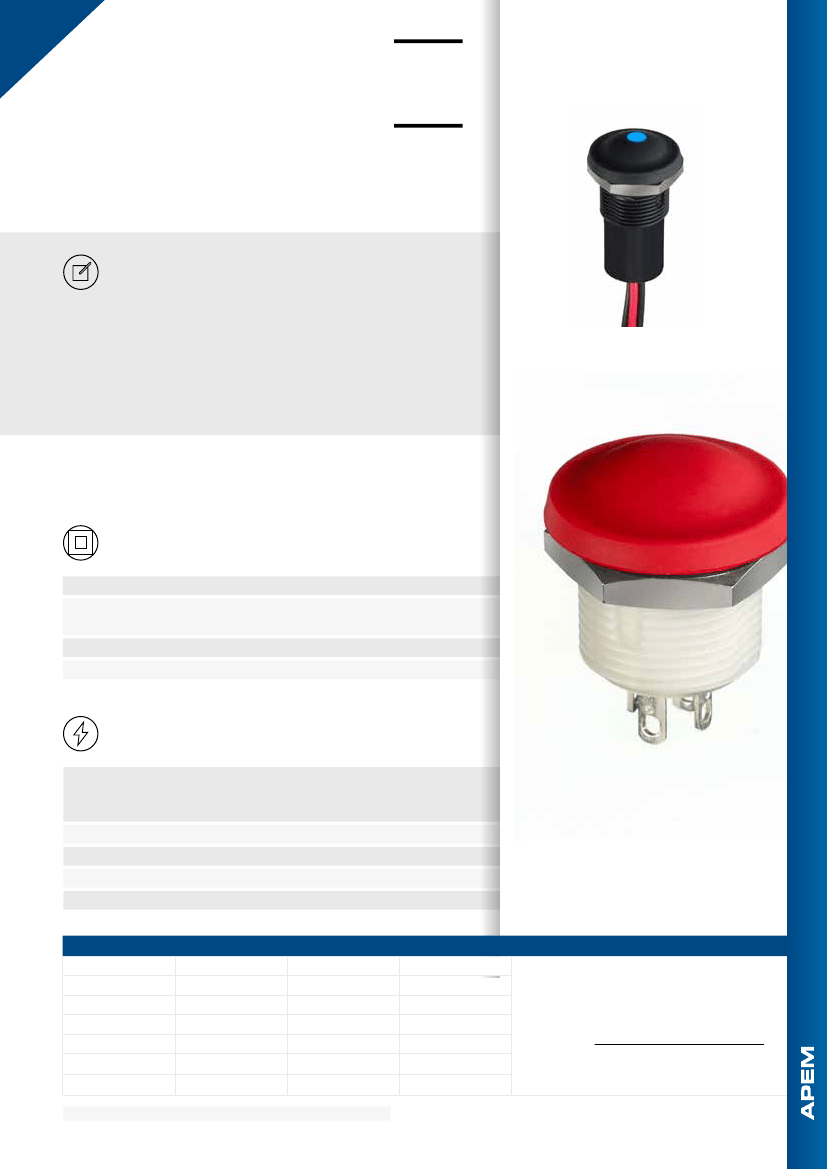

Pushbutton switches for harsh environments •

bushing Ø 12 mm • momentary NO & NC/NO

DISTINCTIVE FEATURES

Backlighted marking in a compact case

Strong tactile feedback

NO or NC/NO

High sealing level, no space between actuator and

bushing (IP67/IP69K)

ENVIRONMENTAL SPECIFICATIONS

• Operating and storage temperature : -40 °C to +85 °C (-40 °F to +185 °F)

• Front panel sealing :

IP67 according to IEC 60529,

IP69K according to DIN 40050-9

• Shock resistance: 100 g according to IEC 512-4, test 6c

• Salt spray: IEC 512-6, test 11f

ELECTRICAL SPECIFICATIONS

• Max. current/voltage rating with resistive load:

- Gold plated contact (0): 100 mA 28 VDC, 1,000,000 cycles

- Silver contact (1): 2 A 28 VDC, 100,000 cycles

• Initial contact resistance : 100 mΩ max.

• Insulation resistance : 1 GΩ min. at 500 VDC

• Dielectric strength : 1,500 Vrms

• Contact bounce : 10 ms

LED COMPONENT SPECIFICATIONS

LED color

Red (R)

Yellow (Y)

Green (G)

Blue (B)

White (W)

Red/green (F)

Forward current

20 mA

Typ. forward voltage

1.9 V

2.3 V

3.2 V

3.3 V

Red: 2 V / green: 3.2 V

Max. forward voltage

2.5 V

2.8 V

4.5 V

3.7 V

Red: 2.8 V / green: 3.7 V

A resistor must be series-connected by the user.

Resistor value = supply voltage - LED forward voltage

LED forward current

The company reserves the right to change specifications without notice.

PANEL SWITCHES

IXR5S14M Related Products

	IXR5S14M	IXR5S13M	IXR3W02BRXCD
Description	Push button switch 2A 28VDC Gray Btn Sldr NC/NO IP67	Push button switch 2A 28VDC Green Btn Sldr NC/NO IP67	Push Button Switch 100mA 28VDC Blk Btn Blu LED Dot 24Awg
Maker	APEM	APEM	APEM
Product Category	power switch button	power switch button	power switch button
product	Industrial Switches	Industrial Switches	Industrial Switches
illumination	Non-Illuminated	Non-Illuminated	Illuminated
Contact form	DPDT	DPDT	SPST
Current rating	2 A	2 A	100 mA
Voltage ratingDC	28 VDC	28 VDC	28 VDC
Installation style	Panel	Panel	Panel
Installation type	Bushing	Bushing	Bushing
Termination type	Solder Lug	Solder Lug	Cable
Contact plating	Silver	Silver	Gold
Actuator	Round	Round	Round
IP rating	IP69X	IP69K	IP69X
series	IX	IX	IX
Shell material	Thermoplastic (TP)	Thermoplastic (TP)	Thermoplastic (TP)
Flammability rating	UL 94 V-0	UL 94 V-0	UL 94 V-0
cover color	Grey	Green	Black
life	1000000 Cycles	1000000 Cycles	1000000 Cycles
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C
Minimum operating temperature	- 40 C	- 40 C	- 40 C
diameter	15.5 mm	15.5 mm	-
length	15.4 mm	15.4 mm	-
