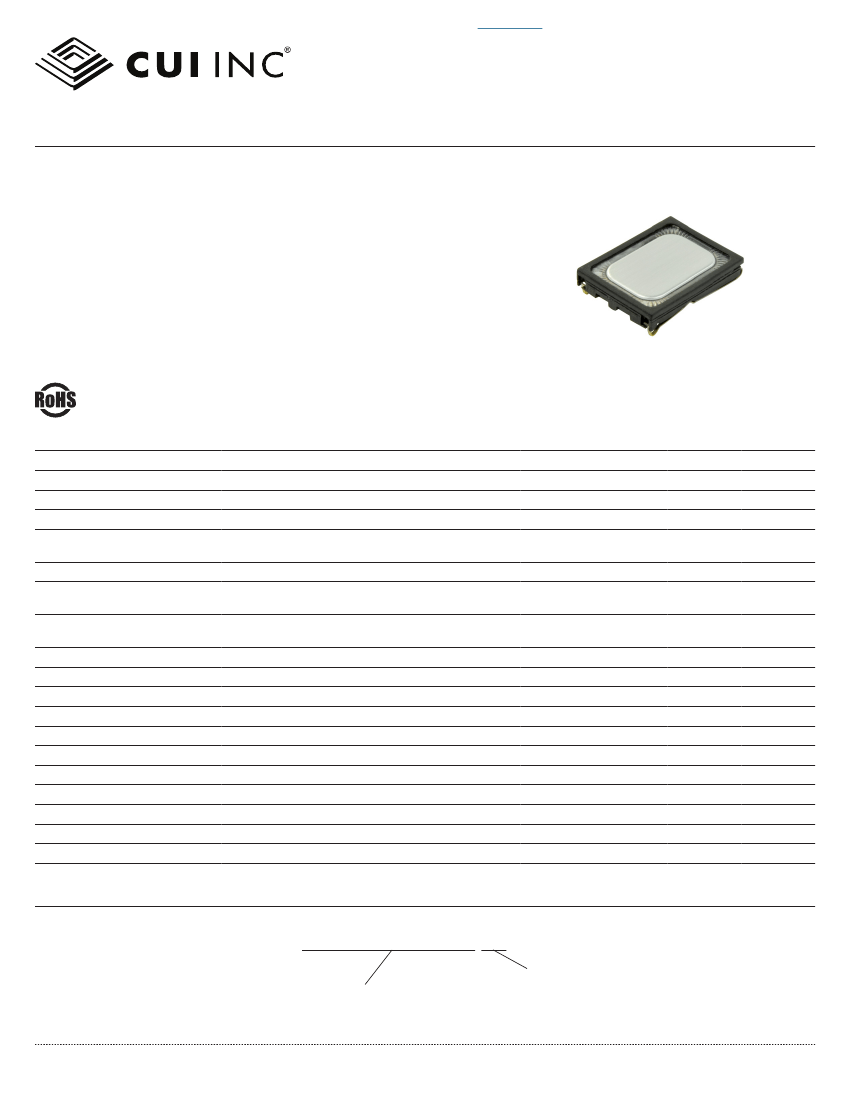

SERIES:
CMS-151125-078X-67
│
DESCRIPTION:
SPEAKER
FEATURES
• IP67 rated face
• protection against dust and water ingression
• micro-speaker
• 2.5 mm height
• 3 available contact methods
SPECIFICATIONS
parameter
input power
impedance
coil resistance
resonant frequency (Fo)
frequency response
sound pressure level
distortion
buzz, rattle, etc.
polarity
dimensions
magnet
cone material
weight
operating temperature
storage temperature
hand soldering
RoHS
IP level
Notes:
conditions/description
max power: as per IEC-268-5, in 1 cc box
at 2.0 kHz, 2.37 Vrms, in 1 cc box
at 1.0 Vrms in free air, 10 cm
at 2.37 Vrms in 1 cc box, 10 cm
at 0.7 W, 10 cm, avg 0.8, 1.0, 1.5, 2.0 kHz, 1 cc
box
at 800~1200 Hz, 2.37 Vrms, 10 cm
at 1,201~5,000 Hz, 2.37 Vrms, 10 cm
must be normal at sine wave, 0.2~2 kHz, 1 cc box
min
6.8
6.48
560
800
100
88
typ
0.7
8
7.2
700
1,000
max
1.0
9.2
7.92
840
1,200
20,000
units
W
Ω
Ω
Hz
Hz
Hz
dB
%
%
Vrms
mm
91
94
15
10
2.37
cone moves forward w/ positive dc current to “+” terminal

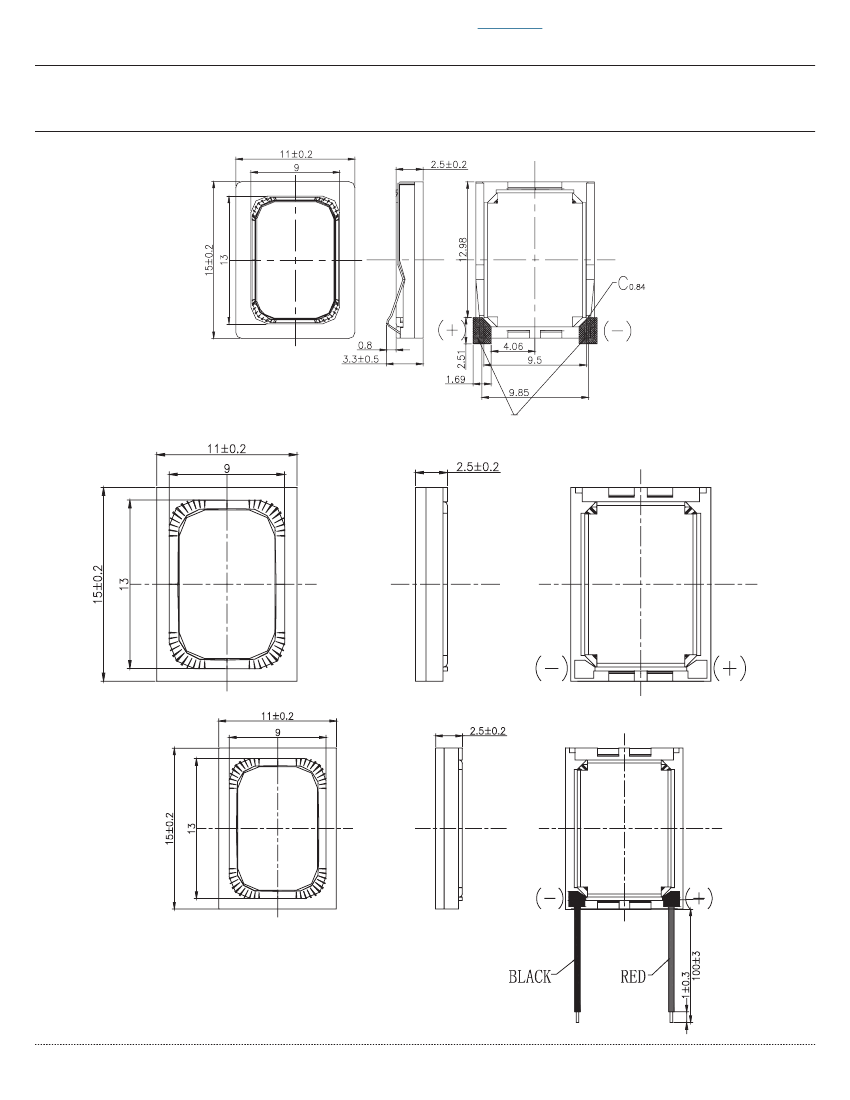

15 x 11 x 2.5
Nd-Fe-B
mylar
1.5
-20
-30
for maximum 3 seconds (N/A for spring contacts)
yes
IP67 (front side)
1. All specifications measured at 15~35°C, humidity at 25~75%, under 86~106 kPa pressure, unless otherwise noted.
g
70
85
380
°C
°C
°C
PART NUMBER KEY
CMS-151125-078
XX
- 67
Base Number
Termination Options:
S = spring contacts
SP = solder pads
L100 = wire leads
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CMS-151125-078X-67
│
DESCRIPTION:
SPEAKER
date
07/23/2018
│
page
3 of 5

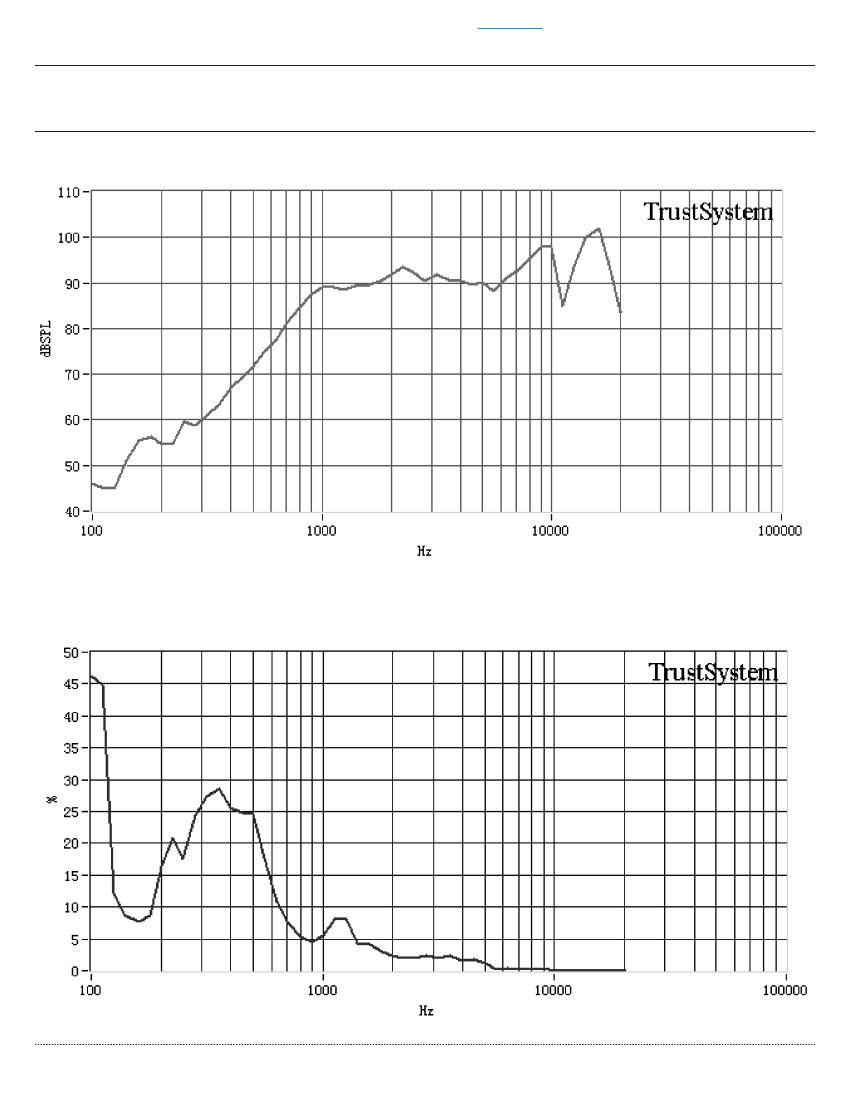

RESPONSE CURVES
Test Conditions: 2.37 Vrms / 10 cm
Frequency Response Curve
Test Conditions: 2.37 Vrms / 10 cm
Total Harmonic Distortion Curve
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CMS-151125-078X-67
│
DESCRIPTION:
SPEAKER
date
07/23/2018
│
page
4 of 5

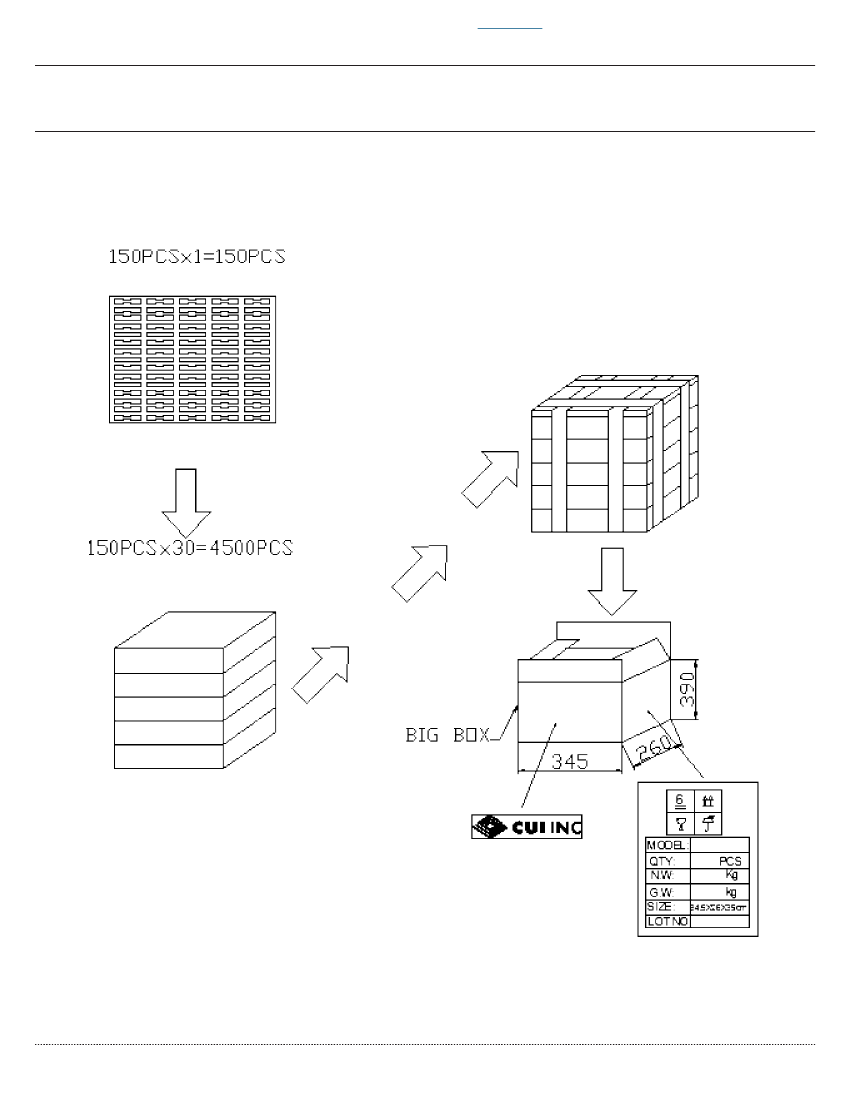

PACKAGING
units: mm
Tray QTY: 150 pcs per tray
Carton Size: 345 x 260 x 390 mm
Carton QTY: 4,500 pcs per carton
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CMS-151125-078X-67
│
DESCRIPTION:
SPEAKER
date
07/23/2018
│
page
5 of 5
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
07/23/2018
