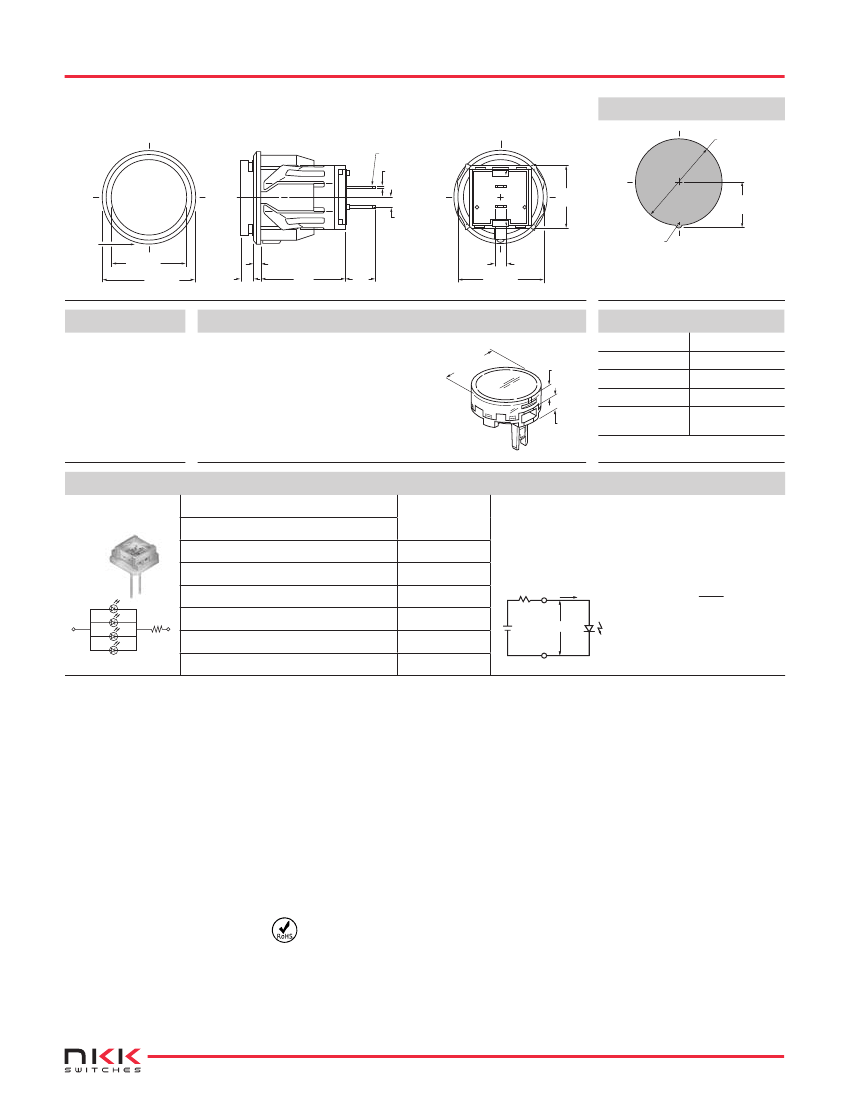

Standard Size Indicator with Legend
LB02VA001
Snap-in Mount
(1.2) x (2.0) Typ
.047 x .079
(0.5) Typ
.020
LB Indicator
PANEL CUTOUT
Dimensions in mm/inch
(22.0) Dia
.866
L
(+)
ON
Part No.
This Side
(19.0) Dia
.748
(23.7) Dia
.933
(3.2)
.126
(1.8)
.071
(21.5)
.846
(7.5)
.295
(15.8) Sq
.622
(2.54) Typ
.100
L
(-)
(11.5)
.453
(1.5) R
.059
(21.7) Dia
.854
(2.8)
.110
Panel Thickness
.039” ~ .157”
(1.0mm ~ 4.0mm)
BASE INDICATOR
AT4164JB
Round Cap
Part Number
Clear Lens
White Insert
Material:
Finish:
ROUND CAP
(19.0) Dia
.748
LEGEND SPECIFICATIONS
Legend
(4.5)
.177
ON
Helvetica Bold
10 Point
Black
Laser Etch on
Inside of Lens
Type Style
Type Size
Legend Color
LB02KW01
Polycarbonate
Glossy
(5.5)
.217
Print Method
Legend shown is illustrative only.
Actual art may vary.
ELECTRICAL SPECIFICATIONS FOR LED
Bright LED
AT627F05
LED is 5-volt 4-element with resistor
Color
Maximum Forward Current
Typical Forward Current
Forward Voltage
(+)
(-)
Green
I
FM
I
F
V
F
V
RM
∆I
F
––––
52mA
5V
4V
0.50mA/°C
–25°C ~ +50°C
The electrical specifications shown are determined at a
basic temperature of 25°C. If the source voltage exceeds
the rated voltage, a ballast resistor is required. The follow-
ing diagram and formula will assist in calculating the value
of the ballast resistor.
R
+
I
F
Anode
R =
Where: R =
E =
V
F
=
I
F
=
E – V
F
I
F
Resistor Value (Ohms)
Source Voltage (V)
Forward Voltage (V)
Forward Current (A)
Maximum Reverse Voltage
Current Reduction Rate Above 25°C
E
V
F
Cathode
T-1 Bi-pin
Ambient Temperature Range
–
Base Indicator
Specifications
Materials & Finishes
Housing:
Snap-in Frame:
Base:
Lamp Terminals:
Glass fiber reinforced polyamide (UL94V-0)
Stainless steel
Liquid crystal polymer (UL94V-0)
Brass with silver plating
–25°C through +50°C (–13°F through +122°F)
Note: When used with a polyvinyl chloride splash cover, the lowest limit is 0°C (32°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute;
3 right angled directions for 2 hours
50G (490m/s2) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
RoHS Compliant:
Installation
Cap Installation Force:
Quick Connect Force:
Soldering Time & Temperature:
3.92N maximum downward force on cap
52.95N maximum downward force on connector
Manual Soldering: 390°C for 4 seconds, 2 cycles
UL94V-0 housing & base
