E-Stop Smart Box
(part no. 73-00002.2)
Technical specifications

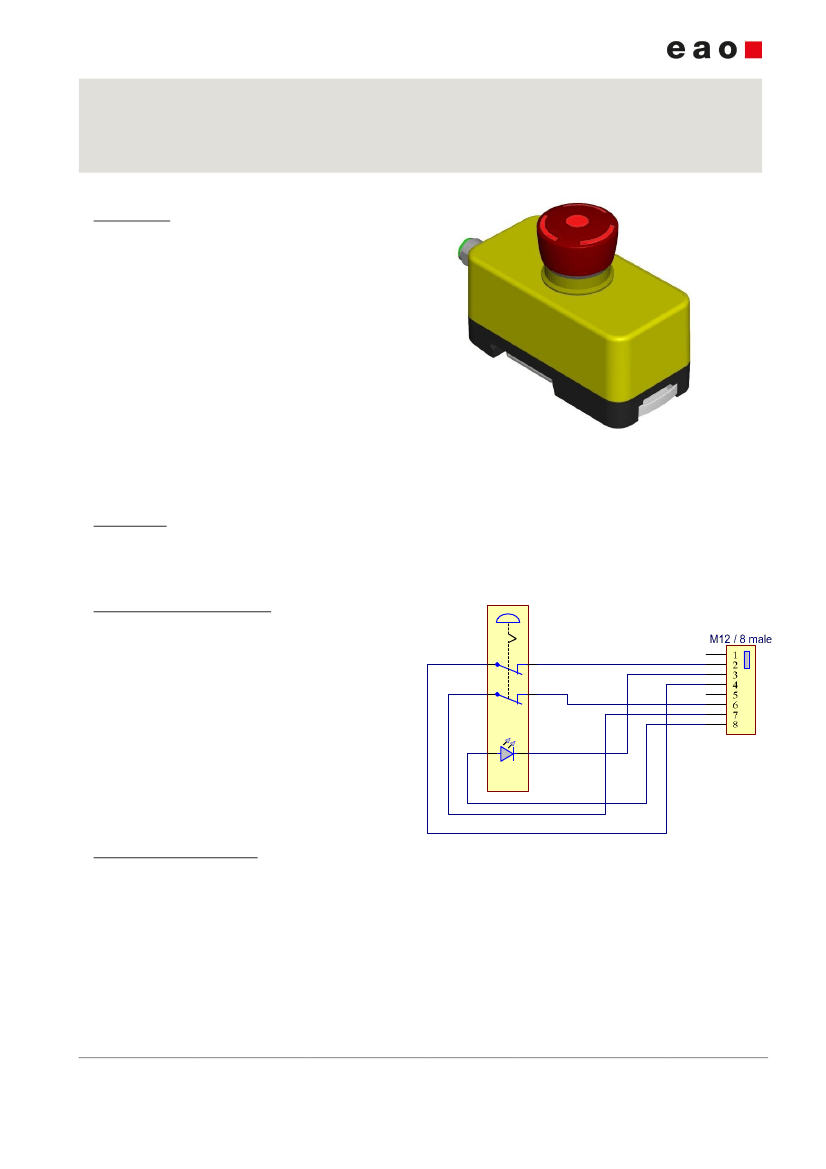

Description
Emergency stop Smart Box wired to 8 pin M12
plug with red illuminated 2NC emergency stop
switch. The housing and switch are sealed to
IP65 when assembled and connected to a
suitable M12 cable
Shipped:
▪
with mounting adapter
▪
with red illuminated emergency stop switch
internally wired to 8-pin M12 plug
Equipment
Connection:
Control element:
M12 8-pin plug, male, A-coding
Series 84 emergency stop switch / fully illuminated /
part no. 84-5141.2B20
Connector pin assignment
Pin 1:
Pin 2:
Pin 3:
Pin 4:
Pin 5:
Pin 6:
Pin 7:
Pin 8:
(Unused)
Contact ‘a’
LED negative terminal
Contact ‘a’
(Unused)
Contact ‘b’
Contact ‘b’
LED positive terminal
Electrical characteristics
Button operating voltage:
Switching rate:
LED operating voltage
Maximum 30VDC
Maximum 2A / contact
5VDC … 30VDC
For further technical data regarding the emergency stop switch, please refer to the EAO data sheet 84-
5141.2B20.
Created:
2017-09-27 / KRJ
EAO Systems AG
Reviewed:
2017-09-27 / KRJ
CH-4600 Olten
Approved:
2017-09-27 / KRJ
Doc. No.
19003064096
Version / status
D
/ 2590 Series -
released
Fax +41 62 296 21 62
Page
1/3
www.eao.com
Telephone +41 62 286 91 11
Mechanical characteristics
External dimensions:
See dimensional diagram 1
(Female M12 connector not included)
- The dimensional diagram shows the housing with the
emergency stop switch and M12 plug installed
- All side walls exhibit a pull of around 1°.
Note:
Alternative fixing
3x holes for
PT screw 2.5
(max. depth 6mm)

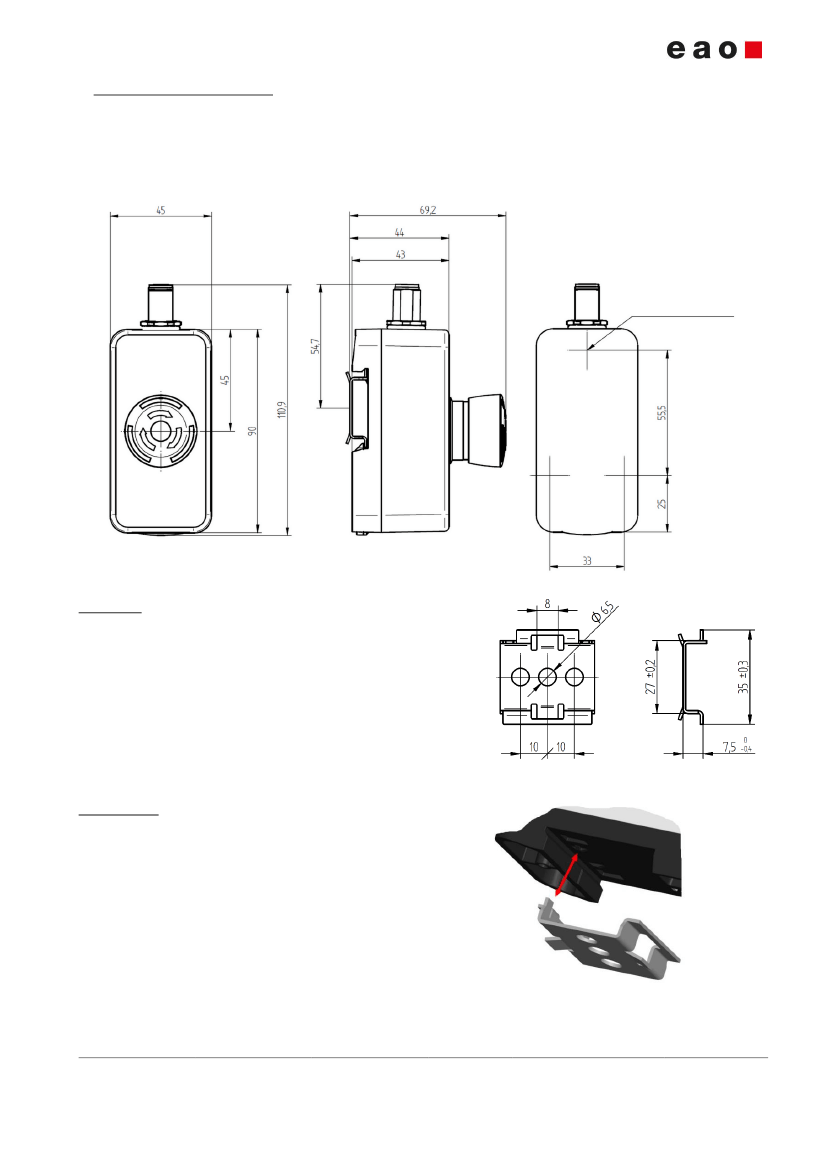

Dimensional diagram 1
Mounting
▪
▪
▪
Mount mounting adapter onto mounting surface
Mount emergency stop Smart Box on one side (note direction
of mounting adapter on the housing)
Push the Smart Box onto the adaptor on the other side until it
audibly clicks into place
Alternatively, the module can be mounted on a standard top
hat rail, or it can be mounted on a base using screws on the
rear (see dimensional diagrams).
▪
Dismantling
▪
▪
Pull out spring element using screwdriver
and lift Smart Box
Remove Smart Box from the other side
Created:
2017-09-27 / KRJ
EAO Systems AG
Reviewed:
2017-09-27 / KRJ
CH-4600 Olten
Approved:
2017-09-27 / KRJ
Doc. No.
19003064096
Version / status
D
/ 2590 Series -
released
Fax +41 62 296 21 62
Page
2/3
www.eao.com
Telephone +41 62 286 91 11
Operating temperatures
Temperature range:
Rated temperature:
Operating temperature:
Storage temperature:
25°C
-25 … 60°C
-25 … 80°C
Materials
Upper part of housing:
Lower part of housing:
Spring element (for restraint):
Seal:
Mounting adaptor:
Housing screws:
M12 connector housing:
PBT / UL-V0 / colour similar to RAL1004
PBT / UL-V0 / colour similar to RAL9011
POM (nature)
MVQ silicone foam bright
Stainless steel 1.4301 / surface vibratory finish
Stainless steel A2
Die cast zinc
Standards
Degree of protection:
Insulation:
IP65 (with mounted female connector and emergency stop switch)
EN 60664-1:2008 / degree of contamination I / insulation material
IIIa/b
Defined based on components of EAO Series 84
EN 60068-2-6:2008-10 / 10 – 150Hz / 2g
EN 60068-2-27:2010-02 / 15g / 11ms
EMC:
Vibrations:
Shock:
Approvals
(emergency stop switch only)
Approvals
(emergency stop switch only)
Conformity
EN 60947-5-1 / EN 60947-5-5 / EN 13850 / EN 60204
UL / CB IEC 60947
CE
EAO reference number:
Part no. 73-00002.2
EAO reserves the right to change specifications without further notice.
Created:
2017-09-27 / KRJ
EAO Systems AG
Reviewed:
2017-09-27 / KRJ
CH-4600 Olten
Approved:
2017-09-27 / KRJ
Doc. No.
19003064096
Version / status
D
/ 2590 Series -
released
Fax +41 62 296 21 62
Page
3/3
www.eao.com
Telephone +41 62 286 91 11
