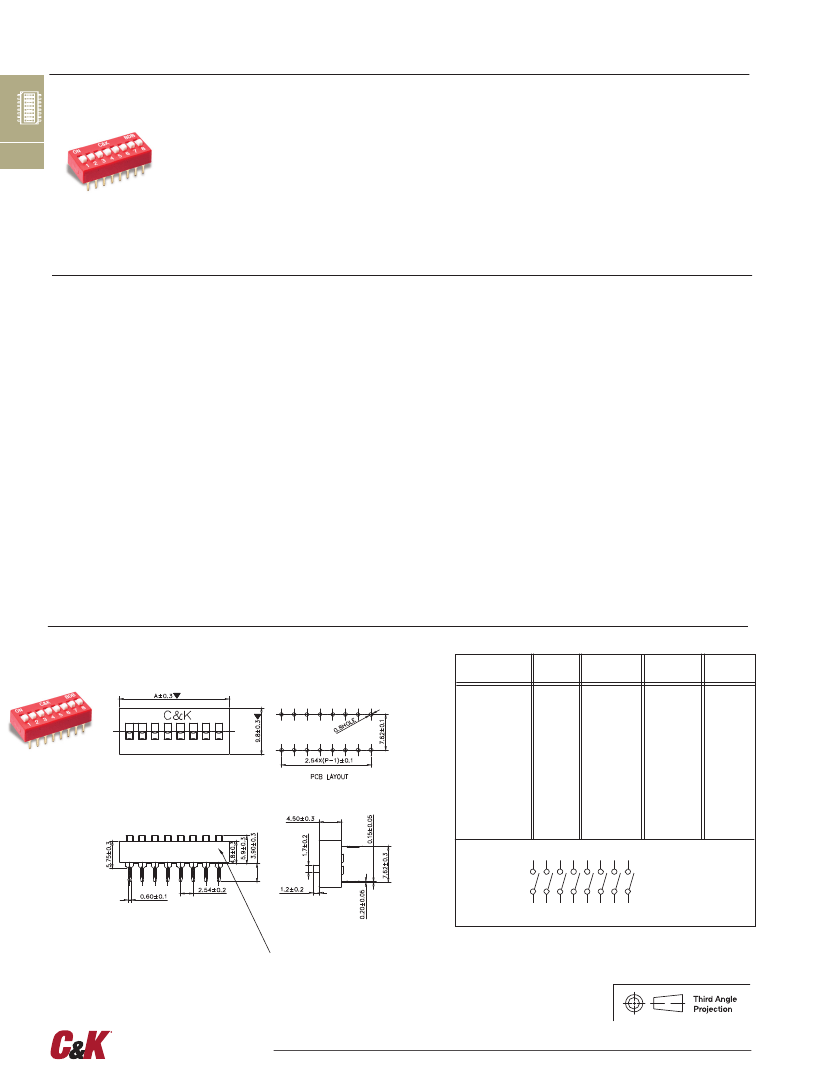

BDB Series
Standard Profile DIP Switches
Features/Benefits
•
Traditional full profile DIP switch
•
Extended actuator for easy actuation
•
Special sealed construction allows for
solder washing without the need for
tape seal
•
RoHS compliant
•
New generation price competitive
NEW
Typical Applications
•
Address switch for industrial controls
•
Logic switching for computers and peripherals
•
Function controlling for
numerous applications
H
DIP
Specifications
SWITCH FUNCTION: SPST - 2 thru 12 position available
(except 11 position).
CONTACT RATING:
Carry: 100 mA max. @ 50 V DC.
Switch: 100 mA max. @ 5 V DC or 25 mA max. @ 25 V DC.
MECHANICAL AND ELECTRICAL LIFE: 10,000 make-and-break
cycles at full load, each circuit.
CONTACT RESISTANCE: Below 50 milliohms typ. initial
@ 2-4 V DC 100mA.
INSULATION RESISTANCE: 10
9
ohms min.
DIELECTRIC STRENGTH: 300 V RMS min. @ sea level between
adjacent terminals.
VIBRATION: No contact opening greater than 10 microseconds and no
contact closure when exposed to vibration .06 in DA or 5g, which-
ever is less, from 10 to 55 Hz, and 10g from 55 to 500 Hz.
SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E
method 9 (1 hour steam aging).
PACKAGING: Switches supplied in rigid dispensing tubes in full-tube
quantities only: this may effect order quantity. Number of switches
per tube varies with model. Switch position 1 denotes pin number
1. All switch actuators in ‘OFF’ position, standard.
2. Option for “ON” is available on volume demand.
Materials
HOUSING: PA46, color red (UL94V-0)
COVER: Glass filed polyester (PBT) (UL94V-0)
ACTUATOR: Glass filed polyester (PBT) (UL94V-0)
CONTACTS: Gold plate phosphor bronze
TERMINALS: Gold plate over nickel plated brass
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
ON
BDB
1 2 3 4 5 6 7 8
CAPACITANCE: 5pF max. between adjacent terminals.
STORAGE & OPERATING TEMPERATURE: -40°C to 85°C.
SHOCK: Withstands 20g 11 ms sawtooth waveform with no con-
tact opening greater than 10 microseconds.
Vertical Full Profile DIP
PART NUMBER
NO.POS.
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.280 (7,11)
.380 (9,65)
.480 (12,19)
.580 (14,73)
.680 (17,27)
.780 (19,81)
.880 (22,35)
.980 (24,89)
1.080 (27,43)
1.280 (32,51)
DIM. ‘B’
.100 (2,54)
.200 (5,08)
.300 (7,62)
.400 (10,16)
.500 (12,75)
.600 (15,24)
.700 (17,78)
.800 (20,32)
.900 (22,.86)
1.100 (27,94)
QUANTITY
PER TUBE
70
51
40
33
28
24
21
19
17
14
ON
BDB
1 2 3 4 5 6 7 8
BDB08
BDB02
BDB03
BDB04
BDB05
DATE CODE: YEAR+WEEK
BDB06
YEAR: The letter «A» means 2009, «B»
means 2010..., «J» means 2018, and so on
BDB07
WEEK: «01» means the rst week «01»
means the second week, and
BDB08
so on
BDB09
BDB10
BDB12
Schematic
SPST
DATE CODE: YEAR+WEEK
YEAR: The letter «A» means 2009, «B»
means 2010..., «J» means 2018, and so on
WEEK: «01» means the rst week «01»
means the second week, and so on
21 aug 2018
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–22
www.ckswitches.com
NEW
Installation, Soldering and Cleaning
BDB Series
Standard Profile DIP Switches
All BDB Series Standard Profile DIP Switches can be hand soldered or machine soldered without the use of boot, caps,
tapes or special attention. Open base washable models have unique design, allowing solvent cleaners and water/detergent
solutions to flush and clean the electrical contacts of the contaminants and fluxes. For best results, follow these directions:
1) Wave soldering recommended at 500° F (260ºC) solder temperature.
2) Hand solder using 30 watt small tip iron controlled at 500° F (260ºC), 10 seconds max./terminal.
3) Open base washable models: Clean flux using forced rinse, high agitation or triple bath cleaning method.
DO NOT mask or cover switch in any way during cleaning. Switch is designed for easy solvent flush out.
4) All switch actuators must be in ‘OFF’ position during soldering and cleaning processes.
H
DIP
21 aug 2018
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–23
www.ckswitches.com
