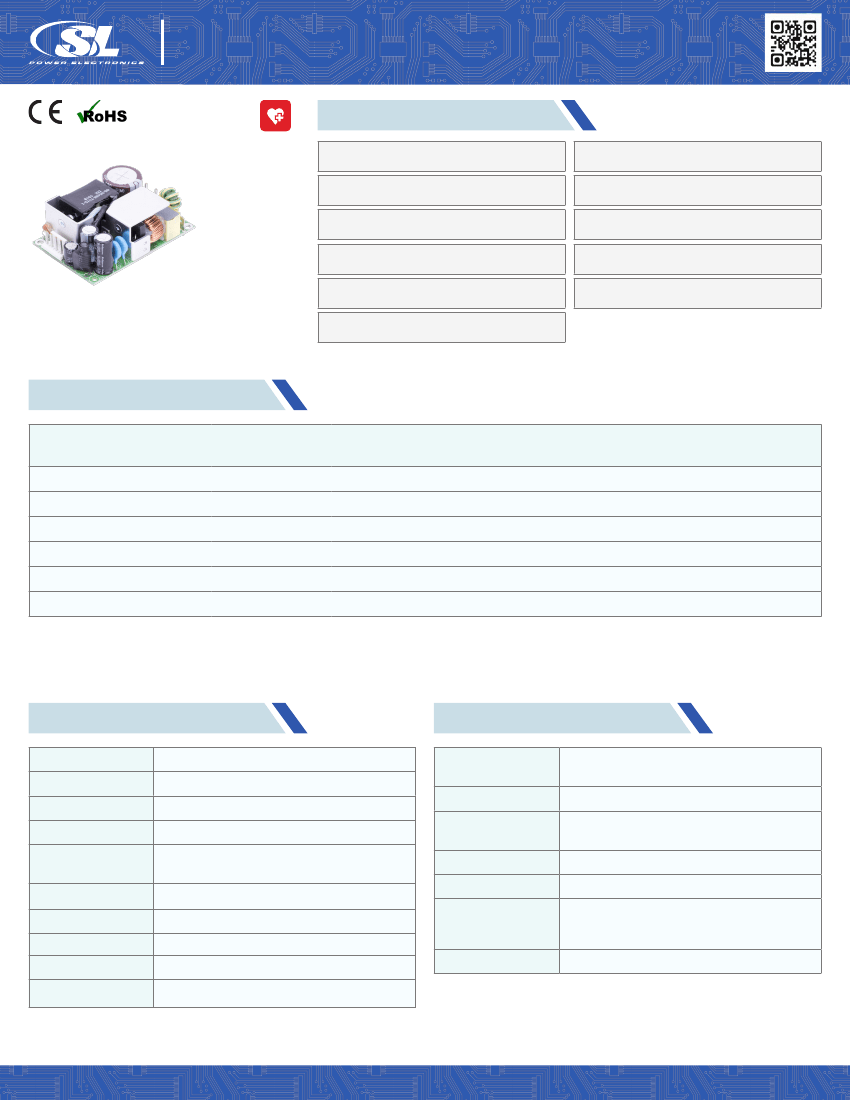

MB60 Family
FEATURES AND BENEFITS
Medical
60W Single Output
Medical Grade
Ultra Small Size of 2” x 3” x 1”
For 1U Applications
60W Convection Cooled
Universal Input 90-264Vac
Approved to IEC60601-1, 3
rd
Edition with 2 MOPP
Class II Input Versions Available
Less than 0.5W no-load Power Consumption
3 Year Warranty
Optional LED Indicator for power-on
RoHS Compliant
Level V Efficiency Compliant Models
MODEL SELECTION
Model
Number***
MB60S12K
MB60S15K
MB60S18K
MB60S24K
MB60S36K**
MB60S48K
Volts
12V
15V
18V
24V
36V
48V
Output Current
Convection Cooled
4.58A
4.00A
3.33A
2.50A
1.67A
1.25A
Output Power
Convection Cooled
55W
60W
60W
60W
60W
60W
Ripple & Noise
*
120mV pk-pk
150mV pk-pk
180mV pk-pk
240mV pk-pk
360mV pk-pk
480mV pk-pk
Total Regulation
±2%
±2%
±2%
±2%
±2%
±2%
OVP Threshold
14.4-18Vdc
18-22.5Vdc
21-25.5Vdc
28.8-36Vdc
42-47Vdc
57.6-72Vdc
Notes:
1.
2.
3.
* At -20 ° C, the noise and ripple is 2% of the output.
** For product availability, please contact the factory.
***Replace “K” in model number with “C” for class II input versions.
INPUT
Input Voltage
Input Current
Inrush Current
Input Fuses
Earth Leakage Current
Efficiency
Input Frequency
No Load Input Power
Turn-on Input Voltage
Turn-off Input Voltage
90-264Vac, single phase
120Vac: 1.4A, 240Vac: 0.75A
40A maximum @ 0°C
F1, F2: 2.5A, 250Vac
<275μA@264Vac, 60 Hz input, NC / <90μA@264Vac,
60 Hz input, NC
83% to 88%
47-63Hz
<0.5W
75V
65V
OUTPUT
Output Power
Turn On Time
Hold Up Time
Ripple and Noise
Total Regulation
Transient Response
60W continuous for operation from -10ºC to 50ºC 55
Watts for 12V output.
<2 Seconds at 120Vac
16mS minimum from loss of ac input at 120 Vac, full
load
0.5% RMS, 1% pk-pk for all models
±2% for all models
500μs typ. response time for return to within 0.5%
of final value for a 50% load change, Δi/Δt< 0.2A/
μs. Max. voltage deviation is 3.5%
No minimum load is required
Minimum Load
MB60 Datasheet v0818
Copyright © 2018 SL Power Electronics Corp. - All rights reserved.
Page 1
MB60 Family
RELIABILITY
MTBF
Warranty
HALT Data
700,000 hours, 25°C ambient, full load
3 Years
Per SL Power Halt procedure
Conducted Emissions
Radiated Emissions
Voltage Fluctuations &
Flicker
Static Discharge Immunity
60W Single Output
Medical Grade
EMI/EMC COMPLIANCE
EN55011/22 Class B; FCC Part 15
EN55011/22 Class A; FCC Part 15
EN61000-3-3
EN61000-4-2 6kV contact, 8kV air, Criteria A
EN61000-4-3 (3V/m), Criteria A
EN61000-4-4 (PS: 2kV-40A, other lines 1kV-20A),
Criteria B
EN61000-4-5, Installation Class 3 (1kV diff.
mode, 2kV common mode), Criteria A
EN61000-4-6 (3Vrms), Criteria A
EN61000-4-8 (3A/m), Criteria A
EN61000-4-11,
95% dip/0.5 cycle (Criteria A),
60%/5cycles (Criteria B ), 30%/25 cycles
(Criteria A)
ISOLATION
Isolation Safety Rating
Input to Ground: 1 MOPP, Class I input models
Input to Output: 2 MOPP
Output to Ground: Functional, Class I input models
Input to Ground: 1800Vac, Class I input models
Input to Output: 4000Vac
Output to Ground: 500Vac, Class I input models
RF Field Susceptibility
Fast Transients/Bursts
Surge Susceptability
Conducted RF
Susceptability
Power Frequency Magnetic
Field Immunity
Voltage Sags and Surges
UL - ANSI/AAMI ES60101:2005, 3
rd
Edition
CSA - CAN/CSA-C22.2 No. 60601-1 (2008)
Demko - EN 60601-1:2006
CB Report - IEC 60601-1 (3
rd
Edition)
Isolation Type - B rated
Electric Strength Test
Voltage
SAFETY
Safety Standards
Harmonic Current Emissions
EN61000-3-2, Class A
Notes:
1.
2.
Specifications subject to change without notice.
Specifications are for convection rating at factory settings with 115Vac input and 25 °C
ambient unless otherwise stated.
ENVIRONMENT
Operating Temperature
Relative Humidity
Shock
Temperature Derating
Altitude
Storage Temperature
Vibration
Cooling
-10ºC to +80ºC
5% to 95%, non-condensing
Non-Operating: Half-sine, 40 gpk, 10mS, 3 axes, 6
shocks total
See derating curve for available output power above
50C ambient
Operating: -500 to 3,000 meter
Non-operating: -500 to 40,000 ft.
-40°C to +85°C
Random vibration per MIL-STD-810E, Method 514.4,
Cat. 1, Figure 514.4-1, 1 hr in each of three axes
Convection
PROTECTION
Overvoltage Protection
Short Circuit Protection
Overtemperature Protection
Overload Protection
Overshoot
OVP firing reduces output voltage to <50% of
nominal in <50mS. See chart for trip range
Short across the output terminals will not cause
damage to the unit. Hiccup Mode
Automatic Power Shutdown at Tc = 155ºC
120% - 180% of rated output current value,
Hiccup Mode
5% overshoot at turn-on, 5% overshoot at turn-
off, under all conditions
MB60 Datasheet v0818
Copyright © 2018 SL Power Electronics Corp. - All rights reserved.
Page 2
MB60 Family

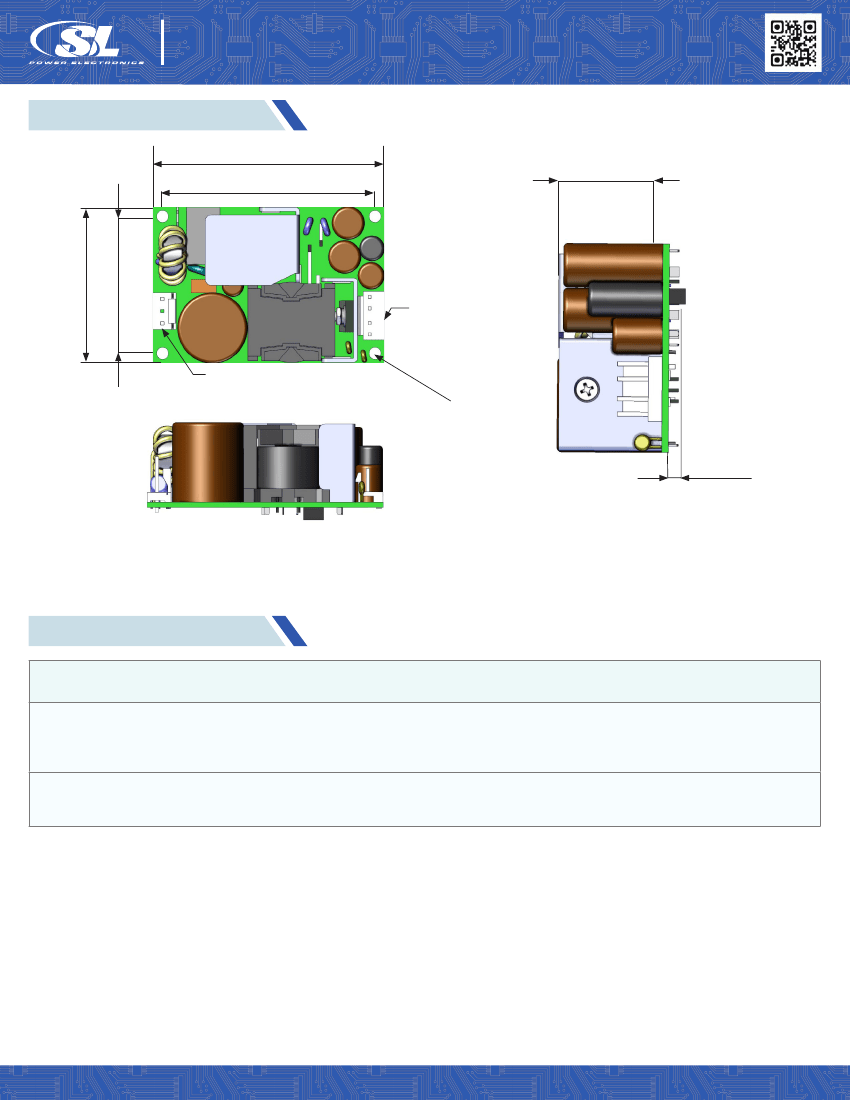

MECHANICAL DRAWING
[3.000 ±0.020]
76.20 ±0.5
[ 2.748 ±0.006 ]
69.80 10.15
60W Single Output
Medical Grade
[ 1.000 ±0.039 ]
25.40 ±1
[2.000 ±0.020]
50.90 ±0.5
[1.752 ±0.006]
44.50 ±0.15
3
1
1
J2
4
J1
[0.1
Ø3. 25 ±0
175 .00
±0. 6]
150
[0.157 ±0.020]
4.00 ±0.5
Notes:
1.
2.
For class I model, the unit shall be mounted to a metal plate with metal stand offs and screws to ensure proper emissions attenuation.
For class II model, the unit should be mounted using platic or other non-conductive hardware.
CONNECTOR INFORMATION
Input Connector J100
PIN 1) AC LINE
PIN 2) EMPTY
PIN 3) AC NEUTRAL
Mating Connector:
Tyco/AMP 640250-3
Pins = 770461-1
DC Output Connector J2
PIN 1) +Vout
PIN 3) -Vout
PIN 2) +Vout
PIN 4) -Vout
Mating Connector:
AMP 640250-4
Pins = 770461-1
Ground
(FG)
19-30258-0187 (Keystone 1285)
(Zierick 895)(.187*0.020)
Mating Connector
Molex 19002-0005
Notes:
1.
2.
3.
Mounting holes should be connected together for EMI purpose.
FG is safety ground connection (class I version).
This power supply requires mounting on metal standoffs 0.20” (5mm) in height.
MB60 Datasheet v0818
Copyright © 2018 SL Power Electronics Corp. - All rights reserved.
Page 3

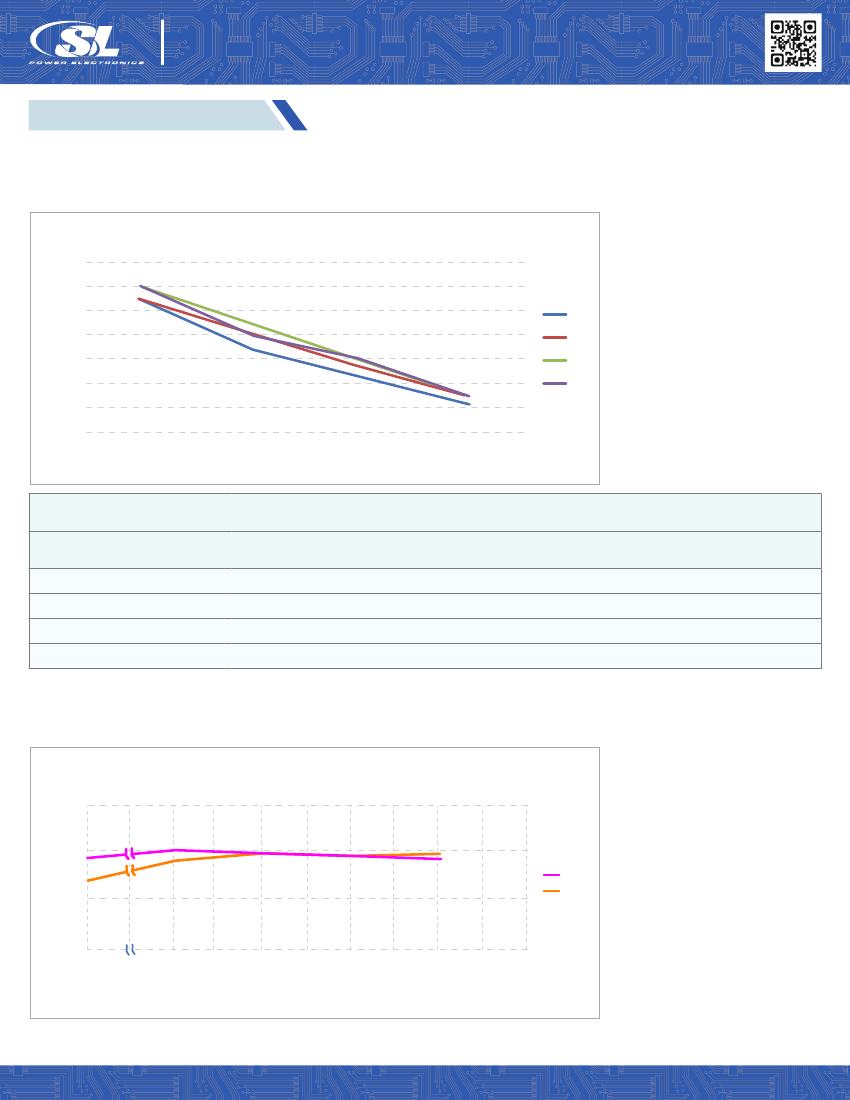

MB60 Family
Ripple & Noise
60W Single Output
Medical Grade

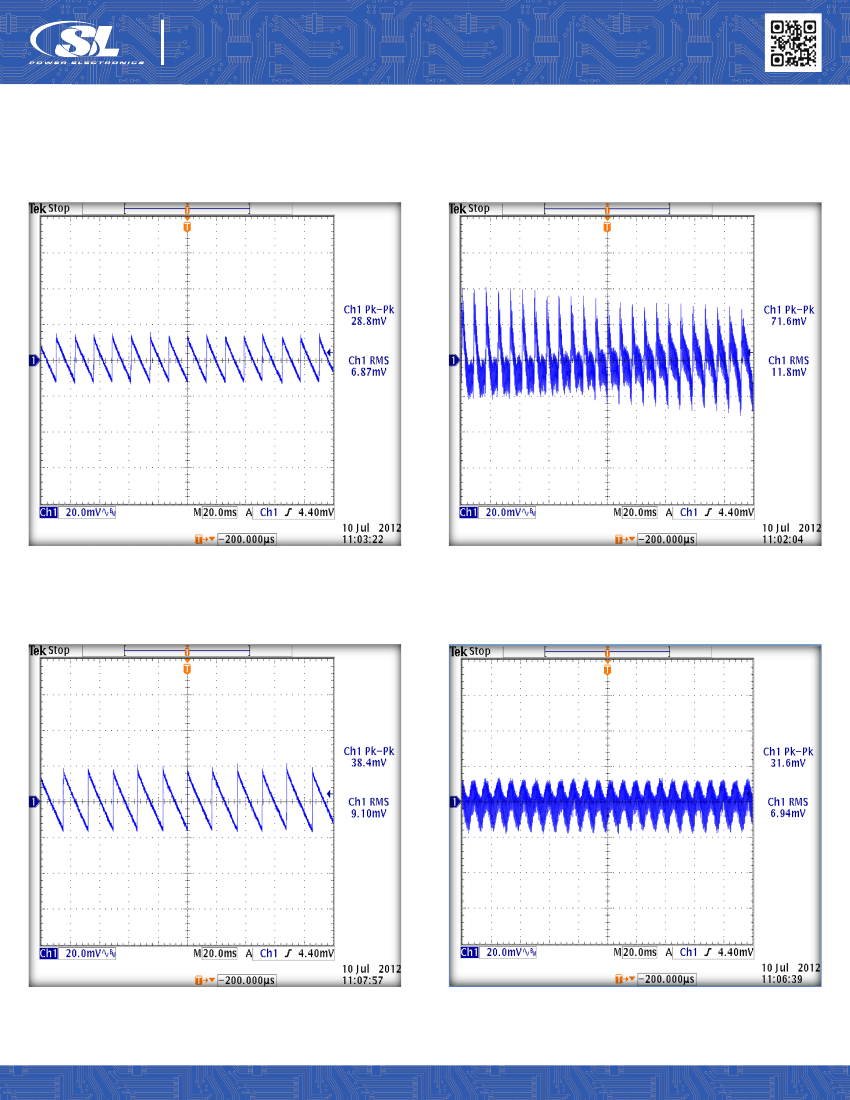

To verify that the output ripple and noise does not exceed the level specified in the product specification, measured using a scope probe socket with 0.1uF ceramic
and a 10uF electrolytic capacitor connected in parallel across it, 20MHz BW.
24V OUT, NO LOAD, 90VAC, 60HZ
24V OUT, FULL LOAD, 90VAC, 60HZ
24V OUT, NO LOAD, 264VAC, 50HZ
24V OUT, FULL LOAD, 264VAC, 50HZ
MB60 Datasheet v0818
Copyright © 2018 SL Power Electronics Corp. - All rights reserved.
Page 5
