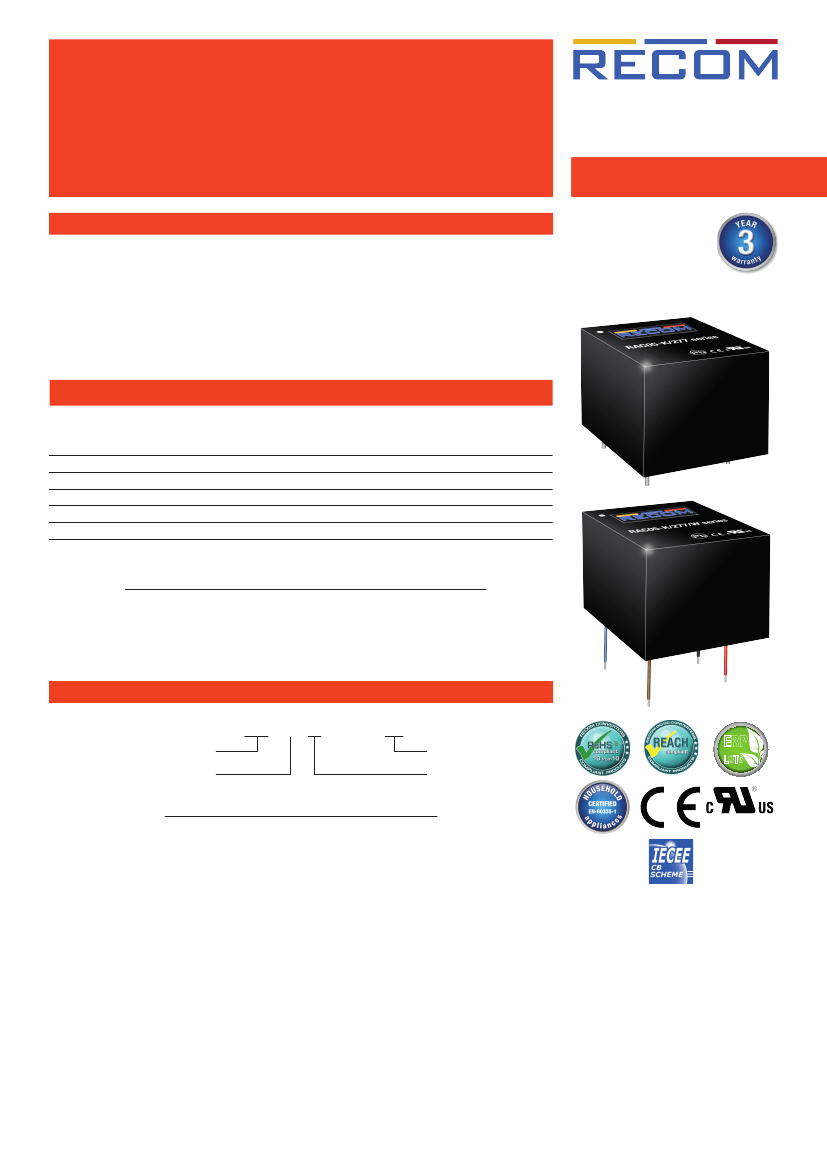

Features
Regulated
Converter
Description
•
•
•
•
•
•
•
Wide input range 85-305VAC
Standby mode optimized (eco design Lot 6)
High efficiency over the entire load range
Operating temperature range: -40°C to +90°C
Overvoltage and overcurrent protected
EMC compliant without external components
Encapsulated module with pins or wired
AC/DC Converter
RAC05-K/277
RAC
5 Watt
Single
Output
The RAC05-K/277 series are multipurpose 5 watt AC/DC power supplies for enhanced mains input
conditions from 90VAC up to 305VAC with an extra wide operating temperature range from -40°C to
+90°C. These modules are designed to supply worldwide applications in automation, Industry 4.0, IoT,
household and smart buildings. For worldwide use they come with international safety certifications for
industrial, domestic and ITE as well as household standards. With both PCB-mount and wired packages,
fully protected outputs, and EMC class B emissions compliance without any external components, these
are the easiest to use modular power solutions in the industry.
Selection Guide
Part
Number
RAC05-3.3SK/277
RAC05-05SK/277
RAC05-12SK/277
RAC05-15SK/277
RAC05-24SK/277
Input
Voltage Range
[VAC]
85-305
85-305
85-305
85-305
85-305
Output
Voltage
[VDC]
3.3
5
12
15
24
Output
Current
[mA]
1510
1000
416
330
210
Efficiency
typ
(1)
[%]
77
80
83
83
84
Max. Capacitive
Load
(2)
[µF]
10000
8000
1500
1000
330
Notes:
Note1: Efficiency is tested at nominal input and full load at +25°C ambient
Note2: Max Cap Load is tested at nominal input and full resisitive load
Model Numbering
RAC05-__ SK/277/W
nom. Output Power
Output Voltage
Notes:
Note3: add suffix „W“ for wired version
without suffix, standard THT version
Wired
Single
ERP
compliant
LOT6
E224736
Ordering Examples:
RAC05-05SK/277
RAC05-24SK/277
RAC05-05SK/277/W
RAC05-12SK/277/W
5 Watt
5 Watt
5 Watt
5 Watt
5Vout
24Vout
5Vout
12Vout
Single Output
Single Output
Single Output
Single Output
THT version
THT version
Wired version
Wired version
UL62368-1 certified
EN62368-1 certified
IEC/EN60335-1 pending
EN62233 pending
EN55032 compliant
EN55014-1(-2) compliant
CB Report
www.recom-power.com
REV.: 1/2018
PA-1
RAC05-K/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
REGULATIONS
Parameter
Output Accuracy
Line Regulation
Load Regulation
(6)
Transient Response
low line to high line, full load
10% to 100% load
25% load step change
recovery time
Notes:
Note6: Operation below 10% load will not harm the converter, but specifications may not be met
Series
Condition
Value
±1.0% typ.
±0.5% typ.
1.0% typ.
4.0% max.
500µs typ.
Deviation vs. Load
(at 115VAC, 230VAC, 277VAC)
1
RAC05-05SK/277
1
RAC05-12SK/277
0.5
0.5
Deviation [%]
0
Deviation [%]
0
10
20
30
40
50
60
70
80
90
100
0
-0.5
-0.5
-1
-1
0
10
20
30
40
50
60
70
80
90
100
Output Load [%]
Output Load [%]
PROTECTIONS
Parameter
Input Fuse
(7)
Short Circuit Protection (SCP)
Over Voltage Protection (OVP)
Over Voltage Category
Over Current Protection (OCP)
Class of Equipment
Isolation Voltage
(8)
Isolation Resistance
Isolation Capacitance
Insulation Grade
Leakage Current
Notes:
Note7: Refer to local safety regulations if input over-current protection is also required
Note8: For repeat Hi-Pot testing, reduce the time and/or the test voltage
continued on next page
www.recom-power.com
REV.: 1/2018
PA-3
Type
internal
below 100mW
Value
T1A, slow blow
hiccup, automatic restart
125% - 195%, hiccup mode
OVC
II
125% - 195%, hiccup mode
Class
II
tested for 1 minute
3kVAC
I/P to O/P
Isolation Voltage 500VDC
1GW min.
100pF max.
reinforced
0.25mA max.
RAC05-K/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
Peak Load Capability
Peak Load Calculation
P
nom
P
P
t
1
t
2
= please refer to derating graph
= 1.2 x P
nom
≤
30s
≥
2 x t
1
Pout [%]
Series
P
nom
x (t
1
+ t
2
) - P
P
x t
1
t
2
= nom. output power
= peak output power
= recovery power
= peak time
= recovery time
[W]
[W]
[W]
[s]
[s]
P
r
=
P
nom
P
P
P
r
t
1
t
2
P
p
P
nom
P
r
Practical Example:
P
r
=
5W (30s + 60s) - (6W x 30s)
60s
= 4.5W
t
1
t
2
Time [s]
ENVIRONMENTAL
Parameter
Condition
3.3Vout
full load
Operating Temperature Range
@ natural convection 0.1m/s
refer to derating graph
Maximum Case Temperature
Temperature Coefficient
Operating Altitude
(9)
Operating Humidity
Pollution Degree
Vibration
MTBF
Design Lifetime
277VAC
according to MIL-STD-202G
according to MIL-HDBK-217F, G.B.
230VAC
+25°C
+25°C
+70°C
+25°C
+70°C
non-condensing
5, 12Vout
15, 24Vout
3.3Vout
all others
Value
-40°C to +70°C
-40°C to +75°C
-40°C to +80°C
-40°C to +85°C
-40°C to +90°C
+95°C
0.05%/K
5000m
5% - 95% RH max.
PD2
10-500Hz, 2G 10min./1cycle, period 60min. each along x,y,z axis
>450 x 10
3
hours
125 x 10
3
hours
23 x 10
3
hours
105 x 10
3
hours
18 x 10
3
hours
Derating Graph
100
90
80
Notes:
Note9: Recognized by UL for safe operation up to 5000m. High altitude operation may impact the performance and lifetime.
Contact RECOM tech support for advice
(@ Chamber and natural convection 0.1m/s)
Line Derating
100
90
80
Output Load [%]
60
50
40
30
20
10
0
-40
-15
10
35
60
75 85
70 80 90
110
3.3VDC
5, 12VDC
15, 24VDC
Output Load [%]
70
70
60
50
40
30
20
10
0
85
90
305
Ambient Temperature [°C]
www.recom-power.com
Input Voltage [VAC]
REV.: 1/2018
PA-4
RAC05-K/277
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
SAFETY AND CERTIFICATIONS
Certificate Type (Safety)
Audio/Video, information and communication technology equipment - Part
1: Safety requirements
Audio/Video, information and communication technology equipment -
Part 1: Safety requirements (CB Scheme)
Audio/Video, information and communication technology equipment -
Part 1: Safety requirements (LVD)
Household and similar electrical appliances - Safety -
Part 1: General requirements
Measurement methods for electromagnetic fields of household appliances
and similar apparatus with regard to human exposure
RoHS2+
Series
Report / File Number
E491408-A6004
Standard
UL62368-1, 2nd Edition, 2014-12-01
CAN/CSA-C22.2 No. 62368-1-14, 2nd Edition, 2014-12
IEC62368-1:2014 2nd Edition
E491408-A6007-CB-1
EN62368-1:2014 + A11:2017
pending
pending
IEC60335-1:2010 + A2:2016 + C1:2016 5th Edition
EN60335-1:2012 + A11:2014
EN62233:2008
RoHS-2011/65/EU + AM-2015/863
EMC Compliance
Low-voltage power supplies DC output - Part 3: Electromagnetic compatibility
Electromagnetic compatibility of multimedia equipment - Emission requirements
Electromagnetic compatibility - Requirements for household appliances,
electric tools and similar apparatus - Part 1: Emission
Information technology equipment - Immunity characteristics - Limits and
methods of measurement
Electromagnetic compatibility - Requirements for household appliances,
electric tools and similar apparatus - Part 2: Immunity
ESD Electrostatic discharge immunity test
Radiated, radio-frequency, electromagnetic field immunity test
Fast Transient and Burst Immunity
Surge Immunity
Immunity to conducted disturbances, induced by radio-frequency fields
Power Magnetic Field Immunity
Voltage Dips and Interruptions
Voltage Fluctuations and Flicker in Public Low-Voltage Systems <=16A per phase
Limitations on the amount of electromagnetic intererence allowed from digital
and electronic devices
Methods of Measurement of Radio-Noise Emissions from Low-Voltage
Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz
Conditions
Standard / Criterion
EN61204-3: 2018, Class B
EN55032:2015, Class B
EN55014-1:2006 + A2:2011
EN55024:2010 + A1:2015
EN55014-2:2015
Air: ±2, 4, 8kV
Contact: ±2, 4kV
10V/m, 80MHz-1GHz
3V/m, 1.4GHz-2GHz
1V/m, 2GHz-2.7GHz
AC and DC Port: ±2kV
AC In Port (L-N): ±1kV
DC Output Port: ±0.5kV
AC and DC Port: 10V
50Hz, 30A/m
Voltage Dips: 30%
Voltage Dips: 60%
Voltage Dips: 100%
Interruptions: >95%
EN61000-4-2: 2009, Criteria B
EN61000-4-3: 2006 + A1, 2009, Criteria A
EN61000-4-4: 2012, Criteria B
EN61000-4-5: 2014 +A1:2017, Criteria B
EN61000-4-6: 2014, Criteria A
EN61000-4-8: 2010, Criteria A
EN61000-4-11:2004 + A1:2017, Criteria C
EN61000-4-11:2004 + A1:2017, Criteria C
EN61000-4-11:2014 + A1:2017, Criteria B
EN61000-4-11: 2014 + A1:2017,Criteria C
EN61000-3-3: 2013
FCC 47 CFR Part 15 Supbart B, Class B
ANSI C63.4-2014, Class B
DIMENSION AND PHYSICAL CHARACTERISTICS
Parameter
Material
Dimension (LxWxH)
Weight
Type
case, baseplate
potting
PCB
THT/wired
THT
wired
continued on next page
Value
plastic, (UL94 V-0)
silicone, (UL94 V-0)
FR4, (UL94 V-0)
31.7 x 26.7 x 21.8mm
31.5g typ.
37.0g typ.
www.recom-power.com
REV.: 1/2018
PA-5
