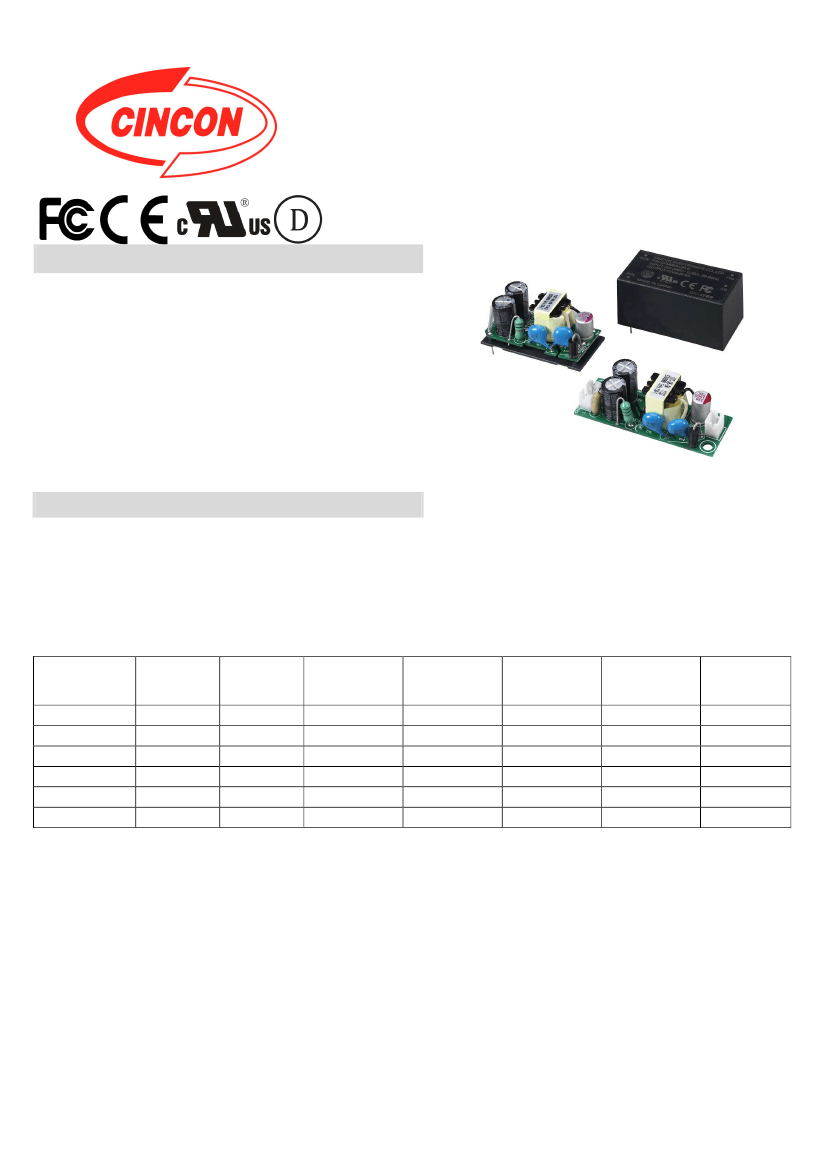

V10
︳
Features
* Universal Input 90~264VAC
* High Efficiency up to 81%
* Approved EN55032 Class B and CIRSS/FCC Class B
* Approved IEC62368-1, UL62368-1, EN62368-1
* Meets EN61558 (60335)
* Continuous Short Circuit Protection
*
No load input power < 75mW
* Over Voltage Protection
*
Class II
CFM06S SERIES
6 WATT SINGLE OUTPUT
AC-DC OPEN FRAME
Ordering information
CFM06SXXX -
X
Blank: PCB mount
E: Encapsulated
T: WAFER
MODEL
CFM06S033
CFM06S050
CFM06S090
CFM06S120
CFM06S150
CFM06S240
Output
Voltage
3.3V
5V
9V
12V
15V
24V
Output
Current
1.5A
1.2A
0.67A
0.5A
0.4A
0.25A
Ripple
(mV p-p)
NOTE 1
100mV
100mV
100mV
120mV
150mV
240mV
Voltage
Accuracy
NOTE 2
±6%
±5%
±5%
±3%
±3%
±3%
Line
Regulation
NOTE 3
±1%
±1%
±1%
±1%
±1%
±1%
Load
Regulation
NOTE 4
±6%
±5%
±5%
±3%
±3%
±3%
% EFF.
(typ.)
NOTE 5
73%
78%
80%
81%
81%
81%
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1
V10
Specifications
INPUT SPECIFICATIONS:
Voltage …...…….…........………………………….........……… 90~264Vac
Frequency ……………………………………….……………..... 47 to 63Hz
Inrush Current ……..………..…. 90A max. @240Vac, Cold Start @25℃
Leakage Current ………………………………….. 0.25mA max. @ 264Vac
Input Current ………………………………………………………. 0.25A max.
CFM06S Series De-rating Curve
Derating curve:
100
75
Rated Load(%)
50
25
0
-40 -30 -20 -10
0
10
20
30
o
OUTPUT SPECIFICATIONS:
Holdup Time …………………………………………… 12ms typ. @115Vac
Short Circuit Protection ………………………Hiccup Mode (Auto Recovery)
Temperature Coefficient .………………….................................… ±0.05%/℃
GENERAL SPECIFICATIONS:
Isolation Voltage(Input to Output) …………...……..……………. 3000VAC:
Operating Temperature.............. -40℃~70℃ (Derating from 50℃ to 70℃)
Storage Temperature …………..……………………....……. -40℃~85℃
Cooling …………………………………….……….…….. Natural Convection
Humidity .................................................... 93% RH max. Non condensing
Switching Frequency ………………………….………….. 30~70KHz Typical
MTBF ……….…. MIL-HDBK-217F, GB, 25℃/115VAC …..… 610Khrs min.
Life Time …….………….……………… .56000 hours min.@ 75% load, 40℃
Altitude ….…………………..……………………………………………. 5000m
Dimensions …………... 1.555x0.764x0.720 Inches (39.50x19.40x18.30mm)
-E: 1.618x0.827x0.787 Inches (41.10x21.00x20.00mm)
-T: 1.950.x0.709x0.689 Inches (49.53x18.00x17.50mm)
Weight ………………………………………………. 11g, (-E): 30g, (-T): 12g
40
50
60
70
Ambient Temperature( C)
SAFETY AND EMISSION:
Emission and Immunity…….…. EN55032 Class B, EN55024, EN61204-3
EN61000-3-2, -3, EN61000-6-1, 2, 3, 4
47 CFR FCC Part 15
Subpart B (Class B)
Safety ………………… IEC62368-1, UL62368-1, EN62368-1, IEC60950-1
NOTE:
1. Voltage accuracy is set of 100% rated load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
ripple&noise measuring @20MHz BW.
3. Line regulation is measured from high line to low line with full load.
4. Load regulation is measured from 10% to 100% full load.
5. Typical efficiency at 230Vac and full load at 25℃
6. T Version wafer with JST B3B-XH / B4B-XH and mate with JST housing
XH series or equivalent..

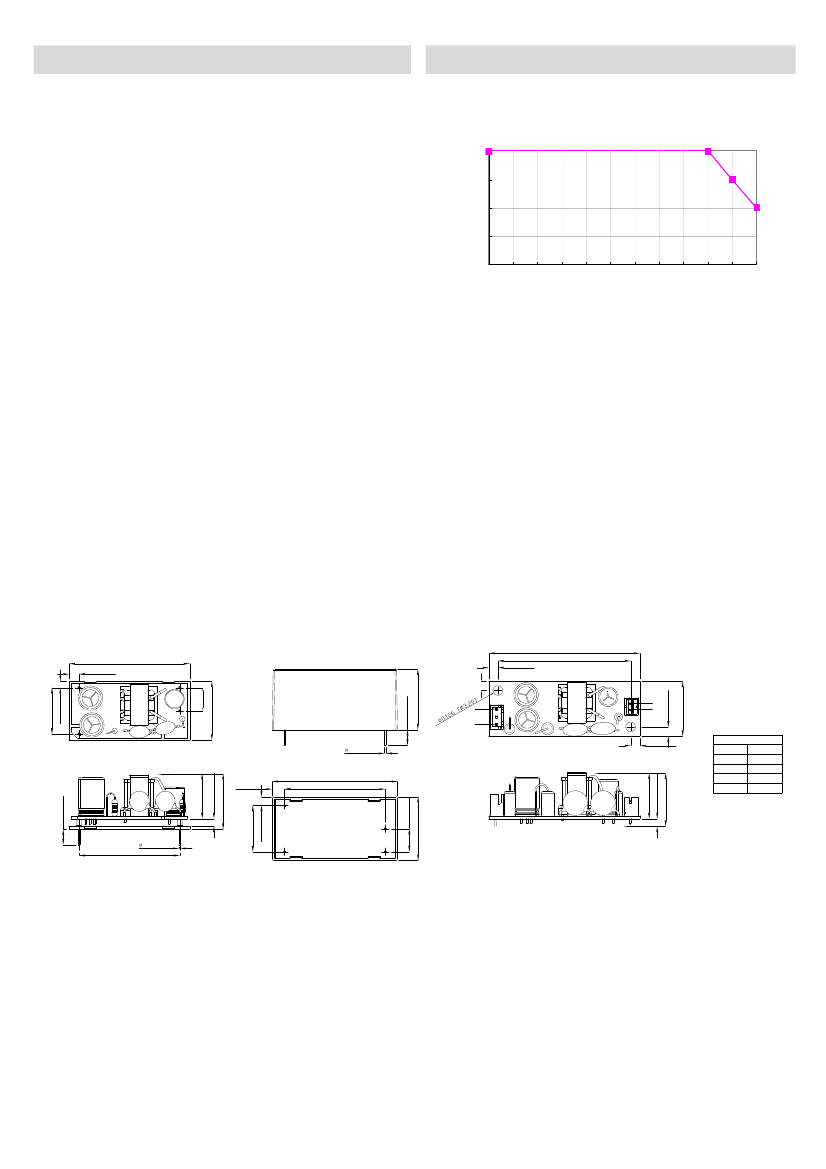

Mechanical Specification
All Dimensions In Inches[mm]
Tolerance Inches:x.xxx= ± 0.02
Millimeters: x.xx = ± 0.5
CFM60SXXX
1.555 [39.50]
0.128 [3.24]
CFM60SXXX-E
CFM60SXXX-T
1.950 [49.53]
1.714 [43.53]
0.118 [3.00]
0.118 [3.00]
0.300 [7.62]
0.764 [19.40]
0.600 [15.24]
0.201 [5.10]
0.118 [3.00]
1
0.082 [2.08]
3
4
0.787 [20.00]
1
2-
3
4
2
0.118 [3.00]
2
0.709 [18.00]
0.020 [0.50]
0.098 [2.50]max
0.583 [14.80]max
0.591 [15.00]max
1.618 [41.10]
0.720 [18.30]max
0.159 [4.04]
1.300 [33.02]
0.300 [7.62]
0.098 [2.50]max
0.201 [5.10]
1
0.600 [15.24]
0.113 [2.88]
BOTTOM VIEW
2
4
3
0.020 [0.50]
1.300 [33.02]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
0.827 [21.00]
0.689 [17.50]max
PIN CONNECTION
Pin
Function
1
ACN
2
ACL
3
+Vout
4
-Vout
