TR36M180-02G12-Level-VI datasheet, PDF

Datasheet> All Categories > Power/power management> Plug in ac adapter> Desktop type AC adapter> TR36M180-02G12-Level-VI

Preview

TR36M180-02G12-Level-VI: DescriptionDesktop AC Adapter Switching Adapter, Level VI, Desktop, Medical, 36 Watt, 80-264VAC Input, 18VDC Output, 2.0A, 5.5x2.5x12mm Right Angle, DC Cable 1220mm with Ferrite Core, UL1571 with OVP; CategoryPower/power management Plug in ac adapter Desktop type AC adapter; File Size381KB，3 Pages; ManufacturerCincon; Environmental Compliance

Download Datasheet Parametric View All

TR36M180-02G12-Level-VI Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TR36M180-02G12-Level-VI	-	-	View	Buy Now

TR36M180-02G12-Level-VI Overview

Desktop AC Adapter Switching Adapter, Level VI, Desktop, Medical, 36 Watt, 80-264VAC Input, 18VDC Output, 2.0A, 5.5x2.5x12mm Right Angle, DC Cable 1220mm with Ferrite Core, UL1571 with OVP

TR36M180-02G12-Level-VI Parametric

Parameter Name	Attribute value
Maker	Cincon
Product Category	Desktop AC Adapter
Shipping restrictions	This product may require additional documentation for export from the United States.
AC plug included/required	Required
Input voltage	80 VAC to 264 VAC
Number of outputs	1 Output
Output Power	36 W
Output voltage—channel 1	18 V
Output current—channel 1	2 A
industry	Medical
DC output connector	Right Angle Barrel Plug
DC output wire length	1200 mm
efficiency	Level VI
series	TR36M
Certification	EN 60601-1, IEC 60601-1, ANSI/AAMI ES60601-1
high	22.5 mm
length	100 mm
width	45 mm
Installation style	Desktop
load regulation	Regulated
Maximum operating temperature	+ 60 C
Minimum operating temperature	- 20 C

Preview

Download Datasheet

View All

V10

︳

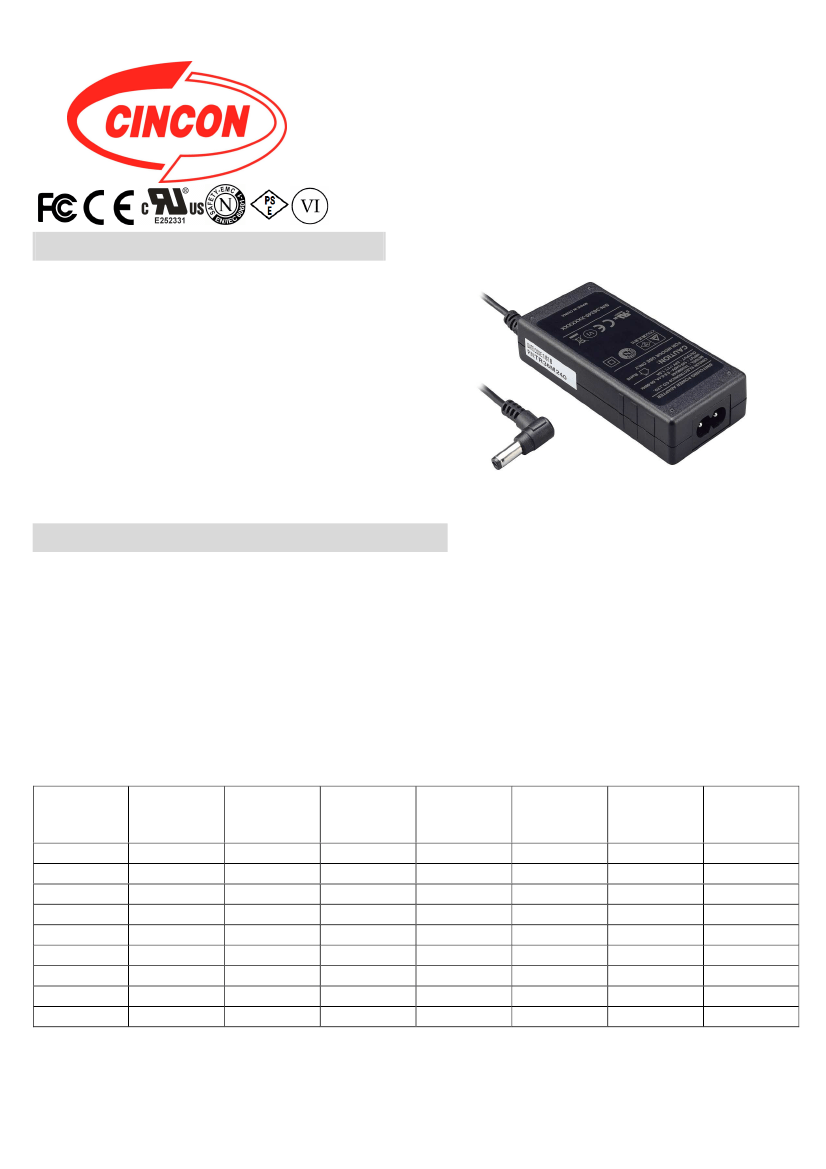

Features

* Universal Input Range 80~264VAC

* Meets EN55011, FCC CFR47 Part15 Class B

* Meets EN60335

* Approved EN60601-1-11

for

Home Care Applications

* Low Leakage Current < 80uA

* Continuous Short Circuit Protection

* Over Voltage Protection

* Meet CoC Tier 2 & DoE Level VI

(Output Cable Length

≦

1800mm)

(TR36M050: Output Cable Length

≦

1220mm)

* No Load Power Consumption < 75mW

* 2 MOPP Class II

TR36M

SERIES

36W MEDICAL

SWITCHING ADAPTER

Ordering information

TR36MXXX -XX

Model No.

DC Plug Type

G: UL1571 WITH OVP

E: UL1185 WITH OVP

DC Cable Length and Type

01: 720mm

02: 1220mm

03: 1800mm

11: 720mm with Ferrite Core

12: 1220mm with Ferrite Core

13: 1800mm with Ferrite Core

* 16AWG /

UL1571 or Equivalent

for Vo: 5V

* 18AWG /

UL1571 or Equivalent

for Vo: 9V, 12V, 13.5V

* 20AWG /

UL1571 or Equivalent

for Vo: 15V, 18V, 24V

* 20AWG /

UL1185 or Equivalent

for Vo: 36V, 48V

MODEL

TR36M050

TR36M090

TR36M120

TR36M135

TR36M150

TR36M180

TR36M240

TR36M360

TR36M480

OUTPUT

VOLTAGE

12V

13.5V

15V

18V

24V

36V

48V

OUTPUT

CURRENT

5.0A

3.3A

2.5A

2.4A

2.0A

1.5A

1.0A

0.75A

RIPPLE &

NOISE

NOTE 1

100mVp-p

120mVp-p

130mVp-p

150mVp-p

180mVp-p

240mVp-p

360mVp-p

480mVp-p

VOLTAGE

ACCURACY

NOTE 2

±2%

LINE

REGULATION

NOTE 3

±1%

LOAD

REGULATION

NOET 4

±6%

±4%

±2%

% EFF. (Typ.)

NOTE 5

85%

88%

89%

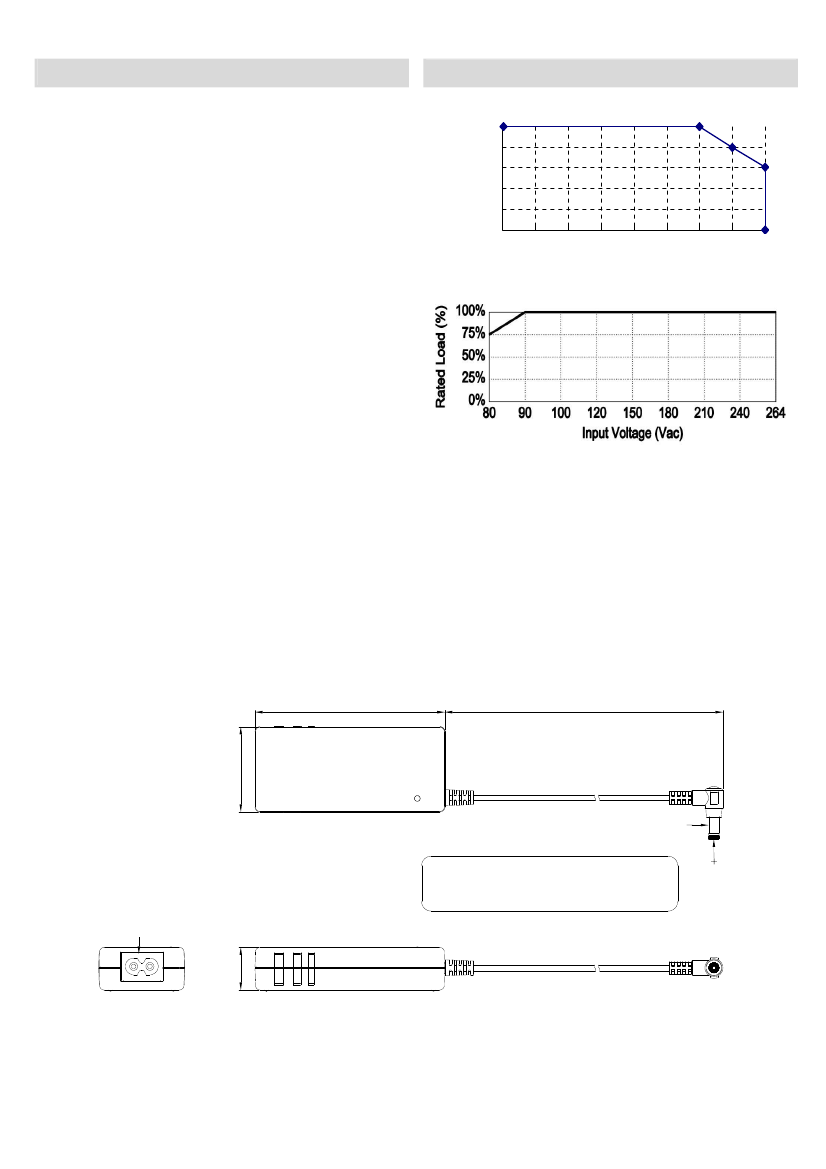

Specifications are subject to change without notice.
