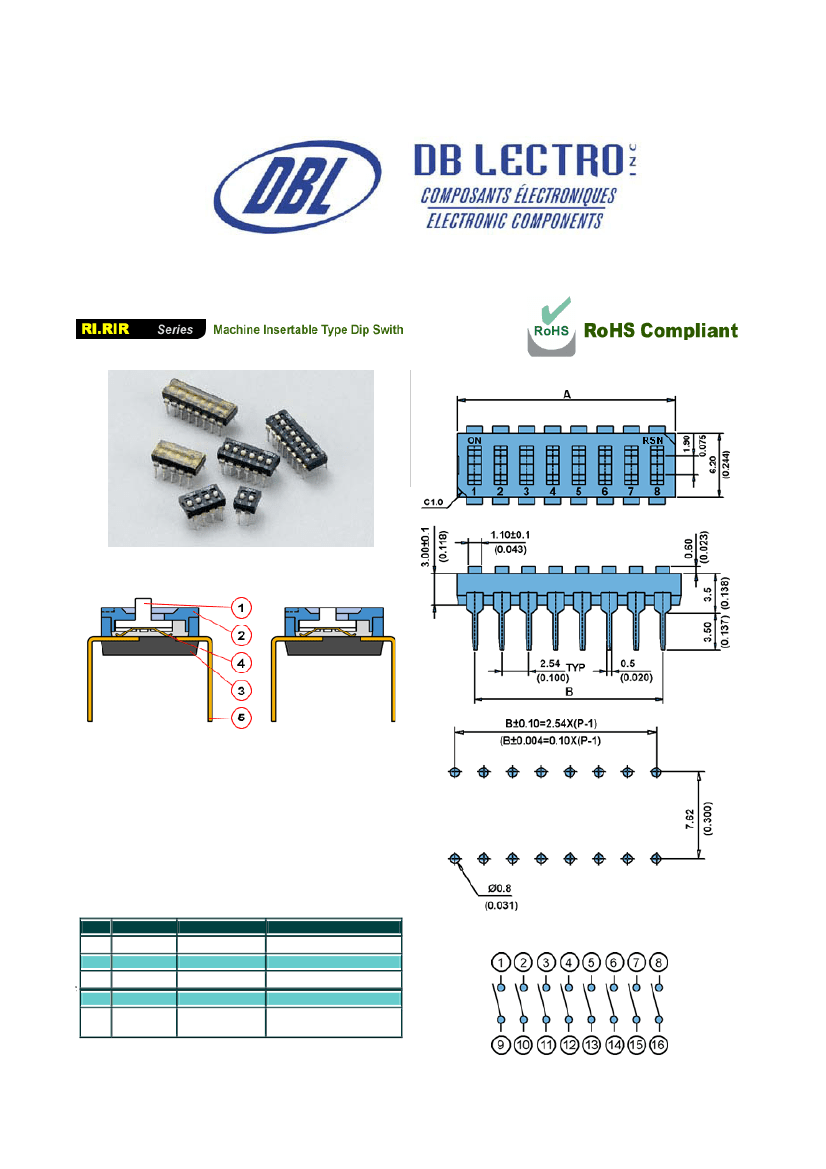

P.C.B. LAYOUT
RI & RIR CONSTRUCTION
RI series
1.
2.
3.
4.
5.
6.
RIR series
RI series (raised actuator) and RIR series (recessed
actuator) available for different purposes.
Splay terminals allow for automatic insertion by IC
insertion machine.
Straight terminals are available for manual insertion.
Low contact resistance, and self-clean on contact area.
Gold plated electrical contact and terminal plating by gold
gives excellent results when soldering.
All materials are UL94V-0 grade fire retardant plastics.
ITEM Description Materials
1
2
3
4
5
Actuator
Cover
Base
Contact
Terminal
UL94V-0 Nylon
UL94V-0 Nylon
UL94V-0 Nylon
Treatment
Molded white
Molded black
Molded black
Gold plated at contact area
and gold plating at terminal
CIRCUIT DIAGRAM
Beryllium Copper Gold plated at contact area
Brass
MODEL
PROD NO.
RI/RIR-01
RI/RIR-02
RI/RIR-03
RI/RIR-04
RI/RIR-05
RI/RIR-06
RI/RIR-07
RI/RIR-08
RI/RIR-09
RI/RIR-10
RI/RIR-12

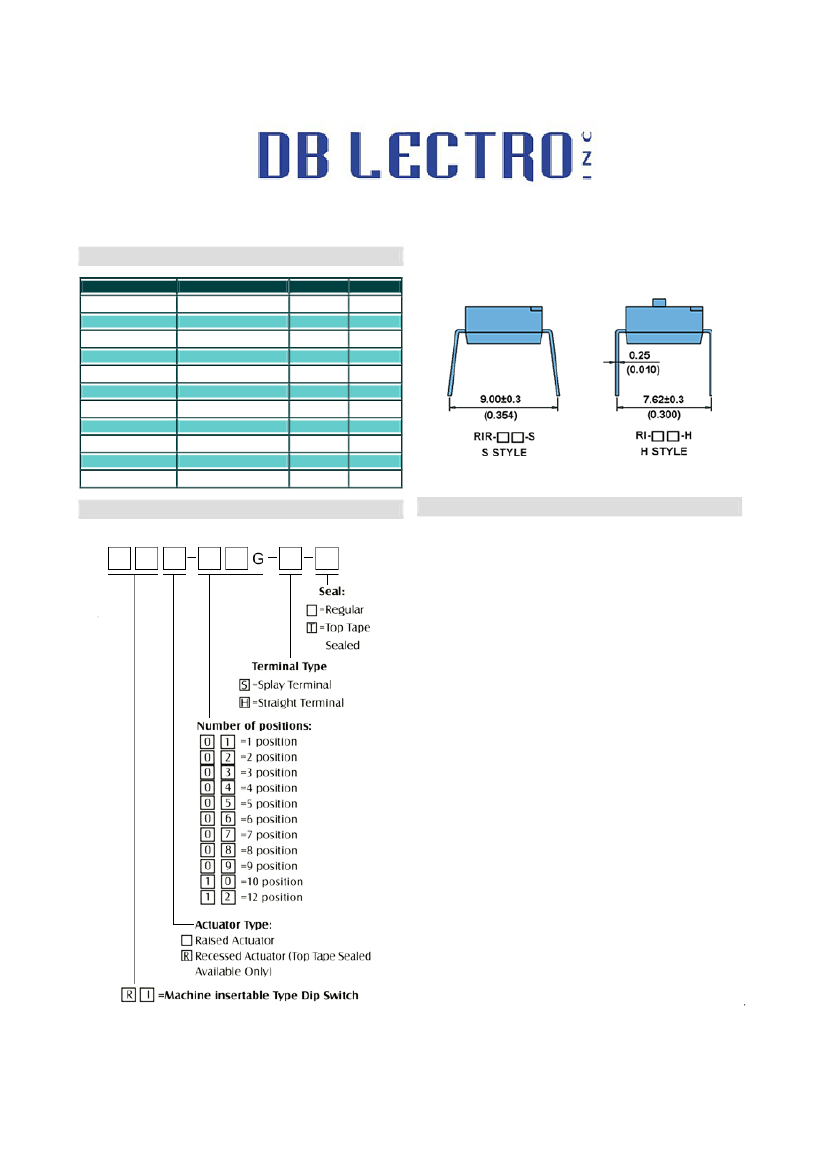

HOW TO ORDER
NO. OF POS
01
02
03
04
05
06
07
08
09
10
12
DIM A
3.48
6.02
8.56
11.1
13.64
16.18
18.72
21.26
23.8
26.34
31.42
0.137
0.237
0.337
0.437
0.537
0.637
0.737
0.837
0.937
1.037
1.237
SPECIFICATION
ELECTRICAL
Electrical life: 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating: 100mA, 50 VDC
Switching Rating: 25mA, 24VCD.
Contact resistance: (a) 50mΩ max. at initial
(b) 100mΩ max. after life test.
Insulation resistance: 100MΩ min. (at 500VDC)
Dielectric Strength: 500VAC/1 minute.
Capacitance: 5pF max.
Circuit: Single pole single throw
MECHANICAL
Mechanical life: 2000 operations per cycle switch
Operation Force: 600gf max.
Stroke: 0.9mm
Operation Temp: -25° C to +70° C
Storage Temp: -40° C to +85° C
Vibration Test: MIL-STD-202F METHOD 201A
Frequency: 10-55-10Hz/1 min
Directions: X, Y, Z, three mutually
perpendicular directions.
Time: 2 hours each direction.
High reliability.
Shock Test: MIL-STD-202F METHOD 213B.
CONDITION A
GRAVITY: 50G (peak value), 11 m/sec.
Direction and times: 6 sides and three times in
each direction. High reliability.
SOLDERING AND CLEANING PROCESSES
For best results, please follow these recommendations: Keep all
switch contacts in their "OFF" position for all operations.
WAVE SOLDERING: Recommended solder temperature at 500 F
(260° C) max. 5 seconds.
Use a soldering iron of 30 watts, controlled at
608 F(320° C) approximately 2 seconds while
applying solder.
CLEANING PROCESS: Flux clean using force rinse, high agitation
or triple bath cleaning method. Freon TF
or TE give excellent results. When vapor
methods are used, do not subject the
switch to solvents at temperatures above
125 F (51° C).
HAND
SOLDERING:
TERMINAL TYPE
Example:
RI-08G-S is a Machine Insertable Type Dip Switch,
Raised Actuator 8 position, splay terminal.
PACKING
All DIP switches are shipped in standard IC tubes with
all poles in "OFF" position.
