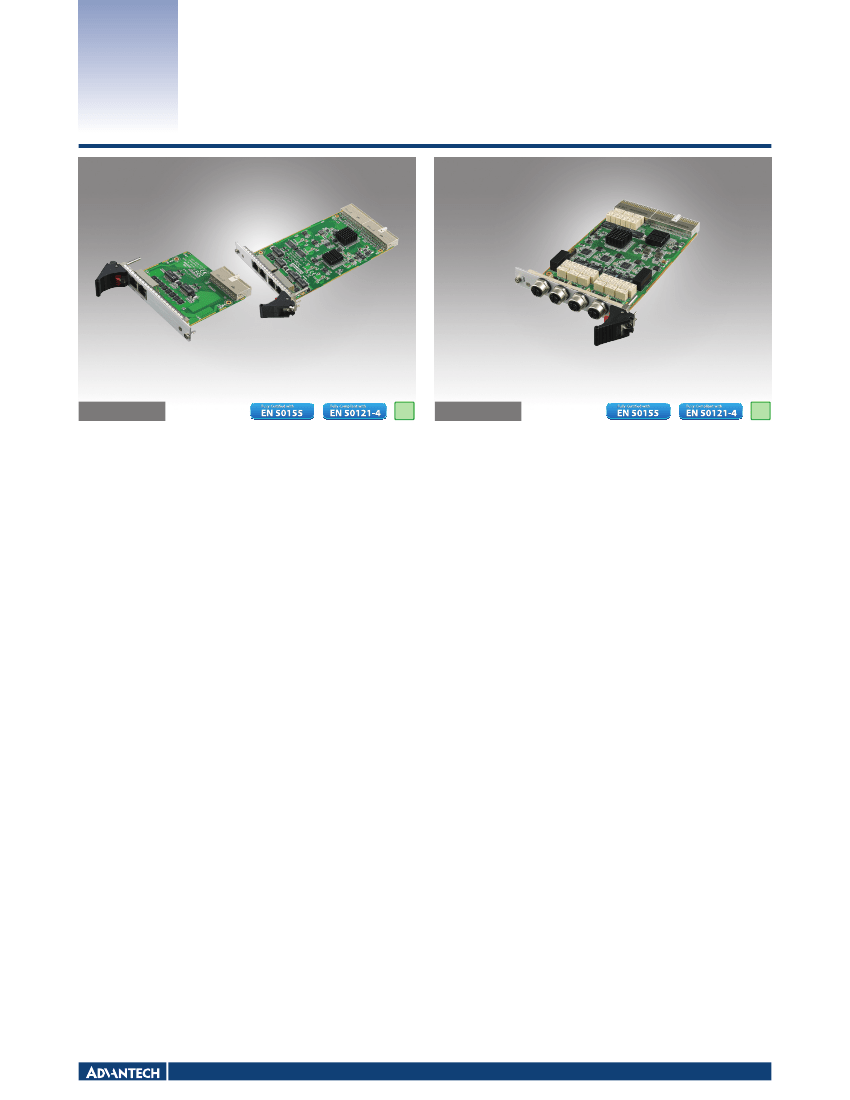

MIC-3958A/B
3U/4HP CompactPCI 4 Ports RJ45 or
M12 X-Code Gigabit Ethernet Card
MIC-3958A
RoHS
COMPLIANT
2002/95/EC
MIC-3958B
RoHS
COMPLIANT
2002/95/EC
Features
PICMG2.0 R3.0 Compliant
Up to 4 Intel I210 Ethernet Controller
PCIe to PCI Bridge PI7C9X130
RIO support
Auto-negotiation / Auto MDI/MDIX crossover on all ports
Win7/ Win10/ CentOS6.5/6.6
Features
PICMG2.0 R3.0 Compliant
Up to 4 Intel I210 Ethernet Controller
PCIe to PCI Bridge PI7C9X130
LAN Bypass Support
Auto-negotiation / Auto MDI/MDIX crossover on all ports
Win7/ Win10/ CentOS6.5/6.6
Specifications
General
PCI Bus
Front IO
Rear IO
LED
Power Consumption
Dimension
Dielectric Withstanding Voltage
32bit, up to 33/66MHz
4 ports 10/100/1000 Base-T via RJ45
2 ports 10/100/1000 Base-T via RJ45
(Switchable w./ Front)
LNK: 100Mb/s(Green), 1000Mb/s (Orange),
ACT (Green Blink)
9.5W /5V
Front/Rear Board:100x160 mm/ 100x80mm
1000V
AC
Specifications
General
PCI Bus
Front IO
Rear IO
LED
32bit, up to 33/66MHz
4 ports 10/100/1000 Base-T via M12
X-Code
Reserve 4x 10/100/1000 Base-T signals to
RIO
Connect: LNK: 100Mb/s (Green);
1000Mb/s (Orange), ACT (Green Blink)
Bypass: ACT(Green), LNK (Off)
Disconnect: ACT (Green Blink), LNK (off)
2 pairs to front, 1 pair to rear
10.8W /5V
Front/Rear Board:100x160 mm/ 100x80mm
1000V
AC
Environment
Operating Temp.
StorageTemp.
Humidity
Vibration
-40 ~ 60°C (-40 ~140°F)
-40 ~ 85°C (-40 ~ 185°F)
10 ~ 95% (non-condensing)
2Grms Operation
LAN Bypass
Power Consumption
Dimension
Dielectric Withstanding Voltage
Environment
Operating Temp.
StorageTemp.
Humidity
Vibration
-40 ~ 60°C (-40 ~140°F)
-40 ~ 85°C (-40 ~ 185°F)
10 ~ 95% (non-condensing)
2Grms Operation
Ordering information
MIC-3958A1-S1E
MIC-3958R1-S1E
Notes:
2 RJ45 ports of MIC-3958A1-S1E and MIC-3958R1-S1E is switchable by on board
switch "SW1"
"SW1" default setting is for 4 ports RJ45 on front board
4 x RJ45 ports 3U/4HP CPCI Ethernet Front
Board, support RIO
2 x RJ45 ports 3U/4HP CPCI Rear Ethernet
Rear Board, support MIC-3958A1-S1E
Ordering information
MIC-3958B1-S1E
4x M12 X-code ports 3U/4HP CPCI
Ethernet Front Board, NO RIO support
Notes: Contact Local Sales for MIC-3958B Rear IO board support
CompactPCI Platforms
All product specifications are subject to change without notice.
Last updated: 1-Jun-2018

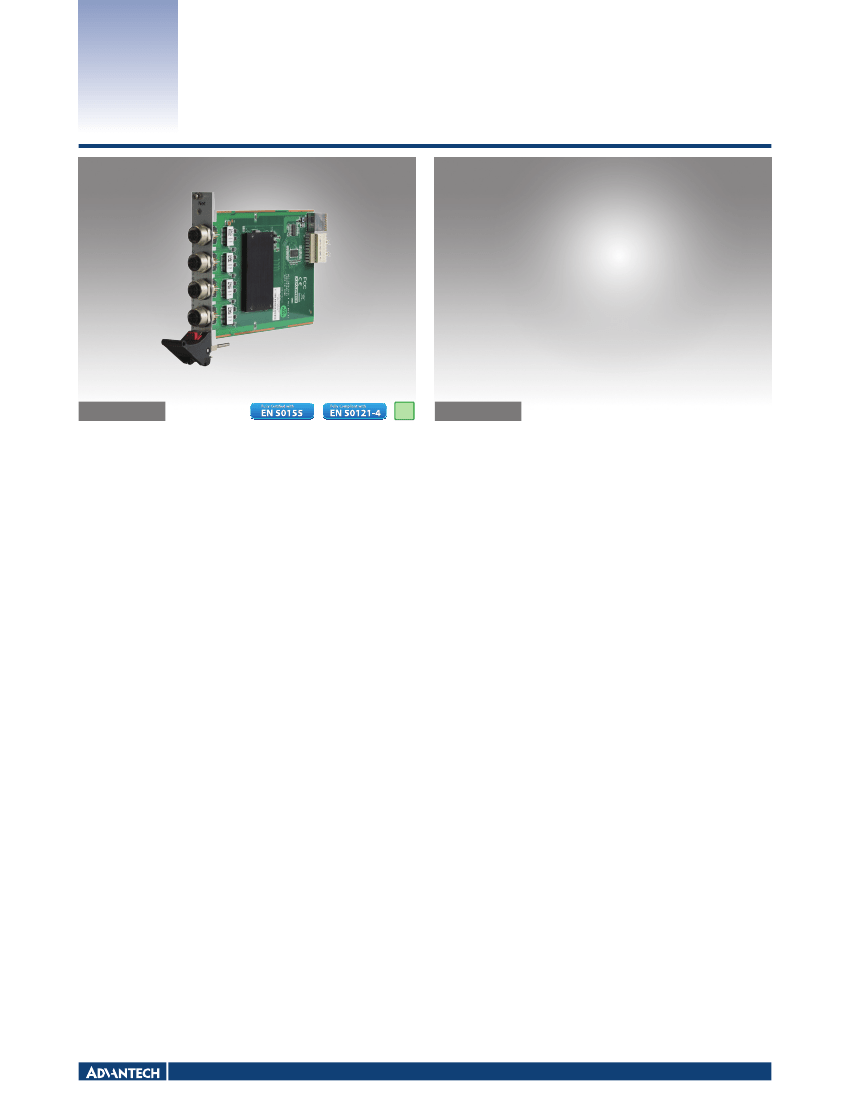

MIC-3958C
3U/4HP CompactPCI Express 4 Ports
M12 X-Code Gigabit Ethernet Card
MIC-3958C
RoHS
COMPLIANT
2002/95/EC
Features
PICMG EXP.0 R.94 Spec
I350 Ethernet Controller
Auto-negotiation / Auto MDI/MDIX crossover on all ports
Win7/ Win10/ CentOS6.5/6.6
Specifications
General
Interface
Speed
Front IO
LED
Power Consumption
Power Input
Dimensions
PCIe x4
10/100/1000 Base-T(X)
4 ports 10/100/1000 Base-T via M12
X-Code
LNK: 100Mb/s(Green), 1000Mb/s (Orange),
ACT (Green Blink)
5.6W
5V
100 x 160 mm
EMC & Safety
High-Pot
Dielectric Withstanding Voltage
1500V
AC
1500V
AC
Environment
Operating Temp.
StorageTemp.
Humidity
Vibration
-40 ~ 60°C (-40 ~140°F)
-40 ~ 85°C (-40 ~ 185°F)
10 ~ 95% (non-condensing)
2Grms Operation
Ordering information
MIC-3958C1-S1E
4 Ports M12 X-code 3U/4HP CPCI-E
Ethernet Card, NO RIO support
CompactPCI Platforms
