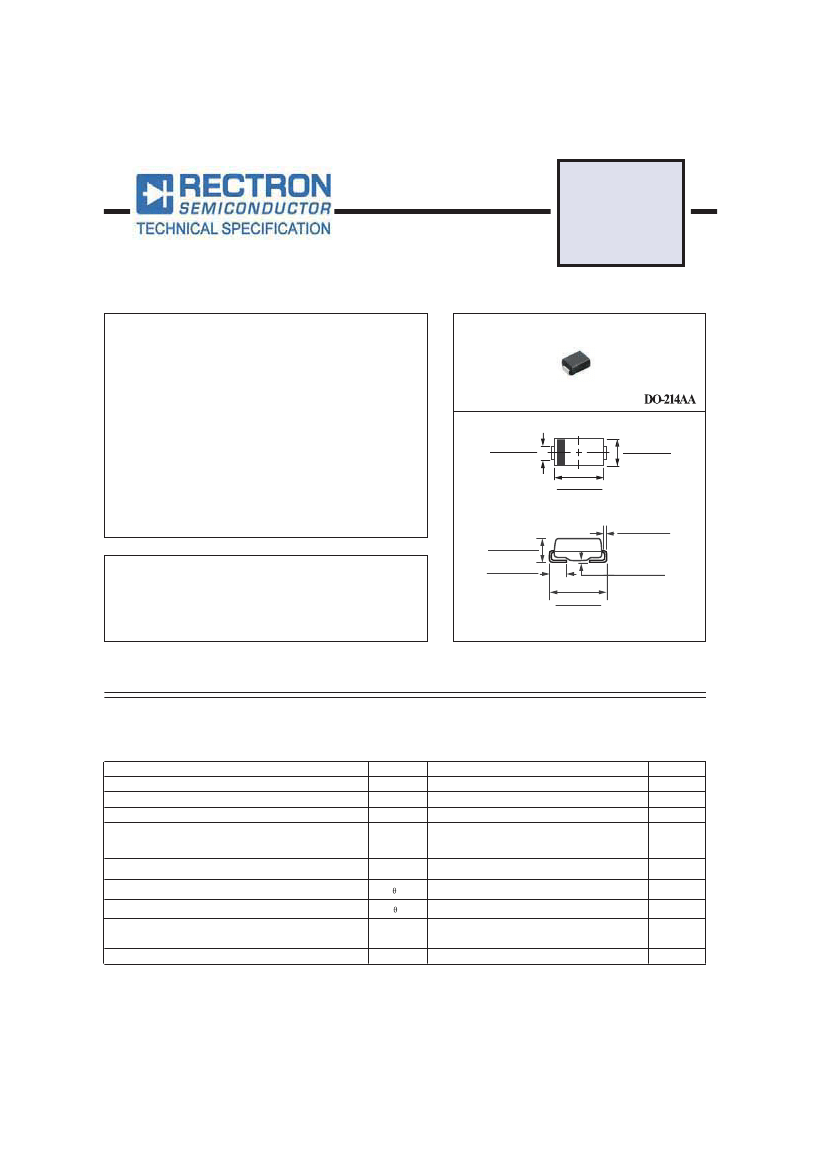

SURFACE MOUNT GPP
TRANSIENT VOLTAGE SUPPRESSOR
600 WATT PEAK POWER 5.0 WATTS STEADY STATE
FEATURES
* Peak pulse power:600 W (10/1000 μs),4 kW (8/20 μs)
* Plastic package has underwriters laboratory
* Glass passivated chip construction
* 600 watt surage capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time
* P/N suffix V means AEC-Q101 qualified
,
e.g:SMBJ5.0V
* P/N suffix V means Halogen-free
TVS
SMBJ
SERIES
0.083 (2.11)
0.077 (1.96)
0.180 (4.57)
0.160 (4.06)
0.155 (3.94)
0.130 (3.30)
Ratings at 25
o
C ambient temperature unless otherwise specified.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
o
0.096 (2.44)
0.084 (2.13)
0.060 (1.52)
0.030 (0.76)
0.220 (5.59)
0.205 (5.21)
0.012 (0.305)
0.006 (0.152)
0.008 (0.203)
0.004 (0.102)
Dimensions in inches and (millimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types SMBJ5.0 t hru SMBJ550
Electrical characteristics apply in both direction
MAXIMUM RATINGS
(At T
A
= 25 C unless otherwise noted)
RATINGS
Peak Power Dissipation with a 10/1000uS (Note 1,2, Fig.1)
Peak Pulse Current with a 10/1000uS waveform ( Note 1, Fig.3 )
Steady State Power Dissipation at T
L
= 75 C (Note 2)
Peak Forward Surge Current 8.3mS single half sine-wave
superimposed on rated load (JEDEC method) (Note 2,3)
unidirectional only
Typical Current Squarad Time
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance (Note 1)
o
o
SYMBOL
P
PPM
I
PPM
P
M
(AV)
I
FSM
I
2
t
VALUE
Minimum 600
SEE TABLE 1
5.0
100
41.5
UNITS
Watts
Amps
Watts
Amps
A
2
Sec
0
R
JA
R
JL
V
F
T
J
, T
STG
55
5
SEE NOTE 5
-55 to + 150
C/W
C/W
0
Maximum Instantaneous Forward Voltage at 50A for unidirectional
only (Note 3,4)
Operating and Storage Temperature Range
Volts
0
C
2018-10/3 1
REV:E
NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25
o
C per Fig.2.
2. Mounted on 0.2 X 0.2”( 5.0 X 5.0mm ) copper pad to each terminal.
3. Lead temperature at T
L
= 25
o
C
4. Measured on 8.3mS single half sine-wave duty cycle = 4 pules per minute maximum.
5. V
F
= 3.5V on TFMBJ-5.0 thru TFMBJ-90 devices and V
F
= 5.0V on TFMBJ-100 thru TFMBJ-550devices.
6. Thermal Resistance : Mounted on PCB.
.

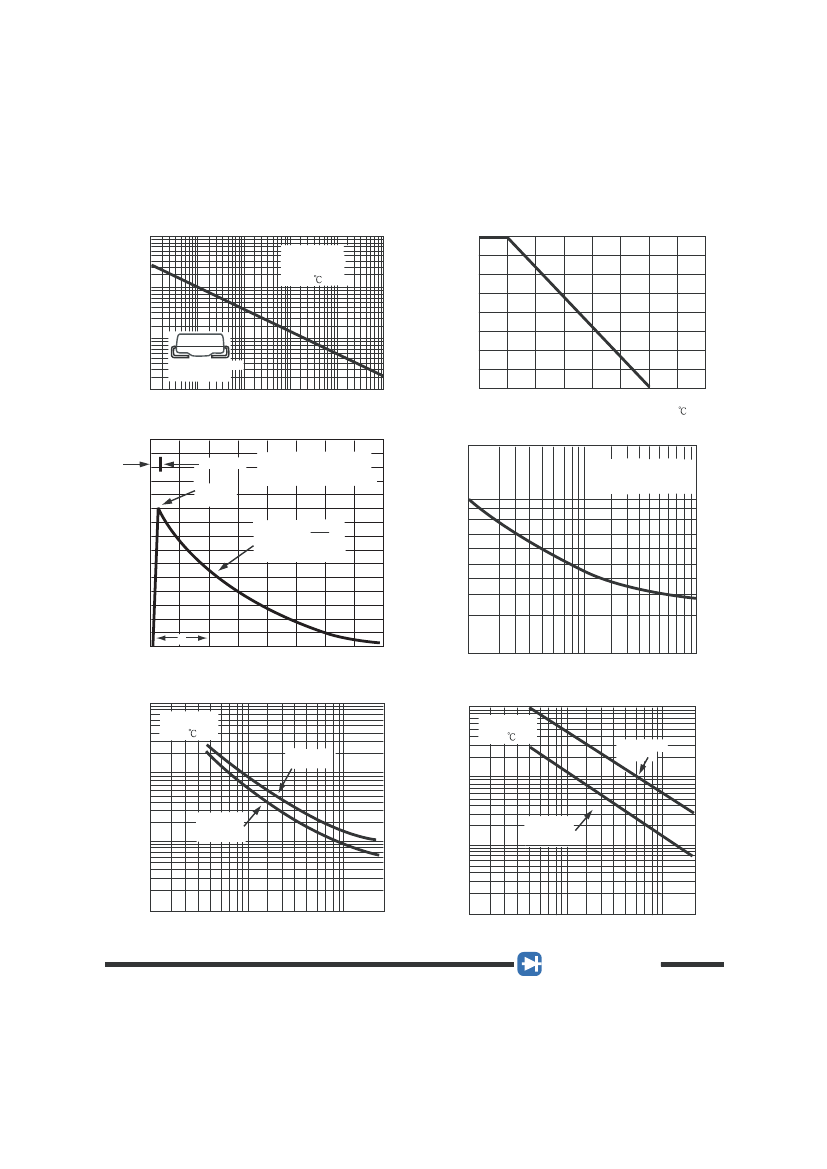

RATING AND CHARACTERISTIC CURVES ( SMBJ5.0 THRU SMBJ550CA )
P
PPM
, PEAK PULSE POWER, KW
100
PEAK PULSE POWER (PPP) OR CURRENT
(IPP) DERATING IN PERCENTAGE,%
FIG. 1 - PEAK PULSE POWER RATING CURVE
Non-Repetitive
Pulse Waveform
Shown in Fig.3
T
A
= 25
100
FIG. 2 - PULSE DERATING CURVE
75
10
50
1.0
0.2X0.2"(5.0X5.0mm)
copper pad areas
25
0.1
0.1uS
0
75 100 125 150 175 200
50
T
A
, AMBIENT TEMPERATURE,(
)
FIG. 4 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT UNIDIRECTIONAL
0
25
8.3ms Single Half Sine-Wave
(JEDED Method)
1.0uS
10uS
100uS
T
P
, PULSE WIDTH
1.0mS
10mS
FIG. 3 - PULSE WAVEFORM
150
IFSM, PEAK FORWARD SURGE CURRENT AMPERES
200
I
PPM
, PEAK PULSE CURRENT,%
tr = 10usec.
Peak Value
IPPM
Pulse Width (td) is Defined
as the Point Where the Peak
Current Decays to 50% of I
PPM
Unidirectional only
100
I
PPM
2
10/1000usec. Waveform
as Defined by R.E.A.
HALF VALUE -
100
50
td
0
0
2.0
3.0
4.0
t, TIME,mS
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
BIDIRECTIONAL
f = 1.0 MHz
Vsig = 50mVp-p
TJ = 25
1.0
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
6,000
FIG. 6 - TYPICAL JUNCTION CAPACITANCE
6,000
f = 1.0 MHz
Vsig = 50mVp-p
TJ = 25
C
J
, JUNCTION CAPACITANCE,pF
1,000
C
J
, CAPACITANCE, pF
Measured at
Zero Bias
Measured at
Zero Bias
1,000
100
Measured at
Stand off
Voltage,VWM
100
Measured at
Stand off
Voltage,V
WM
10
1.0
10
100 200
V(
WM
), BREAKDOWN VOLTACE, VOLTS
10
1.0
10
100 200
V(
WM
), BREAKDOWN VOLTACE, VOLTS
RECTRON
TRANSIENT VOLTAGE SUPPRESSORS
600W SERIES TVS DIODES
/
DO-214AA ( CASE 3 ) 600W
Rectron
Industry No.
SMBJ40
SMBJ40A
SMBJ43
SMBJ43A
SMBJ45
SMBJ45A
SMBJ48
SMBJ48A
SMBJ51
SMBJ51A
SMBJ54
SMBJ54A
SMBJ58
SMBJ58A
SMBJ60
SMBJ60A
SMBJ64
SMBJ64A
SMBJ70
SMBJ70A
SMBJ75
SMBJ75A
SMBJ78
SMBJ78A
SMBJ85
SMBJ85A
SMBJ90
SMBJ90A
SMBJ100
SMBJ100A
SMBJ110
SMBJ110A
SMBJ120
SMBJ120A
SMBJ130
SMBJ130A
SMBJ150
SMBJ150A
SMBJ160
SMBJ160A
SMBJ170
SMBJ170A
Breakdown Voltage
VBR
@IT
(Volts)
MIN.
TFMBJ40
TFMBJ40A
TFMBJ43
TFMBJ43A
TFMBJ45
TFMBJ45A
TFMBJ48
TFMBJ48A
TFMBJ51
TFMBJ51A
TFMBJ54
TFMBJ54A
TFMBJ58
TFMBJ58A
TFMBJ60
TFMBJ60A
TFMBJ64
TFMBJ64A
TFMBJ70
TFMBJ70A
TFMBJ75
TFMBJ75A
TFMBJ78
TFMBJ78A
TFMBJ85
TFMBJ85A
TFMBJ90
TFMBJ90A
TFMBJ100
TFMBJ100A
TFMBJ110
TFMBJ110A
TFMBJ120
TFMBJ120A
TFMBJ130
TFMBJ130A
TFMBJ150
TFMBJ150A
TFMBJ160
TFMBJ160A
TFMBJ170
TFMBJ170A
44.4
44.4
47.8
47.8
50.0
50.0
53.3
53.3
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100
100
111
111
122
122
133
133
144
144
167
167
178
178
189
189
MAX.
54.3
49.1
58.4
52.8
61.1
55.3
65.1
58.9
69.3
62.7
73.3
66.3
78.7
71.2
81.5
73.7
86.9
78.6
95.1
86.0
102
92.1
106
95.8
115
104
122
111
136
123
149
135
163
147
176
159
204
185
218
197
231
209
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Stand off
Voltage
VWM
(Volts)
40
40
43
43
45
45
48
48
51
51
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
170
Maximum
Reverse
Leakage
at VWM
ID(uA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Maximum
Peak Pulse
Current
IPPM
(Amps)
8.4
9.3
7.8
8.6
7.5
8.3
7.0
7.8
6.6
7.3
6.2
6.9
5.8
6.4
5.6
6.2
5.3
5.8
4.8
5.3
4.5
5.0
4.3
4.8
4.0
4.4
3.8
4.1
3.4
3.7
3.1
3.4
2.8
3.1
2.6
2.9
2.2
2.5
2.1
2.3
2.0
2.2
Maximum
Clamping
Voltage
at IPPM
VC (Volts)
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103
93.6
107
96.8
114
103
125
113
134
121
139
126
151
137
160
146
179
162
196
177
214
193
231
209
268
243
287
259
304
275
