TANK-871-Q170i-i3/4G-R10 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Embedded box type computer> TANK-871-Q170i-i3/4G-R10

TANK-871-Q170i-i3/4G-R10: DescriptionEmbedded box computer Ruggedized Fanless embedded system with Intel Core i3-6100TE 2.7GHz, (Dual Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC , RoHS; CategoryEmbedded solution To calculate Embedded box type computer; File Size1MB，3 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric Compare View All

TANK-871-Q170i-i3/4G-R10 Overview

Embedded box computer Ruggedized Fanless embedded system with Intel Core i3-6100TE 2.7GHz, (Dual Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC , RoHS

TANK-871-Q170i-i3/4G-R10 Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	Embedded box computer
Processor brand	Intel
chipset	Q170
frequency	2.7 GHz
storage	4 GB
Working power voltage	9 V to 36 V
Interface Type	Audio, DIO, Ethernet, HDMI/DP, RS-232, RS-232/422/
size	255.2 mm x 82.2 mm x 204 mm
storage type	DDR4
series	TANK-871-Q170

Preview

Download Datasheet

View All

Industrial System

w w w.ieiworld.com

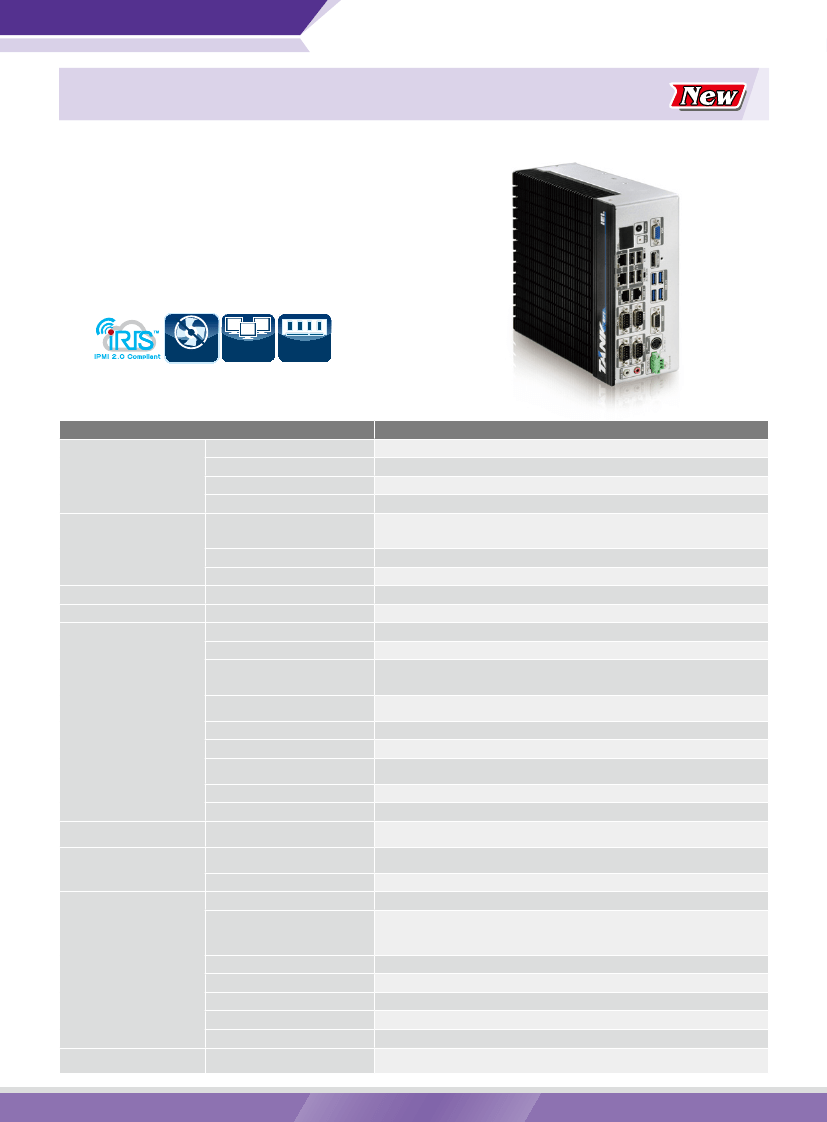

TANK-871-Q170

Features

■ High-Performance 6th/7th Generation

Intel® Core™ Processor

■ Fanless Embedded Computer

● 6th/7th Gen Intel® Core™ processor platform with

Intel® Q170 chipset and DDR4 memory

● Triple independent display with high resolution support

● Rich high-speed I/O interfaces on one side for easy installation

● IEI iRIS-2400 solution

Fanless

Triple

Display

DDR4

2133

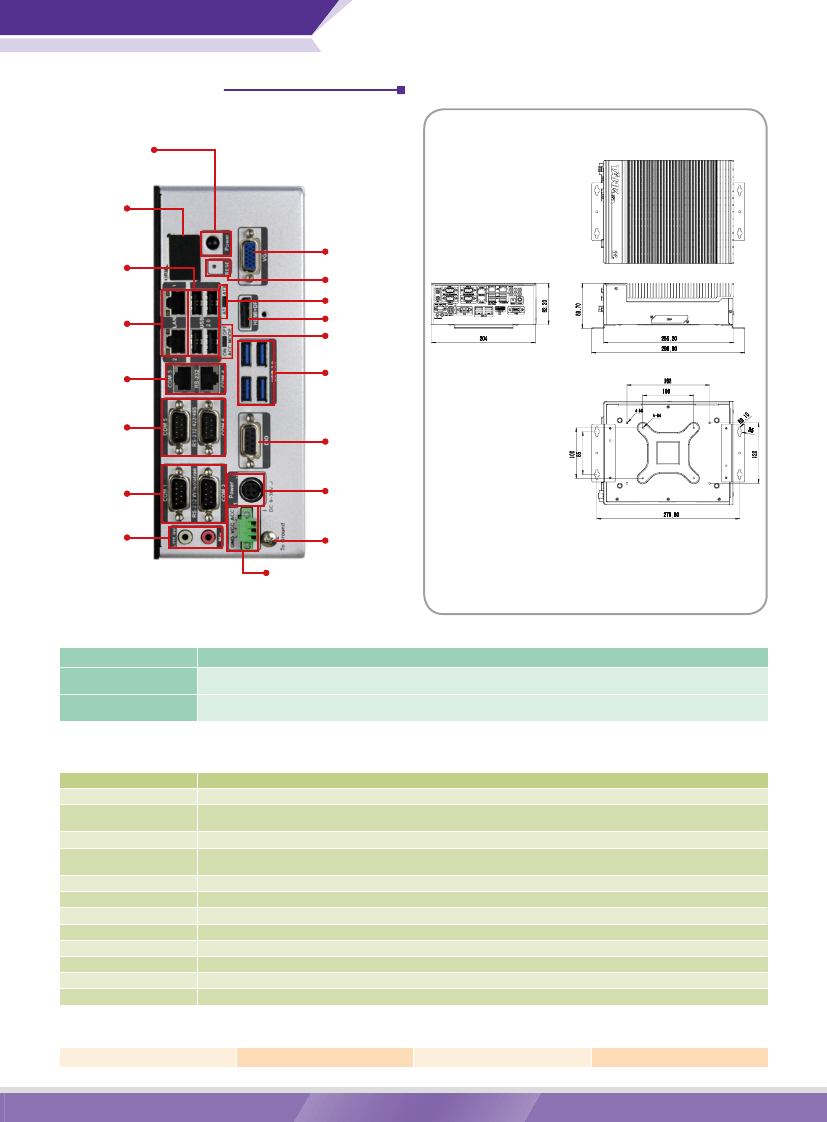

Specifications

Model Name

Color

Chassis

Dimensions (WxDxH) (mm)

System Fan

Chassis Construction

CPU

Motherboard

Chipset

System Memory

IPMI

Storage

iRIS solution

Hard Drive

USB 3.0

USB 2.0

Ethernet

COM Port

I/O Interfaces

Digital I/O

Display

Resolution

Audio

Wireless

Expansions

PCIe Mini

Power Input

Power Consumption

Mounting

Operating Temperature/Humidity

Storage Temperature/Humidity

Operating Shock

Operating Vibration

Weight (Net/Gross)

Safety/EMC

Supported OS

TANK-871-Q170

Black C + Silver

82.2 x 255.2 x 204

Fanless

Extruded aluminum alloy

Intel 7th Gen Core CPU &

Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)

Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)

Intel® Q170

2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 64GB)

1 x iRIS-2400 (optional)

2 x 2.5’’ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support)

2 x RJ-45

LAN1 (iRIS): Intel® I210 PCIe controller

LAN2: Intel® I219LM PCIe controller

4 on rear I/O (2 isolation)

2 on rear I/O

8 bit Digital I/O, 4 bit input / 4 bit output

1 x VGA, 1 x HDMI+DP, 1 x IDP

VGA: Up to 1920 x 1200@60Hz

HDMI: Up to 4096 x 2160@24Hz

1 x Line-out ; 1 x Mic-in

1 x 802.11a/b/g/n/ac (optional)

1 x Half-size PCIe Mini slot

1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)

DC Jack: 9 V~36 V DC

Terminal Block: 9 V~36 V DC

19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory)

Wall mount

i7-6700TE: -20°C ~ 45°C with air flow (SSD),

10% ~ 95%, non-condensing

i5-6500TE: -20°C ~ 60°C with air flow (SSD),

10% ~ 95%, non-condensing

-40°C ~85°C with air flow (SSD), 10% ~ 90%, non-condensing

Half-sine wave shock 5G; 11ms; 100 shocks per axis

MIL-STD-810G 514.6 C-1 (with SSD)

3.5 kg/4.5 kg

CE/FCC

Microsoft® Windows® 8 Embedded, Microsoft® Windows® Embedded Standard 7 E, Microsoft®

Windows® 10 IoT Enterprise

Power

Reliability

TANK-871-Q170-2018-V13

TANK-871-Q170i-i3/4G-R10 Related Products

	TANK-871-Q170i-i3/4G-R10	TANK-871-Q170i-i5/4G-R10	TANK-871-Q170i-i7/4G-R10
Description	Embedded box computer Ruggedized Fanless embedded system with Intel Core i3-6100TE 2.7GHz, (Dual Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC , RoHS	Embedded box computer Ruggedized Fanless embedded system with Intel Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional , 9~36V DC, RoHS	Embedded box computer Ruggedized Fanless embedded system with Intel Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, iRIS-2400 optional , 9~36V DC, RoHS
Maker	IEI	IEI	IEI
Product Category	Embedded box computer	Embedded box computer	Embedded box computer
Processor brand	Intel	Intel	Intel
chipset	Q170	Q170	Q170
frequency	2.7 GHz	2.3 GHz	2.4 GHz
storage	4 GB	4 GB	4 GB
Working power voltage	9 V to 36 V	9 V to 36 V	9 V to 36 V
Interface Type	Audio, DIO, Ethernet, HDMI/DP, RS-232, RS-232/422/	Audio, DIO, Ethernet, HDMI/DP, RS-232, RS-232/422/	Audio, DIO, Ethernet, HDMI/DP, RS-232, RS-232/422/
size	255.2 mm x 82.2 mm x 204 mm	255.2 mm x 82.2 mm x 204 mm	255.2 mm x 82.2 mm x 204 mm
storage type	DDR4	DDR4-2133	DDR4-2133
series	TANK-871-Q170	TANK-871-Q170	TANK-871-Q170
Processor type	-	Intel Core i5-6500TE	Intel Core i7-6700TE
Minimum operating temperature	-	- 20 C	- 20 C
Maximum operating temperature	-	+ 60 C	+ 45 C
Description/Function	-	Ruggedized Fanless Embedded System with 7th Generation Intel Core i5-6500TE (Quad Core) 2.3 GHz	Ruggedized Fanless Embedded System with 7th Generation Intel Core i7-6700TE (Quad Core) 2.4 GHz
Processor series	-	i5-6500TE	i7-6700TE
