RHRXH162245K-01Q datasheet, PDF

Datasheet> All Categories > logic> logic> RHRXH162245K-01Q

RHRXH162245K-01Q: DescriptionRad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs; Categorylogic logic; File Size468KB，18 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

RHRXH162245K-01Q Overview

Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs

RHRXH162245K-01Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DFP
package instruction	DFP, FL48,.4,25
Contacts	48
Reach Compliance Code	_compli
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	ALVC/VCX/A
JESD-30 code	R-CDFP-F48
JESD-609 code	e0
length	15.75 mm
Load capacitance (CL)	30 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.018 A
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL48,.4,25
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.5/3.3 V
Prop。Delay @ Nom-Su	4.9 ns
propagation delay (tpd)	4.9 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.72 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	100k Rad(Si) V
translate	N/A
width	9.65 mm

Preview

Download Datasheet

View All

54VCXH162245

Rad hard low voltage CMOS 16-bit bus buffer transceiver

(3-state) with 3.6V tolerant inputs and outputs

Features

■

1.65 to 3.6V inputs and outputs

High speed A outputs:

– t

= 3.4ns at V

= 3.0 to 3.6V

– t

= 4.3ns at V

= 2.3 to 2.7V

Symmetrical impedance A output:

– |I

| = I

= 12mA (Min) at V

= 3.0V

– |I

| = I

= 8mA (Min) at V

= 2.3V

High speed B outputs:

– t

= 2.5ns (Max) at V

= 3.0 to 3.6V

– t

= 3.2ns (Max) at V

= 2.3 to 2.7V

Symmetrical impedance A output:

– |I

| = I

= 24mA (Min) at V

= 3.0V

– |I

| = I

= 18mA (Min) at V

= 2.3V

Power down protection on inputs and outputs

26Ω serie resistors in A port output

Operating voltage range:

– V

(Opr) = 1.65V to 3.6V

Pin and function compatible with 54 SERIES

H162245

Bus hold provided on both sides

Cold spare function

Latch-up performance exceeds

300mA (JESD 17)

ESD performance:

– HBM > 2000V

(MIL STD 883 method 3015); MM > 200V

300KRad Mil1019.6 Condition A, (RHA QML

qualification extension undergone)

No SEL, no SEU under 72 Mev/cm2/mg LET

heavy ions irradiation

QML qualified product

Device fully compliant with

DSCC SMD 5962-02508

Flat-48

■

Description

The 54VCXH162245 is a low voltage CMOS 16

bit bus transceiver (3-state) fabricated with sub-

micron silicon gate and five-layer metal wiring

MOS technology. It is ideal for low power and

very high speed 1.65 to 3.6V applications; it can

be interfaced to 3.6V signal environment for both

inputs and outputs.

This IC is intended for two-way asynchronous

communication between data buses; the direction

of data transmission is determined by DIR input.

The two enable inputs nG can be used to disable

the device so that the buses are effectively

isolated. The device circuits is including 26Ω

series resistance in the A port outputs. These

resistors permit to reduce line noise in high speed

applications. Bus hold on data inputs is provided

in order to eliminate the need for external pull-up

or pull-down resistor.

All inputs and outputs are equipped with

protection circuits against static discharge, giving

them 2KV ESD immunity and transient excess

voltage. All floating bus terminals during High Z

State must be held HIGH or LOW.

■

July 2007

Rev 6

1/18

www.st.com

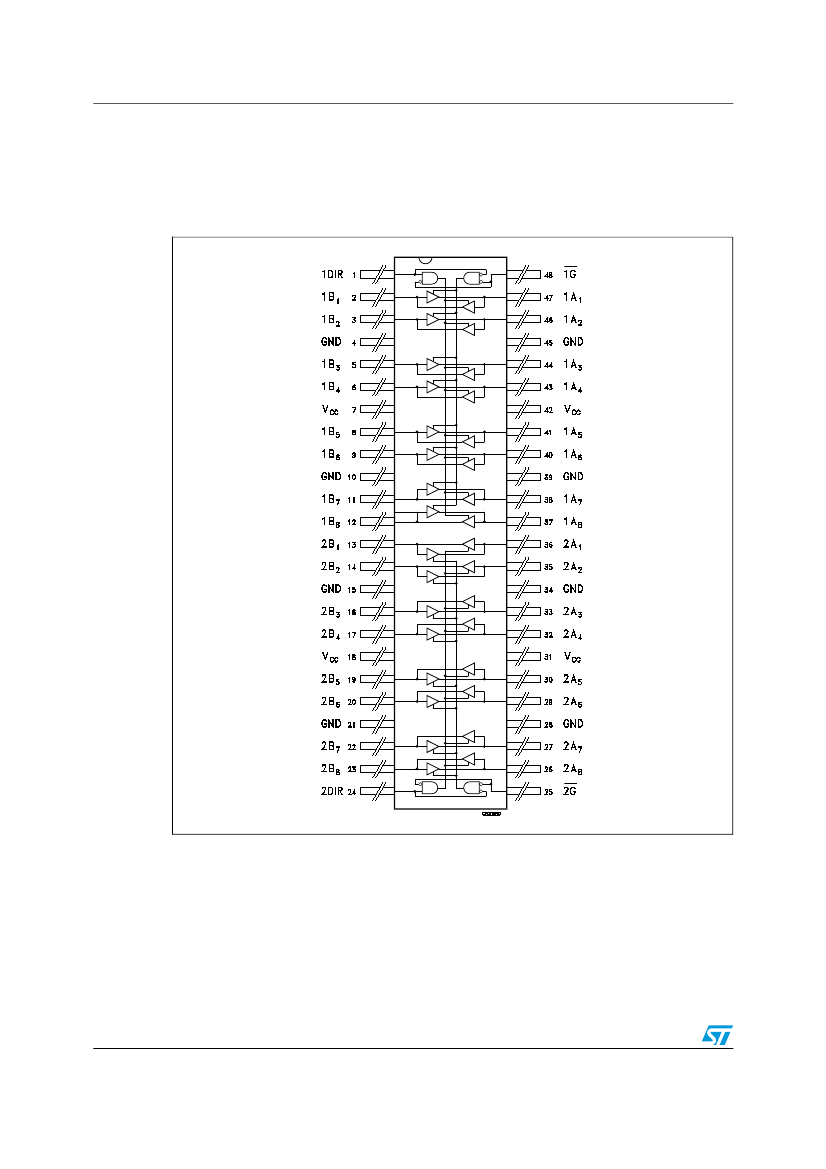

RHRXH162245K-01Q Related Products

	RHRXH162245K-01Q	54VCXH162245	RHRXH162245K-02V	RHRXH162245K-02Q	RHRXH162245K1	RHFXH162245K-01Q
Description	Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs	Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs	Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs	Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs	Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs	Rad hard low voltage CMOS 16-bit bus buffer transceiver (3-state) with 3.6V tolerant inputs and outputs
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	-	Contains lead
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DFP	-	DFP	DFP	DFP	DFP
package instruction	DFP, FL48,.4,25	-	DFP, FL48,.4,25	DFP, FL48,.4,25	DFP, FL48,.4,25	DFP, FL48,.4,25
Contacts	48	-	48	48	48	48
Reach Compliance Code	_compli	-	_compli	_compli	_compli	_compli
Control type	COMMON CONTROL	-	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	-	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	ALVC/VCX/A	-	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-CDFP-F48	-	R-CDFP-F48	R-CDFP-F48	R-CDFP-F48	R-CDFP-F48
JESD-609 code	e0	-	e0	e0	e0	-
length	15.75 mm	-	15.75 mm	15.75 mm	15.75 mm	15.75 mm
Load capacitance (CL)	30 pF	-	30 pF	30 pF	30 pF	30 pF
Logic integrated circuit type	BUS TRANSCEIVER	-	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
MaximumI(ol)	0.018 A	-	0.018 A	0.018 A	0.018 A	0.006 A
Number of digits	8	-	8	8	8	8
Number of functions	2	-	2	2	2	2
Number of ports	2	-	2	2	2	2
Number of terminals	48	-	48	48	48	48
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	-	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	-	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	-	DFP	DFP	DFP	DFP
Encapsulate equivalent code	FL48,.4,25	-	FL48,.4,25	FL48,.4,25	FL48,.4,25	FL48,.4,25
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	-	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	225
power supply	2.5/3.3 V	-	2.5/3.3 V	2.5/3.3 V	2.5/3.3 V	2.5/3.3 V
Prop。Delay @ Nom-Su	4.9 ns	-	4.9 ns	4.9 ns	4.9 ns	4.9 ns
propagation delay (tpd)	4.9 ns	-	4.9 ns	4.9 ns	4.9 ns	4.9 ns
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	-	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q	-	MIL-PRF-38535 Class Q
Maximum seat height	2.72 mm	-	2.72 mm	2.72 mm	2.72 mm	2.72 mm
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.8 V	-	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	2.3 V	-	2.3 V	2.3 V	2.3 V	2.3 V
surface mount	YES	-	YES	YES	YES	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	FLAT	-	FLAT	FLAT	FLAT	FLAT
Terminal pitch	0.635 mm	-	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	100k Rad(Si) V	-	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	300k Rad(Si) V
translate	N/A	-	N/A	N/A	N/A	N/A
width	9.65 mm	-	9.65 mm	9.65 mm	9.65 mm	9.65 mm
