1N5404 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 1N5404

1N5404: Description3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD; Categorysemiconductor Discrete semiconductor; File Size157KB，2 Pages; ManufacturerSHANGHAI SHANGLANG ELECTRONIC TECHNOLOGY CO., LTD.

Download Datasheet Parametric Compare View All

1N5404 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5404	-	-	View	Buy Now

1N5404 Overview

3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD

1N5404 Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	GREEN, PLASTIC PACKAGE-2
state	ACTIVE
packaging shape	round
Package Size	LONG FORM
Terminal form	Wire
terminal coating	PURE Tin
Terminal location	AXIAL
Packaging Materials	Plastic/Epoxy
structure	single
Shell connection	isolation
Diode component materials	silicon
Diode type	rectifier diode
application	EFFICIENCY
Phase	1
Maximum repetitive peak reverse voltage	400 V
Maximum average forward current	3 A
Maximum non-repetitive peak forward current	200 A

Preview

Download Datasheet

View All

CHENYI ELECTRONICS

1N5400 THRU 1N5408

GENERAL PURPOSE PLASTIC RECTIFIER

Reverse Voltage - 50 to 1000 Volts

Forward Current - 3.0Amperes

FEATURES

. The plastic package has Underwrites Laboratory

Flammability Classification 94V-0

. Construction utilizes void-free molded plastic technique

. High surge current capability

. 3.0A operation at

=75

. Typical

less than 0.1

with no thermal runaway

/10 seconds,

. High temperature soldering guaranteed: 250

0.375"(9.5mm)lead length,5lbs.(2.3kg)tension

MECHANICAL DATA

Case:

JEDEC DO-15 molded plastic body

Terminals:

lead solderable per MIL-STD-750,method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.042 ounce, 1.19 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Ratings at 25

ambient temperature unless otherwise specified,Single phase,half wave 60Hz,resistive or inductive)

load. For capacitive load,derate by 20%)

Symbols

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Macimum average forward rectified

current 0.375"(9.5mm)lead length at

=70

Peak forward surge current 8.3ms

sing-wave superimposed on rated load

(JEDEC method)

=70

Maximum instantaneous forward voltage at 1.5 A

Maximum reverse

current at rated DC blocking voltage

Typeical thermal resistance(Note 2)

TA=25

TA=100

FSM

RRM

RMS

(AV)

5400

5401

100

5402

200

140

200

5403

300

210

300

5404

400

280

400

3.0

5405

500

350

500

5406

600

420

600

5407

800

560

800

5408

1000

700

1000

Units

Volts

Amps

200.0

Amps

1.1

10.0

Volts

300.0

STG

20.0

Typical junction Capacitance(Note 1)

Maximum DC Blocking Voltage temperature

Operating and storage temperature range

35.0

+150.0

-50 to +175

Notes:

1. Measured at 1MHz and applied reverse voltage of 4.0V DC

2.Thermal resistance from juntion to ambient and from junction lead at 0.375"(9.5mm)lead length,

P.C.B. Mounted

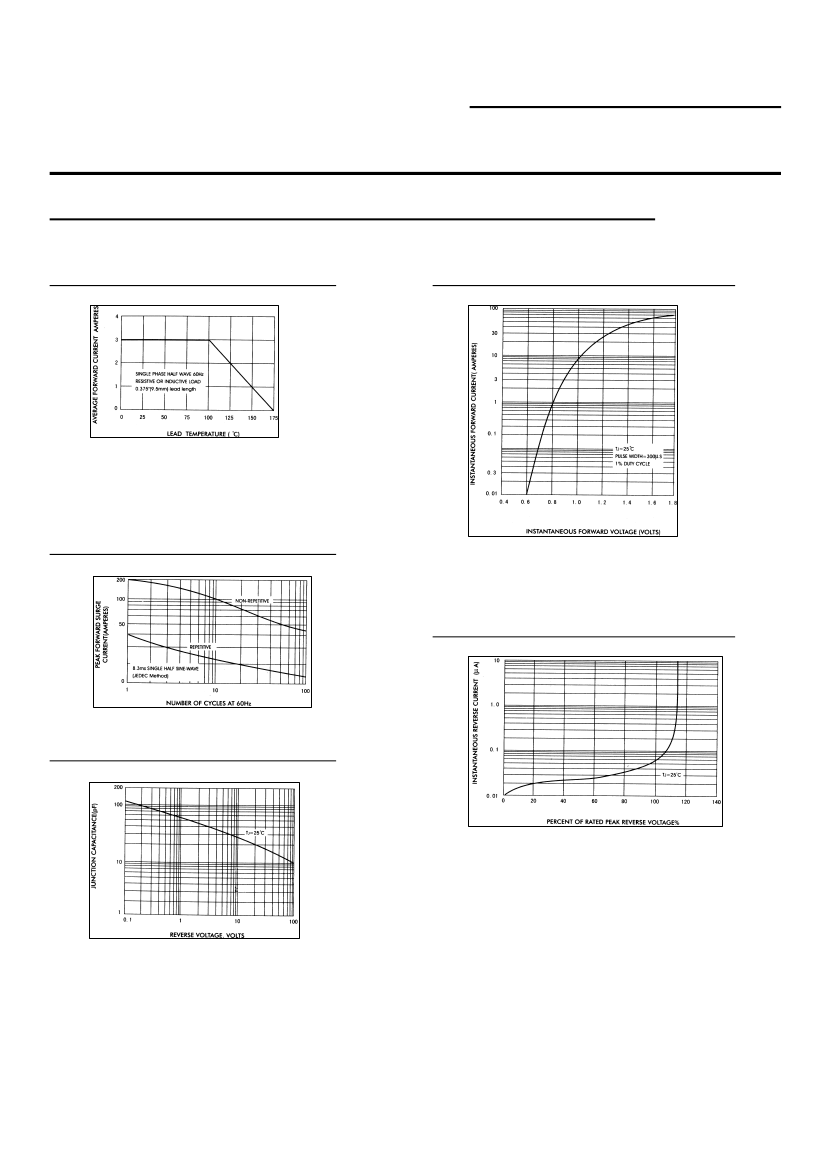

Page 1 of 2

1N5404 Related Products

	1N5404	1N5400	1N5401	1N5402	1N5403	1N5405	1N5406	1N5407	1N5408
Description	3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 300 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 500 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 600 V, SILICON, RECTIFIER DIODE	3 A, SILICON, RECTIFIER DIODE, DO-201AD	RECTIFIER DIODE,1KV V(RRM),DO-204AE
Number of terminals	2	2	2	2	-	-	2	-	-
Number of components	1	1	1	1	-	-	1	-	-
Processing package description	GREEN, PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	-	LEAD FREE, PLASTIC, CASE 267-05, 2 PIN	-	-
state	ACTIVE	ACTIVE	ACTIVE	DISCONTINUED	-	-	DISCONTINUED	-	CONSULT MFR
packaging shape	round	round	round	round	-	-	round	-	-
Package Size	LONG FORM	LONG FORM	LONG FORM	LONG FORM	-	-	LONG FORM	-	-
Terminal form	Wire	Wire	Wire	Wire	-	-	Wire	-	-
terminal coating	PURE Tin	MATTE Tin	tin	tin lead	-	-	MATTE Tin	-	-
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	-	-	AXIAL	-	-
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	-	Plastic/Epoxy	-	-
structure	single	single	single	single	-	-	single	-	-
Shell connection	isolation	isolation	isolation	isolation	-	-	isolation	-	-
Diode component materials	silicon	silicon	silicon	silicon	-	-	silicon	-	-
Diode type	rectifier diode	rectifier diode	rectifier diode	rectifier diode	-	-	rectifier diode	-	rectifier diode
application	EFFICIENCY	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	-	-
Phase	1	1	1	1	-	-	1	-	-
Maximum repetitive peak reverse voltage	400 V	50 V	100 V	200 V	-	-	600 V	-	-
Maximum average forward current	3 A	3 A	3 A	3 A	-	-	3 A	-	-
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A	-	-	200 A	-	-
