F1100E-20.000 MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Frequency controller and a timer> oscillator> The standard clock oscillator> F1100E-20.000 MHZ

Preview

F1100E-20.000 MHZ: DescriptionStandard clock oscillator DIP-14 20MHz; CategoryPassive components Frequency controller and a timer oscillator The standard clock oscillator; File Size265KB，1 Pages; ManufacturerFOX [Fox Electronics]

Download Datasheet Parametric View All

F1100E-20.000 MHZ Overview

Standard clock oscillator DIP-14 20MHz

F1100E-20.000 MHZ Parametric

Parameter Name	Attribute value
Maker	FOX [Fox Electronics]
Product Category	Standard clock oscillator
RoHS	N
frequency	20 MHz
frequency stability	100 PPM
Working power voltage	5 V
Termination type	Radial
Package/box	DIP-14
Minimum operating temperature	0 C
Maximum operating temperature	+ 70 C
length	20.8 mm
width	13.2 mm
high	5.08 mm
series	F1100
Current rating	30 mA
type	XO - Crystal Clock Oscillators
Installation style	Through Hole
Factory packaging quantity	1000

Preview

Download Datasheet

View All

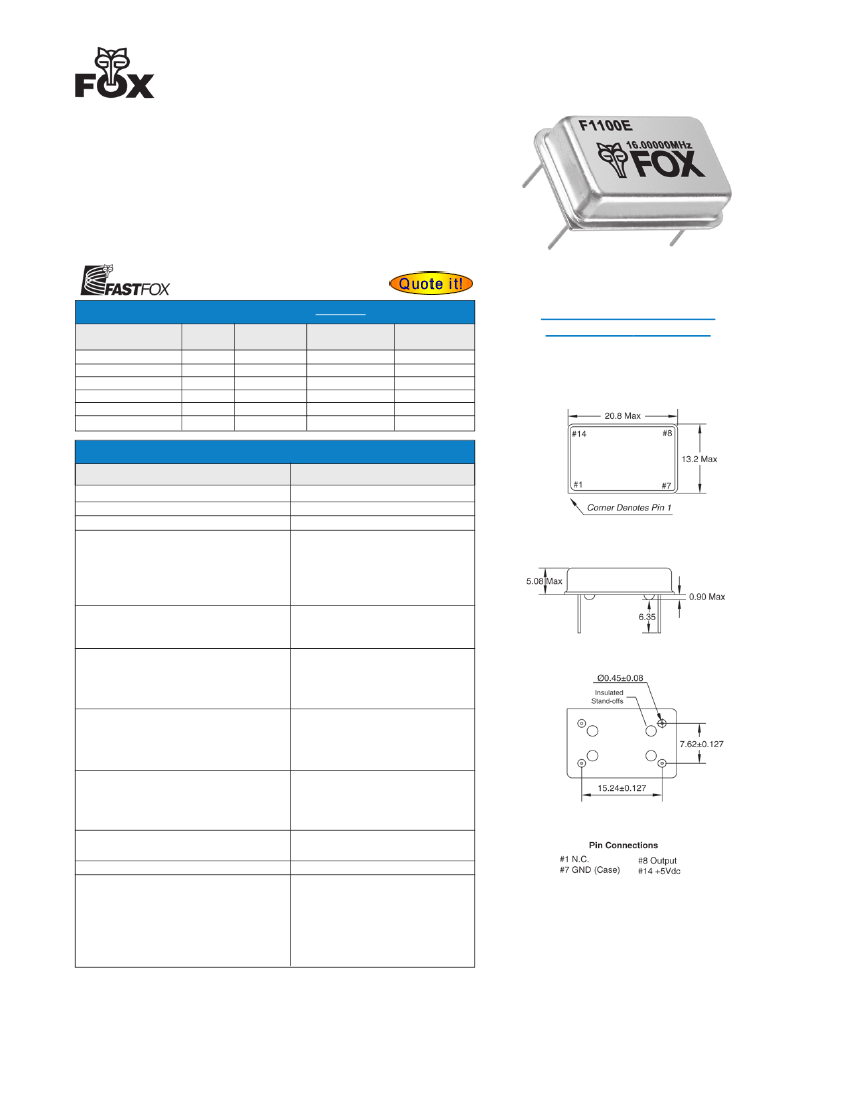

5.0V TTL CLOCK OSCILLATOR

MODEL: F1100E

FEATURES

• 5.0V Operation

• TTL Output

• 14-Pin DIP

DISCONTINUED

• PART NUMBER SELECTION

Part Number

049-Frequency-xxxxx

343-Frequency-xxxxx

060-Frequency-xxxxx

061-Frequency-xxxxx

055-Frequency-xxxxx

465-Frequency-xxxxx

Learn More - Internet Required

Frequency

Operating

Model

Stability

Temperature (ºC)

Number

0 ~ +70

F1100E

±100PPM

(STD)

±100PPM

-40 ~ +85

F1100ER

±50PPM

0 ~ +70

F1145E

±50PPM

-40 ~ +85

F1145ER

±25PPM

0 ~ +70

F1144E

±25PPM

-40 ~ +85

F1144ER

Frequency

Range (MHz)

1.000 ~ 100.000

1.000 ~ 70.000

1.000 ~ 100.000

1.000 ~ 70.000

Learn more about:

Part Marking Identification

Mechanical Specification

Internet required

• ELECTRICAL CHARACTERISTICS

Frequency Range(F

)

Storage Temperature Range (T

STG

)

Supply Voltage

)

Input Current(I

1.000 ~ 8.000 MHz

8.000+ ~ 24.000 MHz

24.000+ ~ 70.000 MHz

70.000+ ~ 100.000 MHz

Output Symmetry (1.4V Level)

1.000 ~ 8.000 MHz

8.000+ ~ 100.000 MHz

Rise Time (0.5V ~ 2.4V) (T

)

1.000 ~ 25.000 MHz

25.000+ ~ 70.000 MHz

70.000+ ~ 100.000 MHz

Fall Time (2.4V ~ 0.5V) (T

)

1.000 ~ 25.000 MHz

25.000+ ~ 70.000 MHz

70.000+ ~ 100.000 MHz

Output Voltage

1.000 ~ 25.000 MHz

)

25.000+ ~ 100.000 MHz

1.000 ~ 100.000 MHz

)

Output Current

)

Output Load

Start-up Time

)

1.000 ~ 3.500 MHz

3.500+ ~ 4.000 MHz

4.000+ ~ 6.000 MHz

6.000+ ~ 20.000 MHz

20.000+ ~ 100.000 MHz

PARAMETERS

MAX

(unless otherwise noted)

1.000 ~ 100.000 MHz

-55ºC ~ +125ºC

5.0V ± 10%

15mA

30mA

70mA

80mA

45% ~ 55%

40% ~ 60%

10 nS

5 nS

4 nS

10 nS

5 nS

4 nS

0.4V

0.5V

2.4V Min

20mA Min

-1.0mA Min

10TTL

20mS

35mS

30mS

20mS

15mS

All dimensions are in millimeters.

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

All specifications subject to change without notice.

Rev. 6/1/04

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239)693-0099 FAX +1(239)693-1554

http://www.foxonline.com
