Preliminary Data Sheet
1.0 Amp Glass Passivated
RGPZ10A . . . 10M Series
Description
Sintered Fast Switching
Rectifiers
Mechanical Dimensions
JEDEC
D0-41
.080
.107
.205
.160
1.00 Min.
.031 typ.
Features
n
LOWEST COST FOR GLASS SINTERED
FAST SWITCHING CONSTRUCTION
n
LOWEST V
F
FOR GLASS SINTERED
FAST SWITCHING CONSTRUCTION
n
TYPICAL I
R
< 100 nAmps
RGPZ10A . . . 10M Series
10A
50
35
50
10B
100
70
100
10D
200
140
200
10G
400
280
400
10J
600
420
600
10K
800
560
800
10M
1000
700
1000
Volts
Volts
Volts
Amps
Amps
Volts
µAmps
Units
n
1.0 AMP OPERATION @ T
A
= 55°C, WITH
NO THERMAL RUNAWAY
n
SINTERED GLASS CAVITY-FREE
JUNCTION
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
Current 3/8" Lead Length @ T
A
= 55°C
Non-Repetitive Peak Forward Surge Current...I
FSM
8.3mS, ½ Sine Wave Superimposed on Rated Load
Forward Voltage @ 1.0A...V
F
Full Load Reverse Current...I
R
(av)
Full Cycle Average @ T
A
= 55°C
DC Reverse Current...I
R(max)
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
= 150°C
............................................. 1.0 ...............................................
............................................. 3 0 ...............................................
............................................. 1.2 ...............................................
............................................. 1 0 0 ...............................................
............................................. 5.0 ...............................................
............................................. 2 0 0 ...............................................
............................................. 1 5 ...............................................
............................................. 5 5 ...............................................
< ..................... 1 5 0 ................... >
250
< ....... 5 0 0 ...... >
µAmps
µAmps
pF
°C
/ W
nS
°C
Typical Junction Capacitance...C
J
(Note 1)
Maximum Thermal Resistance...R
θJA
(Note 2)
Maximum Reverse Recovery Time...t
RR
(Note 3)
Operating & Storage Temperature Range...T
J
, T
STRG
......................................... -65 to 175 ..........................................
Preliminary Data Sheet
1.0 Amp Glass Passivated
Sintered Fast Switching
Rectifiers

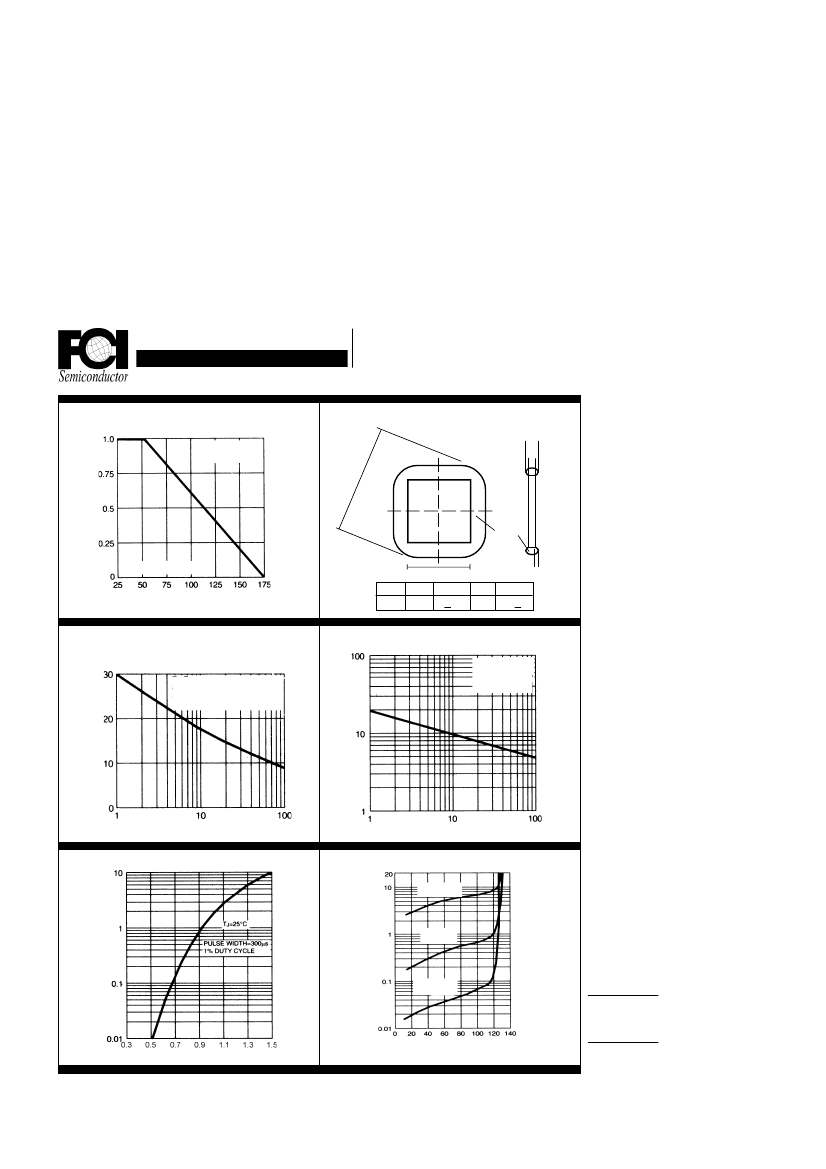

Die Dimension (mils)
A
T
Forward Current Derating Curve
RESISTIVE OR
INDUCTIVE LOAD
D
Glass
0.375″ (9.5mm) LEAD LENGTH
″
d
G
T
A
= Ambient Temperature (°C)
°
D
68
d
G
43 2+0.5
T
11
A
15+1
Non-Repetitive
Peak Forward Surge Current
T
J
= T
J
max.
8.3 mS Single Half Sine Wave
(Jedec Method)
Typical Junction Capacitance
T
J
= 25°C
°
f = 1.0 MHZ
V
SIG
= 50mVp-p
Amps
Number of Cycles @ 60 HZ
Typical Instantaneous Forward Characteristics
pF
Reverse Voltage (Volts)
Typical Reverse Characteristics
T
J
= 100°C
°
µ
Amps
Amps
T
J
= 75°C
°
T
J
= 25°C
°
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 HZ
Resistive or
Inductive Load.
For Capacitive
Load, Derate
Current by 20%.
Volts
Percent of Rated Peak Voltage
NOTES:
1. Measured @ 1 MHZ and applied reverse voltage of 4.0V.
2. Thermal Resistance from Junction to Ambient at 3/8" Lead Length, P.C. Board Mounted.
3. Reverse Recovery Condition I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A.
RGPZ10A . . . 10M Series
Amps
