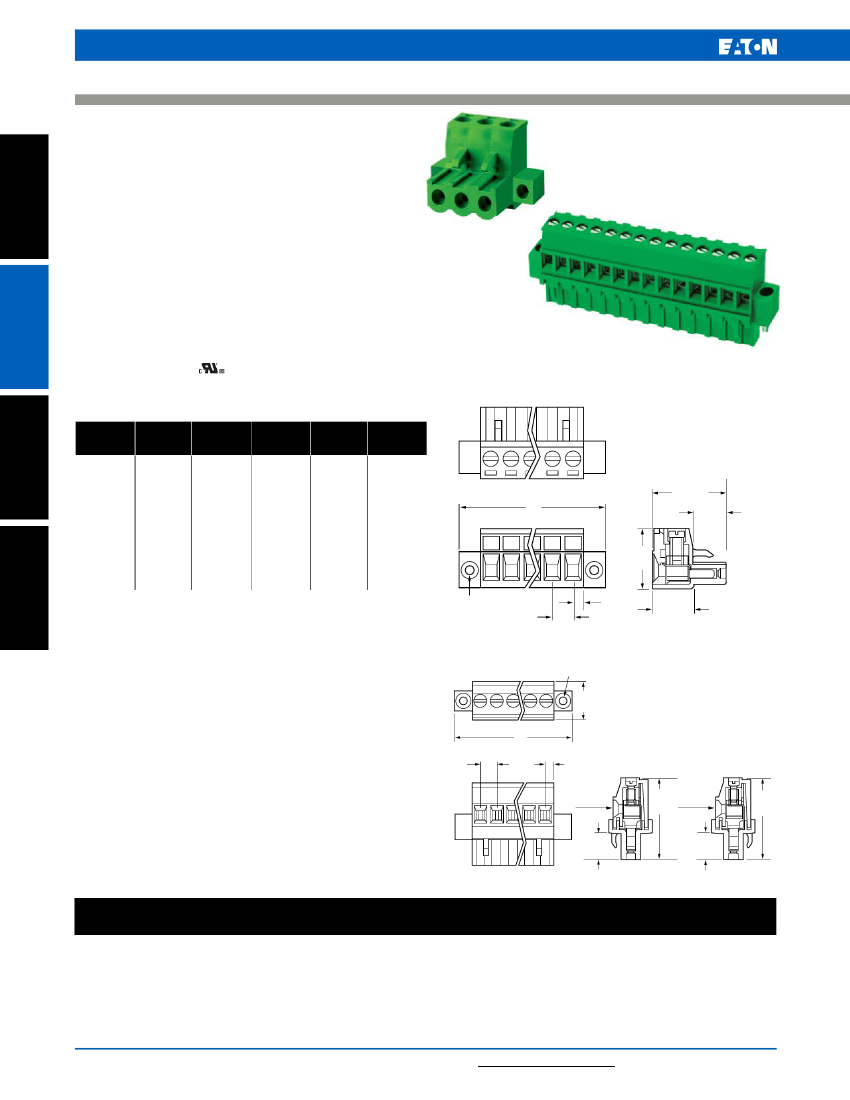

EuroMag Series PCB Mount Pluggable Terminal Blocks
Terminal Blocks:
Single Row
Series EM2118 Series
Pluggable Terminal Block with Flanges;
(Mates with EM2218 Series); 5.08 Centers
SPECIFICATIONS:
Rating:
16A, 300V
EM211803H
Center Spacing:
0.20" (5.08mm)
Wire Range:
#12-24 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Phosphor Bronze
Screw Size:
M
2.6
Nickel-Plated Steel
Operating Temperature:
105°C (221°F) max., -55°C (-67°F) min.
Torque Rating:
7.0
lb-in.
Construction:
Mold-to-Length
Dimensions - in (mm)
Agency Information:
File E62622; CE Certified
HORIZONTAL
EuroMag Series
Plug & Header
EM211814VL
Edge Connectors,
One-Sided Boards
Poles
2
3
4
5
6
7
8
9
10
11
12
L (mm)
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
L (Inch)
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
Poles
13
14
15
16
17
18
19
20
21
22
L (mm)
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
L (Inch)
3.0
3.2
3.4
3.6
3.8
4.0
4.2
4.4
4.6
4.8
Ø.11"
(2.70)
L
0.71"
(18.00)
0.32"
(8.20)
0.59"
(15.0)
0.10"
(2.54)
0.39"
(9.80)
Compliance
References
0.20"
(5.08)
Ø.11"
(2.70)
0.49"
(12.5)
VERTICAL
L
0.20"
(5.08)
0.10"
(2.54)
WIRE
ENTRY
0.32"
(8.20)
LEFT
1.02"
(25.8) WIRE
ENTRY
0.32"
(8.20)
RIGHT
1.02"
(25.8)
Part Numbering System
Series
Inches (Millimeters)
Orientation
Wire Entry
EM2 1 18
n n n n n n
qq
02
to
22
# of Positions
q
V
- Vertical
H
- Horizontal
q
L
- Left wire entry
R
- Right wire entry
(specify for V orientation)
Mating Header:
EM2218 pg.
98
For additional product information, visit
www.eaton.com/connectors
96
