Terminal Systems
DCS-1

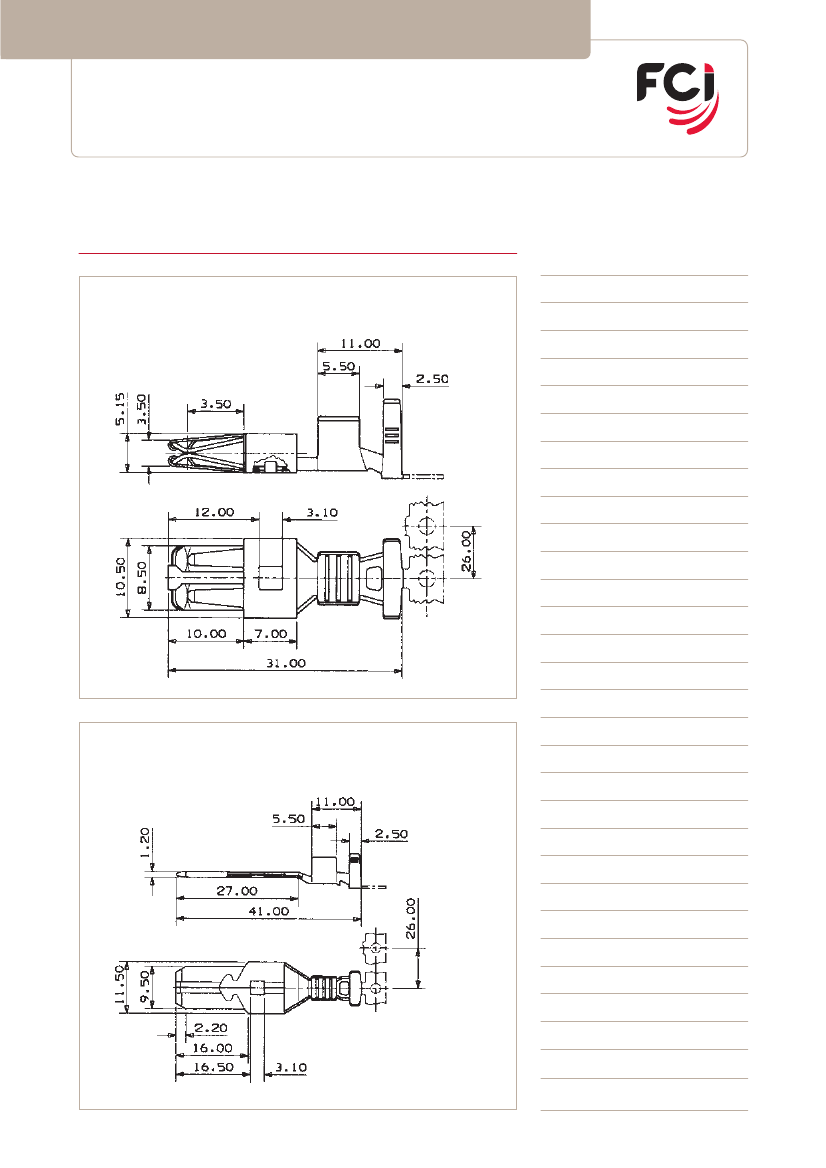

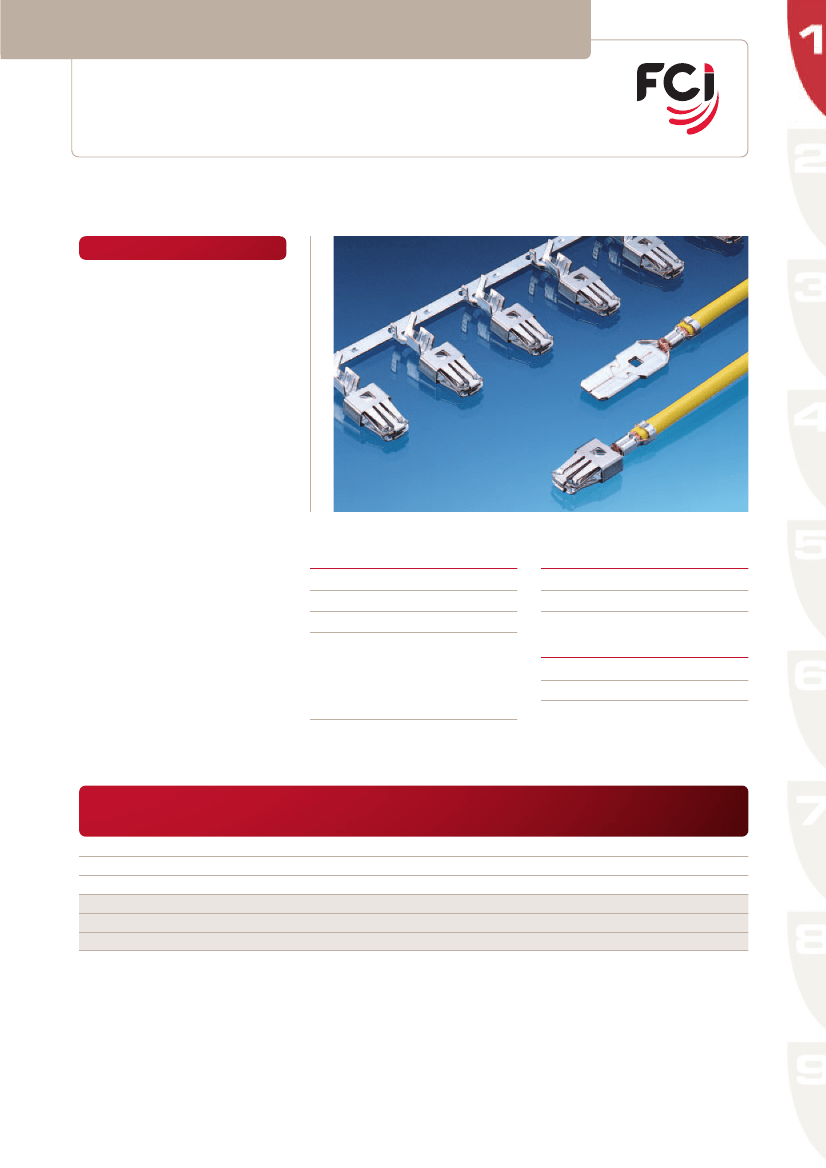

9.5 mm female and male terminals
Features
•
DCS-1 technology
•
12.0 mm pitch for unsealed
applications
•
12.5 mm pitch for sealed
application with single wire seal
•
Auxiliary steel spring in CrNi
•
High current carrying capacity
(up to 75 A at +23°C)
•
Protected contact springs
•
Compatible with single wire sealing
•
Silver-plated versions possible
Performance characteristics*
•
Contact resistance:
•
Contact mating force:
•
Contact unmating force:
< 3 mΩ
< 21 N
< 15 N
Packing
•
No. of terminals per reel: Consult us
•
No. of reels per packing: Consult us
•
Current carrying capacity with
10 mm
2
wire:
at 23°C up to approx.:
75 A
at 85°C up to approx.:
50 A
at 100°C up to approx.:
40 A
* Mated with 9.5 x 1.2 mm DCS-1 male
terminal (Sn)
Tooling
•
Manual crimping tool:
•
Mini applicator:
Consult us
Consult us
Part Numbers
Type
Wire size range
(in mm2)
Min.
Max.
Insulation Ø
(in mm)
Max.
Material
Plating
6 007 02 51
6 007 02 61
6 007 02 71
6 017 02 51
6 017 02 61
6 017 02 71
Female
Female
Female
Male
Male
Male
2.50
> 4.00
> 6.00
2.50
> 4.00
> 6.00
4.00
6.00
10.00
4.00
6.00
10.00
3.70 (FLRY wire)
4.30 (FLRY wire)
6.40 (FLRY wire)
3.70 (FLRY wire)
4.30 (FLRY wire)
6.40 (FLRY wire)
CuCrSiTi/CrNi
CuCrSiTi/CrNi
CuCrSiTi/CrNi
CuSn
CuSn
CuSn
Sn
Sn
Sn
Sn
Sn
Sn
1.53
Rev 06/04
