97-4106A-16S-8S(621) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 97-4106A-16S-8S(621)

97-4106A-16S-8S(621): DescriptionCircular MIL Specification Connector 5P Shell Size 16S Straight Plug; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

97-4106A-16S-8S(621) Overview

Circular MIL Specification Connector 5P Shell Size 16S Straight Plug

97-4106A-16S-8S(621) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Factory Lead Time	12 weeks
Is Samacsys	N
Other features	STANDARD: MIL-C-5015
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	97-4106A
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	ZINC ALLOY PLATED
Shell material	ALUMINUM ALLOY
Housing size	16S
Termination type	CRIMP
Total number of contacts	5
Base Number Matches	1

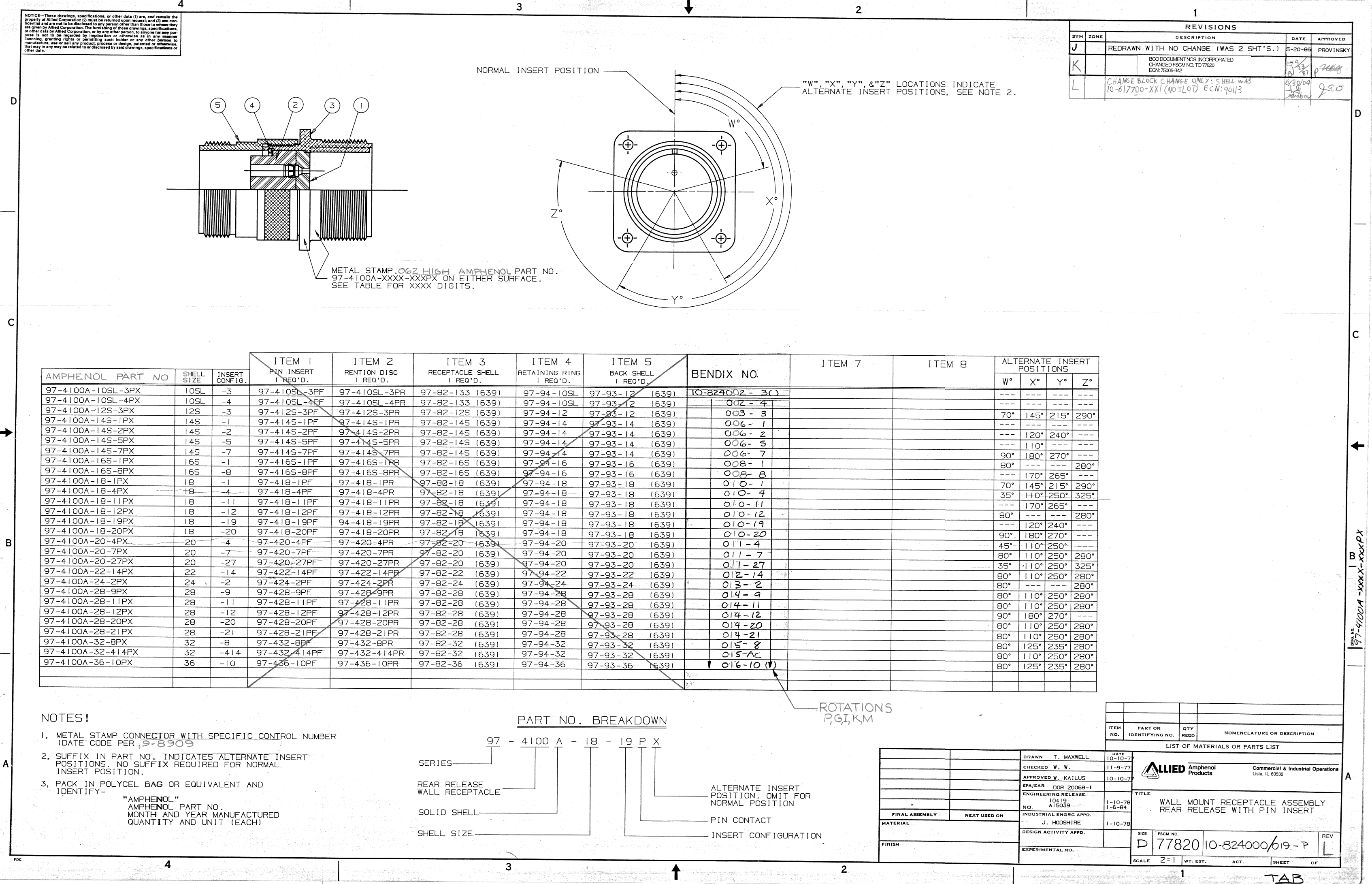

Preview

Download Datasheet

View All

97 series crimp type

how to order

Example of part number for crimp type connectors is given below.

4101

A – 28 – 21

(621)

Series Number

97 - designates

AMPHENOL 97 Series

Shell Type

4100 Wall Receptacle

4101 Cable Receptacle

4102 Box Receptacle

4106 Straight Plug

4107 Quick Disconnect Plug

4108 Angle Plug

Note: “4” in part number

designates crimp contact rear

release connector

Shell Finish Suffix

Omit for standard O.D.

cadmium finish

(604) Gray anodized

(608) Black anodized

(624) Green zinc alloy

(639) Clear cadmium

(640) Conductive black zinc alloy

(689) Electroless nickel

RoHS Compliant Suffix

(621) Black zinc alloy

plating

pheno

002

Shell Construction

A - Solid Backshell

B - Split Backshell

Shell Size

10SL, 12S, 14S, 16S, 18, 20,

22, 24, 28, 32, 36

Alternate Insert Positions

Omit for standard position

W, X, Y or Z for alternate positions,

depending on insert (see page 21 for

positions available)

Insert Configuration Number

See insert availability listing - page 21,

and see insert arrangement illustrations -

pages 22 and 23.

Contact Type*

P = Pin

S = Socket

* Contacts are not supplied with connectors, and

must be ordered separately. See following pages

for contact information.

Note:

Accessories for 97 Series Connectors should be

ordered with matching connector plating. See

accessory pages 33-39.
