L777SDB25PABCH3R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> L777SDB25PABCH3R

Preview

L777SDB25PABCH3R: DescriptionD-Sub standard connector D-SUB; CategoryThe connector The connector; File Size3MB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

L777SDB25PABCH3R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L777SDB25PABCH3R	-	-	View	Buy Now

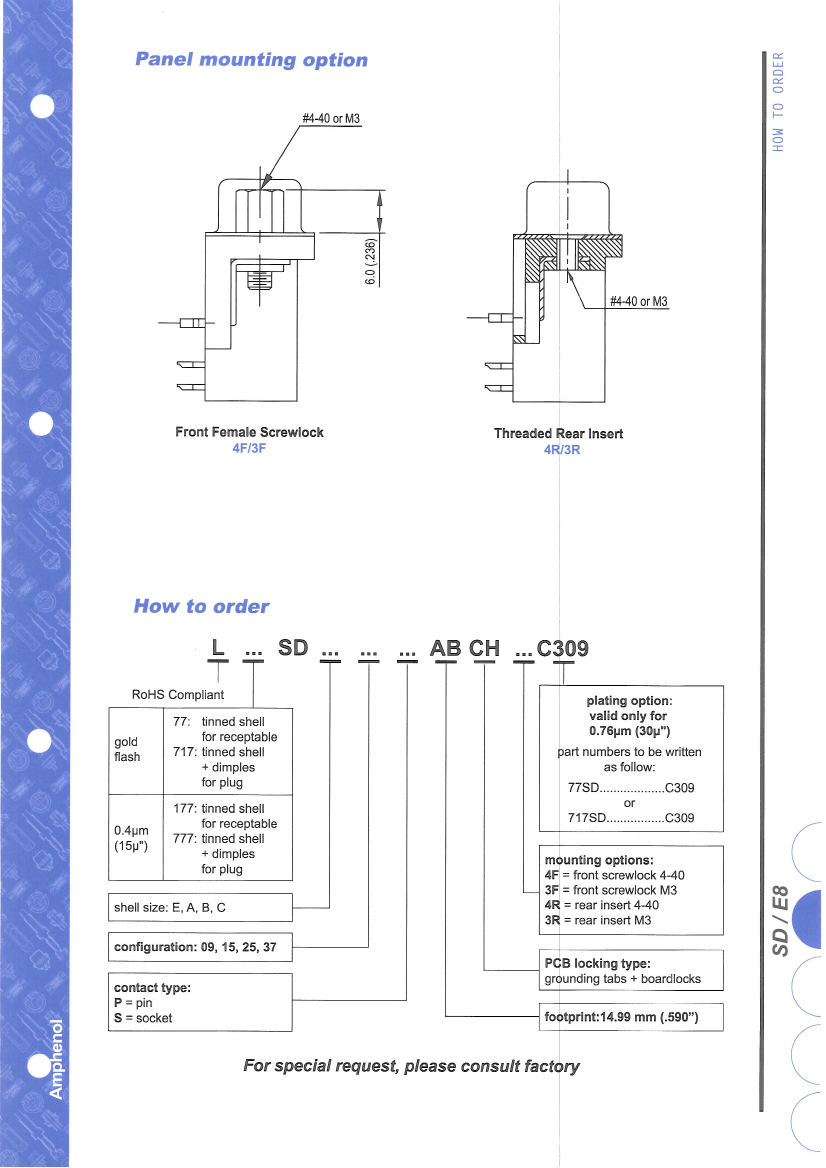

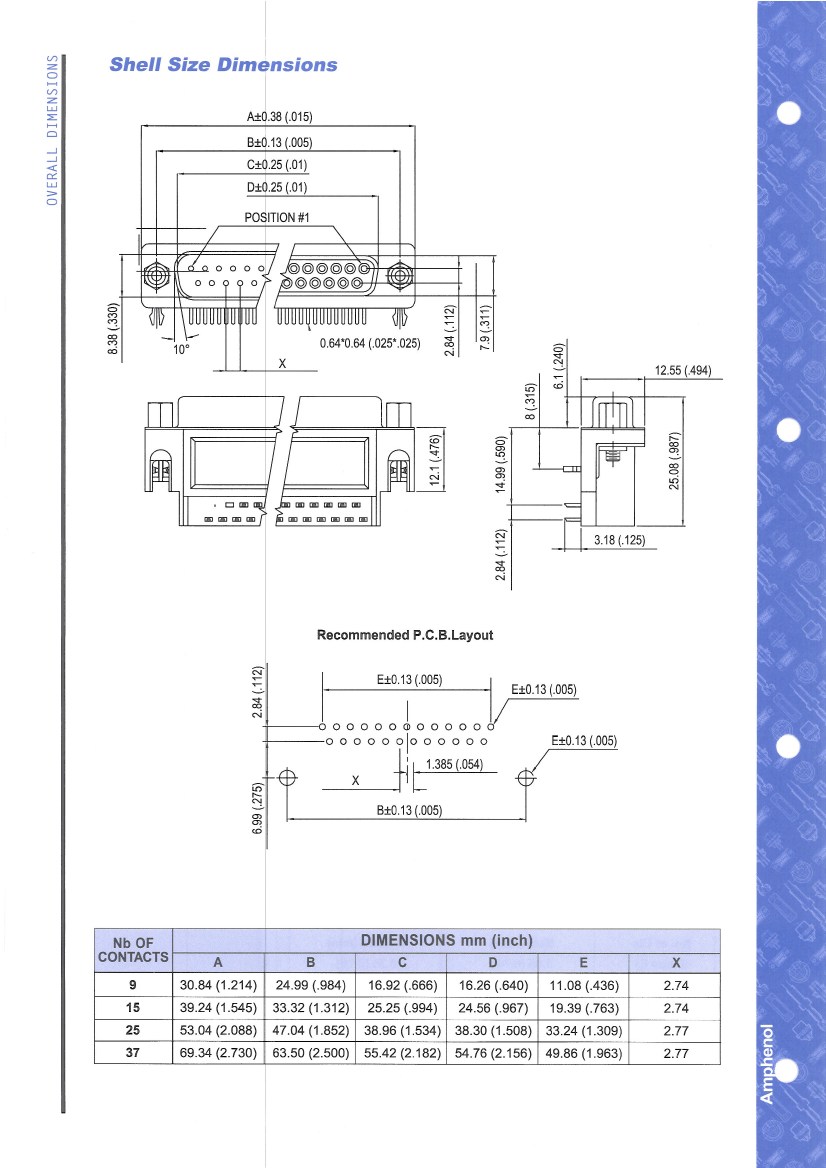

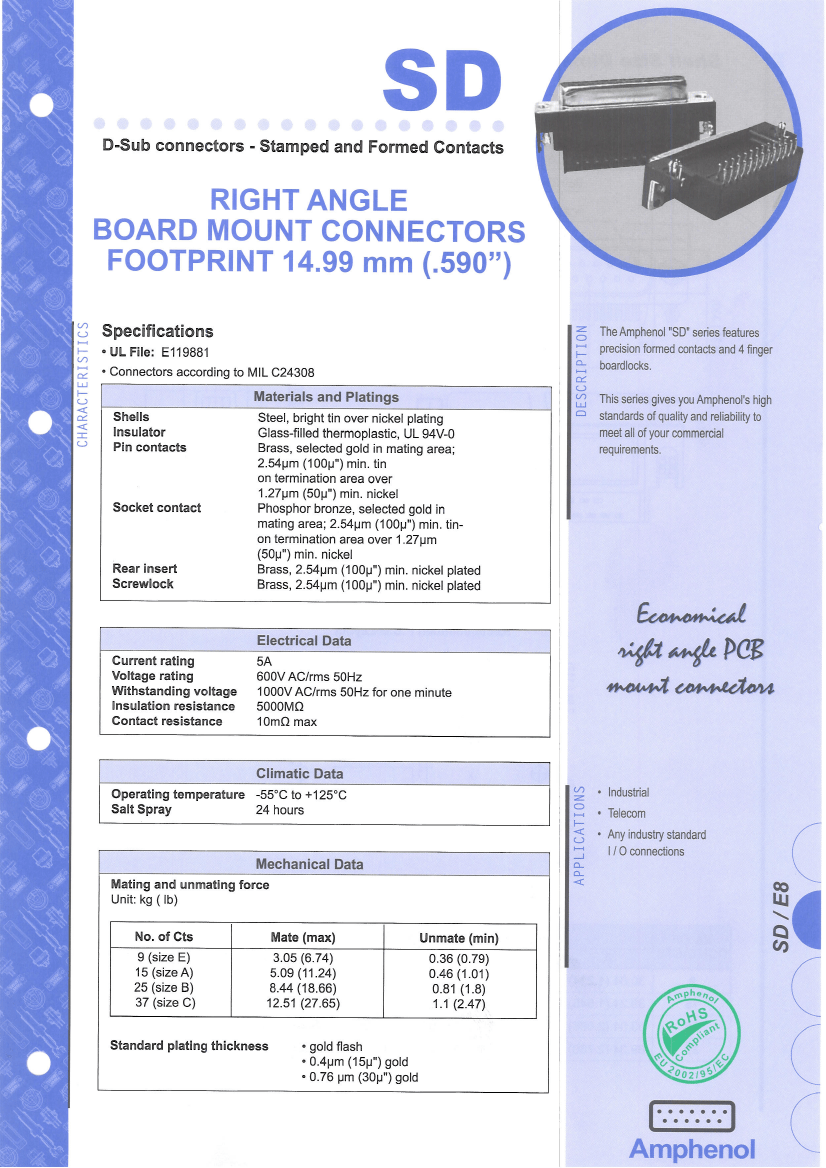

L777SDB25PABCH3R Overview

D-Sub standard connector D-SUB

L777SDB25PABCH3R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C24308
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e3
MIL compliance	YES
Manufacturer's serial number	SD
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

L777SDB25PABCH3R Related Products

	L777SDB25PABCH3R	L777SDB25PABCH4R	L777SDA15PABCH4F	L777SDC37PABCH3R	L777SDC37PABCH4F	L777SDB25PABCH3F	L777SDA15PABCH3F
Description	D-Sub standard connector D-SUB	D-Sub standard connector D-SUB	D-Sub standard connector D-SUB	D-Sub standard connector D-SUB	D-Sub standard connector D-SUB	D-Sub standard connector D-SUB	D-Sub standard connector D-SUB
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: MIL-C24308	STANDARD: MIL-C24308	STANDARD: MIL-C24308	STANDARD: MIL-C24308	STANDARD: MIL-C24308	STANDARD: MIL-C24308	STANDARD: MIL-C24308
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	SD	SD	SD	SD	SD	SD	SD
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	3/B	2/A	4/C	4/C	3/B	2/A
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	15	37	37	25	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
