54241033-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Automobile connector> 54241033-B

54241033-B: DescriptionAutomotive Connector 10W F APEX 150 D HSG; CategoryThe connector Automobile connector; File Size590KB，1 Pages; ManufacturerAptiv; Environmental Compliance

Download Datasheet Parametric Compare View All

54241033-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54241033-B	-	-	View	Buy Now

54241033-B Overview

Automotive Connector 10W F APEX 150 D HSG

54241033-B Parametric

Parameter Name	Attribute value
Maker	Aptiv
Product Category	automotive connector
product	Connectors
Number of locations	10 Position
Type	Female
Installation style	Wire
Termination type	Crimp
series	APEX 150
Encapsulation	Bulk
color	Green
series	APEX
Shell material	Polybutylene Terephthalate (PBT)
Number of rows	2 Row
Locking mechanism	CPA
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 40 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

ASSEMBLY PART NUMBER CHART

WITH CPA

MVL

NUMBER

54241030

54241031

54241032

54241033

54241034

54241035

54241036

54241037

54241038

54241039

54241040

54241041

54241042

F706300

F099300

REV

DELPHI

NUMBER

13737245

13775899

33500135

33500136

33500137

33500138

33500139

33500140

33511334

33511335

33510884

33511336

33511337

13779747

33510886

REV

MVL

NUMBER

REV

01 54241030N

01 54241031N

01 54241032N

01 54241033N

01 54241034N

01 54241035N

01 54241036N

01 54241037N

01 54241038N

01 54241039N

01 54241040N

01 54241041N

01 54241042N

NO CPA

DELPHI

NUMBER

33500341

33500342

33500343

33500344

33500345

33500346

33500347

33500348

33511338

33511339

33510885

33511340

33511341

REV

Black

Grey

Brown

Green

Black

Grey

Black

Grey

Black

KEY

OPTION

COMPONENTS

COLOR

HOUSING

54241080

54241081

54241082

54241083

54241080

54241081

54241080

54241081

54241080

n/a

54241679

(If Required)

54241090

(WITH PLUGS)

54241091

(W/O PLUGS)

CPA

RETAINER

PLUGGED (X) SEAL POSITIONS

OPEN

CIRCUITS

0 (ZERO)

MATES WITH ASSEMBLY

(REFERENCE ONLY)

PART MUNBER

MVL

54241000

54241001

54241002

54241003

54241008

54241009

54241012

54241013

54241016

54241017

54241018

54241019

54241020

F606300

DELPHI

13763996

13771870

33500123

33500124

13672213

33500129

13672211

33500132

33511329

33511330

33511331

33511332

33511333

13779746

PART MUNBER

MVL

54241004

54241005

54241006

54241007

54241010

54241011

54241014

54241015

DELPHI

33500125

33500126

33500127

33500128

33500130

33500131

33500133

33500134

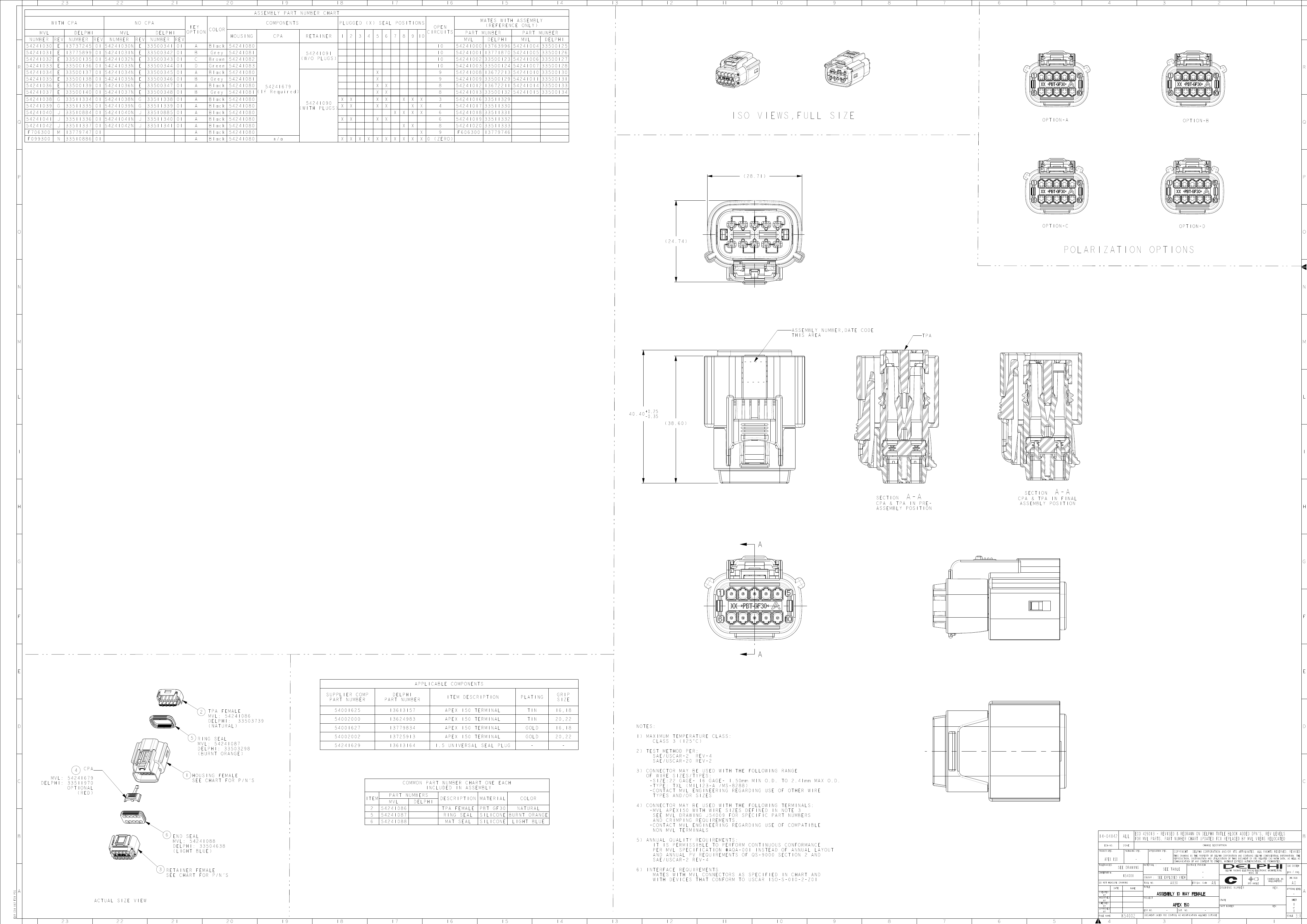

ISO VIEWS,FULL SIZE

OPTION-A

OPTION-B

( 28.71 )

OPTION-C

( 24.74 )

OPTION-D

POLARIZATION OPTIONS

ASSEMBLY NUMBER,DATE CODE

THIS AREA

TPA

40.40

+0.25

-0.35

( 38.60 )

SECTION

CPA & TPA IN PRE-

ASSEMBLY POSITION

A-A

SECTION

CPA & TPA IN FINAL

ASSEMBLY POSITION

A-A

APPLICABLE COMPONENTS

SUPPLIER COMP

PART NUMBER

TPA FEMALE

MVL: 54241086

DELPHI: 33503739

(NATURAL)

54001625

54002000

54001627

54002002

54241629

DELPHI

PART NUMBER

13613157

13624983

13779834

13725913

13613164

ITEM DESCRIPTION

APEX 150 TERMINAL

1.5 UNIVERSAL SEAL PLUG

PLATING

TIN

GOLD

GRIP

SIZE

16,18

20,22

16,18

20,22

NOTES:

1) MAXIMUM TEMPERATURE CLASS:

CLASS 3 (125°C)

2) TEST METHOD PER:

SAE/USCAR-2 REV-4

SAE/USCAR-20 REV-2

3) CONNECTOR MAY BE USED WITH THE FOLLOWING RANGE

OF WIRE SIZES/TYPES:

-SIZE:22 GAGE- 16 GAGE- 1.50mm MIN O.D. TO 2.41mm MAX O.D.

-TYPE: TXL (M1L123-A /MS-8288)

-CONTACT MVL ENGINEERING REGARDING USE OF OTHER WIRE

TYPES AND/OR SIZES

4) CONNECTOR MAY BE USED WITH THE FOLLOWING TERMINALS:

-MVL APEX150 WITH WIRE SIZES DEFINED IN NOTE 3

SEE MVL DRAWING J54009 FOR SPECIFIC PART NUMBERS

AND CRIMPING REQUIREMENTS.

-CONTACT MVL ENGINEERING REGARDING USE OF COMPATIBLE

NON MVL TERMINALS

5) ANNUAL QUALITY REQUIREMENTS:

IT IS PERMISSIBLE TO PERFORM CONTINUOUS CONFORMANCE

PER MVL SPECIFICATION #AQA-001 INSTEAD OF ANNUAL LAYOUT

AND ANNUAL PV REQUIREMENTS OF QS-9000 SECTION 2 AND

SAE/USCAR-2 REV-4

6) INTERFACE REQUIREMENTS

MATES WITH MVL CONNECTORS AS SPECIFIED IN CHART AND

WITH DEVICES THAT CONFORM TO USCAR ISO-S-010-2-Z01

14-04142 ALL

RING SEAL

MVL: 54241087

DELPHI: 33503298

(BURNT ORANGE)

1 HOUSING FEMALE

SEE CHART FOR P/N'S

COMMON PART NUMBER CHART ONE EACH

INCLUDED IN ASSEMBLY

ITEM

PART NUMBERS

MVL

54241086

54241087

54241088

DELPHI

DESCRIPTION

TPA FEMALE

RING SEAL

MAT SEAL

MATERIAL

PBT GF30

SILICONE

COLOR

NATURAL

BURNT ORANGE

LIGHT BLUE

END SEAL

MVL: 54241088

DELPHI: 33504638

(LIGHT BLUE)

ECO 426013 - REVISED

& REDRAWN ON DELPHI TITLE BLOCK ADDED DPN'S, REV LE

FOR MVL PARTS. PART NUMBER CHART UPDATED FCI REPLACED BY MVL VIEWS

APEX 150

SEE TABLE

SEE EXPLODED VIEW

RETAINER FEMALE

SEE CHART FOR P/N'S

SEE DRAWING

K54001

A130

2003-10-01

RANGARAJAN S

Sucha SIAN

Matt MAJOR

Bob CUE

ASSEMBLY 10 WAY FEMALE

APEX 150

K54002

SERIAL RELEASED

See Table

ACTUAL SIZE VIEW

2014/04/01

K54002

3:1

54241033-B Related Products

	54241033-B	54241030	54241033
Description	Automotive Connector 10W F APEX 150 D HSG	Automotive Connectors 10W FM HSING BLK 1.5MM TERM SZ	Automotive Connectors 10WAY FEMALE HOUSING GREEN 1.5MM TERM SZ
Product Category	automotive connector	Automotive Connectors	Automotive Connectors
Type	Female	Connector	-
Product Attribute	-	Attribute Value	Attribute Value
Manufacturer	-	Aptiv	Aptiv
Product	-	Connectors	Connectors
Number of Positions	-	10 Position	10 Position
Gender	-	Female	Female
Wire Gauge Range	-	22 AWG	22 AWG
Packaging	-	Bulk	Bulk
Color	-	Black	Green
Family	-	APEX	APEX
Material	-	Ultramid A3EG7 Nylon 6/6 GF35	Polyamide (PA)
Number of Rows	-	2 Row	2 Row
Locking Mechanism	-	CPA	CPA
Pitch	-	3.5 mm	3.5 mm
Maximum Operating Temperature	-	+ 125 C	+ 125 C
Minimum Operating Temperature	-	- 40 C	- 40 C
Factory Pack Quantity	-	280	280
