Features
Regulated
Converter
Description
• Universal input 90-264VAC
• Efficiency up to 86%
• Short circuit and over voltage/current protected
• UL/EN60950 certified, CE marked
• Conformal coated product
AC/DC Converter
RAC45-G/OF
RAC
45 Watt
4“ x 2“
Open Frame
The RAC45-xxG/OF series are low cost, 4”x2” AC/DC power supplies with universal inputs
(90-264VAC) and fully protected and isolated DC outputs in the range of 12V up to 48V. The converters
are offered in open frame (/OF) version. The outputs are trimmable to compensate for cable losses and
are short circuit and overload protected. The converters work over a wide temperature range of -25°C
to +60°C (with derating), are UL60950, EN60950 and CE certified and comply with Class B EMC limits.
The RAC45-G series come with a three year warranty.
Selection Guide
Part
Number
RAC45-12SG/OF
RAC45-24SG/OF
RAC45-48SG/OF
Input
Voltage Range
[VAC]
90-264
90-264
90-264
Output
Voltage
[VDC]
12
24
48
max. Output
Current
[mA]
3700
1900
1000
Efficiency
typ.
(1)
[%]
84
85
86
Notes:
Note1: Efficiency is tested at nominal input and full load at +25°C ambient
E196683
UL60950 certified
CAN/CSA C22.2 N.60950-1-07 certified
EN60950-1 certified
EN55032 compliant
EN55024 compliant
Model Numbering
RAC45-__ SG/OF
nom. Output Voltage
Single
Case Style
Ordering Examples:
RAC45-24SG/OF
RAC45-12SG/OF
24Vout
12Vout
Single
Single
open frame version
open frame version
www.recom-power.com
REV.: 2/2018
PA-1
RAC45-G/OF
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin and full load unless otherwise stated)
BASIC CHARACTERISTICS
Parameter
Output Power
Input Voltage Range
Input Current
Inrush Current
No load Power Consumption
Input Frequency Range
Output Voltage Trimming
Minimum Load
Power Factor
Start-up Time
Rise Time
Hold-up Time
Internal Operating Frequency
Output Ripple and Noise
(2)
Series
Condition
Min.
90VAC
115VAC
230VAC
cold start at 25°C
230VAC
47Hz
12Vout
24Vout
48Vout
115VAC
230VAC
115VAC
230VAC
115VAC
230VAC
115VAC
230VAC
65kHz
20MHz BW
50mVp-p
10ms
8ms
16ms
80ms
100kHz
120mVp-p
11.4VDC
22.8VDC
45.6VDC
0%
0.6
0.5
2s
0.8s
115VAC
230VAC
0.5W
63Hz
13.2VDC
26.4VDC
52.8VDC
Typ.
230VAC
Max.
48W
264VAC
1A
0.6A
20A
40A
Notes:
Note2:
Measurements are made with a 1.0µF & 10µF parallel capacitor

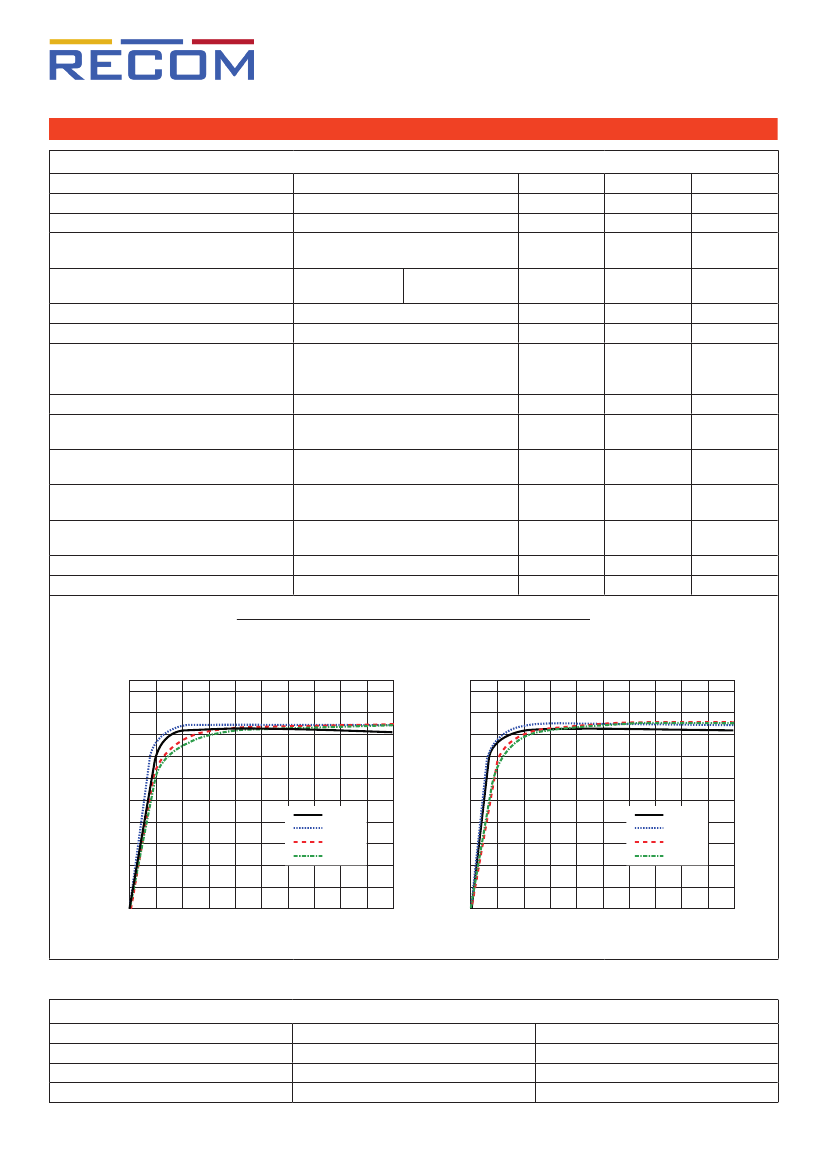

Efficiency vs. Load
RAC45-12SG/OF
100
90
80
100
90
80
RAC45-24SG/OF
Efficiency [%]
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
90VAC
115VAC
230VAC
264VAC
Efficiency [%]
70
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
90VAC
115VAC
230VAC
264VAC
Output Load [%]
Output Load [%]
REGULATIONS
Parameter
Output Accuracy
Line Regulation
Load Regulation
www.recom-power.com
Condition
Value
±1.0% typ. / ±3.0% max.
±0.2% typ. / ±1.0% max.
10%-100% load
REV.: 2/2018
0.5% typ. / 3.0% max.
PA-2
RAC45-G/OF
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin and full load unless otherwise stated)
PROTECTIONS
Parameter
Input fuse
Short Circuit Protection (SCP)
Over Voltage Protection (OVP)
Over Voltage Category
Over Current Protection (OCP)
Class of Equipment
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Insulation Grade
Leakage Current
I/P to O/P
O/P to FG
Notes:
Note3: Refer to local safety regulations if input over-current protection is also required
tested for 1 minute
Series
Type
internal
115-135% of Vout nominal
12VDC
24VDC
48VDC
I/P to O/P
I/P to PE
O/P to PE
I/P to O/P
3.9 - 6.2A
2.0 - 3.2A
1.1 - 1.56A
Value
T3.15A / 250V slow blow
continuous, auto recovery
Latch OFF
OVCII
Hiccup Mode,
auto recovery
Class
I
3kVAC
1.5kVAC
0.5kVDC
100MΩ min.
2200pF max.
reinforced
0.25mA max.
3.5mA max.
ENVIRONMENTAL
Parameter
Operating Temperature Range
Temperature Coefficient
Operating Altitude
Pollution Degree
Conformal Coating
Shock
MTBF
according to MIL-HDBK-217F, G.B.
+25°C
(4)
Condition
@ natural convection 0.1m/s
full load
refer to derating graph
Value
-25°C to +50°C
-25°C to +60°C
±0.05%/K typ.
5000m
Operating Humidity
non-condensing
20% - 90% RH max.
PD2
provided
20G, 11ms, 3 times for X,Y and Z axis
200 x 10
3
hours
Notes:
Note4: Recognized by UL for safe operation up to 5000m. High altitude operation may impact the performance and lifetime
Contact RECOM techsupport for advice
continued on next page
www.recom-power.com
REV.: 2/2018
PA-3
RAC45-G/OF
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin and full load unless otherwise stated)
Derating Graph
(@ Chamber and natural convection 0.1m/s)
100
90
80
Series
Operating Altitude
(limitation E-Cap heitsink)
100
90
80
Output Load [%]
60
50
40
30
20
10
0
-25
0
10
20
30
40
50
60
70
80
Output Load [%]
70
70
60
50
40
30
20
10
0
0
1000
2000
3000
4000
5000
6000
+25°C Tamb
+50°C Tamb
Ambient Temperature [°C]
Operating Altitude [m]
SAFETY AND CERTIFICATIONS
Certificate Type (Safety)
Information Technology Equipment, General Requirements for Safety
Information Technology Equipment, General Requirements for Safety (LVD)
EAC Safety of Low Voltage Equipment
RoHS2+
Report / File Number
E196683
SA1406027L01001
RU-AT.49.09571
Standard
UL60950-1, 2nd Edition, 2014
CSA C22.2 No. 60950-1-07, 2nd Ed. 2014
EN60950-1, 2nd Edition, 2013
TP TC 004/2011
RoHS 2011/65/EU + AM2015/863
EMC Compliance
Electromagnetic compatibility of multimedia equipment – Emission Requirements
Information technology equipment - Immunity characteristics - Limits and methods of
measurement
ESD Electrostatic discharge immunity test
Radiated, radio-frequency, electromagnetic field immunity test
Fast Transient and Burst Immunity
Surge Immunity
Immunity to conducted disturbances, induced by radio-frequency fields
Power Magnetic Field Immunity
Voltage Dips and Interruptions
Limits of Harmonic Current Emissions
Limits of Voltage Fluctuations & Flicker
www.recom-power.com
REV.: 2/2018
Conditions
without external filter
Standard / Criterion
EN55032:2015, Class B
EN55024:2010 + A1:2015
±8kV Air; ±4kV Contact
3V/m
AC Power Port: ±1.0kV
L-L ±1.0kV
AC Power
L-PE ±2.0kV
Port:
N-PE ±2.0kV
AC Power Port: 3V
50Hz, 1A/m
Dips: >95% reduction
Interruption: >95%
EN61000-4-2, Criteria A
EN61000-4-3, Criteria A
EN61000-4-4, Criteria A
EN61000-4-5, Criteria B
EN61000-4-6, Criteria A
EN61000-4-8, Criteria A
EN61000-4-11, Criteria A
EN61000-4-11, Criteria C
EN61000-3-2, Criteria A
EN61000-3-3
PA-4
RAC45-G/OF
AC/DC Converter
Specifications
(measured @ Ta= 25°C, nom. Vin and full load unless otherwise stated)
DIMENSION AND PHYSICAL CHARACTERISTICS
Parameter
Material
Dimension (LxWxH)
Weight
Series
Type
PCB
Value
FR4 (UL94-V0)
101.6 x 51.0 x 28.0mm
126g typ.

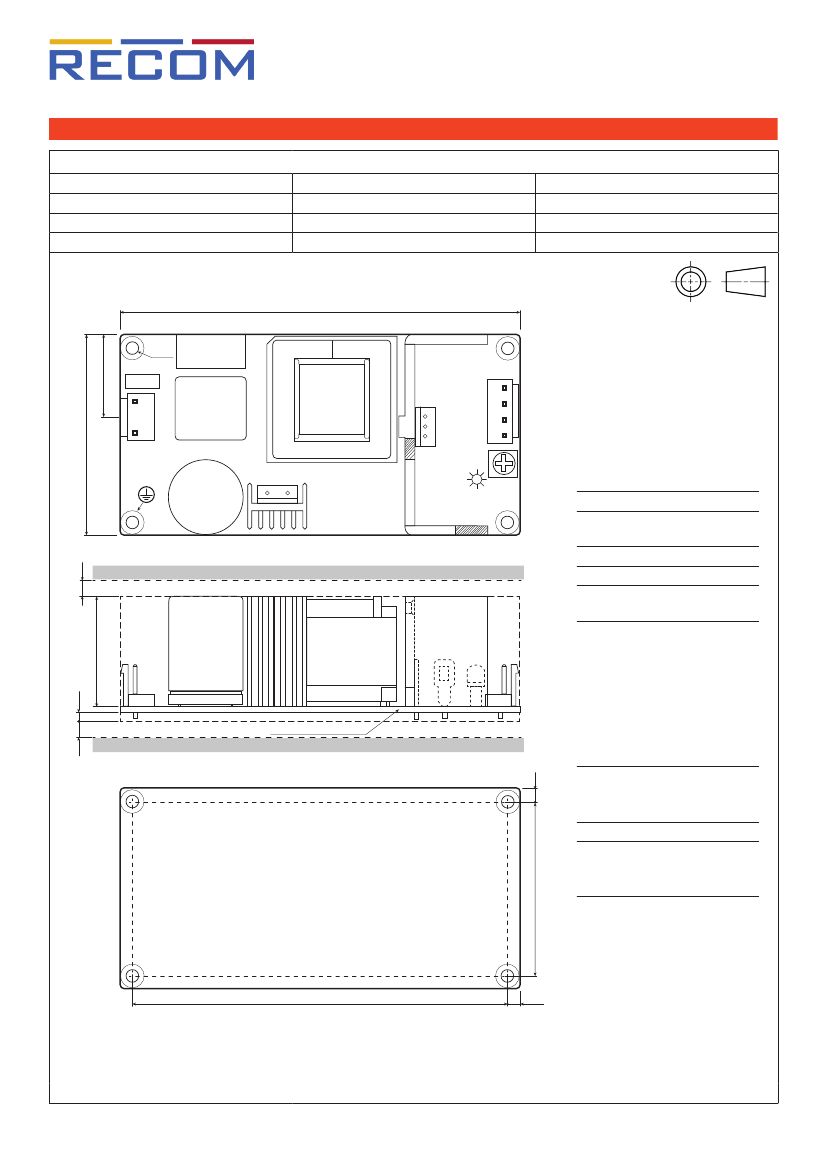

Dimension Drawing Open Frame (mm)
101.6
M3
21.0
T3.15
1
1
CN1
51.0
3
CN2
2
3
4
Trim
Connections
AC Input (CN1)
LED
Top View
Pin #
1 AC/L
3 AC/N
Terminal
3 Pins (Pin2 removed) with
3.96mm pitch
Terminal
4 Pins with
3.96mm pitch
DC Output (CN2)
4.0
Customer Application
Pin #
1,2 V+
3,4 V-
2.5
28.0
Side View
FC= fixing centers
Crimp Terminal AWG Range: 18-22AWG
Tolerance: xx.x= ±1.0mm
xx.xx= ±0.5mm
PCB thickness=1.6mm
4.0
Customer Application
3.5
Compatible Connectors
Housing
Landwin 3960S Series
JST VHR
Molex 51144 Series
Crimp Terminal
Bottom View
FC 95.3
continued on next page
www.recom-power.com
REV.: 2/2018
PA-5
FC 44.3
Landwin 3963T011R
JST SVH-21T-P1.1
Molex 50539
3.15
