R-623.3P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> R-623.3P

R-623.3P: DescriptionNon-isolated DC/DC converter DC/DC REG 9-32Vin 1.8-6Vout; CategoryPower/power management The power supply circuit; File Size1MB，8 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric Compare View All

R-623.3P Overview

Non-isolated DC/DC converter DC/DC REG 9-32Vin 1.8-6Vout

R-623.3P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	RECOM
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	32 V
Minimum input voltage	9 V
JESD-30 code	R-PSMA-T12
length	32.2 mm
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	6 V
Minimum output voltage	1.8 V
Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	15.5 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum total power output	6.6 W
Fine-tuning/adjustable output	YES
width	9.1 mm

Preview

Download Datasheet

View All

Features

Switching

Regulator

Description

• Non-isolated

• Adjustable output voltage

• 1-2AMP adjustable positive step down

integrated switching regulator

• Internal short circuit protection

• ON/OFF control (ground off)

• Efficiency up to 97%

• Positive to negative

DC/DC Converter

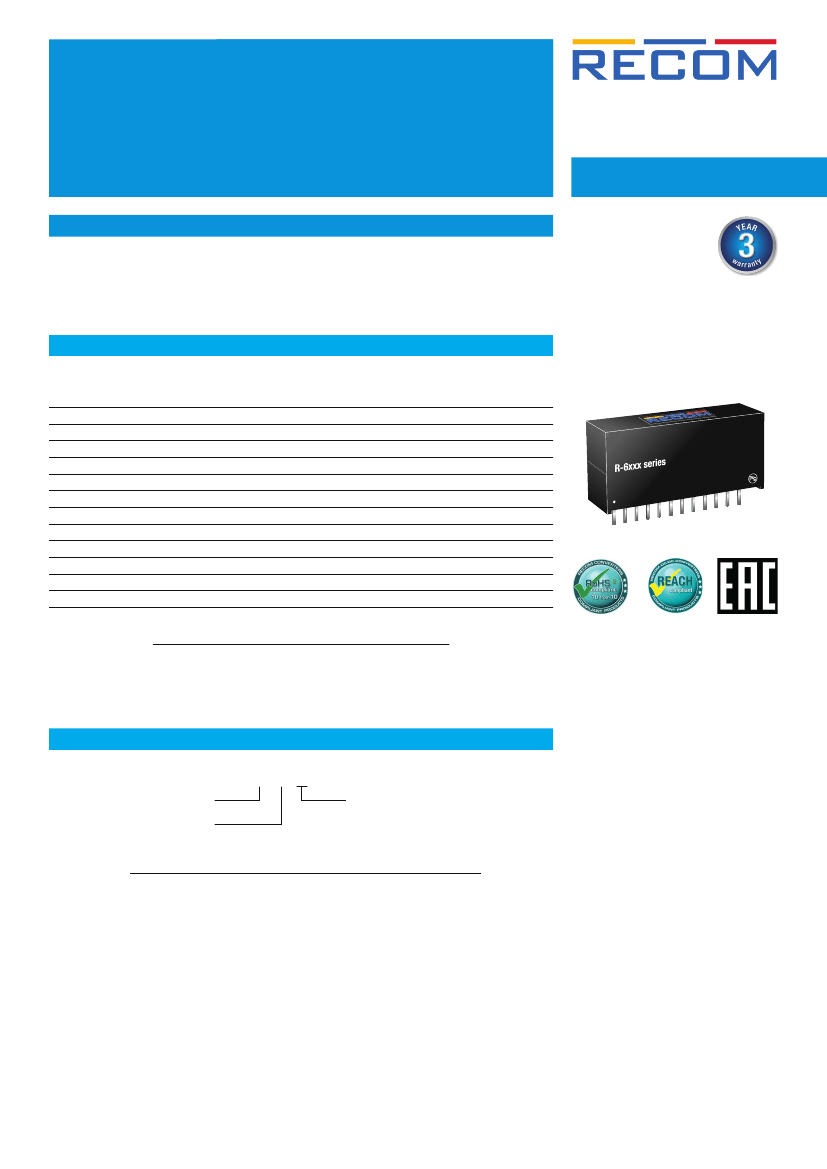

R-6xxxP_D

The R-6xxx series is a high performance 1.5V to 15V (18V), 1.1 Amp to 2Amp, 12-Pin SIP (single in-line

package) switching regulator. The Synchronous rectification yields excellent efficiencies up to 97%.

Short circuit protection reduces the short circuit input current to under 50mA.

Selection Guide

Part

Number

R-611.8x

R-612.5x

R-613.3x

R-615.0x

R-619.0x

R-6112x

R-621.8x

R-622.5x

R-623.3x

R-625.0x

R-629.0x

R-6212x

Input

Output

Vout

Output

(1)

Voltage Range Voltage Adjust Range

Current

[VDC]

[A]

9 - 32

1.8

1.5 - 3.6

9 - 32

2.5

1.5 - 4.5

9 - 32

3.3

1.8 - 6

9 - 32

1.8 - 9

11 - 32

3.3 - 15

14 - 32

3.3 - 15

9 - 32

1.8

1.5 - 3.6

9 - 32

2.5

1.5 - 4.5

9 - 32

3.3

1.8 - 6

9 - 32

1.8 - 9

11 - 32

3.3 - 15

14 - 32

3.3 - 15

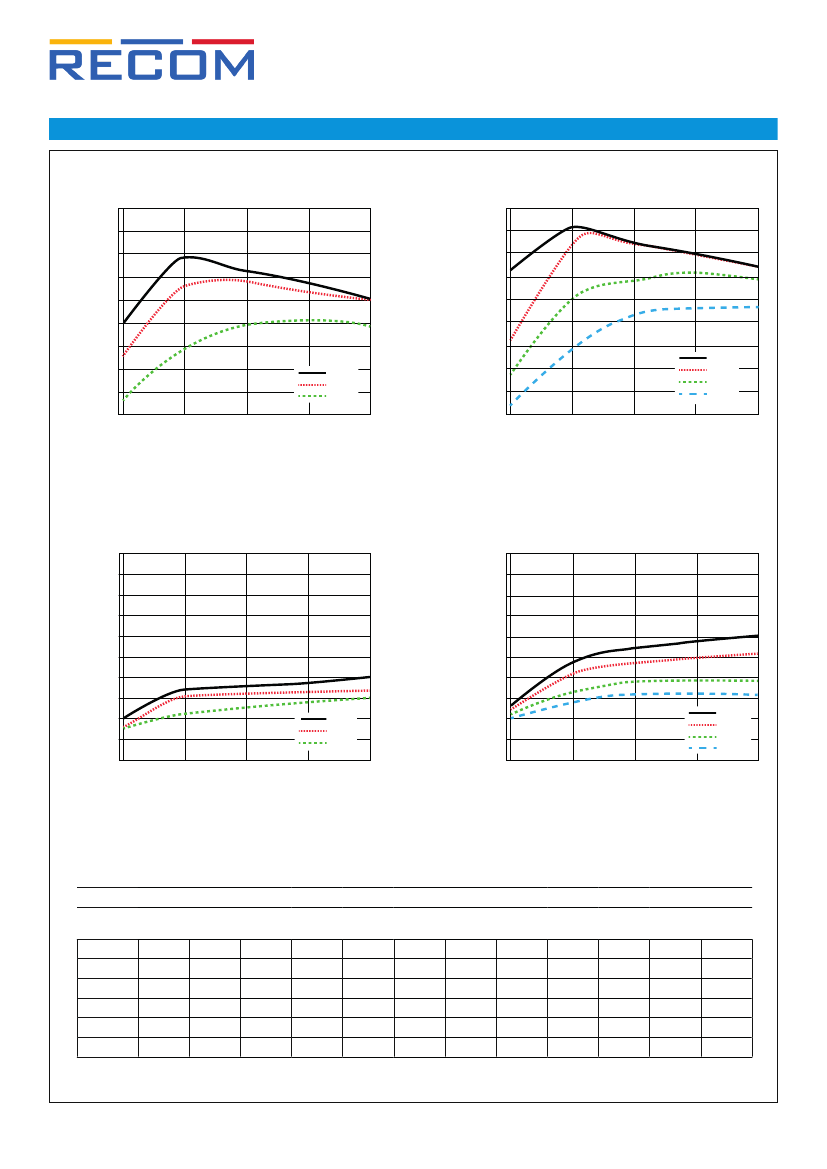

Efficiency

Max. Capacitive

@ min Vin @ max. Vin

Load

(2)

[%]

[µF]

200/6800

1-2 Amp

SIP12

Vertical &

Horizontal

Single Output

Notes:

Note1: Vin-Vout

≥

1.5V if adjust function is used

Note2: please refer to basic characteristics on page I-2

IEC/EN60950-1 certified

Model Numbering

R-6_ __ x

Output Current (A)

nom. Output Voltage

Notes:

Note3: x can be „P“ = vertical through hole

x can be „D“ = bent for horizontal through hole mounting

Pinning

(3)

Ordering Examples:

R-612.5P

Iout= 1000mA nom. Vout= 2.5VDC

R-623.3D

Iout= 2000mA nom. Vout= 3.3VDC

P= vertical through hole

D= bent for horizontal through hole mounting

www.recom-power.com

REV.: 4/2018

I-1

R-623.3P Related Products

	R-623.3P	R-622.5P	R-625.0P	R-621.8P
Description	Non-isolated DC/DC converter DC/DC REG 9-32Vin 1.8-6Vout	Non-isolated DC/DC converter DC/DC REG 9-32Vin 1.5-4.5Vout	Non-isolated DC/DC converter DC/DC REG 9-32Vin 1.8-9Vout	Non-isolated DC/DC converter DC/DC REG 9-32Vin 1.5-3.6Vout
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	RECOM	RECOM	RECOM	RECOM
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	32 V	32 V	32 V	32 V
Minimum input voltage	9 V	9 V	9 V	9 V
JESD-30 code	R-PSMA-T12	R-PSMA-T12	R-PSMA-T12	R-PSMA-T12
length	32.2 mm	32.2 mm	32.2 mm	32.2 mm
Maximum load regulation	1%	1%	1%	1%
Number of functions	1	1	1	1
Output times	1	1	1	1
Number of terminals	12	12	12	12
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	6 V	4.5 V	9 V	3.6 V
Minimum output voltage	1.8 V	1.5 V	1.8 V	1.5 V
Nominal output voltage	3.3 V	2.5 V	5 V	1.8 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Maximum seat height	15.5 mm	15.5 mm	15.5 mm	15.5 mm
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum total power output	6.6 W	5 W	10 W	3.6 W
Fine-tuning/adjustable output	YES	YES	YES	YES
width	9.1 mm	9.1 mm	9.1 mm	9.1 mm
