F-219
UPT–04–03.0–01–L–V
POWER
™
(3.81 mm) .150"
STRIP
20
UPT–08–03.0–03–L–PV
UPT–04–01–01–L–RA
UPT SERIES

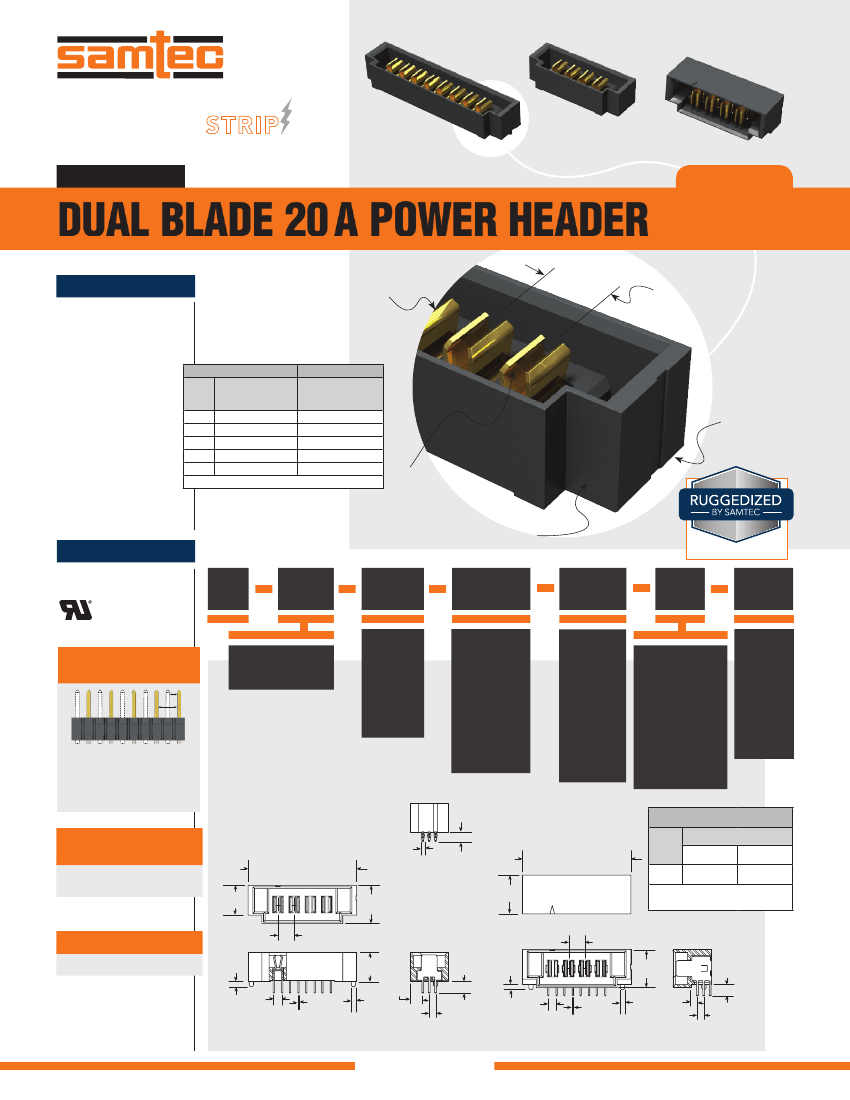

DUAL BLADE 20 A POWER HEADER
SPECIFICATIONS
For complete specifications
see www.samtec.com?UPT
Insulator Material:
Black LCP
Terminal Material:
BeCu
Plating:
Sn or Au over 50 µ"
(1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Voltage Rating:
438 VAC/620 VDC
Standard Creepage:
(5.5 mm) .217" (with -V)
(2.97 mm) .117" (with -RA)
Standard Clearance:
(1.51 mm) .059")
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes
Mates with:
UPS
Dual leaf
blade contacts
(3.81 mm)
.150" pitch
UPT-V/UPS-V
UPT-RA/UPS-RA
CURRENT
CURRENT
PINS
RATING
RATING
(PER CONTACT) (PER CONTACT)
1
23 A
23.5 A
2
18.6 A
20.1 A
3
17.5 A
16.9 A
4
16.7 A
15.5 A
8
14 A
13.3 A
-L PLATING
Optional
locking clip
2, 4, 6 or 8
power pins
Vertical, right-angle
or press-fit
• Locking clip option
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
FILE NO. E111594
UPT
POWER
PINS
LEAD
STYLE
TAIL
LENGTH
PLATING
OPTION
TAIL
OTHER
OPTION
CREEPAGE
AND CLEARANCE
–02, –04,
–06, –08
= RA only
–01
= (03.0 mm)
.118"
(–V & –PV
only)
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
–03.0
= Use with
(1.60 mm) .062"
Thick PCB
(–V & –RA only)
–01
= Use with
(1.60 mm) .062"
Thick PCB
(–PV only)
–03
= 10 µ"
(0.25 µm)
Gold on
contact,
Matte Tin
on tail
–L
= Vertical
(Not available
with –T plating)
–V
= Matte Tin
(–RA option
only)
–T
= Right-angle
–RA
–PV
= Locking
Clip
(Manual
placement
required)
Not
available
with –PV
option
–LC
= Press-fit,
Vertical
(2.20)
.087
(0.78)
.031
No. of power pins x
(3.81) .150 + (10.26) .404
(7.00)
.276
(3.81)
.150
(1.25)
.049
(2.00)
.0787
(0.30)
.012
(6.75)
.266
(3.00)
(1.00) .118
.039
DIA
(3.00)
.118
(1.25)
.049
(2.00)
.0787
(9.00)
.354
MATED HEIGHT*
No. of power pins x
(3.81) .150 + (10.26) .404
(9.12)
.359
ALSO AVAILABLE
(MOQ Required)
• Solder leads for
(2.36 mm) .093" thick board
–PV
UPT
LEAD
STYLE
UPS LEAD STYLE
–04.0
–07.0
–03.0
(7.00) .276 (10.00) .394
*Processing conditions will
affect mated height.
TOOLING
Press-fit tooling available.
(3.81)
.150
(9.00)
.354
(1.00)
.039
DIA
(1.54)
.061
(2.82)
.111
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–V
(1.50)
.059
(0.30)
.012
–RA
(1.50)
.059
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
