SOLC-115-02-L-Q-P-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SOLC-115-02-L-Q-P-TR

SOLC-115-02-L-Q-P-TR: DescriptionBoard-to-Board & Mezzanine Connectors .050" FOURRAY Quad Row Tiger Buy Socket Strip; CategoryThe connector The connector; File Size1003KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SOLC-115-02-L-Q-P-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SOLC-115-02-L-Q-P-TR	-	-	View	Buy Now

SOLC-115-02-L-Q-P-TR Overview

Board-to-Board & Mezzanine Connectors .050" FOURRAY Quad Row Tiger Buy Socket Strip

SOLC-115-02-L-Q-P-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
JESD-609 code	e4

Preview

Download Datasheet

View All

F-219

SOLC–150–02–F–Q–A

SOLC–135–02–L–Q–LC

(1.27 mm) .050"

SOLC–125–02–L–Q–LC

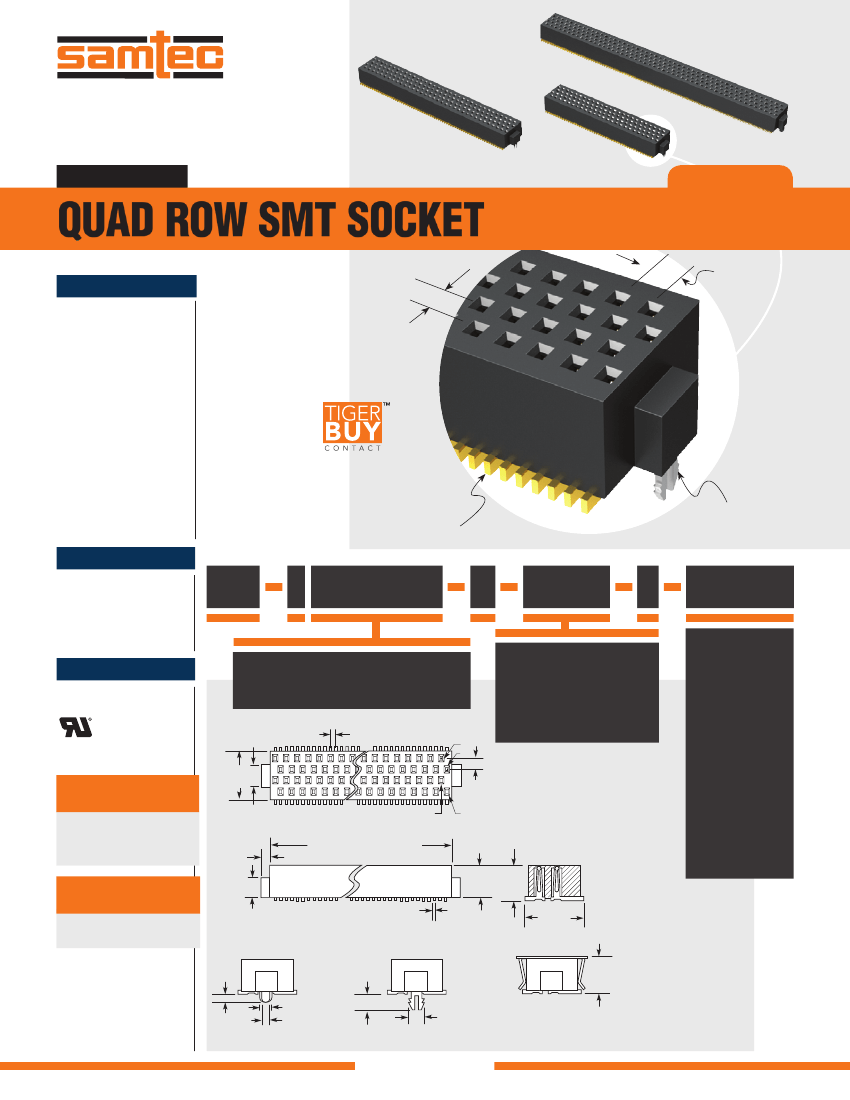

SOLC SERIES

QUAD ROW SMT SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?SOLC

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating:

2.4 A per pin

(6 adjacent pins powered)

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(1.68 mm) .066" to

(3.61 mm) .142" with

(0.38 mm) .015" wipe

Normal Force:

75 grams (0.74 N) average

Max Cycles:

100+

RoHS Compliant:

Yes

Mates with:

TOLC

(1.27 mm)

.050"

(1.27 mm)

.050"

Drop-in

replacement

for FOLC/MOLC

when mated

with TOLC

Surface

mount

Optional

locking clips

and alignment pins

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (05-35)

(0.15 mm) .006" max (40-50)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

SOLC

NO. PINS

PER ROW

PLATING

OPTION

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

05, 10, 15, 20, 25,

30, 35, 40, 45, 50

(Standard sizes)

(2.54)

.100

(6.35)

.250

(1.02)

.040

TYP

(2)

No. of positions x (1.27).050

+ (0.51) .020

(0.635)

.025

= Gold flash on contact,

Gold flash on tail

–F

–L

= Alignment Pin

(N/A with -LC)

–A

= 10 µ" (0.25 µm) Gold on contact,

Gold flash on tail

(1.27)

.050

TYP

= Locking Clip

(N/A with -A)

(Manual placement

required)

–LC

OTHER

SOLUTIONS

• For Micro Rugged,

see the MOLC/FOLC

pages located in the

Tiger Eye™ section.

= (7.00 mm) .276" DIA

Polyimide film

Pick & Place Pad

–K

–P

= Pick & Place Pad

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

(4.06) (4.62)

.160 .182

(0.25)

.010

= Tape & Reel

–TR

(2.54)

.100

(7.11)

.280

(0.76)

.030

(1.27)

.050

(1.40)

.055

(1.42)

.056

–LC OPTION

–P OPTION

(4.93)

.194

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0.89)

.035

–A OPTION

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

SOLC-140-02-S-Q-A SOLC-115-02-L-Q-A SOLC-125-02-S-Q-LC SOLC-115-02-L-Q-A-K-TR SOLC-130-02-L-Q-LC

SOLC-110-02-L-Q-A SOLC-115-02-S-Q-A SOLC-130-02-L-Q-A SOLC-110-02-S-Q-A SOLC-120-02-S-Q-A SOLC-

150-02-L-Q-LC SOLC-130-02-F-Q-LC SOLC-120-02-F-Q-A SOLC-125-02-S-Q-A SOLC-120-02-S-Q-P SOLC-115-

02-S-Q-P-TR SOLC-120-02-S-Q-A-K-TR SOLC-115-02-S-Q-P SOLC-125-02-F-Q-A SOLC-115-02-S-Q-LC SOLC-

150-02-S-Q-A SOLC-130-02-S-Q-LC SOLC-125-02-L-Q-LC SOLC-125-02-S-Q-A-K-TR SOLC-150-02-L-Q-A SOLC-

120-02-L-Q-A SOLC-140-02-L-Q-LC SOLC-115-02-S-Q-A-P-TR SOLC-150-02-S-Q-LC SOLC-120-02-S-Q-LC

SOLC-130-02-F-Q-A SOLC-125-02-L-Q-A SOLC-150-02-S-Q-A-K-TR SOLC-120-02-S-Q-LC-P SOLC-105-02-L-Q-LC

SOLC-110-02-F-Q-A SOLC-120-02-L-Q-LC SOLC-125-02-F-Q-LC-P-TR SOLC-125-02-F-Q-P-TR SOLC-130-02-F-

Q-K SOLC-135-02-L-Q-LC-P SOLC-115-02-S-Q-TR SOLC-120-02-L-Q SOLC-120-02-S-Q SOLC-120-02-S-Q-A-P

SOLC-125-02-S-Q-K SOLC-125-02-S-Q-LC-P SOLC-130-02-L-Q-TR SOLC-135-02-F-Q-LC SOLC-140-02-F-Q-A-K-

TR SOLC-140-02-L-Q SOLC-145-02-S-Q-LC SOLC-145-02-S-Q-P-TR SOLC-150-02-F-Q-K SOLC-150-02-F-Q-LC-P

SOLC-115-02-F-Q-A SOLC-120-02-F-Q-LC-P-TR SOLC-120-02-S-Q-K-TR SOLC-120-02-S-Q-LC-K SOLC-120-02-

S-Q-LC-P-TR SOLC-110-02-F-Q-A-K SOLC-120-02-F-Q-A-K-TR SOLC-120-02-S-Q-A-P-TR SOLC-120-02-S-Q-LC-

TR SOLC-125-02-S-Q-P SOLC-120-02-F-Q-P-TR SOLC-125-02-F-Q SOLC-120-02-L-Q-A-K-TR SOLC-120-02-S-Q-

P-TR SOLC-125-02-L-Q-A-K-TR SOLC-130-02-F-Q-P SOLC-130-02-S-Q-A SOLC-130-02-S-Q-LC-P-TR SOLC-135-

02-L-Q SOLC-135-02-S-Q-A-P SOLC-135-02-S-Q-K-TR SOLC-140-02-S-Q SOLC-145-02-F-Q-LC SOLC-150-02-F-

Q-A SOLC-150-02-S-Q-A-TR SOLC-150-02-S-Q-P SOLC-150-02-S-Q-TR SOLC-115-02-L-Q SOLC-120-02-F-Q-A-P

SOLC-125-02-L-Q-P-TR SOLC-125-02-S-Q SOLC-130-02-L-Q SOLC-130-02-S-Q-TR SOLC-135-02-F-Q SOLC-

135-02-F-Q-A-K SOLC-135-02-F-Q-A-K-TR SOLC-140-02-F-Q SOLC-140-02-S-Q-K-TR SOLC-140-02-S-Q-LC-P

SOLC-150-02-F-Q-A-K-TR SOLC-120-02-F-Q SOLC-125-02-L-Q-A-K SOLC-130-02-F-Q-P-TR SOLC-130-02-S-Q

SOLC-130-02-S-Q-LC-TR
