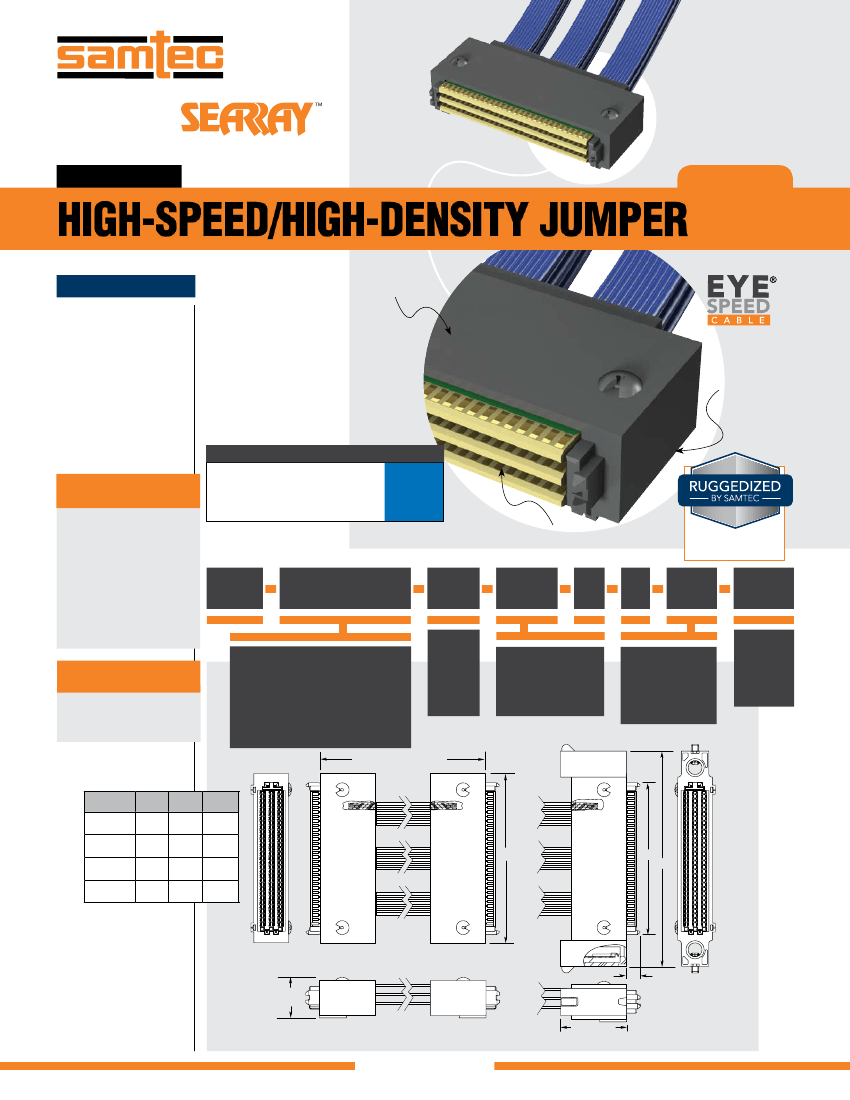

F-219 (Rev 09APR19)
SEAC–030–06–06.0–TU–TU–N
(1.27 mm) .050"
SEAC SERIES
HIGH-SPEED/HIGH-DENSITY JUMPER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?SEAC
Cable:
36 AWG 50
W
coax, or
32 AWG 100
W
twinax
Signal Routing:
50
W
Single-Ended, or
100
W
Differential Pair
Plating:
Au over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-40 °C to +125 °C
RoHS Compliant:
Yes
SEAC-N Mates with:
SEAF, SEAF-RA, SEAFP
SEAC with latch posts,
Mates with:
SEAF-LP, SEAF-RA-LP
PCIe
®
GEN 2
and Gen 3
Protocol Supported
No latch,
top latch or
rugged latch
post designs
available
HIGH-SPEED CHANNEL PERFORMANCE
SEAC
Rating based on Samtec reference channel.
For full SI performance data visit Samtec.com
or contact SIG@samtec.com
SIGNAL
ROUTING
Product has some
lines dedicated to ground.
For single-ended and differential
pair signal/ground assignments
see signal routing information
on the assembly print at the
web address above.
Design your High-Speed
Cable with Samtec’s
High-Speed Cable Solutionator
®
at www.samtec.com/hdr
14
G b p s
40 to 250 I/Os
(½ pins are dedicated to ground)
• Positive latching
• Top latch
SEAC
NO. OF POSITIONS
PER ROW
NO. OF
ROWS
CABLE
LENGTH
TU
TU
CABLE
TYPE
LATCH
OPTION
Leave
Blank for
latch post
OTHER
SOLUTIONS
• Other end options
• Mixed SEAC end types
• 300 positions or greater
–020
= –04, –06, –08 & –10 row only
–030
= –04, –06 & –08 row only
–040
= –04 & –06 row only
–050
= –04 row only
–04,
–06,
–08,
–10
= Cable Length
in Inches
(152.4 mm) 06.0"
minimum
–“XX.X”
Leave Blank for
36 AWG 50
W
coax
= 32 AWG
100
W
twinax
–2
= No Latch
–N
ASSEMBLY LENGTH =
CABLE LENGTH XX.X + (16.2) .638
POSITIONS
PER ROW
A
B
C
(48.26)
1.900
(60.96)
2.400
(73.66)
2.900
(86.36)
3.400
–020
–030
–040
–050
(30.38) (33.53)
1.196 1.320
(43.08) (46.23)
1.696 1.820
(55.78) (58.93)
2.196 2.320
(68.48) (71.63)
2.696 2.820
B
A
C
Notes:
Mixed latch styles not available
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
PCI-SIG
®
, PCI Express
®
and
the PCIe
®
design marks are
registered trademarks and/or
service marks of PCI-SIG.
Some lengths, styles and
options are non-standard,
non-returnable.
(11.43)
.450
(3.89)
.153
–N (NO LATCH)
(18.67) .735
LATCH POST
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
