F-219
®
EQCD–040–04.00–TTL–STR–2
(0.50 mm) .0197"
(HQCD)
(0.80 mm) .0315"
(EQCD)

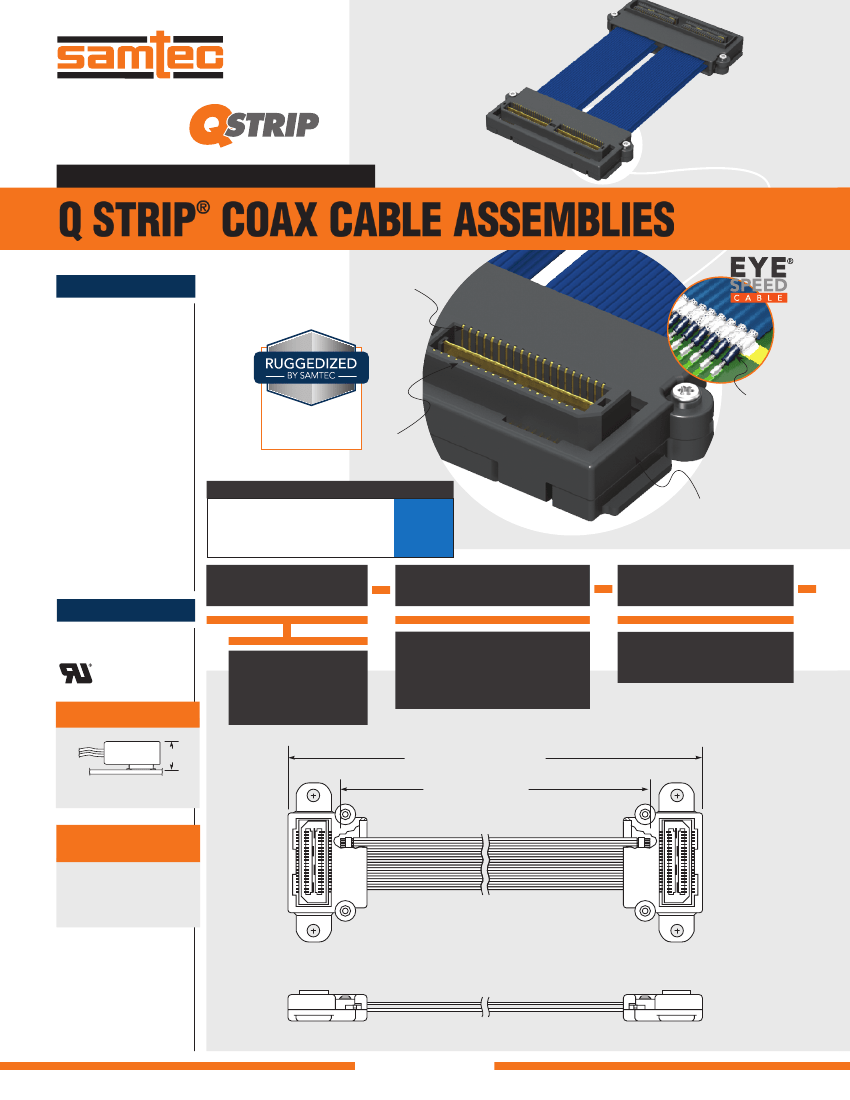

Q STRIP COAX CABLE ASSEMBLIES
®
SPECIFICATIONS
For complete specifications see
www.samtec.com?HQCD or
www.samtec.com?EQCD
Cable:
38 AWG micro coax ribbon
Signal Routing:
50
W
Single-Ended
Overall Length:
(95.3 mm) 03.75" to
(1 m) 40" standard
Cable Flexing Life:
>10,000 cycles
Cable Bending Radius:
<2.5mm
Plating:
Au over 50 µ" (1.27 µm) Ni
Current Rating:
EQCD: 500 mA per pin
HQCD: 300 mA per pin
(6 adjacent pins powered)
Cable Propagation Delay:
4.79 nsec/meter
Operating Temp Range:
-25 °C to +105 °C
Unmating Force (-RT1 option):
-RT1 option increases
unmating force up to 50%
RoHS Compliant:
Yes
HQCD Mates with:
QTH, QSH
EQCD Mates with:
QTE, QSE
0.50 mm or
0.80 mm pitch
• Screw & panel
mount options
• Retention pins
38 AWG
micro coax
ribbon cable
Socket or
Terminal
HIGH-SPEED CHANNEL PERFORMANCE
HQCD or EQCD
Rating based on Samtec reference channel.
For full SI performance data visit Samtec.com
or contact SIG@samtec.com
14
G b p s
Surface Mount
or Panel Mount
TYPE
NO. OF POSITIONS
PER ROW
WIRE LENGTH
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
= (0.50 mm) .0197" pitch
FILE NO. E111594
HQCD
EQCD
–030, –060, –090
(HQCD Series)
–020, –040, –060
(EQCD Series)
= Wire Length in Inches
(43.7 mm) 01.72" minimum
–“XX.XX”
APPLICATIONS
(9.28)
.365
= (0.80 mm) .0315" pitch
OAL = Wire Length + (24.13) .950
Wire Length
±
(1.27) .050
Processing conditions will
affect mated height.
ALSO AVAILABLE
(MOV Required)
•
•
•
•
Other sizes and lengths
Other terminations
Other wire AWG
Retention pin
Notes:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Design your High-Speed Cable
with Samtec’s High-Speed
Cable Solutionator
®
at
www.samtec.com/hdr
This Series is non-standard,
non-returnable.
END NO. 1
(–STL SHOWN)
END NO. 2
(–STR SHOWN)
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
EQCD–020–40.00–TPU–TTR–1
HQCD–030–06.00–STL–TTR–1–B
HQCD, EQCD SERIES

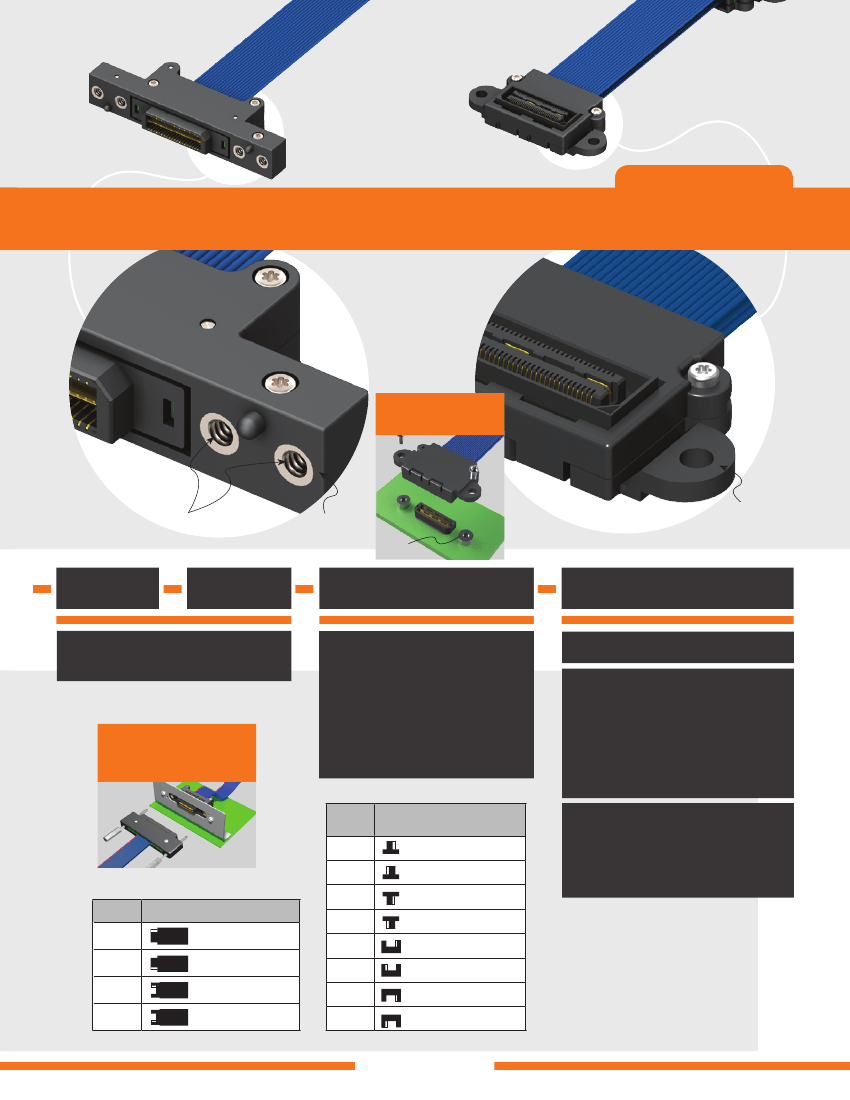

SCREW MOUNT
APPLICATIONS
(–F, –S, –B)
#4-40
Thread
Panel Mount
options
SO–0318–04–01–02
Screw Down
options
END
NO. 1
END
NO. 2
WIRING OPTION
END OPTIONS
Specify
END ASSEMBLIES
from chart
= Pin 1 to Pin 1
–1
–2
–3
–4
Leave blank for no Screw Mount
& Retention End Option
= Pin 1 to Pin 2
= Screw Mount End No. 1 only
(Not available with XPX options)
= Screw Mount End No. 2 only
= Screw Mount Both Ends
(Not available with XPX options)
–F
(–TPU, –TPD, –SPU, SPD)
PANEL MOUNT
END OPTION
APPLICATIONS
= Pin 1 to Second to Last Pin
–S
= Pin 1 to Last Pin
–B
–1
END 1
or
END 2
SURFACE MOUNT
Terminal, Top
Mount,
Notch
Right
Terminal, Top
Mount,
Notch
Left
Terminal, Bottom
Mount,
Notch
Right
Terminal, Bottom
Mount,
Notch
Left
Socket, Top
Mount,
Notch
Right
Socket, Top
Mount,
Notch
Left
Socket, Bottom
Mount,
Notch
Right
Socket, Bottom
Mount,
Notch
Left
TTR
TTL
END 1
ONLY
= End No. 1 Screw Mount.
End No. 2 Retention Pin or Socket
= End No. 1 Retention Pin or Socket.
End No. 2 Screw Mount Option
–2
TBR
PANEL MOUNT
Terminal, Panel
Mount,
Notch
Up
Terminal, Panel
Mount,
Notch
Down
Socket, Panel
Mount,
Notch
Up
Socket, Panel
Mount,
Notch
Down
TBL
STR
STL
SBR
SBL
TPU
TPD
SPU
SPD
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
