SESDT-15-32-G-07.8-L1 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Flat cable/IDC data line> SESDT-15-32-G-07.8-L1

SESDT-15-32-G-07.8-L1: DescriptionFlat data cable/IDC data cable 0.80 mm Double Row Discrete Teflon Wire Cable Assembly, Socket; CategoryWire/cable Cable package Flat cable/IDC data line; File Size983KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SESDT-15-32-G-07.8-L1 Overview

Flat data cable/IDC data cable 0.80 mm Double Row Discrete Teflon Wire Cable Assembly, Socket

SESDT-15-32-G-07.8-L1 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	SESDT
Factory packaging quantity	1

Preview

Download Datasheet

View All

F-219

SESDT–10–32–G–03.0–D–L2

SESDT–15–32–G–03.2–L

SESDT–05–32–G–03.2–L

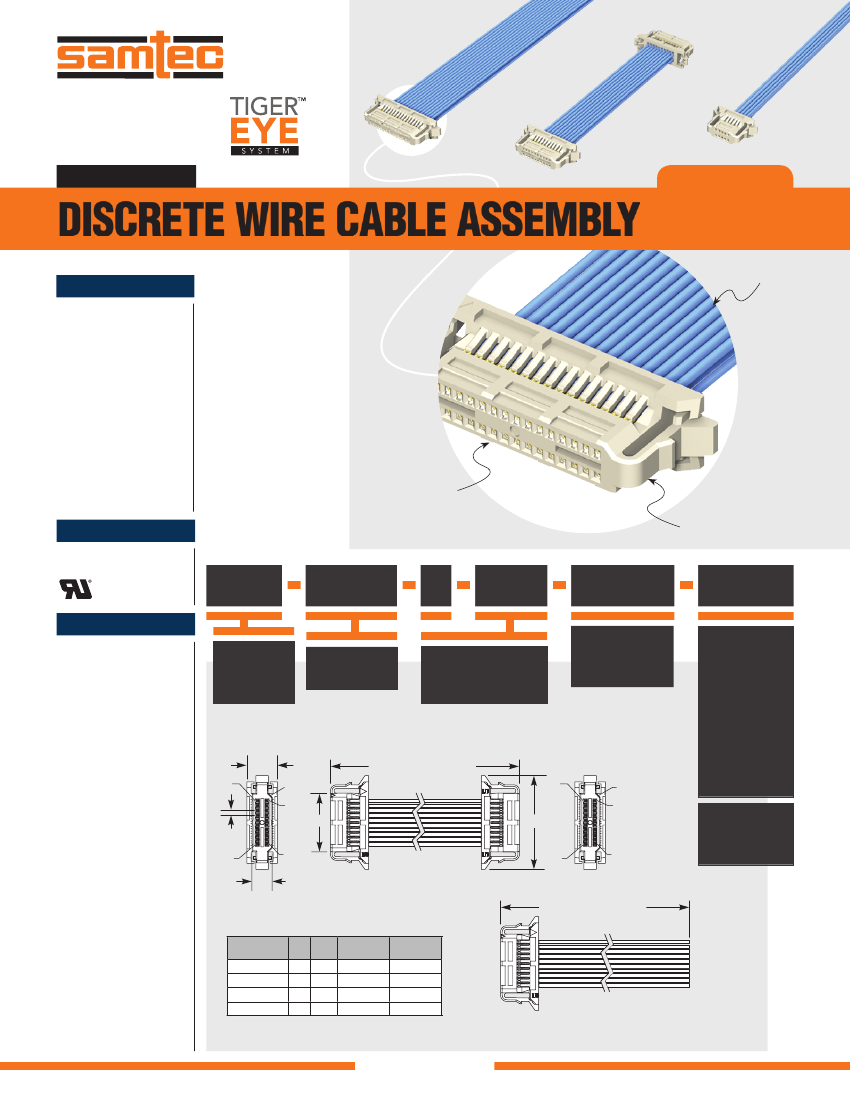

(0.80 mm) .0315"

SESDT SERIES

DISCRETE WIRE CABLE ASSEMBLY

SPECIFICATIONS

For complete specifications

see www.samtec.com?SESDT

Insulator Material:

Natural Nylon

Contact Material:

BeCu

Plating:

Au over 50 µ" (1.27 µm) Ni

Wire:

Tinned Copper

Wire Insulation:

FEP

Operating Temp Range:

-55 °C to +125 °C

Current Rating:

1.9 A per pin

(2 pins powered)

Voltage Rating:

200 VAC/280 VDC

RoHS Compliant:

Yes

Mates with:

TEM-L1

32 AWG

*Teflon

cable

Single or double

ended option

Latching

option

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

TYPE

STRIP

POSITIONS

PER ROW

PLATING

OPTION

ASSEMBLED

LENGTH

OPTION

COMPONENTS

• For body, see

www.samtec.com?ISDE

• For contacts, see

www.samtec.com?CC396

= Double Row

*Teflon Cable

(32 AWG)

SESDT

–05, –10,

–15, –20

= 10 µ" (0.25 µm)

Gold on contact area,

3 µ" (0.08 µm) Gold on tail

–G

= Assembled

Length in Inches

(76.2 mm) 03.0" min.

–“XX.X”

Double Ended

Assemblies

= Pin 1 to Pin 1

–L1

= Pin 1 to Pin 2

–L2

–L3

–L4

(5.05)

.199

KEY

= Pin 1 to Pin N-1

ASSEMBLED LENGTH

± (3.18) .125

KEY

DOWN

= Pin 1 to Pin N

Single Ended

Assembly

= Latching

(0.80)

.0315

N-1

–L

Notes:

Patent Pending

*DuPont Teflon is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its

affiliates.

™

(3.35)

.132

DOUBLE ENDED

ASSEMBLED LENGTH

± (3.18) .125

POSITIONS

PER ROW

N-1

Teflon

cable is intended

for crimp only. Contact

Samtec for solderable cable

applications.

Some lengths, styles and

options are non-standard,

non-returnable.

–05

–10

–15

–20

(5.70) .224 (11.50) .453

(9.70) .382 (15.50) .610

(13.70) .539 (19.50) .768

(27.70) .697 (23.50) .925

SINGLE ENDED

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

SESDT-10-32-G-03.0-L1 SESDT-15-32-G-09.0-L1 SESDT-05-32-G-03.0-L1 SESDT-05-32-G-05.0-L SESDT-05-32-

G-05.9-L1 SESDT-05-32-G-06.0-L1 SESDT-10-32-G-20.0-L1 SESDT-10-32-G-30.0-L1 SESDT-05-32-G-03.0-L

SESDT-10-32-G-05.0-L1 SESDT-10-32-G-06.0-L1 SESDT-20-32-G-03.0-L SESDT-05-32-G-06.0-L SESDT-20-32-G-

06.0-L SESDT-10-32-G-10.0-L1 SESDT-20-32-G-10.0-L1 SESDT-05-32-G-08.0-L SESDT-05-32-G-12.0-L SESDT-

10-32-G-06.0-L SESDT-15-32-G-03.0-L1 SESDT-15-32-G-04.0-L1 SESDT-15-32-G-06.0-L SESDT-15-32-G-12.0-L

SESDT-20-32-G-03.0-L1 SESDT-05-32-G-12.0-L1 SESDT-15-32-G-05.0-L1 SESDT-20-32-G-05.0-L1 SESDT-20-32-

G-12.0-L SESDT-20-32-G-16.0-L1 SESDT-10-32-G-03.0-L SESDT-20-32-G-12.0-L1 SESDT-10-32-G-12.0-L

SESDT-15-32-G-03.0-L SESDT-20-32-G-06.0-L1 SESDT-20-32-G-11.8-L1 SESDT-05-32-G-08.0-L1 SESDT-15-32-

G-03.2-L1 SESDT-05-32-G-15.0-L1 SESDT-05-32-G-16.0-L1 SESDT-10-32-G-08.0-L1 SESDT-10-32-G-36.0-L1

SESDT-10-32-G-40.0-L1 SESDT-15-32-G-11.8-L SESDT-15-32-G-15.0-L SESDT-20-32-G-05.0-L SESDT-20-32-G-

07.8-L1 SESDT-20-32-G-40.0-L1 SESDT-20-32-G-40.0-L SESDT-10-32-G-03.0-L2 SESDT-10-32-G-04.0-L1

SESDT-15-32-G-06.0-L1 SESDT-15-32-G-08.0-L SESDT-15-32-G-08.0-L1 SESDT-10-32-G-04.5-L1 SESDT-10-32-

G-05.0-L3 SESDT-10-32-G-18.0-L SESDT-10-32-G-18.0-L3 SESDT-10-32-G-50.0-L1 SESDT-15-32-G-10.0-L1

SESDT-15-32-G-15.0-L1 SESDT-15-32-G-20.0-L SESDT-20-32-G-03.5-L3 SESDT-20-32-G-14.0-L1 SESDT-05-32-

G-03.2-L SESDT-05-32-G-03.9-L1 SESDT-05-32-G-10.0-L SESDT-05-32-G-10.2-L1 SESDT-05-32-G-40.0-L

SESDT-10-32-G-18.0-L1 SESDT-20-32-G-03.0-L4 SESDT-05-32-G-03.2-L1 SESDT-05-32-G-04.0-L1 SESDT-05-32-

G-10.0-L1 SESDT-05-32-G-48.0-L1 SESDT-10-32-G-08.7-L1 SESDT-10-32-G-98.4-L1 SESDT-15-32-G-06.3-L1

SESDT-20-32-G-03.0-L3 SESDT-20-32-G-15.0-L SESDT-20-32-G-20.0-L1 SESDT-20-32-G-21.0-L1 SESDT-05-32-

G-08.7-L1 SESDT-05-32-G-31.5-L1 SESDT-10-32-G-09.0-L2 SESDT-15-32-G-07.8-L1 SESDT-20-32-G-04.0-L1

SESDT-20-32-G-08.0-L1 SESDT-20-32-G-21.3-L1 SESDT-20-32-G-30.0-L SESDT-05-32-G-03.0-L2 SESDT-05-32-

G-03.1-L1 SESDT-05-32-G-12.0-L2 SESDT-10-32-G-24.0-L1 SESDT-10-32-G-29.4-L1 SESDT-15-32-G-12.0-L1

SESDT-20-32-G-04.8-L1 SESDT-20-32-G-05.9-L SESDT-20-32-G-05.9-L1 SESDT-20-32-G-98.4-L SESDT-10-32-G-

03.0-L3
