S1SST-07-28-GF-15.00-D-NDS

Description
Flat data cable/IDC data cable 1.00 mm Single Row Discrete Wire Teflon Cable Assembly, Socket
CategoryWire/cable    Cable package    Flat cable/IDC data line
File Size201KB，2 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

S1SST-07-28-GF-15.00-D-NDS Overview

Flat data cable/IDC data cable 1.00 mm Single Row Discrete Wire Teflon Cable Assembly, Socket

S1SST-07-28-GF-15.00-D-NDS Parametric

Parameter NameAttribute value
MakerSAMTEC
Product CategoryFlat data cable/IDC data cable
Shipping restrictionsMouser does not currently sell this product.
EncapsulationBulk
seriesS1SST
Factory packaging quantity1

Preview

Download Datasheet

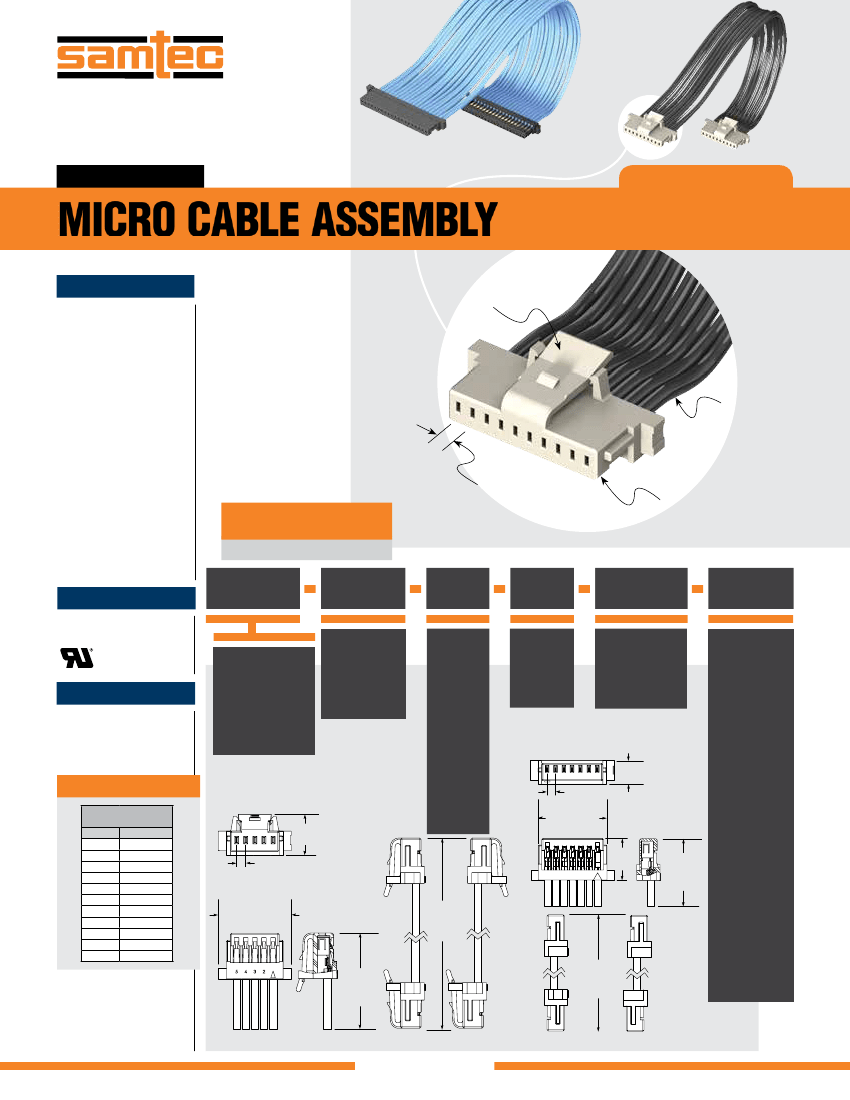

F-219 (Rev 13DEC18)
S1SST–20–28–GF–03.00–D–NUS
S1SS–10–28–GF–03.00–L1
(1.00 mm) .03937"
S1SS, S1SST SERIES
MICRO CABLE ASSEMBLY
SPECIFICATIONS
For complete specifications
see www.samtec.com?S1SS
or www.samtec.com?S1SST
Insulator Material:
Nylon, White (with latch)
Black, LCP (without latch)
Contact Material:
Phosphor Bronze
Plating:
Au 50 µ" (1.27 µm) Ni
Operating Temp Range
(S1SS(T)/T1M):
-10 °C to +85 °C (PVC)
-40 °C to +125 °C (Teflon
®
cable with -GF plated contact)
Current Rating (28 AWG):
3.3 A per pin
(1 pin powered)
Voltage Rating:
250 VAC/353 VDC
Wire:
28 or 30 AWG
RoHS Compliant:
Yes
*DuPont Teflon is a
registered trademark of the
E.I. du Pont de Nemours
and Company or its affiliates.
™
®
Mates with:
T1M
Optional
latch
28 AWG
or 30 AWG
ALSO AVAILABLE
(MOQ REQUIRED)
• Other sizes
(1.00 mm)
.0394" pitch
Choice of single or
double ended
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
TYPE
NO. OF
POSITIONS
WIRE
GAUGE
PLATING
OPTION
ASSEMBLED
LENGTH
OPTION
COMPONENTS
• For body, see
www.samtec.com?ISS1
• For contacts, see
www.samtec.com?CC09R
www.samtec.com?CC09M
= Single Row
PVC Cable
S1SS
= Single Row
*Teflon® Cable
(28 AWG only)
S1SST
(Standard sizes)
–02,
–03, –05,
–07, –10
–15, –20
= 28 AWG
= 28 AWG
Color Coded
Cable
(S1SS only)
= 30 AWG
= 30 AWG
Color Coded
Cable
(S1SS only)
–28
–28C
= 3 µ"
(0.07 µm)
Gold on
contact
and tail
–GF
–“XX.XX”
= Assembled
Length
in Inches
(45.72 mm)
01.80" min.
(Required Callout)
= Single Ended
With Latch
–L
–30
= Double Ended
Latch down,
straight
(Pin 1 to Pin 1)
(2.80)
.110
(1.00) .03937
No. of
positions x
(1.00) .03937
+ (1.20) .047
(5.00)
.197
Assembly
Length
±(3.18)
.125
–L1
APPLICATION
S1SS CABLE
COLOR CODING
PIN
COLOR
1
2
3
4
5
6
7
8
9
10
ETC
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
REPEAT
(4.45)
.175
(1.00) .03937
–30C
= Double Ended
Latch up,
straight
(Pin 1 to Pin N)
–L3
No. of positions
x (1.00) .03937
+ (3.00) .118
Assembly
Length
±(3.18)
.125
Assembly
Length
±(3.18)
.125
= Single Ended
No Latch
–D–NUS
= Double Ended
No Latch,
“N” up,
straight
–S
Notes:
Teflon
®
cable is intended for
crimp only. Contact Samtec for
solderable cable applications.
Some lengths, styles and
options are non-standard,
non-returnable.
Assembly
Length
±(3.18)
.125
= Double Ended
No Latch,
“N” down,
straight
–D–NDS
–L3
–L1
–D–NUS
–D–NDS
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
