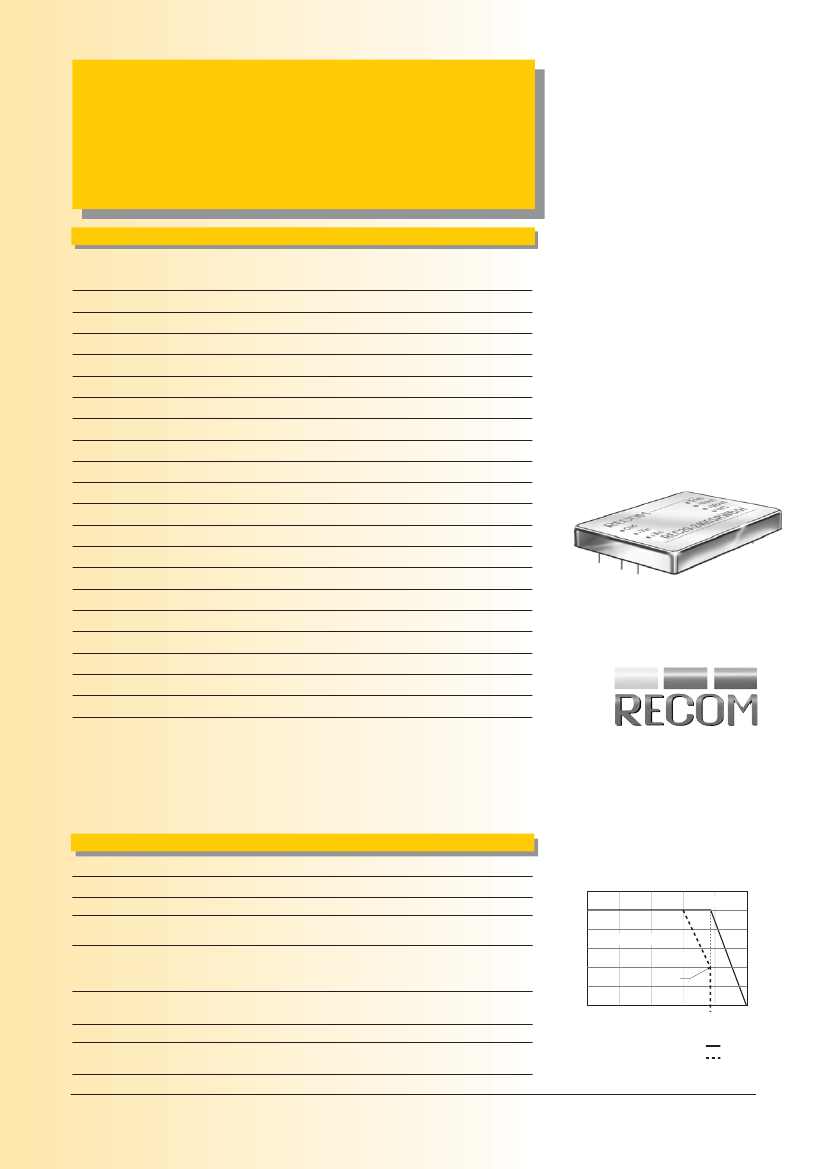

REC20-2412DRWBZH: Description20 Watt 2” x 2” Single, Dual & Triple Output; File Size86KB，2 Pages; ManufacturerRECOM Power GmbH; Websitehttps://www.recom-power.com/

Download Datasheet View All

REC20-2412DRWBZH Overview

20 Watt 2” x 2” Single, Dual & Triple Output

Preview

Download Datasheet

View All

Features

Regulated

Converters

●

20W 2”x 2” Package (50.8x11.40x50.8mm)

1.6kVDC Isolation

Wide Input 2:1

4:1

Regulated Output

Built-in Class A Input Filter

Continuous Short Circuit Protection

Vout Trim and ON/OFF Control Function

Efficiency to 87%

ECONOLINE

DC/DC-Converter

Selection Guide

Part

Number

2:1

REC20-xx3.3SRWB/H

REC20-xx05SRWB/H

REC20-xx12SRWB/H

REC20-xx15SRWB/H

REC20-xx24SRWB/H

REC20-xx05DRWB/H

REC20-xx12DRWB/H

REC20-xx15DRWB/H

REC20-xx0512TRWB/H

REC20-xx0515TRWB/H

4:1

REC20-xx3.3SRWBZ/H

REC20-xx05SRWBZ/H

REC20-xx12SRWBZ/H

REC20-xx15SRWBZ/H

REC20-xx24SRWBZ/H

REC20-xx05DRWBZ/H

REC20-xx12DRWBZ/H

REC20-xx15DRWBZ/H

2:1

xx = 9-18Vin = 12

xx = 18-36Vin = 24

xx = 36-75Vin = 48

10-40, 18-75

3.3

±5

±12

±15

4000

1670

1330

833

±2000

±833

±660

Input

Voltage

(VDC)

9-18, 18-36, 36-75

Output

Voltage

(VDC)

3.3

±5

±12

±15

5/±12

5/±15

Output

Current

(mA)

4000

1670

1330

833

±2000

±833

±660

2500/±300

2500/±250

Efficiency

12/24/48V

(%)

76/78/76

78/81/82

81/86/84

82/85/85

83/88/87

77/82/83

81/84/85

82/85/84

79/83/83

77/81/84

24/48V

82/83

84/85

82/82

81/81

82/83

82/82

REC20-

S_D_TRWB

(Z)/H

Series

20 Watt

2” x 2”

Single, Dual

Triple Output

Designed to meet EN-60950-1

UL-60950-1 Pending

4:1

* add suffix "CTRL" for optional Remote ON/OFF-Control

xx = 10-40Vin = 24

xx = 18-75Vin = 48

Derating-Graph

(Ambient Temperature)

Specifications

(Core Operating Area)

Input Voltage Range

Input Filter

Output Voltage Accuracy

Line Voltage Regulation

Load Voltage Regulation

(10% to 100% full load )

Single & Dual

Triple

Single

Dual

Triple

2:1 & 4:1

type

±2% max.

±0.5% max.

±1%/±5%

±0.5% max.

±3% max.

±3%/±5%

<0.2% Vout +20mVp-p max.

<0.5% Vout +50mVp-p max.

±10%

200kHz typ.

250kHz typ.

continued on next page

www.recom-international.com

December-2006

120

100

Output Power (%)

2:1 Range

Safe Operating Area

4:1 Range

40%

-25

100

Ripple

Noise (measured with 100nF output capacitor)

Trim

Operating Frequency

2:1

4:1

Operating Temperature (°C)

Is 2:1 Range

Is 4:1 Range
