IDMD-20-D-12.00-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> IDMD-20-D-12.00-G

IDMD-20-D-12.00-G: DescriptionFlat data cable/IDC data cable.100" Slim Body Double Row, IDC Ribbon Cable Assembly, Terminal; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IDMD-20-D-12.00-G Overview

Flat data cable/IDC data cable.100" Slim Body Double Row, IDC Ribbon Cable Assembly, Terminal

IDMD-20-D-12.00-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Connector type	INTERCONNECTION DEVICE
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3

Preview

Download Datasheet

View All

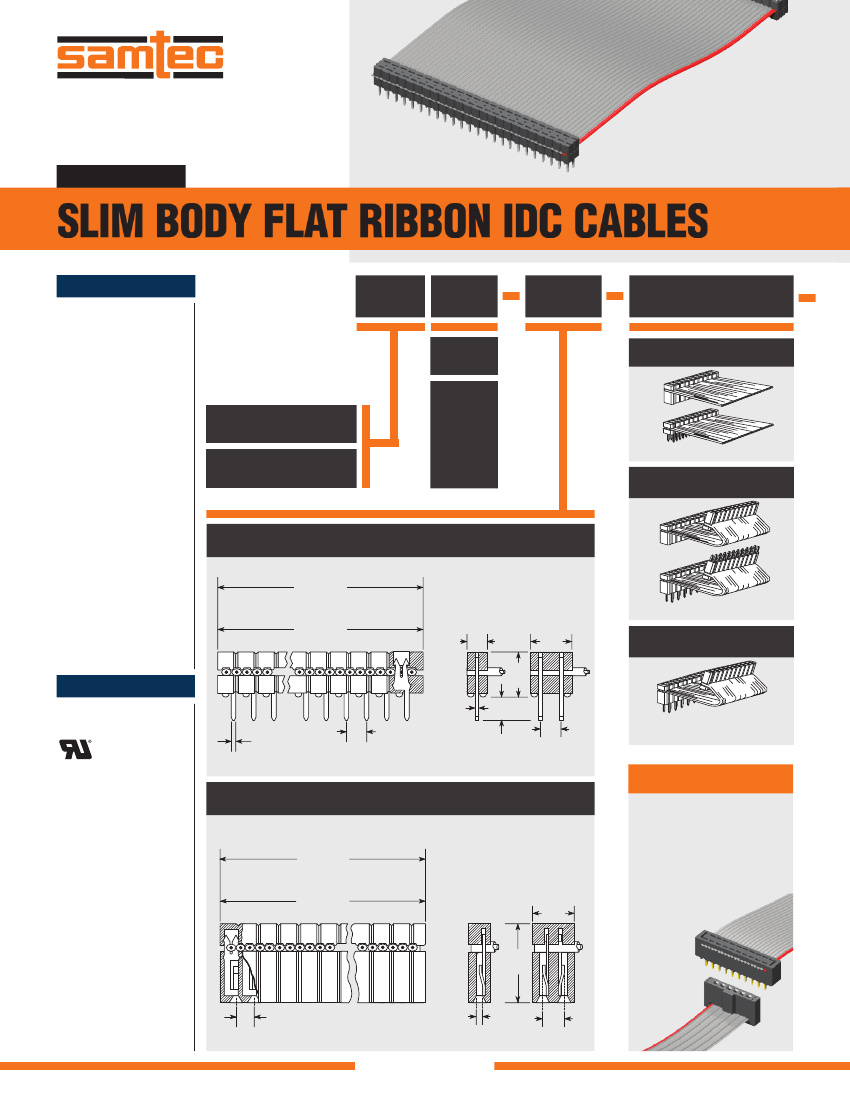

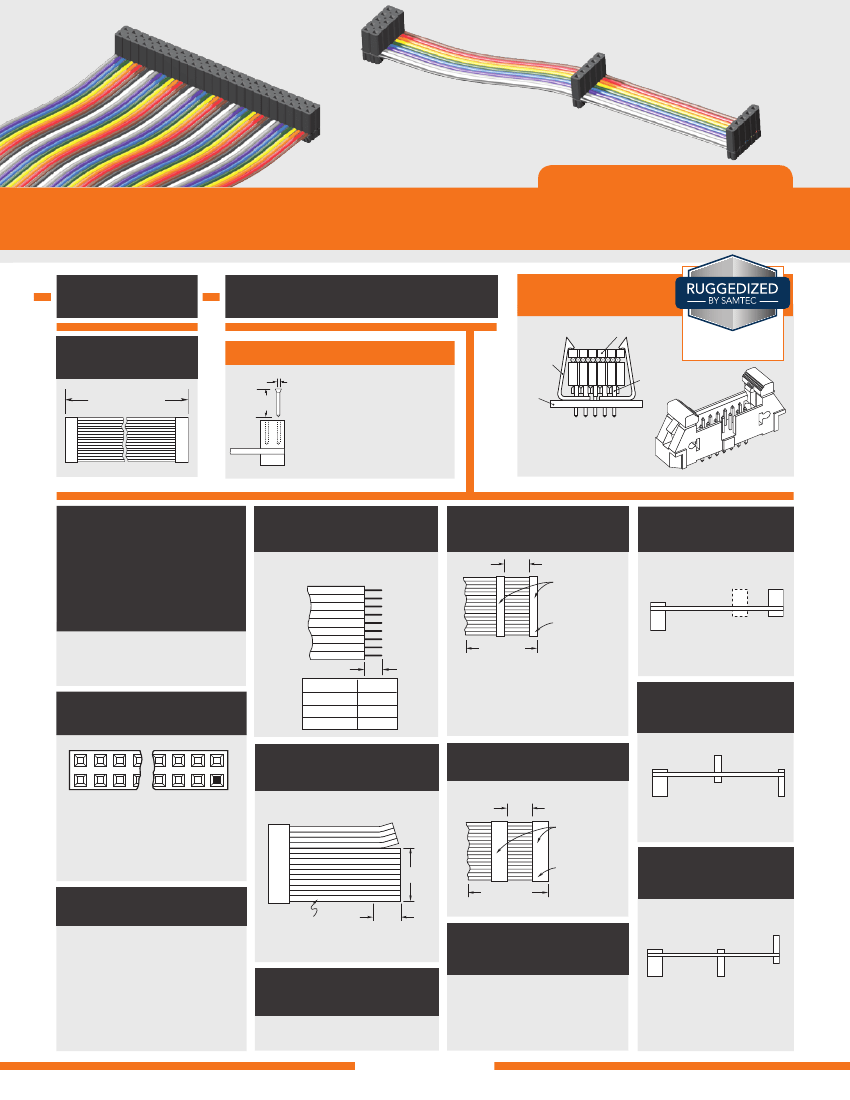

F-219

IDMD–24–D–12.00–G

(2.54 mm) .100"

SLIM BODY FLAT RIBBON IDC CABLES

SPECIFICATIONS

For complete specifications

see www.samtec.com?IDSS,

www.samtec.com?IDSD,

www.samtec.com?IDMS or

www.samtec.com?IDMD

Insulator Material:

Black Glass Filled Polyester

Plating:

Au over 50 µ" (1.27 µm) Ni or

Sn over 100 µ" (2.54 µm) Cu

or 50 µ" (1.27 µm) Ni

Wire:

28 AWG 7/36 stranded

Tinned Copper

Temperature Range:

-20 °C to +105 °C

(Rainbow Cable)

-40 °C to +105 °C

(Gray Cable)

Contact (IDSS/IDSD):

BeCu

Terminal (IDMS/IDMD):

Phosphor Bronze

Current Rating (IDSD/TST):

3.4 A per pin

(2 pins powered)

Current Rating (IDMD):

3 A per pin

(2 pins powered)

Lead Size Range:

(0.56 mm) .022" SQ to

(0.71 mm) .028" SQ

Lead Insertion Depth:

(5.59 mm) .220" to

(6.22 mm) .245"

RoHS Compliant:

Yes

Mates with:

TSW, MTSW, TSM, EJH,

PHT, HMTSW, HTSW,

HW, DW, EW, ZW, MTLW

IDSD Mates with:

TST, HTST, ZST,

BST, EJH

TYPE

STRIP

ROW

OPTION

NO. PINS

PER ROW

END

ASSEMBLY

= Single

–S

= Single

End

= Standard Tail Male Plug

IDM

IDS

= Socket

= Double

(Color coded

cable N/A for

31 thru 36

pins/row.

See –G

option.)

Socket or Male Plug on one end

–D

= Double

End

–02 thru –32

DOUBLE

Full size (64 positions):

(82.55) 3.250

Less than 64 positions:

No. Positions/row X (2.54) .100 + (1.68) .066

SINGLE

Full size (32 positions):

(81.53) 3.210

Less than 32 positions:

No. Positions/row X (2.54) .100 + (0.71) .028

IDMS

(Single)

(2.54)

.100

IDMD

(Double)

Socket or Male Plug on each end

(5.08)

.200

(6.10)

.240

MAX

–T

= Transfer

End

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(0.48)

.019

(0.46)

.018

(0.48)

.019

(2.54)

.100

(3.18)

.125

(2.54)

.100

Male Plug on one end with socket on

other.

Begin part number with IDM.

FILE NO. E111594

(For square or long tail see HCMX Series)

–02 thru –36

DOUBLE

Full size (72 positions):

(92.71) 3.650

Less than 72 positions:

No. Positions/row x (2.54) .100 + (1.50) .059

SINGLE

Full size (36 positions):

(91.69) 3.610

Less than 36 positions:

No. Positions/row x (2.54) .100 + (0.48) .019
