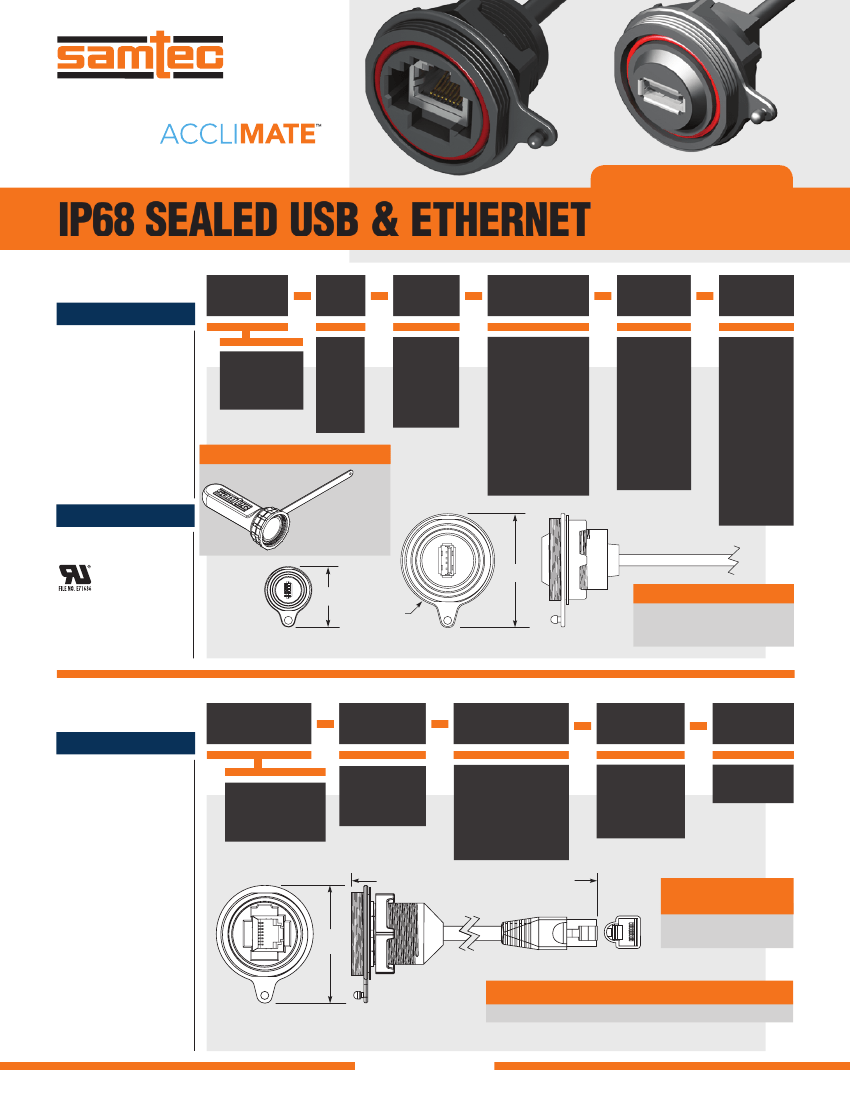

F-219
SCRUS–17–G–00.25–AMS–BC
SCRES–G–00.25–D–C5E
SCRUS, SCRES SERIES
IP68 SEALED USB & ETHERNET
Mates with:
SCPU
TYPE
SPECIFICATIONS
For complete specifications and
recommended panel hole layout
see www.samtec.com?SCRUS
Insulator Material:
PBT
Contact Material:
Phosphor Bronze
Wire:
20 AWG (Power)
25 AWG (Signal)
28 AWG (Drain)
O-Ring:
Silicone
Operating Temp Range:
-20 °C to +75 °C
RoHS Compliant:
Yes
SHELL
SIZE
PLATING
WIRE
LENGTH
END 1
OPTION
END 2
OPTION
= Sealed Circular
USB Receptacle
Cable Assembly
SCRUS
(Standard
USB only)
–17
–10
(Mini
USB only)
= 30 µ"
(0.76 µm)
Gold on
Contact,
Nickel
on Shell
–G
= (0.25 m) 9.84"
Cable
–00.25
–00.50
= USB A Type,
Sealed
–AMS
–BMS
–MBS
= USB A Type,
Not Sealed
–AM
–BM
–MB
–BC
= (0.50 m) 19.68"
Cable
Standard lengths
(Assembled Length
= Wire Length
+ (37.9 mm) 1.50")
= USB B Type,
Sealed
= USB B Type,
Not Sealed
DUST CAP
USB Flash Drive Cover:
DCA–17–03
= Mini
USB B Type,
Sealed
= Mini
USB B Type,
Not Sealed
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
Device dimensions:
80.00 mm x 13.30 mm
x 20.25 mm max.
(48.45)
1.907
(31.80)
1.252
(39.50)
1.55
DIA
= Blunt Cut
OTHER SOLUTIONS
–AMS
–AMS
• Termination for standard
USB cable from panel-to-board
See SCRU Series.
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
–MBS
Mates with:
SCPE
TYPE
PLATING
SPECIFICATIONS
For complete specifications and
recommended panel hole layout
see www.samtec.com?SCRES
Insulator Material:
PBT
Contact Material:
Phosphor Bronze
Shield Material:
Phosphor Bronze
Wire:
24 AWG
O-Ring:
Silicone
Overmold:
PA66
Current Rating:
3.8 A per pin
(1 pin powered)
Operating Temp Range:
-40 °C to +70 °C
RoHS Compliant:
Yes
WIRE
LENGTH
END
OPTION
C5E
–C5E
= Sealed Circular
Ethernet Receptacle
Cable Assembly
SCRES
= 50 µ" (1.27 µm)
Gold on Contact,
Nickel on Shell
–G
= (0.25 m) 9.84" Cable
–00.25
–00.50
= Double Ended
–D
= Cat 5e rating
= (0.50 m) 19.68" Cable
Standard lengths
Assembled Length = Wire Length + (12.70) .50
= Blunt Cut
–BC
DUST CAP &
PANEL PLUG
• Dust Cap: DCA-17-01
• Panel Plug: SCPPA-17-01
(48.45)
1.907
–D SHOWN
END NO. 2
OTHER SOLUTIONS
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
END NO. 1
• Termination for standard ethernet cable from panel to board
