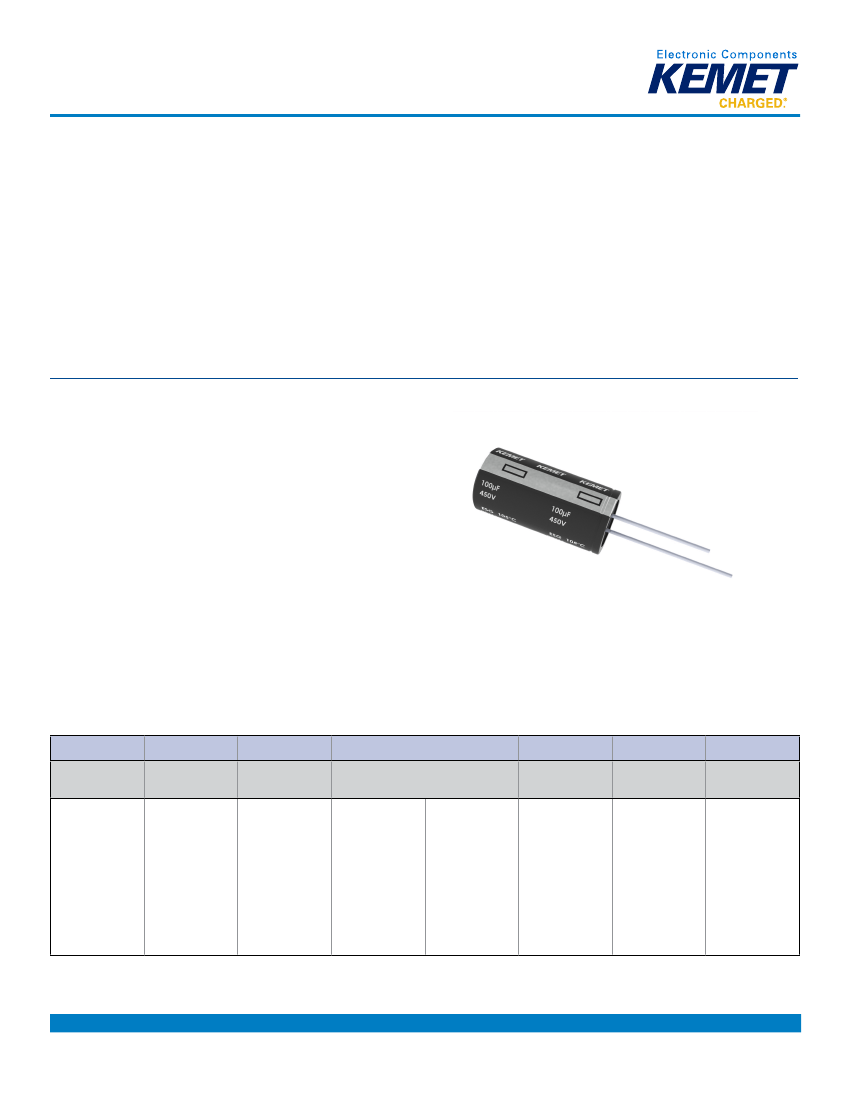

Single-Ended Aluminum Electrolytic Capacitors
ESG, +105°C
Overview
Applications
Typical applications include electronic ballast, power
supplies and long-life equipment.
The KEMET ESG single-ended aluminum electrolytic
capacitors are designed for long life (5,000 hours) and high
reliability applications.
Benefits
•
•
•
•
•
Suited for long life, high reliability applications
Operating temperature of up to 105°C
3,000 – 5,000 hour operating life
High ripple current
Safety vent on the capacitor base
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
ESG
Series
Single-Ended
Aluminum
Electrolytic
226
Capacitance
Code (pF)
First two digits
represent
significant
figures for
capacitance
values. Last
digit specifies
the number
of zeros to be
added.
M
Tolerance
M = ±20%
160
Rated Voltage
(VDC)
160 = 160
200 = 200
250 = 250
350 = 350
400 = 400
450 = 450
500 = 500
A
Electrical
Parameters
A = Standard
H4
Size Code
See Dimension
Table
AA
Packaging
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4008_ESG • 5/23/2018
1
Single-Ended Aluminum Electrolytic Capacitors – ESG, +105°C
Ordering Options Table
Diameter
4 – 22
4–5
6.3
8
10 – 13
16 – 18
4–8
4–8
4–5
4 – 6.3
4 – 10
Packaging Type
Lead Type
Lead Length
(mm)
20/15 Minimum
H
0
= 16 ±0.75
H
0
= 18.5 ±0.75
H
0
= 16 ±0.75
H
0
= 18.5 ±0.75
H
0
= 18.5 ±0.75
H
0
= 16 ±0.75
H
0
= 18.5 ±0.75
H
0
= 16 ±0.75
H
0
= 16 ±0.75
H
0
= 18.5 ±0.75
Lead and
Packaging Code
AA
LA
KA
JA
EA
EA
DA
EA
FA
JA
KA
Standard Bulk Packaging Options
Bulk (bag)
Tape and Reel
Tape and Reel
Tape and Reel
Ammo
Ammo
Ammo
Ammo
Ammo
Tape and Reel
Tape and Reel
Straight
Formed to 2.5 mm
2.5 mm lead spacing
Formed to 5 mm
5 mm Lead Spacing
7.5 mm lead spacing
Other Packaging Options
Formed to 5 mm
Straight
Formed to 2.5 mm
Formed to 5 mm
Straight
Standard Auto-Insertion Packaging Options
Contact KEMET for other lead and packaging options
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental
effects of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like
China, legislation has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic
equipment. All products in this catalog are produced to help our customers’ obligations to guarantee their products and fulfill
these legislative requirements. The only material of concern in our products has been lead (Pb), which has been removed
from all designs to fulfill the requirement of containing less than 0.1% of lead in any homogeneous material. KEMET will
closely follow any changes in legislation world wide and make any necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode
coatings. To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels
for RoHS compatible capacitors.
Due to customer requirements, there may appear additional markings such as lead free (LF) or lead-free wires (LFW) on the
label.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4008_ESG • 5/23/2018
2
Single-Ended Aluminum Electrolytic Capacitors – ESG, +105°C
Dimensions – Millimeters
SIDE VIEW
L
LL+
D
LL−
d
TERMINAL END VIEW
P
Size Code
H9
H2
H8
H4
H5
L3
L4
M5
M7
M1
M9
M2
M3
N4
N5
N1
N2
N3
Q3
Q4
Q5
D
Nominal
10
10
10
10
10
13
13
16
16
16
16
16
16
18
18
18
18
18
22
22
22
Tolerance
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Nominal
12.5
15
16
20
25
20
25
20
25
26
30
32
36
20
25
32
36
40
35
40
45
L
Tolerance
+1.5/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
+2.0/−0
Nominal
5
5
5
5
5
5
5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
10.0
10.0
10.0
p
Tolerance
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Nominal
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
LL+/LL-
Nominal
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
20/15
Tolerance
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
Minimum
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4008_ESG • 5/23/2018
3
Single-Ended Aluminum Electrolytic Capacitors – ESG, +105°C
Performance Characteristics
Item
Capacitance Range
Capacitance Tolerance
Rated Voltage
Life Test
Operating Temperature
Leakage Current
160 – 400 VDC
4.7 – 330 µF
±20% at 120 Hz/20°C
450 – 500 VDC
Performance Characteristics
3.3 – 100 µF
5,000 hours (see conditions in Test Methods & Performance)
-40°C to +105°C
I = 0.06 CV (µA) + 10 µA
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 2 minutes at 20°C.
-25°C to +105°C
Impedance Z Characteristics at 120 Hz
Rated Voltage (VDC)
Z (-25°C)/Z (20°C)
Z (-40°C)/Z (20°C)
160
3
6
200
3
6
250
3
6
350
5
6
400
5
6
450
6
500
6
Compensation Factor of Ripple Current (RC) vs. Frequency
Rated Voltage (VDC)
160 – 450
500
50 to 60 Hz 120 Hz 300 Hz
0.80
0.75
1.00
1.00
1.20
1.20
1 kHz
1.40
1.35
10 to 100 kHz
1.60
1.50
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4008_ESG • 5/23/2018
4
Single-Ended Aluminum Electrolytic Capacitors – ESG, +105°C
Test Method & Performance
Conditions
Temperature
Test Duration
Ripple Current
Voltage
Load Life Test
105°C
5,000 hours
Shelf Life Test
105°C
1,000 hours
If dimension is down size Endurance is 3,000 hours.
Maximum ripple current specified at 120 Hz 105°C
The sum of DC voltage and the peak AC voltage
must not exceed the rated voltage of the capacitor
No ripple current applied
No voltage applied
Performance
Capacitance Change
Dissipation Factor
Leakage Current
The following specifications will be satisfied when the capacitor is restored to 20°C:
Within ±20% of the initial value
Does not exceed 200% of the specified value
Does not exceed specified value
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however,
the leakage current will very slowly increase.
The KEMET E aluminum electrolytic capacitors should not be stored in high temperatures or where there is a high level of
humidity. The suitable storage condition for KEMET's E aluminum electrolytic capacitors is +5 to +35°C and less than 75%
in relative humidity. KEMET's E aluminum electrolytic capacitors should not be stored in damp conditions such as water,
saltwater spray or oil spray. KEMET's E aluminum electrolytic capacitors should not be stored in an environment full of
hazardous gas (hydrogen sulphide, sulphurous acid gas, nitrous acid, chlorine gas, ammonium, etc.) KEMET's E aluminum
electrolytic capacitors should not be stored under exposure to ozone, ultraviolet rays or radiation.
If a capacitor has been stored for more than 18 months under these conditions and it shows increased leakage current,
then a treatment by voltage application is recommended.
Re-Age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen
to a steady value below the specified limit. During re-aging a maximum charging current of twice the specified leakage
current or 5 mA (whichever is greater) is suggested.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4008_ESG • 5/23/2018
5
