UPJ1C101MEH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPJ1C101MEH

UPJ1C101MEH: DescriptionAluminum Electrolytic Capacitor - Radial Lead Type 100uF 16V 105c 6.3x11 20% 2.5LS; CategoryPassive components capacitor; File Size2MB，7 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UPJ1C101MEH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UPJ1C101MEH	-	-	View	Buy Now

UPJ1C101MEH Overview

Aluminum Electrolytic Capacitor - Radial Lead Type 100uF 16V 105c 6.3x11 20% 2.5LS

UPJ1C101MEH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.048 mA
length	11 mm
Manufacturer's serial number	PJ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	175 mA
series	PJ
surface mount	NO
Delta tangent	0.16
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

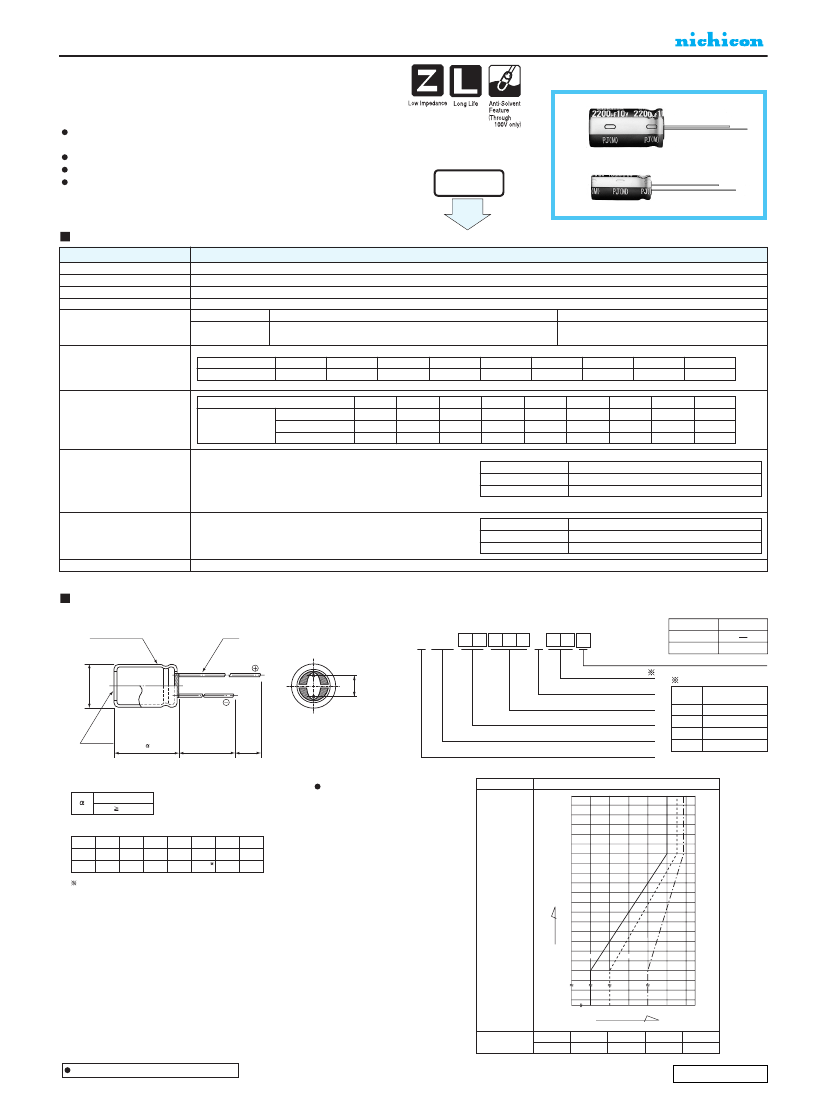

ALUMINUM ELECTROLYTIC CAPACITORS

Low Impedance, For Switching Power Supplies

series

Low impedance and high reliability withstanding 5000 hours load life

at +105˚C (3000 / 2000 hours for smaller case sizes as specified below).

Capacitance ranges available based on the numerical values in E12 series under JIS.

Ideally suited for use of switching power supplies.

Compliant to the RoHS directive (2011/65/EU).

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Performance Characteristics

–55 to +105˚C (6.3 to 100V), –40 to +105˚C (160 to 400V), –25 to +105˚C (450V)

6.3 to 450V

0.47 to 15000µF

± 20% at 120Hz, 20˚C

Rated Voltage (V)

Leakage current

Rated Voltage (V)

tan

δ (MAX.)

6.3 to 100

After 1 minute's application of rated voltage at 20°C, leakage current is

not more than 0.03CV or 4 (µA), whichever is greater.

160 to 450

CV < 1000 :

= 0.1CV+40 (µA) max.

1000 :

= 0.04CV+100 (µA) max.

120Hz, 20˚C

Tangent of loss angle (tan

)

6.3

0.22

0.19

6.3

•

—

0.16

—

0.14

•

—

0.12

0.10

63 to 100 160 to 350 400

•

450

0.08

0.20

0.25

250

—

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Stability at Low Temperature

Rated voltage (V)

Z–25˚C / Z+20˚C

Impedance

Z–40˚C / Z+20˚C

ratio

(MAX.)

Z–55˚C / Z+20˚C

50 to 100

160

•

200

—

315

•

350

—

400

—

450

—

120Hz

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus rated ripple

current is applied for 5000 hours (2000 hours for

φD=5

and 6.3,

3000 hours for

φD=8)

at 105˚C, the peak voltage shall not

exceed the rated voltage.

After storing the capacitors under no load at 105˚C for 1000

hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified

values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Capacitance change

Within ±20% of the initial capacitance value

200% or less than the initial specified value

tan

Less than or equal to the initial specified value

Leakage current

Shelf Life

Marking

Capacitance change

Within ±20% of the initial capacitance value

150% or less than the initial specified value

tan

Less than or equal to the initial specified value

Leakage current

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 470µF)

Sleeve(P.V.C)

9 10 11 12

Type

Small Dia

Low Profile

Configuration

Code

Size code

UP J 1 E 4 7 1 M PD

d tinned CP wire

P ±

0.5

9 10 11 12

φD

0.5 MAX.

UP J 1 E 4 7 1 M HH 6

Capacitance tolerance (±20%)

0.5

Configuration

Type

φD

0.5 MAX

Rated capacitance (470µF)

Capacitance tolerance(±20%)

φD

Code

Rated voltage

(25V)

Rated Capacitance(470µF)

Rated voltage(25V)

6.3

Configuration

Case size code

Pb-free leadwire

Code

Pb-free PET sleeve

Small Dia

Low Profile

Pressure

relief vent

(φ6.3up)

L+

Series name

MAX.

Pressure

MIN

relief vent

(φ6.3UP)

MIN

MAX

Series name 12.5~18

MIN

Type

6.3

•

12.5 to 18

Type

Rated

Frequency coefficient

Rated voltage

voltage

of rated ripple current

Frequency coefficient

15000

10000

(φD < 10) 1.0

(φD 10) 1.5

(mm)

10000

6800

4700

6800

3300

4700

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

for

In case L >25

the

φ12.5

dia. unit, lead dia.

d=0.8mm.

12.5

5.0

0.6

5.0

0.6

7.5

0.8

7.5

0.8

3300

2200

1500

2200

1000

680

1500

470

1000

In case L >25 for the

φ12.5

dia. unit, lead dia.

d=0.8mm.

6.3 to 100V

(10kHz to

200kHz = 1)

680

330

220

6.3 to 100V

(10kHz to

200kHz=1)

Cap.( F)

Cap.(µF)

•

Please refer to page 20 about the end seal configuration.

470

150

100

330

220

150

120Hz

300Hz

1kHz

100

0.68

0.47

120Hz

0.5

300Hz

1kHz

0.9

1.0

0.6

0.7

0.8

Frequency coefficient

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

160 to 450V

50Hz

0.68

0.80

0.47

120Hz

1.00

0.5

300Hz

1.25

1kHz

1.40

10kHz or more

1.60

Dimension table in next pages.

0.6

0.7

0.8

Frequency coefficient

CAT.8100D

0.9

1.0
