ERM5-020-04.0-L-DV-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> ERM5-020-04.0-L-DV-TR

ERM5-020-04.0-L-DV-TR: DescriptionBoard Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size1002KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

ERM5-020-04.0-L-DV-TR Overview

Board Stacking Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

ERM5-020-04.0-L-DV-TR Parametric

Parameter Name	Attribute value
Objectid	7018291588
Reach Compliance Code	compliant
Country Of Origin	Malaysia, USA
ECCN code	EAR99
Factory Lead Time	5 weeks
Samacsys Description	40 Position, 0.50 mm Edge Rate® Rugged High Speed Terminal
Samacsys Manufacturer	SAMTEC
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	8.7
body width	0.195 inch
subject depth	0.269 inch
body length	0.661 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	CENTRONIC
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.2512 mm
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

F-219

ERM5–050–05.0–L–DV–K–TR

ERM5–020–05.0–L–DV–K–TR

ERM5–040–02.0–L–DV–P–TR

(0.50 mm) .0197"

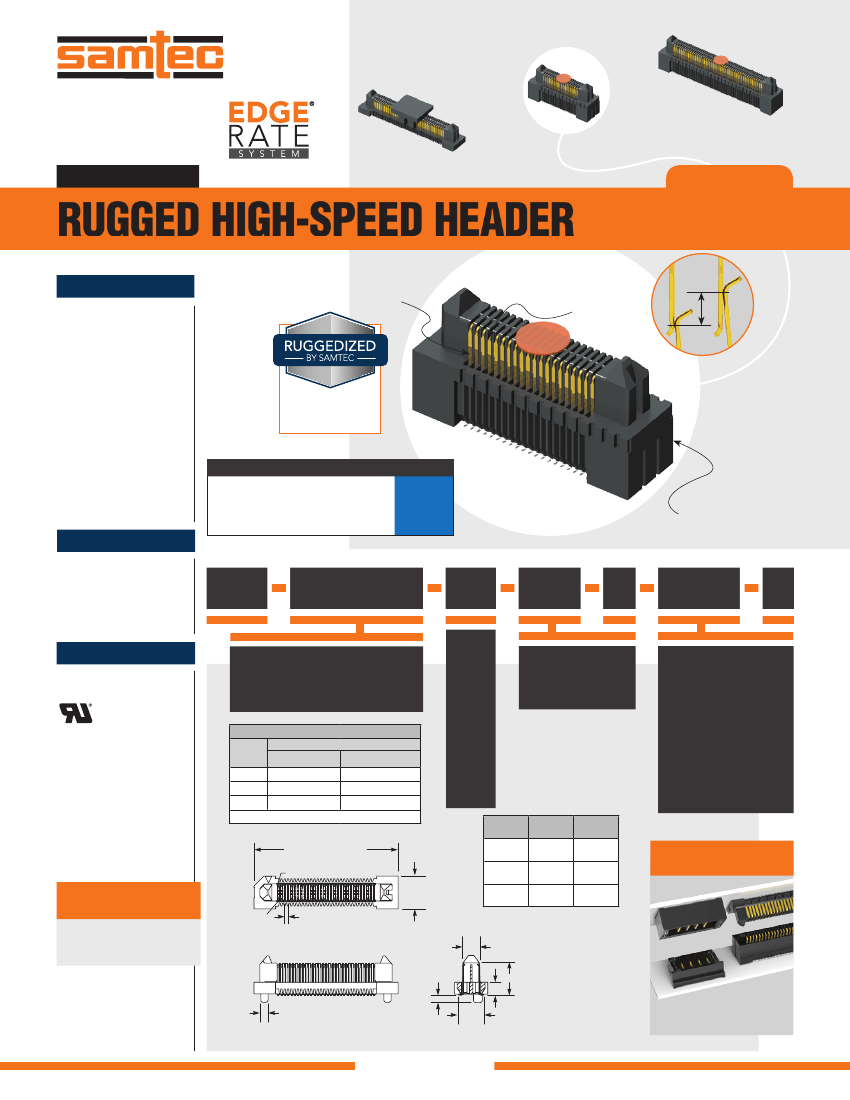

ERM5 SERIES

RUGGED HIGH-SPEED HEADER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?ERM5

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze or BeCu

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Current Rating (-DV to -DV):

1.5 A per pin

(2 pins powered)

Current Rating (-DV to -RA):

1.6 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C

Voltage Rating:

194 VAC mated with ERF5

RoHS Compliant:

Yes

Mates with:

ERF5

20 to 150

I/Os

Rugged Edge Rate

contacts for reduced

broadside coupling

(1.00 mm)

.039"

NOMINAL

WIPE

• Edge Rate

contacts

• High contact wipe

HIGH-SPEED CHANNEL PERFORMANCE

ERM5/ERF5 @ 7 mm Mated Stack Height

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (010-040)

(0.13 mm) .005" max (050-075)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

G b p s

7 mm, 9 mm, 10 mm, 11 mm

or 12 mm stack height

ERM5

NO. OF POSITIONS

PER ROW

LEAD

STYLE

PLATING

OPTION

PICK &

PLACE PAD

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

–010, –020,

–030, –040, –050,

–060, –070, –075

MATED HEIGHT*

ERM5

LEAD

STYLE

ERF5 LEAD STYLE

–02.0

= 2 mm

Body

Height

–04.0

= 4 mm

Body

Height

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

–L

(Required in callout)

= (3.50 mm) .138" DIA

Polyimide Film

Pick & Place Pad

(–04.0 & –05.0

lead style only)

–K

–05.0

(7.00) .276

(9.00) .354

(10.00) .394

–07.0

(9.00) .354

(11.00) .433

(12.00) .472

–02.0

–04.0

–05.0

= 5 mm

Body

Height

= Plastic Pick & Place Pad

(–02.0 lead style only)

(–010 postions not available)

LEAD

STYLE

–P

*Processing conditions will affect mated height.

(1.94)

.076

(3.94)

.155

(4.94)

.194

(4.84)

.191

(6.84)

.269

(7.84)

.309

No. of Positions x

(0.50) .0197 + (6.80) .268

–02.0

–04.0

(4.95)

.195

POWER/SIGNAL

APPLICATION

ALSO AVAILABLE

(MOQ Required)

–05.0

• Friction Lock

• Weld Tab

• Other platings

(0.50)

.0197

(2.50)

.098

(1.09)

.043

(1.32)

.052

DIA

(3.80)

.149

Notes:

Patented

Some lengths, styles and

options are non-standard,

non-returnable.

Compatible with

UMPT/UMPS for flexible

two-piece power/signal solutions

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

ERM5-010-02.0-L-DV-TR ERM5-020-05.0-L-DV-K-TR ERM5-010-05.0-L-DV-TR ERM5-060-05.0-L-DV-K-TR ERM5-

040-02.0-L-DV-TR ERM5-050-02.0-L-DV-P-TR ERM5-050-05.0-L-DV-K-TR ERM5-020-04.0-L-DV-TR ERM5-020-

02.0-L-DV-TR ERM5-020-05.0-L-DV-TR ERM5-020-04.0-L-DV-K-TR ERM5-030-04.0-L-DV-K-TR ERM5-020-02.0-L-

DV-P-TR ERM5-010-05.0-L-DV-K-TR ERM5-030-02.0-L-DV-TR ERM5-030-02.0-L-DV-P-TR ERM5-030-05.0-L-DV-K-

TR ERM5-040-02.0-L-DV-P-TR ERM5-070-05.0-L-DV-K-TR ERM5-050-02.0-L-DV-TR ERM5-050-05.0-L-DV-TR

ERM5-030-04.0-L-DV-TR ERM5-040-05.0-L-DV-K-TR ERM5-030-05.0-L-DV-TR ERM5-060-05.0-L-DV-TR ERM5-

060-04.0-L-DV-TR ERM5-070-05.0-L-DV-TR ERM5-040-04.0-L-DV-K-TR ERM5-075-05.0-L-DV-K-TR ERM5-010-

04.0-L-DV-TR ERM5-040-02.0-L-DV-WT-TR ERM5-075-05.0-L-DV-WT-K-TR ERM5-040-02.0-S-DV-P-TR ERM5-005-

02.0-L-DV-TR ERM5-005-04.0-L-DV-TR ERM5-040-04.0-L-DV-TR ERM5-050-05.0-S-DV-TR ERM5-060-02.0-L-DV-

TR ERM5-050-04.0-S-DV-K-TR ERM5-070-02.0-L-DV-TR ERM5-050-02.0-S-DV-TR ERM5-050-04.0-L-DV-K-TR

ERM5-070-04.0-L-DV-TR ERM5-075-02.0-L-DV-TR ERM5-010-05.0-L-DV-FL-TR ERM5-030-02.0-S-DV-TR ERM5-

050-04.0-L-DV-TR ERM5-010-02.0-S-DV-TR ERM5-010-05.0-S-DV-TR ERM5-020-05.0-S-DV-K-TR ERM5-030-02.0-

L-DV-FL-TR ERM5-030-02.0-L-DV-WT-TR ERM5-010-04.0-L-DV-K-TR ERM5-050-04.0-S-DV-TR ERM5-005-04.0-L-

DV-FL-K-TR ERM5-005-05.0-L-DV-TR ERM5-010-02.0-L-DV-FL-TR ERM5-030-05.0-S-DV-TR ERM5-060-04.0-L-DV-

K-TR ERM5-020-02.0-L-DV-WT-P-TR ERM5-020-02.0-S-DV-P-TR ERM5-075-02.0-L-DV-P-TR ERM5-030-04.0-S-

DV-K-TR ERM5-060-02.0-L-DV-P-TR ERM5-070-02.0-L-DV-P-TR ERM5-050-02.0-S-DV-WT-P-TR ERM5-020-04.0-

L-DV-P-TR ERM5-070-05.0-L-DV-P-TR ERM5-075-02.0-S-DV-P-TR ERM5-070-02.0-S-DV-TR ERM5-050-02.0-S-DV-

P-TR ERM5-030-05.0-L-DV-FL-TR ERM5-020-05.0-S-DV-TR ERM5-030-05.0-S-DV-K-TR ERM5-075-05.0-L-DV-TR

ERM5-010-02.0-L-DV-WT-TR ERM5-010-05.0-S-DV-K-TR ERM5-040-05.0-S-DV-K-TR ERM5-070-04.0-L-DV-K-TR

ERM5-075-04.0-L-DV-K-TR ERM5-020-02.0-S-DV-TR ERM5-030-05.0-L-DV-WT-K-TR ERM5-040-05.0-L-DV-TR

ERM5-040-05.0-S-DV-TR ERM5-050-05.0-S-DV-K-TR ERM5-075-05.0-S-DV-K-TR ERM5-075-02.0-L-DV-WT-TR

ERM5-050-02.0-L-DV-WT-TR ERM5-010-02.0-S-DV-WT-TR ERM5-030-04.0-L-DV-WT-TR ERM5-010-05.0-S-DV-WT-

TR ERM5-040-04.0-S-DV-TR ERM5-075-05.0-L-DV-WT-TR ERM5-075-02.0-S-DV-TR ERM5-030-02.0-S-DV-P-TR

ERM5-020-02.0-L-DV-FL-P-TR ERM5-040-05.0-L-DV-WT-TR ERM5-060-02.0-L-DV-WT-TR ERM5-060-05.0-S-DV-K-

TR ERM5-040-05.0-L-DV-WT-K-TR
