MPSC-02-08-02-7.70-01-L-V datasheet, PDF

Datasheet> All Categories > The connector> The connector> MPSC-02-08-02-7.70-01-L-V

MPSC-02-08-02-7.70-01-L-V: DescriptionPower to Board 5.00 mm PowerStrip /30 A Signal/Power Combo Socket Strip; CategoryThe connector The connector; File Size349KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

MPSC-02-08-02-7.70-01-L-V Overview

Power to Board 5.00 mm PowerStrip /30 A Signal/Power Combo Socket Strip

MPSC-02-08-02-7.70-01-L-V Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
body width	0.4 inch
subject depth	0.396 inch
body length	1.317 inch
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S8P4
Contact to complete cooperation	GOLD
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	HYBRID
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MPSC
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
Guideline	UL
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Terminal length	0.107 inch
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

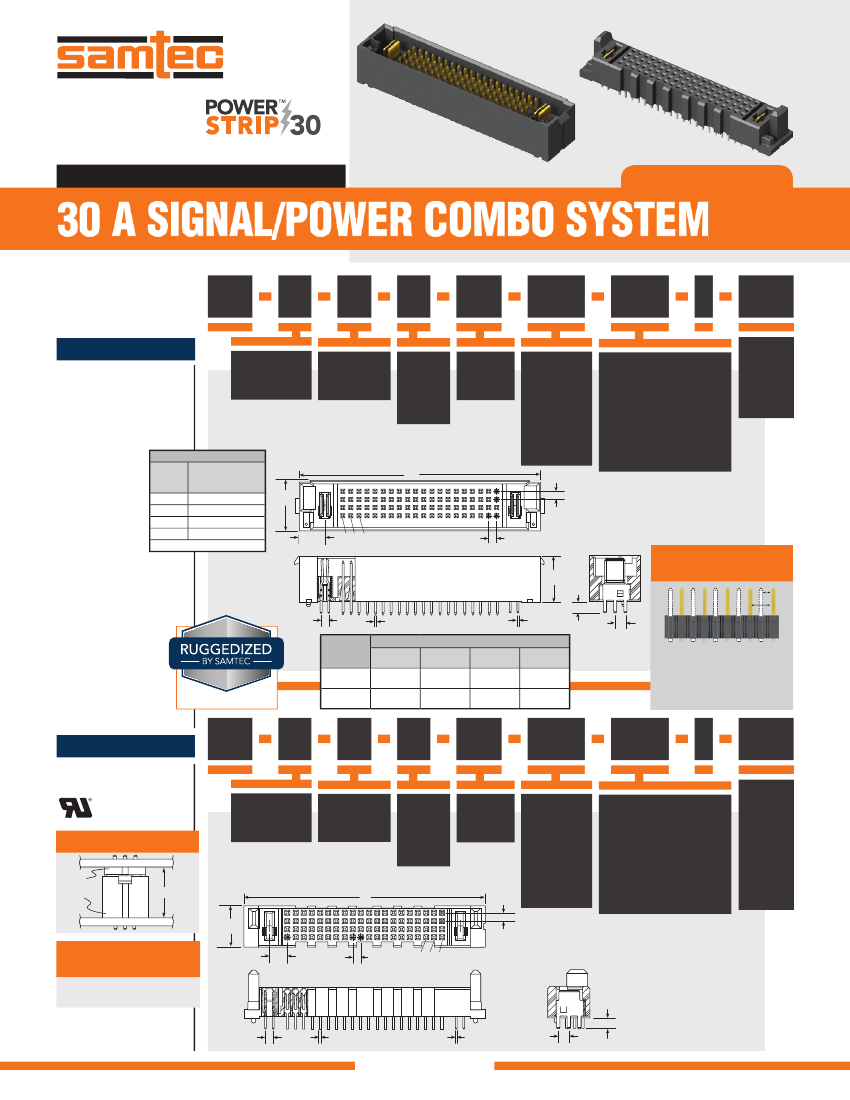

F-219 (Rev 26OCT18)

MPSC–01–80–01–7.70–01–L–V

MPTC–01–80–01–6.30–01–L–V–LC

(5.00 mm) .197"

(PWR)

(2.00 mm) .079"

(SIG)

MPTC, MPSC SERIES

30 A SIGNAL/POWER COMBO SYSTEM

MPTC Mates with:

MPSC, MPCC

MPSC Mates with:

MPTC

PWR

PINS

SIG

PINS

PWR

PINS

LEAD

STYLE

TAIL

LENGTH

PLATING

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MPTC

or www.samtec.com?MPSC

–01, –02

= Power Pins

Per End

= Power

Pins

Insulator Material:

Note:

Black LCP

Per End

Available standard power pin combinations:

Terminal/Contact Material:

MPTC-01-XX-01 or MPTC-02-XX-02.

Signal:

Phosphor Bronze

= Use with

= Matte Tin on contacts and

Power:

Copper Alloy

(2.36 mm) .093" tail (Power), Gold on contact,

Plating:

MPTC-V/MPSC-V

Thick PCB

Matte Tin on tail (Signal)

Sn or Au over

CURRENT

50 µ" (1.27 µm) Ni

POWER

RATING

Operating

PINS (PER CONTACT)

Temp Range:

(12.45)

28.8 A

.490

-55 °C to +105 °C

with Tin

24.7 A

(2.00)

.0787

-55 °C to +125 °C

24.1 A

with Gold

22.3 A

(6.27)

01 02 03

(2.00) .0787

Voltage Rating:

.247

–T PLATING

250 VAC/354 VDC

CREEPAGE

Standard Creepage:

MPTC: (2.86 mm) .113"

AND CLEARANCE

(11.38)

(power)

.448 (2.72)

MPSC: (2.86 mm) .113"

.107

(without -LC, power)

(2.69 mm) .105"

(1.88)

(0.41)

(with -LC, power)

(2.54)

(0.50) .020 SQ

.074

.016

.100

Standard Clearance:

(2.71 mm) .106"

(without -LC, power)

POWER

Selectively loading

16 SIGNAL 24 SIGNAL 40 SIGNAL 80 SIGNAL

MPTC: (2.54 mm) .100"

PINS/END

PINS

contacts achieves customer

(with -LC, power)

(27.44)

(31.45)

(39.44)

(59.44)

speciﬁc creepage and

MPSC: (1.93 mm) .076"

–01

1.081

1.238

1.553

2.340

(with -LC, power)

clearance requirements.

(37.44)

(41.45)

(49.44)

(69.44)

RoHS Compliant:

• Locking clip option

–02

Contact asp@samtec.com

1.474

1.632

1.946

2.734

Yes

Lead–Free Solderable:

Yes

–16

–24,

–40, –80

–01,

–02

= (6.30 mm)

0.248"

–

6.30

= Use with

(1.60 mm) .062"

Thick PCB

–01

–03

= 10 µ" (0.25 µm) Gold on

contact, Matte Tin on tail

(Power & Signal)

–L

–T

= Locking

Clip

(Manual

placement

required)

–LC

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

MPSC

PWR

PINS

SIG

PINS

PWR

PINS

LEAD

STYLE

TAIL

LENGTH

PLATING

OPTION

OTHER

OPTION

–01, –02

FILE NO. E111594

MATED HEIGHT

MPSC

MPTC

14 mm

= Power Pins

Per End

–16

–24,

–40, –80

Note:

Available standard power pin combinations:

MPSC-01-XX-01 or MPSC-02-XX-02.

(10.16)

.400

= Power

Pins

Per End

–01,

–02

= (7.70 mm)

.303"

–7.70

= Use with

(1.60 mm) .062"

Thick PCB

–01

–03

= Use with

(2.36 mm) .093"

Thick PCB

= Locking

Clip

= 10 µ" (0.25 µm) Gold on

(Manual

contact, Matte Tin on tail

placement

(Power & Signal)

required)

(Not

available

= Matte Tin on contacts and

with –16

tail (Power), Gold on contact,

signal pins)

Matte Tin on tail (Signal)

–L

–T

–LC

ALSO AVAILABLE

(MOQ Required)

• 4, 8, 36 and 48

total signal pins

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(2.00)

.0787

(2.00)

.0787

03 02 01

(4.44)

.175

(2.72)

.107

(1.88)

.074

(2.54)

.100

(0.50)

.020 SQ

(0.41)

.016

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.

All parts within this catalog are built to Samtec’s speciﬁcations.

Customer speciﬁc requirements must be approved by Samtec and identiﬁed in a Samtec customer-speciﬁc drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

MPSC-02-24-02-7.70-01-T-V MPSC-02-16-02-7.70-01-L-V-LC MPSC-01-16-01-7.70-01-L-V MPSC-01-80-01-7.70-

01-L-V MPSC-02-80-02-7.70-03-L-V MPSC-01-80-01-7.70-03-L-V-LC MPSC-02-80-02-7.70-01-L-V MPSC-02-24-02-

7.70-01-L-V-LC MPSC-02-24-02-7.70-01-L-V MPSC-02-80-02-7.70-03-L-V-LC MPSC-02-16-02-7.70-01-L-V MPSC-

01-80-01-7.70-01-L-V-LC MPSC-02-16-02-7.70-01-T-V-LC MPSC-01-80-01-7.70-03-L-V MPSC-02-16-02-7.70-03-L-V

MPSC-02-16-02-7.70-03-T-V MPSC-01-36-01-7.70-03-L-V MPSC-02-16-02-7.70-03-L-V-LC MPSC-01-80-01-7.70-

01-T-V-LC MPSC-01-80-02-7.70-01-T-V MPSC-02-80-02-7.70-01-T-V-LC MPSC-01-80-01-7.70-01-T-V MPSC-01-80-

02-7.70-01-L-V MPSC-02-80-01-7.70-01-L-V MPSC-02-80-01-7.70-01-T-V MPSC-02-80-02-7.70-01-L-V-LC MPSC-

02-80-02-7.70-01-T-V MPSC-02-24-02-7.70-01-T-V-LC MPSC-01-24-01-7.70-01-L-V MPSC-01-24-01-7.70-01-L-V-LC

MPSC-02-24-02-7.70-03-L-V-LC MPSC-02-40-02-7.70-01-L-V MPSC-02-48-02-7.70-03-L-V MPSC-01-40-01-7.70-

01-L-V MPSC-01-80-01-7.70-03-T-V MPSC-01-16-01-7.70-03-T-V-LC MPSC-02-40-02-7.70-03-L-V MPSC-02-40-02-

7.70-03-T-V MPSC-01-16-01-7.70-03-L-V-LC MPSC-01-24-01-7.70-03-L-V-LC MPSC-02-40-02-7.70-03-L-V-LC

MPSC-02-08-02-7.70-03-L-V MPSC-02-48-02-7.70-01-L-V-LC MPSC-02-80-01-7.70-01-L-V-LC MPSC-01-04-01-7.70-

01-T-V MPSC-01-08-01-7.70-01-L-V MPSC-01-36-01-7.70-01-L-V-LC MPSC-01-08-01-7.70-01-T-V MPSC-02-08-02-

7.70-01-L-V MPSC-01-08-01-7.70-01-L-V-LC MPSC-01-36-01-7.70-01-L-V MPSC-01-36-01-7.70-01-T-V MPSC-01-

48-01-7.70-01-L-V MPSC-01-16-01-7.70-01-T-V-LC MPSC-02-48-02-7.70-01-T-V-LC MPSC-01-16-01-7.70-01-T-V

MPSC-01-16-01-7.70-03-L-V MPSC-02-48-02-7.70-01-L-V MPSC-02-36-02-7.70-01-L-V MPSC-01-04-01-7.70-03-L-V

MPSC-01-36-01-7.70-01-T-V-LC MPSC-01-24-01-7.70-01-T-V MPSC-01-48-01-7.70-01-T-V MPSC-02-24-01-7.70-

01-L-V-LC MPSC-02-24-02-7.70-03-L-V MPSC-01-04-01-7.70-01-L-V MPSC-01-04-01-7.70-01-L-V-LC MPSC-01-16-

01-7.70-01-L-V-LC MPSC-01-24-02-7.70-01-L-V MPSC-02-16-02-7.70-01-T-V MPSC-02-24-01-7.70-01-T-V MPSC-

01-24-01-7.70-03-L-V MPSC-01-40-01-7.70-03-L-V-LC MPSC-01-16-01-7.70-03-T-V MPSC-02-40-02-7.70-01-L-V-LC
