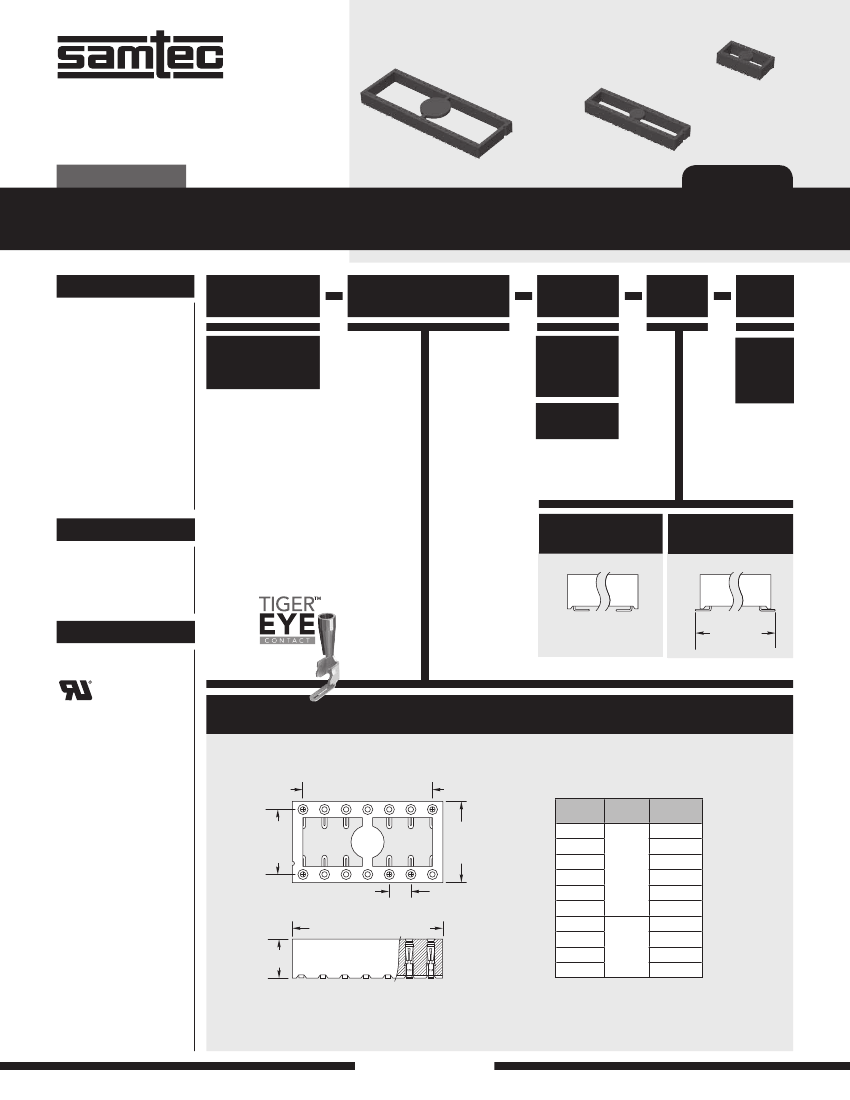

F-219 SUPPLEMENT
ICF–328–T–O
ICF–314–S–O
ICF–640–S–O
(2.54 mm) .100"
ICF SERIES
SURFACE MOUNT DIP SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?ICF
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
BeCu
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C
Insertion Depth:
(2.54 mm) .100" to
(3.81 mm) .150"
Insertion Force/Contact:
(1.39 N) 5 oz average
Withdrawal Force/Contact:
(1.11 N) 4 oz average
RoHS Compliant:
Yes
TYPE
SOCKET
ROW SPACING &
NO. OF CONTACTS
PLATING
OPTION
TAIL
OPTION
OTHER
OPTION
=Surface Mount
IC Socket
ICF
=30 µ" (0.76µm)
Gold on contact,
Matte Tin on tail
–S
–T
=Tape &
Reel
Packaging
–TR
= Matte Tin
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.15 mm) .006" max*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
=Tails In
–I
=Tails Out
–O
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
.300" Row:
.415 (10.54)
.600" Row:
.715 (18.16)
Specify from chart below
(2.54) .100 x No. of Spaces
“–XXX”
(7.62)
.300
or
(15.24)
.600
(2.54) .100 TYP
Row
Spacing
+ (1.91)
.075
Row
Space
No. of
Contacts
08
14
(2.54) .100 x No. of Positions
(4.57)
.180
–308
–314
–316
–318
–320
–328
–624
–628
–632
–640
(7.62)
.300
16
18
20
28
24
(15.24)
.600
28
32
40
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
