SEAF-40-05.0-S-10-2-A-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAF-40-05.0-S-10-2-A-K-TR

SEAF-40-05.0-S-10-2-A-K-TR: DescriptionBoard-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SEAF-40-05.0-S-10-2-A-K-TR Overview

Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket

SEAF-40-05.0-S-10-2-A-K-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	400 Position, .050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Socket
Other features	ROHS COMPLIANT
Board mount options	POLARIZATION POST
body width	0.521 inch
subject depth	0.199 inch
body length	2.229 inch
Body/casing type	SOCKET
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	7 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	900VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	25000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	10
Number of rows loaded	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2.7 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	400
Evacuation force-minimum value	LIF N
Base Number Matches	1

Preview

Download Datasheet

View All

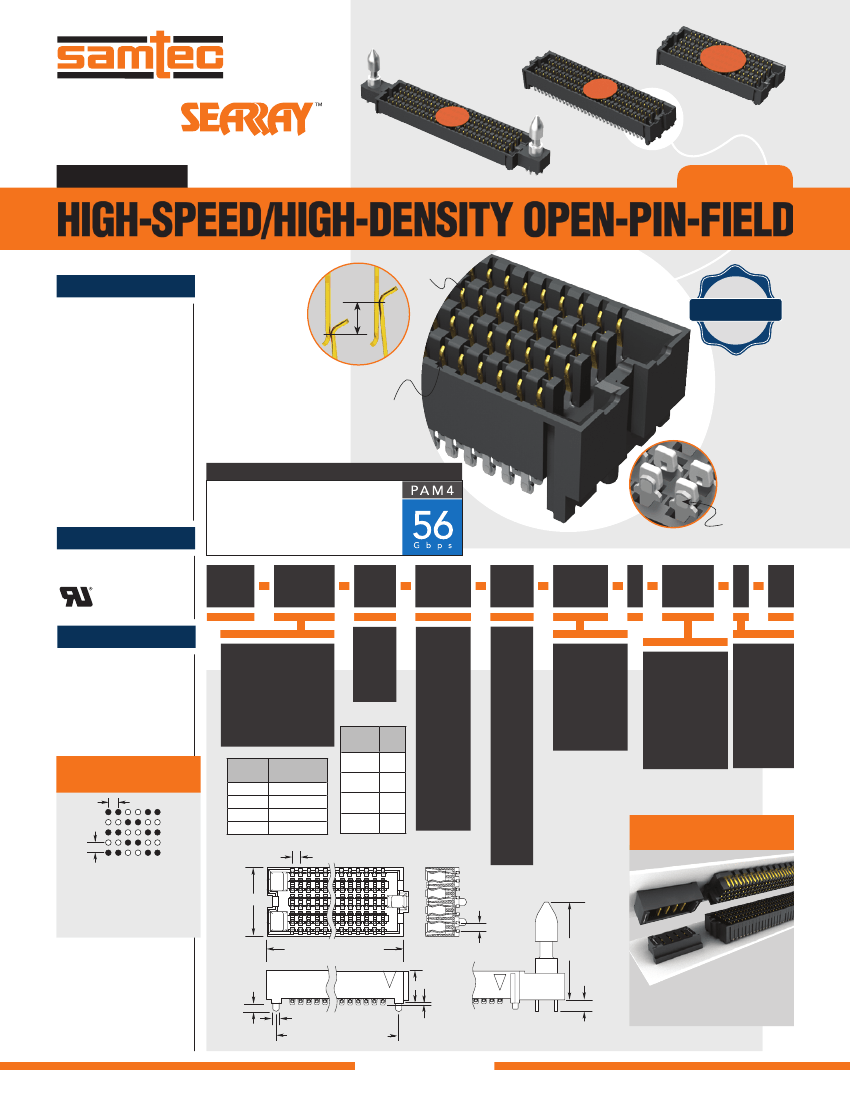

F-219

SEAF–20–05.0–S–10–2–A–K–TR

SEAF–30–05.0–S–08–2–A–K–TR

(1.27 mm) .050"

SEAF–30–05.0–S–08–2–A–LP–K–TR

SEAF SERIES

HIGH-SPEED/HIGH-DENSITY OPEN-PIN-FIELD

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?SEAF

Insulator Material:

Black LCP

Contact Material:

Copper Alloy

Operating Temp Range:

-55 °C to +125 °C

Current Rating

(7 mm stack height):

2.7 A per pin

(10 adjacent pins powered)

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Working Voltage:

240 VAC

RoHS Compliant:

Yes

Lead-Free Solderable:

Yes

Board Mates:

SEAM, SEAMP,

SEAR, SEAMI

Cable Mates:

SEAC

Standoffs:

JSO

(1.12 mm)

.044"

NOMINAL

WIPE

Up to

500 pins

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

10 YEAR MFG

WITH 30 µ" GOLD

Low

insertion/

extraction

forces

HIGH-SPEED CHANNEL PERFORMANCE

SEAF/SEAM @ 10 mm Mated Stack Height

Rating based on Samtec reference channel.

For full SI performance data visit Samtec.com

or contact SIG@samtec.com

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

Solder

charges

SEAF

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

LEAD

STYLE

–05.0

–06.0

–06.5

–07.5

PLATING

OPTION

NO. OF

ROWS

SOLDER

TYPE

OPTION

–K

STANDARDS

• VITA 47

• VITA 57.1 FMC

• VITA 57.4 FMC+

• VITA 74 VNX

• PISMO

™

Visit www.samtec.com/standards

for more information.

–10, –15, – 20,

– 30, –40, –50

(–10 only available

in 04 row)

(–15 only available

in 04 or 10 row with

–05.0 lead style)

= 10 µ"

(0.25 µm)

Gold on

contact

area,

Matte Tin on

solder tail

–L

– 04

=Four

Rows

– 05

=Five

Rows

= Tin/Lead

Alloy

Solder Charge

–1

–2

(5.05)

.199

(6.05)

.238

(6.55)

.258

(7.54)

.297

DIFFERENTIAL

SIGNAL ROUTING

(1.27) .050

(1.27)

.050

NO. OF

ROWS

(5.66) .223

–04

–05, –06

(8.20) .323

(10.74) .423

–08

(13.28) .523

–10

= 30 µ"

(0.76 µm)

Gold on

contact

area,

Matte Tin on

solder tail

–S

– 06

=Six

Rows

= Lead-Free

Solder Charge

= Polyimide

= Latch Post

film Pick &

(–LP required

Place Pad

for SEAC

(Not

mate only)

available

(Available with

with –10 and

–05.0 lead style

–15 pins

and –04, –06, –08

with –LP

& –10 rows only) Latch post)

– LP

=Eight

Rows

– 08

– 10

=Ten

Rows

POWER/SIGNAL

APPLICATION

(1.27) .050

The above signal routing

configuration allows for

the use of 25 to 125

differential pair counts.

Contact sig@samtec.com

for specific details.

(1.27)

.050

No. of positions x

(1.27) .050 + (5.82) .229

(15.49)

.610

Notes:

Patented

IPC-A-610F and

IPC J-STD-001F Class 3

solder joint.

Some sizes, styles and

options are non-standard,

non-returnable.

(1.27)

.050

(1.12) .044 DIA

No. of positions x

(1.27) .050 + (3.58) .141

–LP

(1.78)

.070

(0.20)

.008

Compatible with

UMPT/UMPS for flexible

two-piece power/signal solutions

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

SEAF-40-01-L-06-2-RA-GP-TR SEAF-30-06.0-S-06-2-A-K-TR SEAF-50-05.0-S-08-2-A-K-TR SEAF-40-06.0-S-08-2-

A-K-TR SEAF-50-05.0-L-10-2-A-K-TR SEAF-30-05.0-L-06-2-A-K-TR SEAF-40-05.0-S-08-2-A-K-TR SEAF-20-05.0-S-

08-2-A-K-TR SEAF-50-01-L-06-2-RA-GP-TR SEAF-10-06.0-L-04-2-A-K-TR SEAF-50-05.0-S-10-2-A-K-TR SEAF-20-

05.0-S-10-1-A-K-TR SEAF-30-06.0-S-04-2-A-K-TR SEAF-20-05.0-S-06-1-A-K-TR SEAF-30-06.5-S-10-2-A-K-TR

SEAF-40-05.0-L-10-1-A-K-TR SEAF-20-06.5-S-10-2-A-K-TR SEAF-40-01-L-10-2-RA-GP-K-TR SEAF-20-05.0-L-10-2-

A-K-TR SEAF-30-06.5-S-06-2-A-K-TR SEAF-50-06.0-S-10-2-A-K-TR SEAF-20-06.0-S-08-2-A-K-TR SEAF-20-01-L-

04-2-RA-TR SEAF-30-06.5-L-10-1-A-K-TR SEAF-50-01-L-08-2-RA-K-TR SEAF-10-06.5-S-04-2-A-K-TR SEAF-50-

05.0-S-04-2-A-K-TR SEAF-50-05.0-L-06-2-A-K-TR SEAF-40-06.0-S-06-2-A-K-TR SEAF-50-01-L-06-2-RA-GP-K-TR

SEAF-50-01-S-10-2-RA-K-TR SEAF-15-05.0-S-10-2-A-K-TR SEAF-40-06.5-L-10-1-A-K-TR SEAF-40-06.0-L-08-2-A-K-

TR SEAF-30-05.0-S-08-2-A-K-TR SEAF-40-06.0-S-04-2-A-K-TR SEAF-20-06.0-L-06-2-A-K-TR SEAF-50-06.0-L-04-2-

A-K-TR SEAF-10-05.0-S-04-2-A-K-TR SEAF-40-05.0-L-04-1-A-K-TR SEAF-40-06.0-S-10-2-A-K-TR SEAF-40-06.5-L-

06-2-A-K-TR SEAF-40-05.0-S-08-1-A-K-TR SEAF-30-05.0-S-10-2-A-K-TR SEAF-40-05.0-L-06-2-A-K-TR SEAF-50-

05.0-S-06-2-A-K-TR SEAF-20-06.5-L-10-2-A-K-TR SEAF-30-06.5-L-10-2-A-K-TR SEAF-20-06.0-S-06-2-A-K-TR

SEAF-50-01-L-04-2-RA-GP-TR SEAF-50-06.0-S-06-2-A-K-TR SEAF-20-06.5-S-05-2-A-K-TR SEAF-20-01-L-04-2-RA-

GP-TR SEAF-20-06.5-S-08-2-A-K-TR SEAF-40-06.0-L-10-2-A-K-TR SEAF-50-05.0-L-04-2-A-K-TR SEAF-20-05.0-S-

04-2-A-K-TR SEAF-20-06.5-S-06-2-A-K-TR SEAF-30-05.0-L-08-2-A-K-TR SEAF-40-05.0-L-10-2-A-K-TR SEAF-40-01-

L-10-2-RA-GP-TR SEAF-10-05.0-L-04-2-A-K-TR SEAF-50-05.0-L-08-2-A-K-TR SEAF-50-06.0-S-08-2-A-K-TR SEAF-

40-05.0-S-04-2-A-K-TR SEAF-40-01-L-04-2-RA-GP-TR SEAF-50-06.0-L-06-2-A-K-TR SEAF-40-01-L-04-1-RA-GP-TR

SEAF-30-05.0-L-04-2-A-K-TR SEAF-40-05.0-S-06-2-A-K-TR SEAF-40-05.0-S-10-1-A-K-TR SEAF-30-05.0-S-04-2-A-

K-TR SEAF-30-06.5-L-08-2-A-K-TR SEAF-40-06.5-S-04-2-A-K-TR SEAF-20-06.0-L-04-2-A-K-TR SEAF-30-05.0-L-06-

2-A-LP-K-TR SEAF-20-05.0-L-08-2-A-K-TR SEAF-50-01-L-04-2-RA-TR SEAF-40-05.0-S-10-2-A-K-TR SEAF-30-01-L-

04-2-RA-GP-TR SEAF-50-06.5-S-08-2-A-K-TR SEAF-20-05.0-L-08-1-A-K-TR SEAF-50-06.5-L-10-2-A-K-TR SEAF-

40-05.0-L-04-2-A-K-TR SEAF-50-01-S-10-2-RA-GP-K-TR SEAF-30-06.5-S-04-2-A-K-TR SEAF-30-06.5-S-08-2-A-K-TR

SEAF-40-05.0-S-06-1-A-K-TR SEAF-30-06.5-L-06-2-A-K-TR SEAF-30-05.0-L-04-2-A-LP-K-TR SEAF-50-01-S-10-1-

RA-GP-TR SEAF-50-06.5-S-10-2-A-K-TR SEAF-30-06.0-L-06-2-A-K-TR SEAF-10-06.5-L-04-2-A-K-TR SEAF-20-05.0-

S-06-2-A-K-TR SEAF-20-06.5-S-04-2-A-K-TR SEAF-50-05.0-S-06-1-A-K-TR SEAF-50-01-L-10-2-RA-GP-K-TR SEAF-

20-01-L-06-2-RA-LP-TR SEAF-20-05.0-S-05-2-A-K-TR

SEAF-40-05.0-S-10-2-A-K-TR Related Products

	SEAF-40-05.0-S-10-2-A-K-TR	SEAF-40-06.5-S-08-2-A-K-TR	SEAF-30-01-L-04-2-RA-GP-TR	SEAF-50-06.5-L-05-2-A-K-TR	SEAF-30-01-S-10-2-RA-TR	SEAF-50-06.0-S-06-1-A-K-TR	SEAF-30-06.0-S-05-1-A-K-TR	SEAF-30-01-L-08-2-RA-K-TR
Description	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket	Board-to-Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Socket
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	incompatible	incompatible	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR
Maker	SAMTEC	SAMTEC	SAMTEC	-	-	SAMTEC	SAMTEC	SAMTEC
Factory Lead Time	2 weeks	4 weeks 2 days	2 weeks	-	4 weeks 2 days	4 weeks 2 days	8 weeks	3 weeks
Body/casing type	SOCKET	SOCKET	PLUG	SOCKET	-	SOCKET	SOCKET	-
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	MATTE TIN OVER NICKEL	GOLD (10) OVER NICKEL (50)	-	GOLD	GOLD	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn)	Tin (Sn) - with Nickel (Ni) barrier	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	-	COPPER ALLOY	-	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	-	NO	NO	-
Filter function	NO	NO	NO	NO	-	NO	NO	-
IEC compliance	NO	NO	NO	NO	-	NO	NO	-
JESD-609 code	e3	e3	e3	e3	-	e3	e3	-
MIL compliance	NO	NO	NO	NO	-	NO	NO	-
Mixed contacts	NO	NO	NO	NO	-	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	-	STRAIGHT	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of rows loaded	10	8	4	5	-	6	5	8
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	400	320	120	250	-	300	150	240
Base Number Matches	1	1	1	1	1	-	-	1
