R6BWHTGRYEF: DescriptionE-SWITCH - R6ABLKBLKFF - SWITCH; ROCKER; SPST; 10A; 125VAC; BLACK; Categoryunclassified; File Size102KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

R6BWHTGRYEF Overview

E-SWITCH - R6ABLKBLKFF - SWITCH; ROCKER; SPST; 10A; 125VAC; BLACK

Preview

Download Datasheet

View All

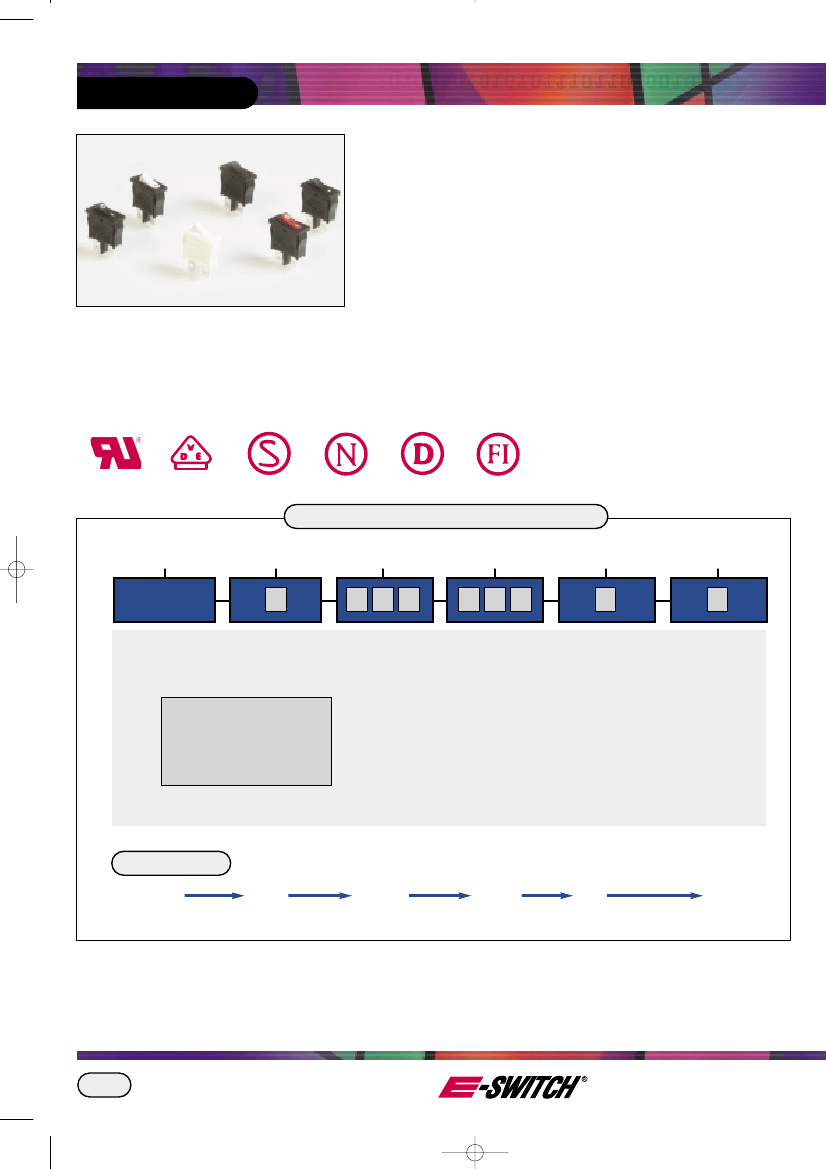

S E R I E S

ROCKER SWITCHES

SWITCHES

SPECIFICATIONS

Rating:

Mechanical Life:

Electrical Life:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Safety Std. Approval:

10A@125 VAC, 6A@250 VAC (UL, CUL)

4(1)A @250 VAC (D, S, N, Fi, VDE)

≥50,000

cycles

≥10,000

cycles

<20 mΩ (Initial)

>1,000MΩ @ 500V DC

>1,500V AC 1 minute (Initial)

>3,000V between poles

UL, CSA, VDE, Semko, Nemko, Demko, Fimko

MATERIALS

Body:

Rocker:

Contact Surface:

Terminal:

Nylon 66 (UL94 V-2)

Coin Silver

Silver plated copper alloy

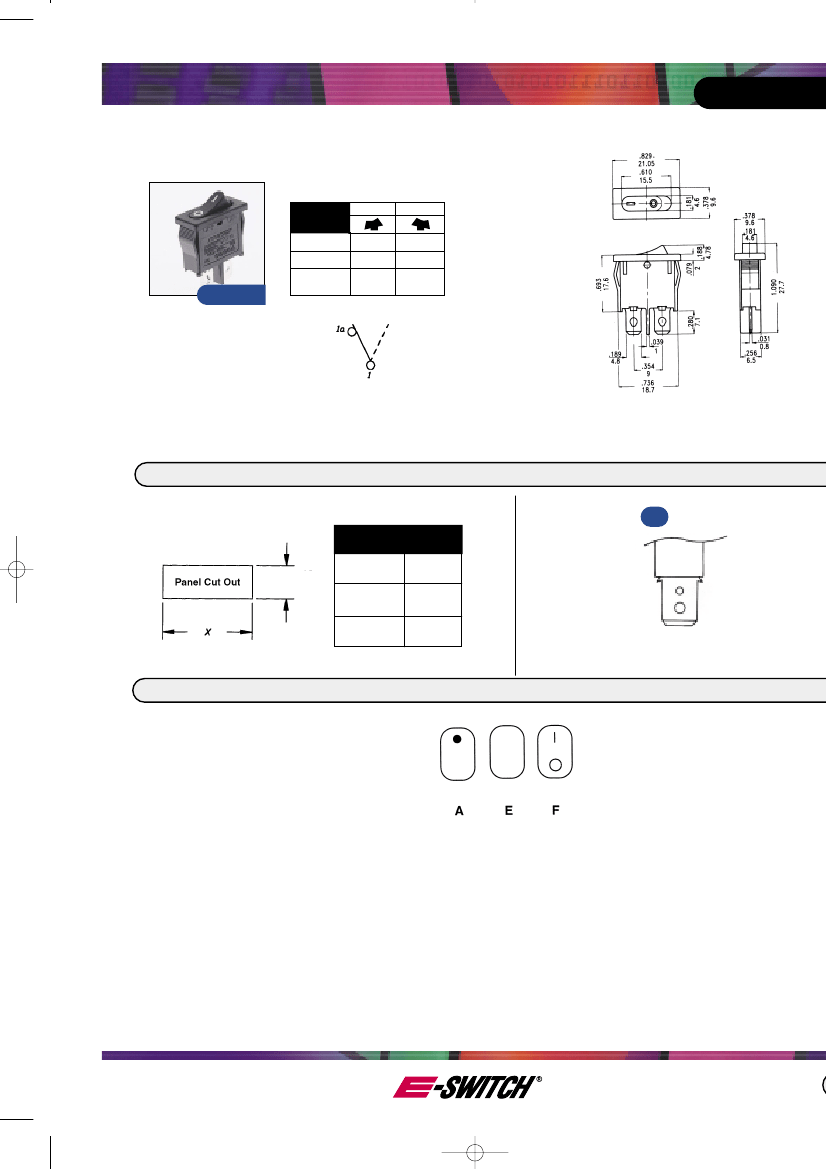

HOW TO ORDER

Series

Circuit

Housing Color Actuator Color

Marking

Termination

See Below

BLK=Black

WHT=White

GRY=Gray

BLK=Black

WHT=White

RED=Red

GRY=Gray

F=Faston

CIRCUIT CODE:

A = SPST On-Off

B = SPST (On)-Off

EXAMPLE

BLK

Phone: 763-504-3525

Fax: 763-531-8235

www.e -switch.com

info@e-switch.
