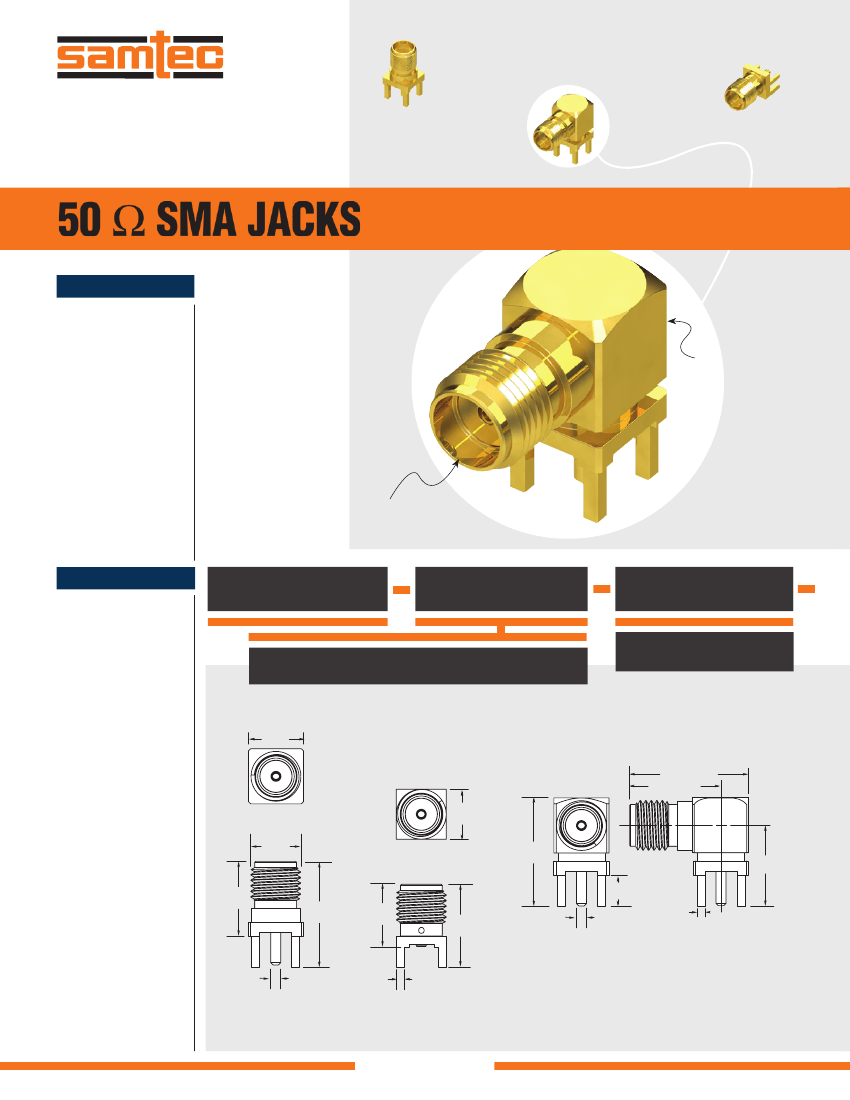

RF-18
SMA–J–P–H–RA–TH1
SMA–J–P–H–ST–TH1
SMA–J–P–H–ST–EM1
50
W
SMA JACKS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?SMA-TH,
www.samtec.com?SMA-SM,
www.samtec.com?SMA-EM or
www.samtec.com?SMA-MT
Contact Material:
BeCu
Shell Material:
Brass
Insulator Material:
PTFE (-PN)
Operating Temp Range:
-65 °C to +125 °C
Impedance:
50
W
Dielectric Withstanding
Voltage:
1,000 Vrms
Frequency Range:
0~20 GHz
(Cable dependent)
Working Voltage:
335 V
RoHS Compliant:
Yes
Mates with:
RF174, RF316, RF058,
RF405, RF402, RS316,
GRF1H-C, IJ5H, RF23S
Mates with a wide
variety of cable
assemblies
Edge Mount,
Mixed Technology, Through-Hole
or Surface Mount termination
PROCESSING
Lead–Free Solderable:
Yes
SMA
GENDER
TYPE
= Jack
–J
= PCB Mount
–P
(7.00)
.276
(15.10) .594
(11.60) .457
(6.35)
.250
(6.33)
.249
DIA
(13.80)
.543
(10.30)
.405
(3.94)
.155
(9.55)
.376
(13.50)
.531
(7.95)
.313
(10.55)
.415
(1.27)
.050
DIA
(1.02) .040
–RA–TH1
(1.27)
.050
DIA
(1.02)
.040
Note:
While optimized for 50
W
applications, this connector
can also perform well in certain
75
W
applications. Contact
RFGroup@samtec.com for
further information.
–ST–TH1
–ST–MT1
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM

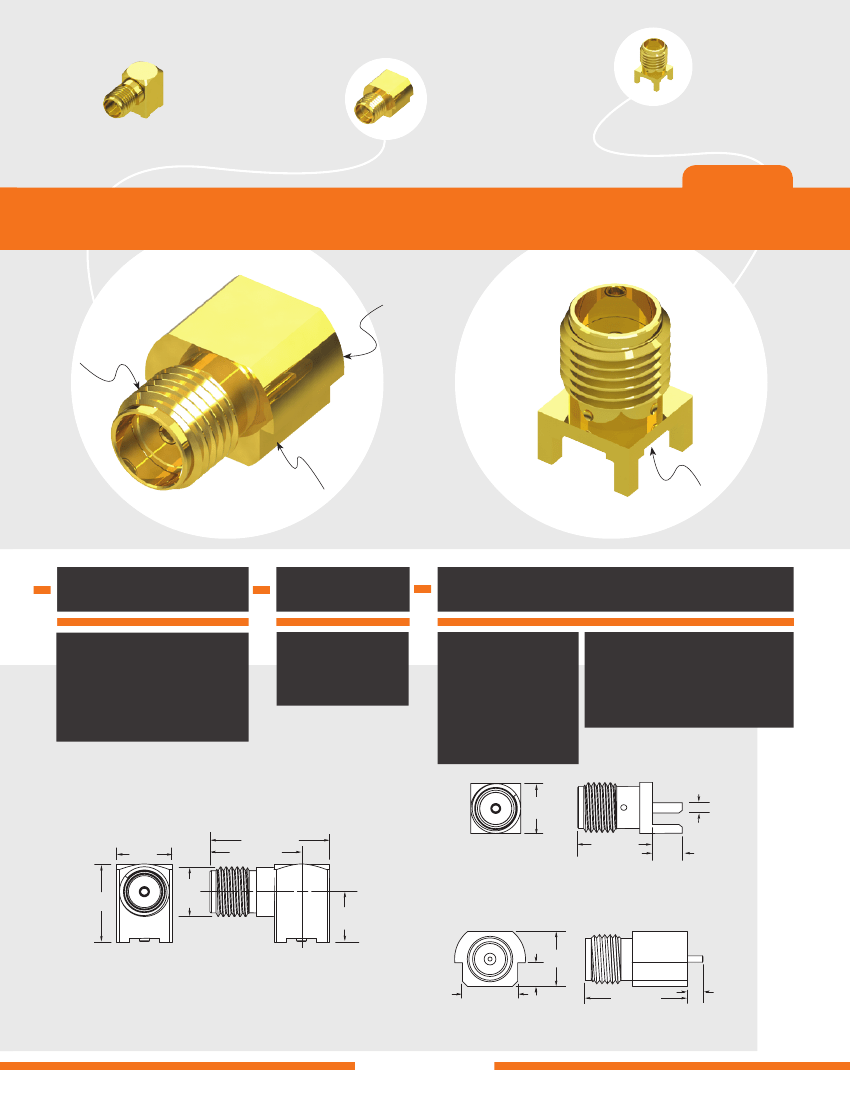

SMA–J–P–H–ST–EM3
SMA–J–P–H–ST–MT1
SMA–J–P–GF–RA–SM1
SMA SERIES
Standard or Drop-in
Edge Mount
Performance
up to 6 GHz
50
W
impedance
Mixed Technology
PLATING
ORIENTATION
TERMINATION
= 30 µ" (0.76 µm) Gold center contact,
3 µ" (0.08 µm) Gold outer contact
–H
= Straight
–ST
= Through-hole
= Surface Mount
(–GF–RA only)
= Edge Mount
(–ST only)
–TH1
= 10 µ" (0.25 µm) Gold center contact,
3 µ" (0.08 µm) Gold outer contact
(–SM1 only)
–GF
= Right-angle
–RA
–SM1
–EM1
= Drop-in Edge Mount
(–ST only)
= Mixed Technology
(–ST only)
–EM3
–MT1
(6.35)
.250
(15.10) .594
(7.00)
.276
(6.33)
.249
DIA
(6.36)
.250
(11.60) .457
(1.27)
.050
DIA
(9.52) .375
(3.81)
.150
–ST–EM1
(9.86)
.388
–RA–SM1
(7.00) .276
(7.00)
.276
(3.02)
.119
(13.00) .512
(2.00)
.079
–ST–EM3
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Samtec
:
SMA-J-P-H-RA-TH1 SMA-J-P-H-ST-TH1 SMA-J-P-H-ST-EM1 SMA-J-P-H-ST-PN4 SMA-J-P-GF-RA-SM1 SMA-J-
P-H-ST-EM3 SMA-J-P-H-ST-PN2 SMA-J-P-H-ST-MT1 SMA-P-C-H-RA-CA1 SMA-P-C-H-ST-CA1 SMA-P-C-HF-ST-
CA1S SMA-P-C-HF-ST-CA9 SMA-P-C-HF-RA-CA7 SMA-P-C-HF-ST-CA7 SMA-P-C-HF-RA-CA9 SMA-P-C-H-ST-
C10 SMA-J-C-H-ST-BH1 SMA-J-C-H-ST-BH2 SMA-J-C-H-ST-BH4 SMA-P-C-H-ST-CA5 SMA-J-C-H-ST-BR1 SMA-
P-P-H-ST-TH1 SMA-J-C-H-ST-BH3 SMA-J-C-H-ST-BH5 SMA-J-C4-H-ST-PN1 SMA-J-C-H-ST-SB3 SMA-J-C4-GF-
ST-PN1 SMA-J-C-H-ST-S10 SMA-J-C-GF-ST-S10 SMA-J-C-H-ST-SB1
