R5322N SERIES
120mA 2ch LDO REGULATORS
NO.EA-077-0606
OUTLINE

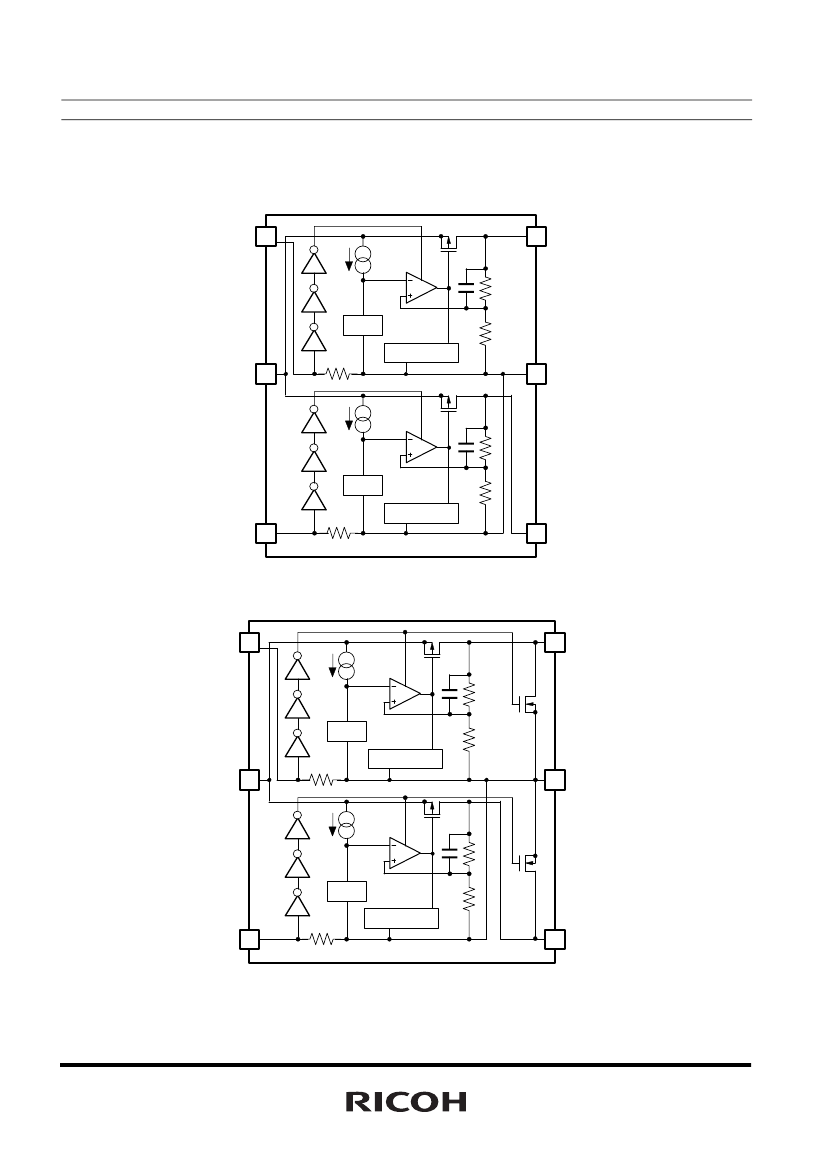

The R5322N Series are voltage regulator ICs with high output voltage accuracy, low supply current, low
dropout, and high ripple rejection by CMOS process. Each of these voltage regulator ICs consists of a voltage
reference unit, an error amplifier, resistors for setting Output Voltage, a current limit circuit, and a chip enable
circuit.
These ICs perform with low dropout voltage due to built-in transistor with low ON resistance, and a chip enable
function and prolong the battery life of each system. The line transient response and load transient response of
the R5322N Series are excellent, thus these ICs are very suitable for the power supply for hand-held
communication equipment.
The output voltage of these ICs is internally fixed with high accuracy. Since the package for these ICs is
SOT-23-6W package, and include 2ch LDO regulators each, high density mounting of the ICs on boards is
possible.
FEATURES
•
•
•
•
•
•
•
•
•
•
•
Ultra-Low Supply Current.............................................. Typ. 75µA (VR1, VR2)
Standby Current ............................................................ Typ. 0.1µA (VR1, VR2)
Output Voltage ..............................................................1.5V to 4.0V
Low Dropout Voltage..................................................... Typ. 0.15V (I
OUT
=100mA
,V
OUT
=3.0V)
High Ripple Rejection ................................................... Typ. 75dB (f=1kHz)
High Output Voltage Accuracy ......................................±2.0%
Low Temperature-Drift Coefficient of Output Voltage.... Typ.
±100ppm/°C
Excellent Line Regulation ............................................. Typ.0.05%/V
Small Packages .......................................................... SOT-23-6W
Built-in chip enable circuit (A/B: active high)
Built-in fold-back protection circuit ................................ Typ. 40mA (Current at short mode)
APPLICATIONS
•
Power source for cellular phones such as GSM, CDMA and various kinds of PCS.
•
Power source for electrical appliances such as cameras, VCRs and camcorders.
•
Power source for battery-powered equipment.
1
R5322N
SELECTION GUIDE
The output voltage, mask option, and the taping type for the ICs can be selected at the user’s request.
The selection can be made with designating the part number as shown below;
R5322Nxxxx-xx-x
←
Part Number
↑ ↑ ↑ ↑
a b c d
Code
Contents
a
b
c
d
Setting combination of 2ch Output Voltage (V
OUT
) :
Serial Number for Voltage Setting, Stepwise setting with a step of 0.1V in the range of
1.5V to 4.0V is possible for each channel.
Designation of Mask Option :
A Version: without auto discharge function at OFF state.
B Version: with auto discharge function at OFF state.
Designation of Taping Type :
Ex. TR (refer to Taping Specifications; TR type is the standard direction.)
Designation of Composition of pin plating.
-F : Lead free plating
3
