ETMM-120-02-L-D-SM-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> ETMM-120-02-L-D-SM-K-TR

ETMM-120-02-L-D-SM-K-TR: Description2.00 mm Shrouded Terminal Strip For TCSD With Strain Relief; CategoryThe connector The connector; File Size783KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ETMM-120-02-L-D-SM-K-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ETMM-120-02-L-D-SM-K-TR	-	-	View	Buy Now

ETMM-120-02-L-D-SM-K-TR Overview

2.00 mm Shrouded Terminal Strip For TCSD With Strain Relief

ETMM-120-02-L-D-SM-K-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	unknown
Factory Lead Time	2 weeks
Connector type	BOARD CONNECTOR
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3

Preview

Download Datasheet

View All

F-219

ETMM–108–02–F–D–TH–LC

ETMM–112–02–F–D–RA

ETMM–125–02–L–D–SM–K

(2.00 mm) .0787"

ETMM SERIES

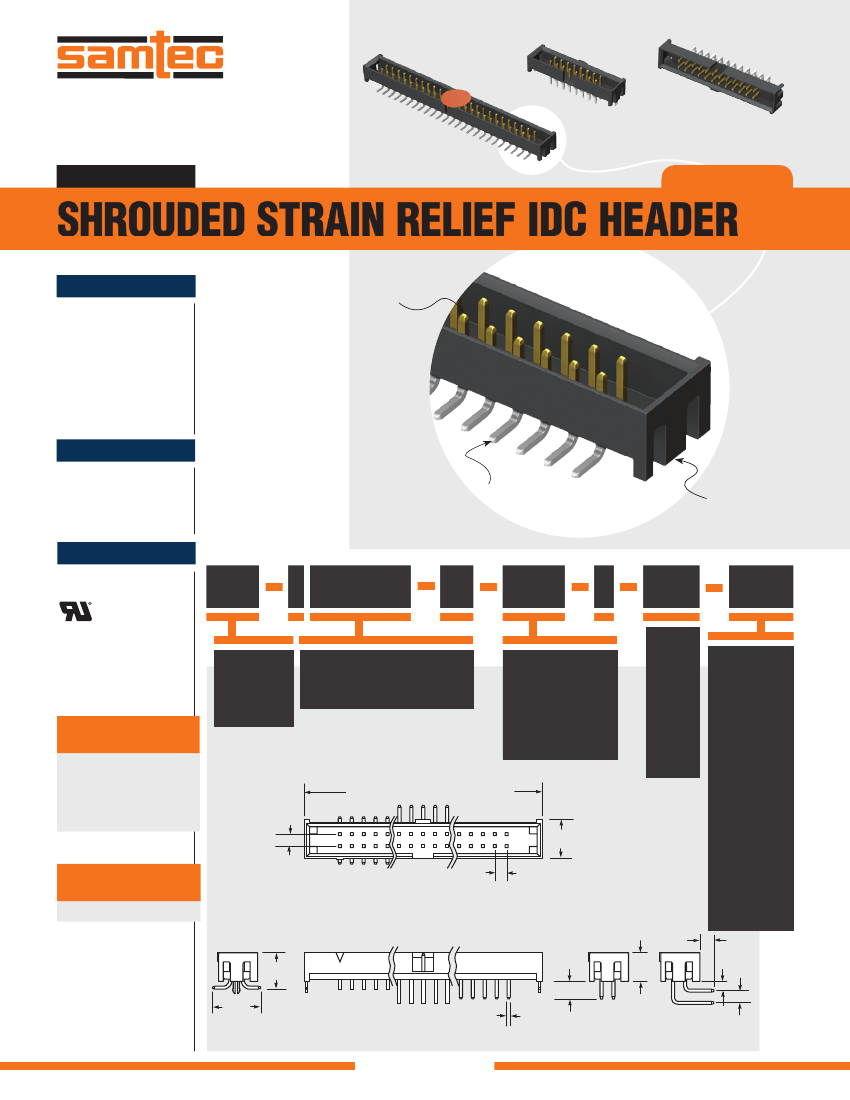

SHROUDED STRAIN RELIEF IDC HEADER

SPECIFICATIONS

For complete specifications

see www.samtec.com?ETMM

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

TCSD, TCMD

Shrouded pins

for protection

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.13 mm) .005" max*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

Surface Mount,

Through-hole and

Right-angle

Optional

Locking clips

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

TYPE

STRIP

NO. OF

POSITIONS

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

= Mates with

TCSD and

TCMD with

Strain Relief

ETMM

05, 08, 10, 12, 13,

15, 17, 20, 22, 25

(Standard sizes)

= Gold Flash on post,

Matte Tin on tail

–F

–L

=Through-

hole

–TH

–RA

= Polarized

Position

–“XX”

–LC

OTHER

SOLUTIONS

• TCSD mates without

Strain Relief.

See STMM Series

• Shrouded header for

mating with Connector Strips.

See LTMM Series

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

= Right

-angle

= Surface

Mount

–SM

= Locking Clip

(Not available

for –RA)

(Manual

placement

required)

No. of positions x (2.00) .0787 + (9.97) .393

02 04

(6.54)

.257

= Tape &

Reel Packaging

(–SM only)

–TR

–K

ALSO AVAILABLE

(MOQ Required)

• Other sizes

(2.00)

.0787

SURFACE

MOUNT

01 03

RIGHT-

ANGLE

(2.00)

.0787

THROUGH-

HOLE

= (7.50 mm)

.295" DIA

Polyimide Film

Pick & Place Pad

(–SM only)

(2.29)

.090

(6.10)

.240

(8.00)

.315

(2.97)

.117

(0.50)

.020 SQ

(4.83)

.190

(2.00)

.0787

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

–SM

–TH

–RA

(1.52)

.060

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
